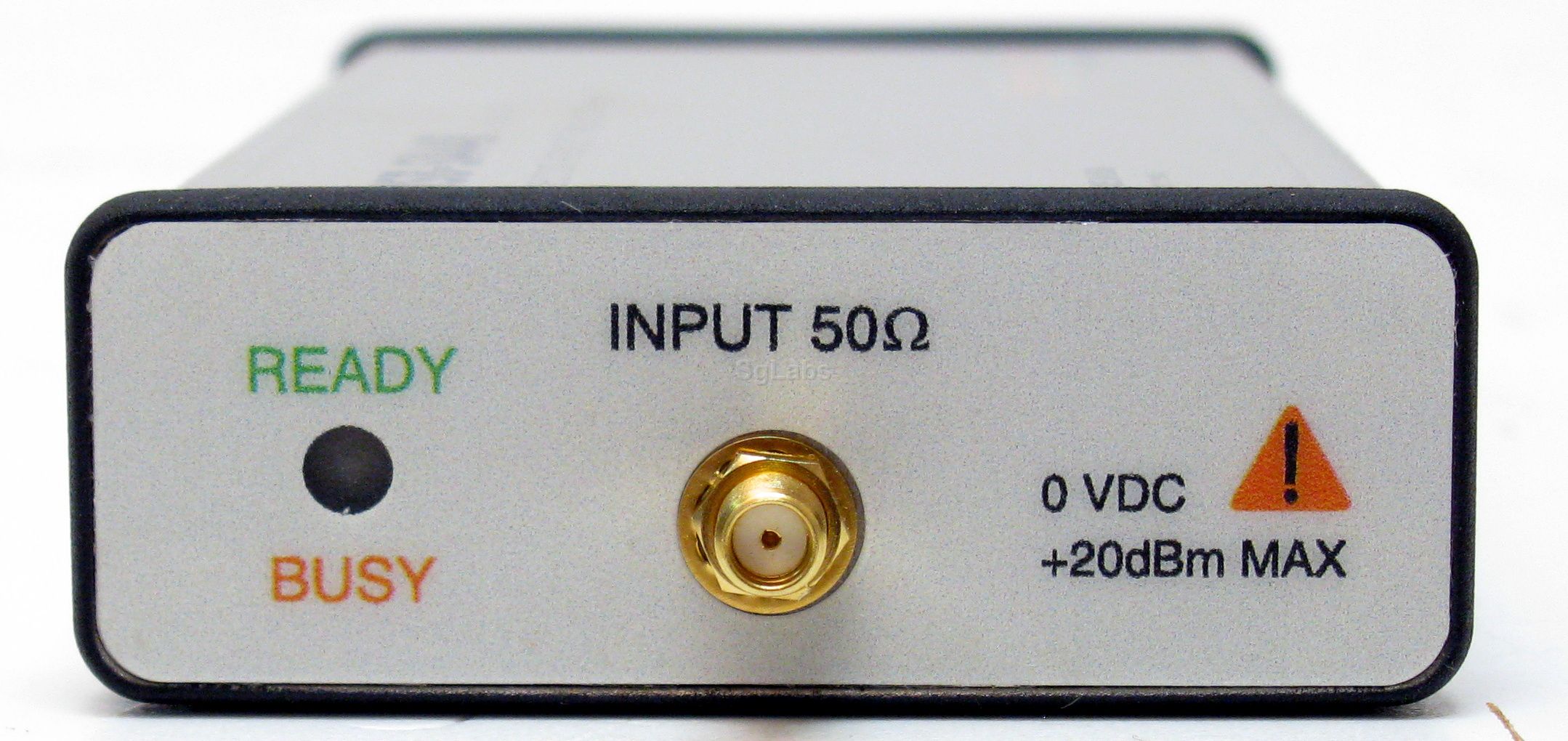

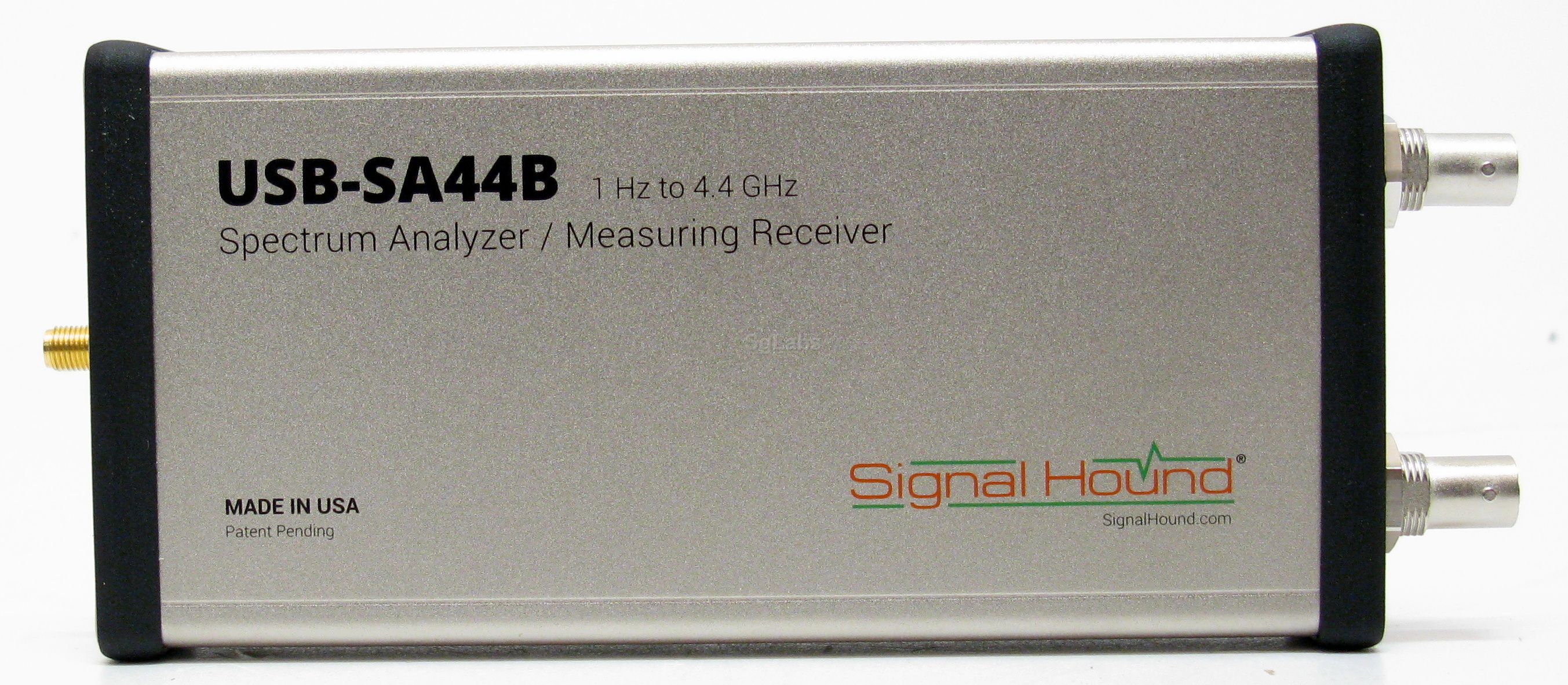

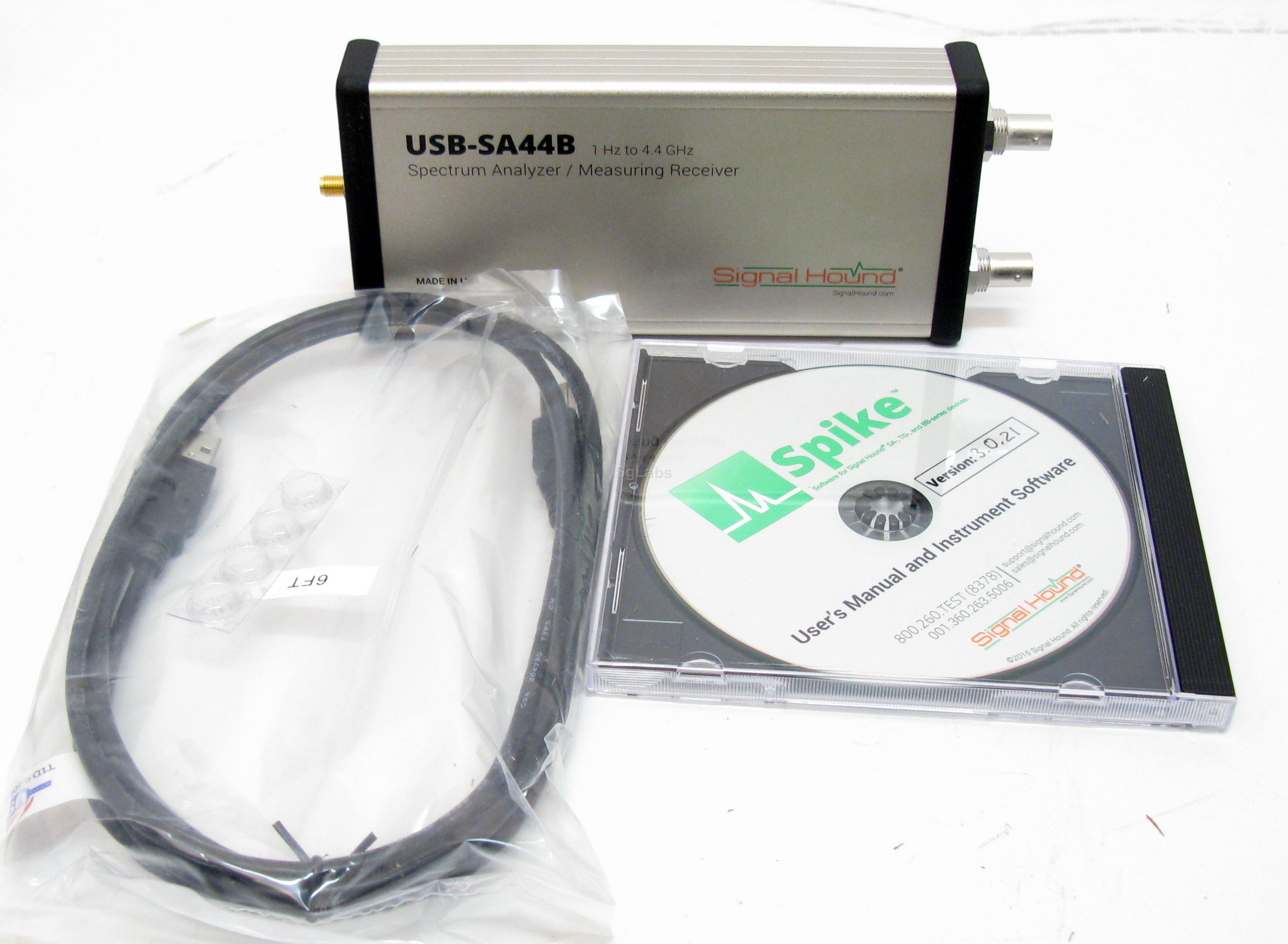

Signal Hound, USB-SA44B
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Signal Hound USB-SA44B spectrum analyzer and measurement receiver is compact and simple to use. It has become a popular tool for general lab use, electronic repair technicians, engineering students, ham radio enthusiasts, and electronics hobbyists alike. Although it is small and affordable, the USB-SA44B has the sensitivity, accuracy and dynamic range you’d expect in a unit many times its cost.


The USB-SA44B has a preamplifier for improved sensitivity and reduced LO leakage. There is also a thermometer for temperature corrections, allowing accurate amplitude measurements over the entire operating temperature range.

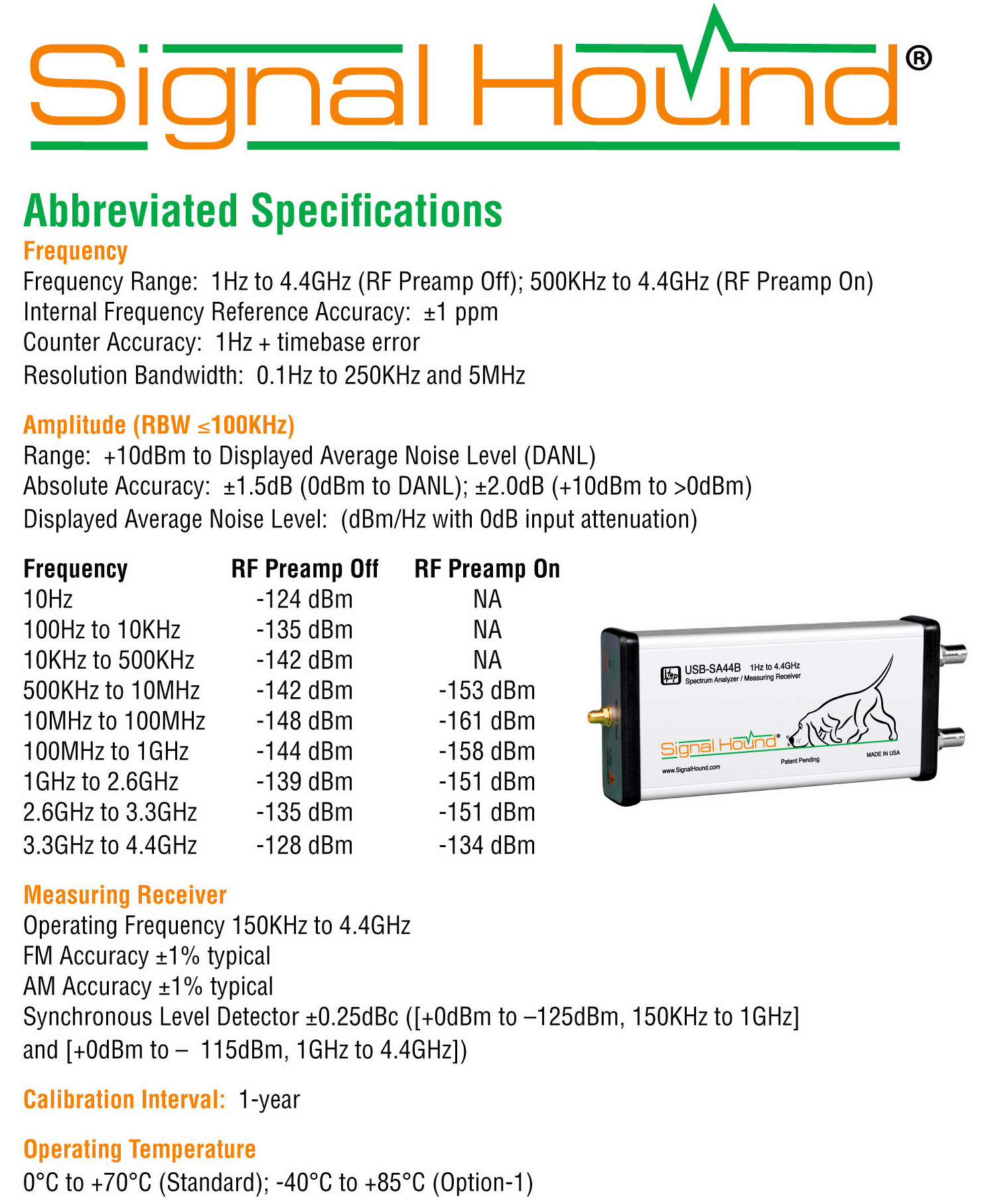

Technical details :

  • Frequency range 1 Hz to 4,4 GHz
    • Low noise amplifier available above 500 KHz
  • Range RBW 0.1 Hz to 5 MHz
  • Wide dynamic range: -151 dBm to +10 dBm
  • RF Preamplifier (Everage noise level from 11 to 16 dB lower)
  • AM and FM Demodulation Measurements
  • Demodulates AM/FM/SSB/CW audio in real-time
  • High Dynamic Range Measuring Receiver
  • USB 2.0 communications at 480 MBPS
  • No external power supply needed - draws power from USB
  • Compatible with Windows operating systems (Windows XP or newer recommended)



RADCOM (Radio Society of Great Bretain 2011) review

  • Demodulator: Demodulates AM/FM/SSB/CW audio in real-time
  • Display: Connected with USB cable to PC
  • Max. Frequency: 4.4 GHz
  • Min. Frequency: 1 Hz
  • Max. Level: 10 dBm
  • Min. Level: -151 dBm
  • Tracking generator: Option TG44A
Price
 € 999,00
