Amplifier Research, 1W1000

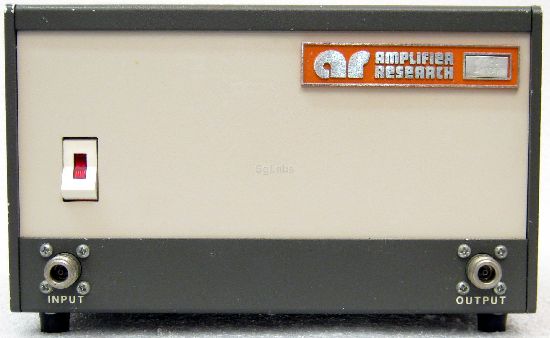

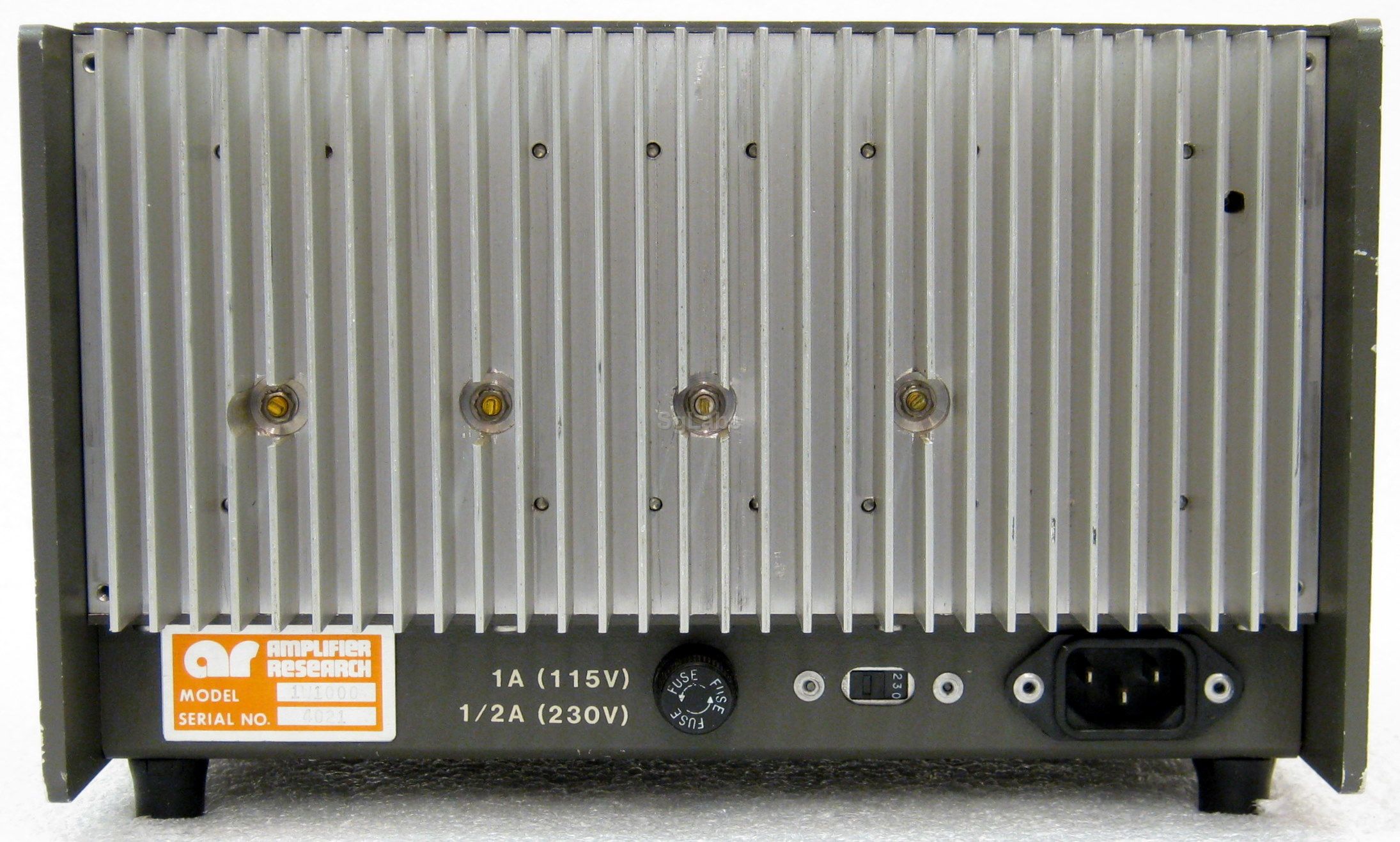

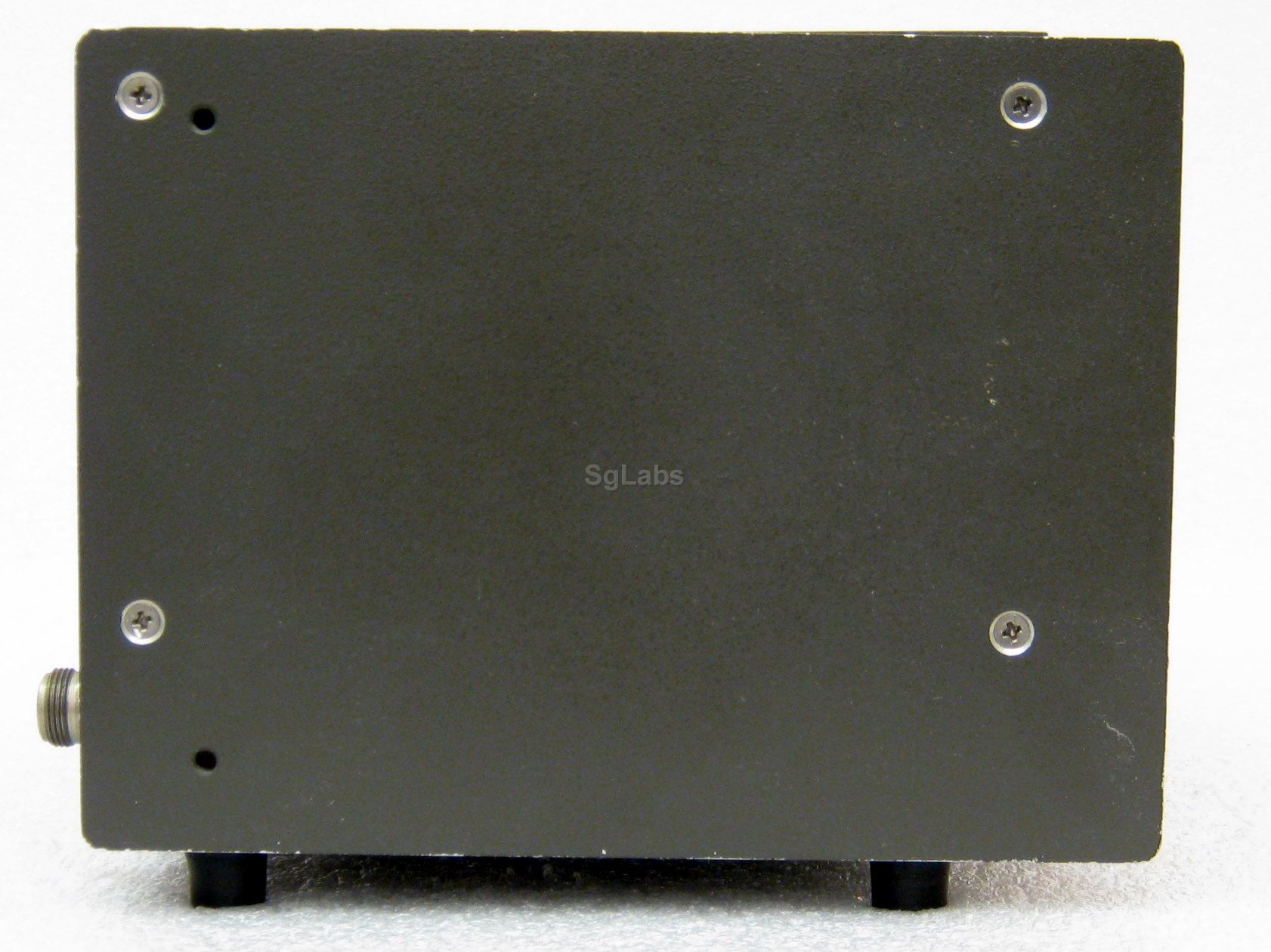

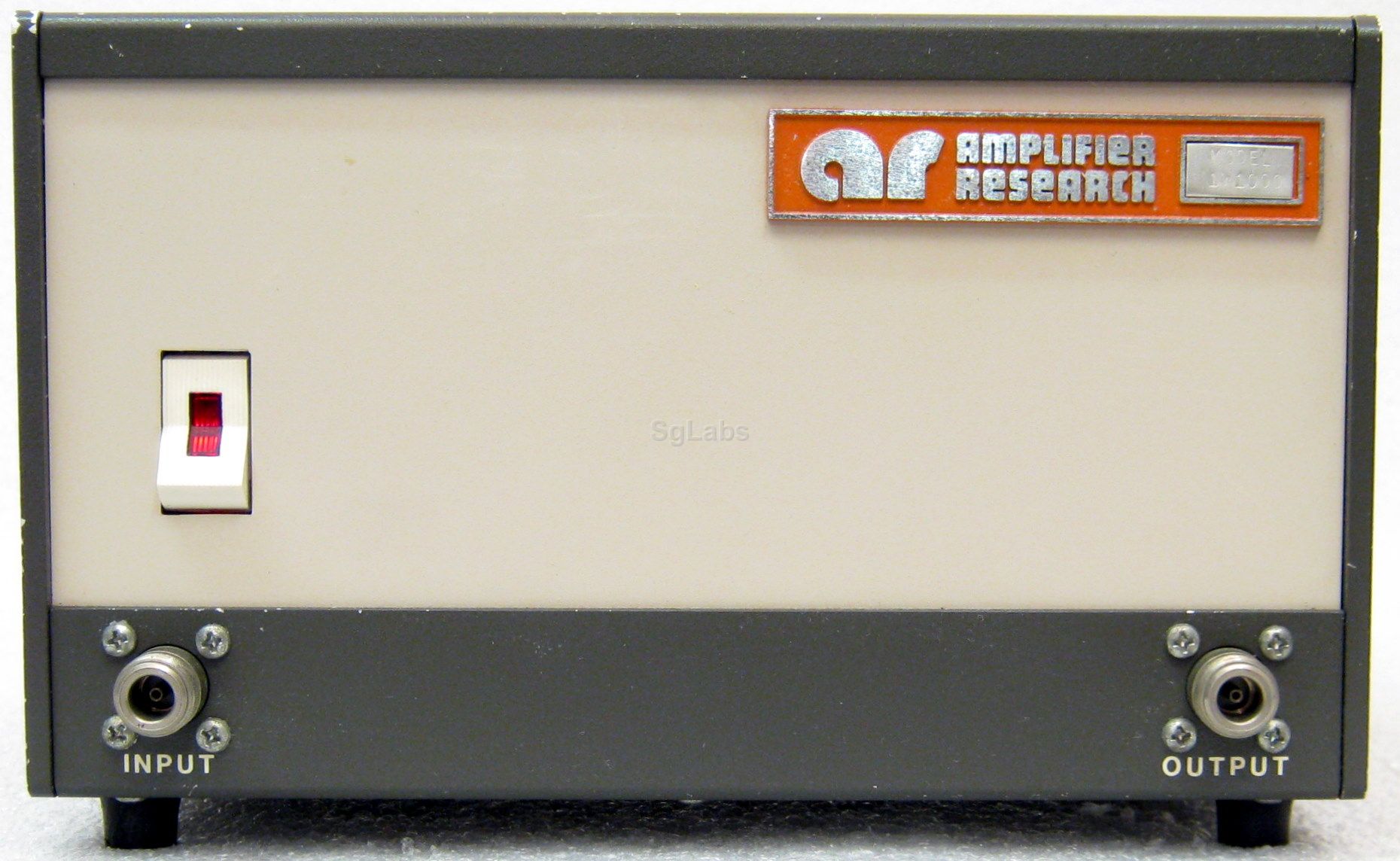

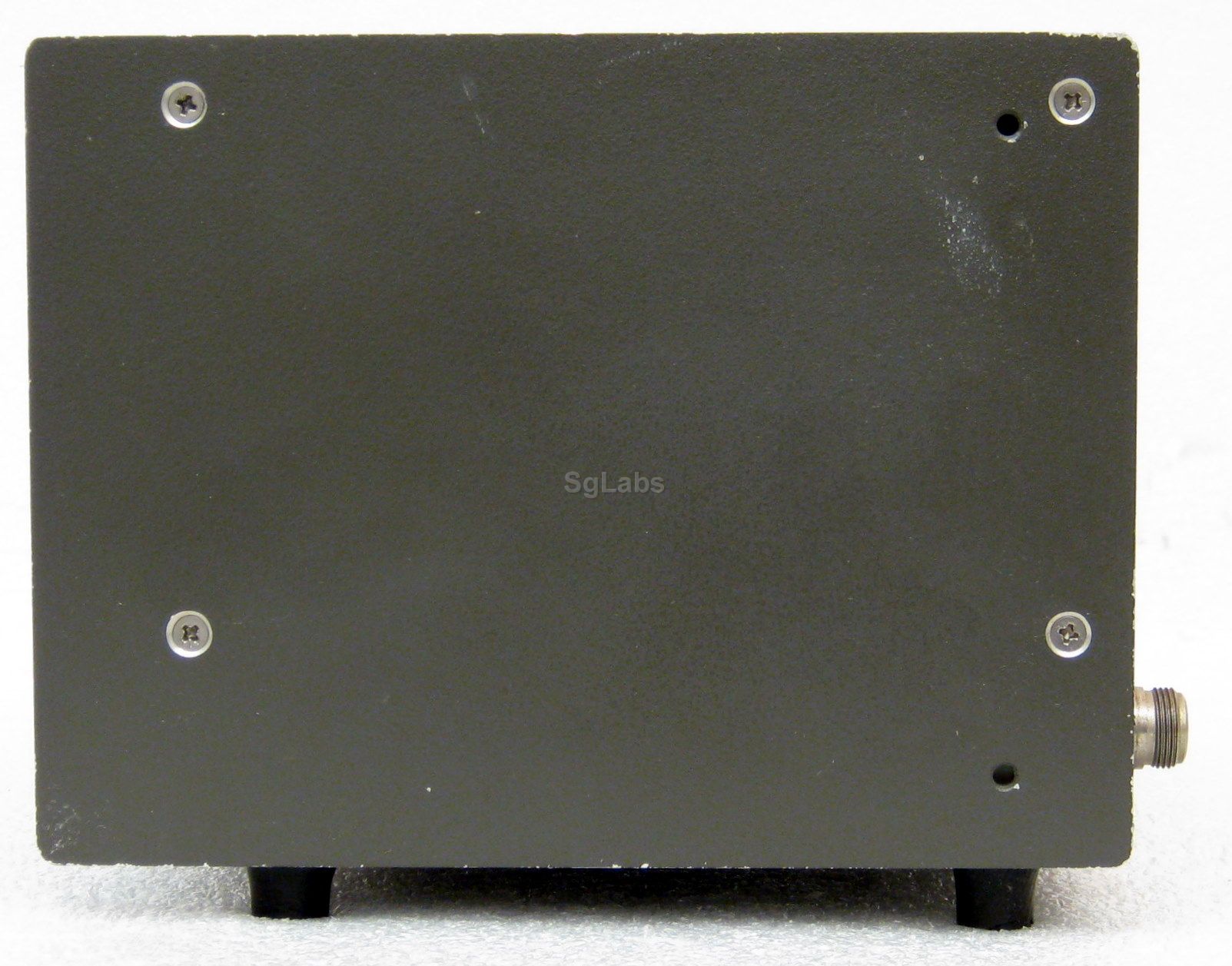

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Amplifier Research 1W1000 Amplifier is a solid-state, self contained, air cooled, broadband amplifier designed for applications requireing instantaneous bandwidth and high gain. The AR 1W1000, when used with an RF sweep generator, will provide a minimum of 1 watt of swept power. The Amplifier Research 1W1000 provides readily available RF power for typical applications such as RF susceptibility testing, antenna and component testing, watt meter calibration and as a driver for frequency multipliers and high power amplifiers.

--Technical details :

  • Frequency range 100 kHz to 1000 MHz
  • Output Power 1 to 2 W
  • Power gain 30 dB minimum
  • Modulation capability: AM, FM and Pulse
  • Flatness: 0.5 dB typical, 1 dB maximum


  • Max. Frequency: 1000 MHz
  • Min. Frequency: 100 kHz
  • Gain: > 30dB
  • Max. power: 2 W
