HP Agilent Keysight, E4406A

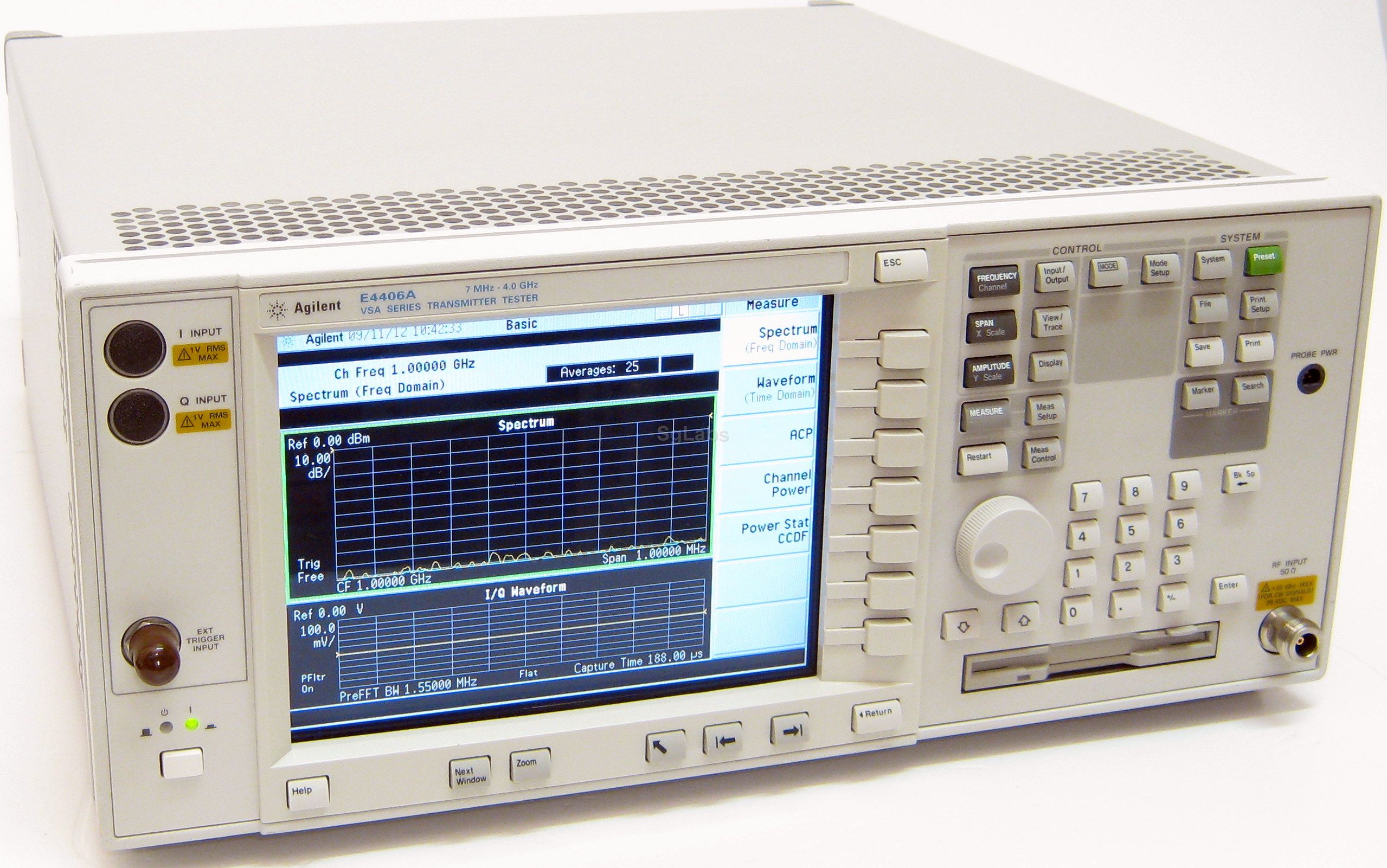

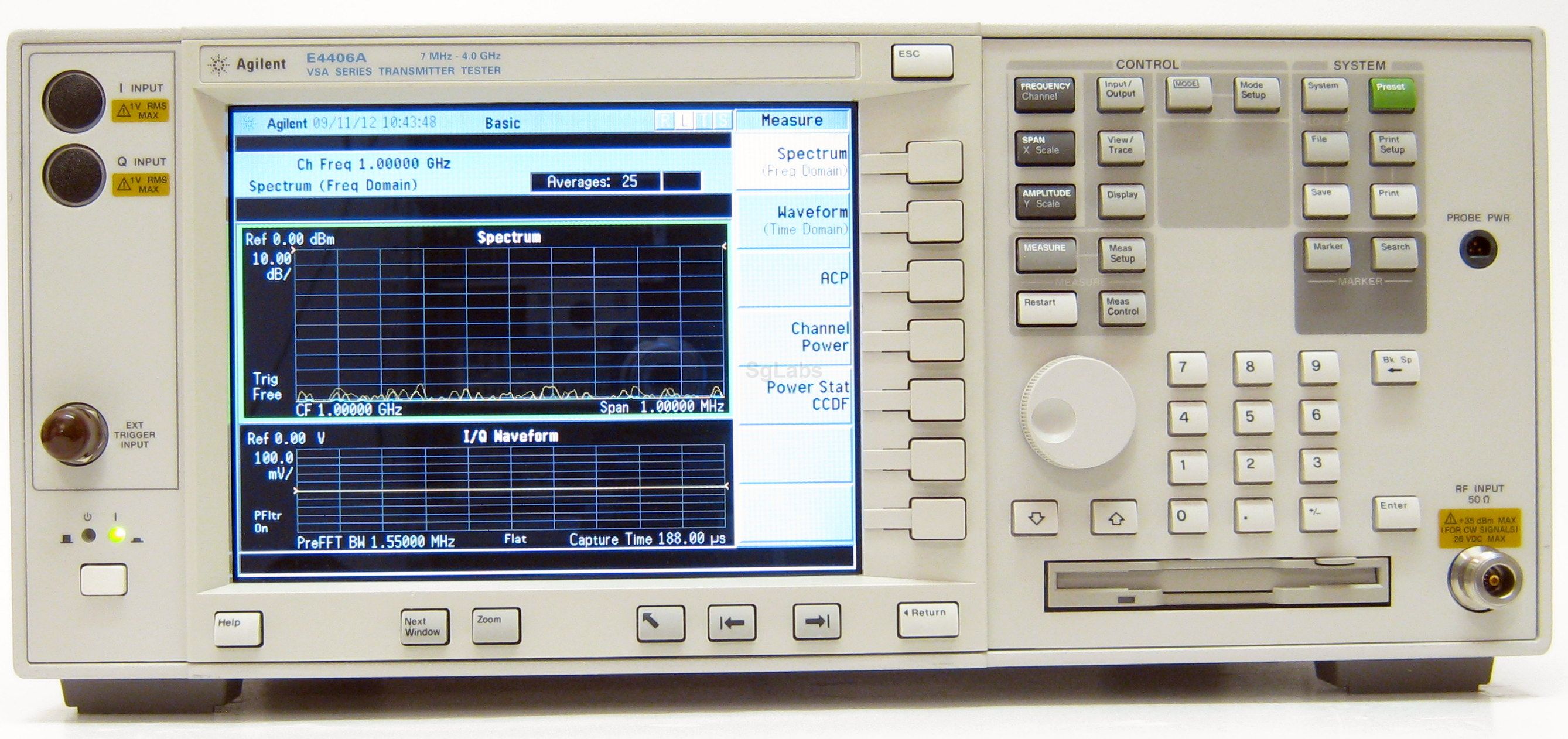

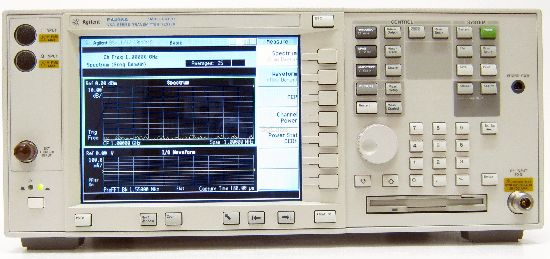

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The E4406A VSA transmitter tester is a full-featured vector signal analyzer suited for base station and mobile handset manufacturing, with additional applications for design and development of wireless equipment. The E4406A VSA offers various power measurements for multiple 2G, 2.5G, 3G, and 3.5G wireless communications formats with powerful one-button standard-based modulation analysis. The affordable price makes it well suited for volume production. Extensive one-button measurement personalities, and optional baseband IQ input provide unparalleled convenience for research and development applications.

The E4406A VSA is easy to use regardless of your level of expertise. Measurements are accessible at the touch of a button and are easily configured with the simple, straightforward menu structure. The VSA comes standard with the following measurement capabilities: spectrum (frequency domain) analysis, waveform (time domain) analysis, adjacent channel power (ACP), complimentary cumulative distribution function (CCDF), channel power, and occupied bandwidth. Agilent continues to maintain the E4406A features by providing free enhancements and upgrades to firmware and measurement personalities at free-of-charge.


Technical details:

  • Frequency range : 7 to 314 MHz and 329 MHz to 4 GHz (500 kHz - 4.325 GHz Tested)
  • Baseband IQ Inputs: 0 Hz to 5 MHz (optional)
  • Frequency Span: 5 Hz to 10 MHz (100 MHz with WCDMA Option BAF)
  • Max RF Input power: +30 dBm
  • Baseband IQ inputs: -5 to +13dBm (optional)
  • Max. Frequency: 4 GHz (4.325 GHz)
  • Min. Frequency: 7 MHz (500 kHz)
  • Max. Level: +30 dBm
  • Min. Resolution: 1 Hz
