Advantest, R5372P

You are here: Frequency Counter » > 18 GHz

Advantest, R5372P
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

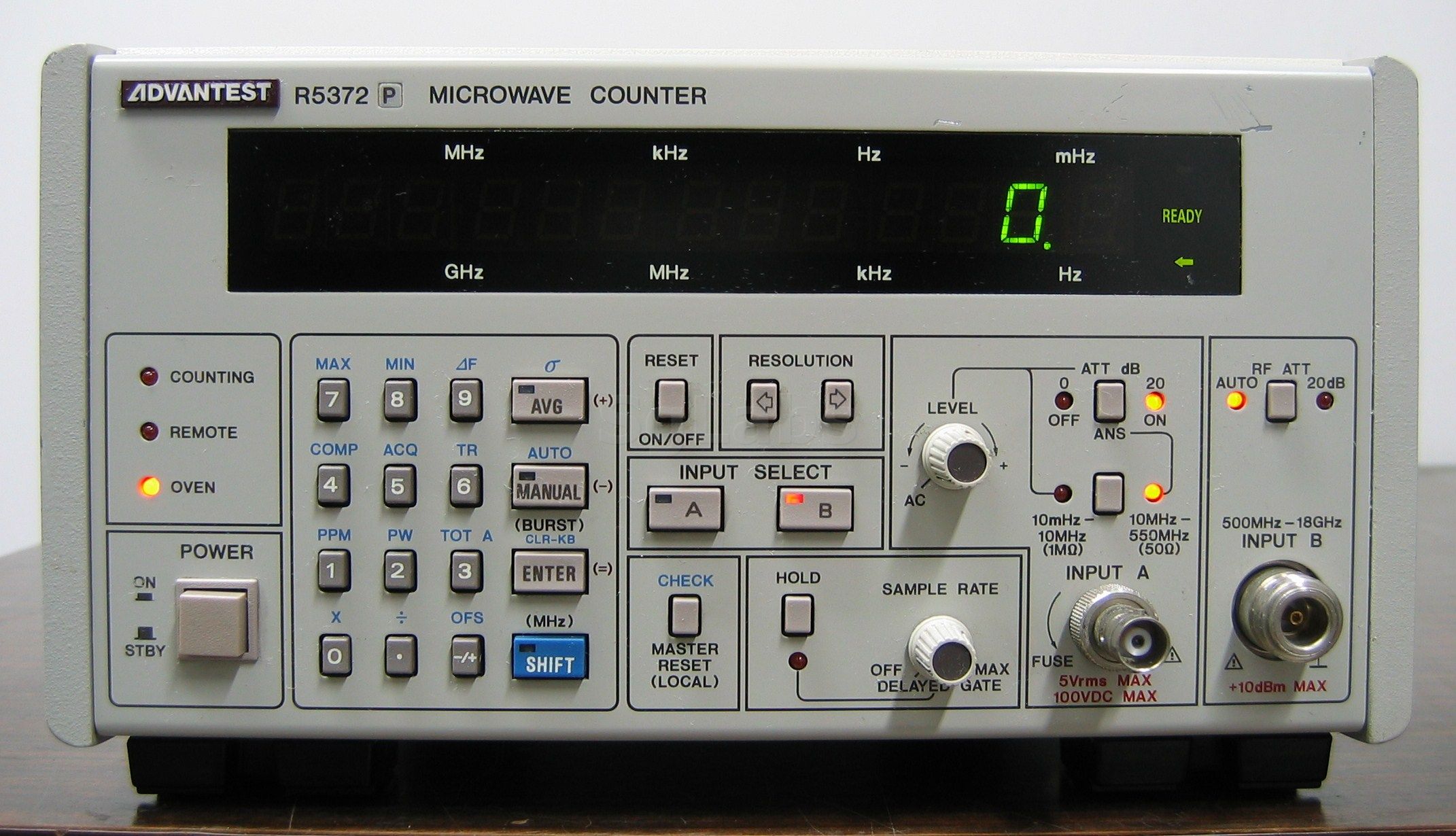

The microwave frequency counter ADVANTEST R5372is ideal for evaluating mobile radio communications devices and circuits, and are also able to measure the carrier frequency and pulse width of burst signals.In addition to displaying measurements results on a 12- digits LCD.
Technical details :

  • Frequency range 10 mHZ to 18 GHz
  • Resolution12 digit
  • Connector N-type e BNC-type
  • Resolution / counting time :10 MHz/0.1 µs to 0.1 Hz/10 s switched in decade steps
  • GP-IB
  • Tested in laboratory up to 26 GHz
  • Max. Frequency: 18 Ghz, tested up to 26 GHz
  • Min. Frequency: 10 mHz
  • Channels: 2
  • Resolution: 100 mHz
