Advantest, R3767CH

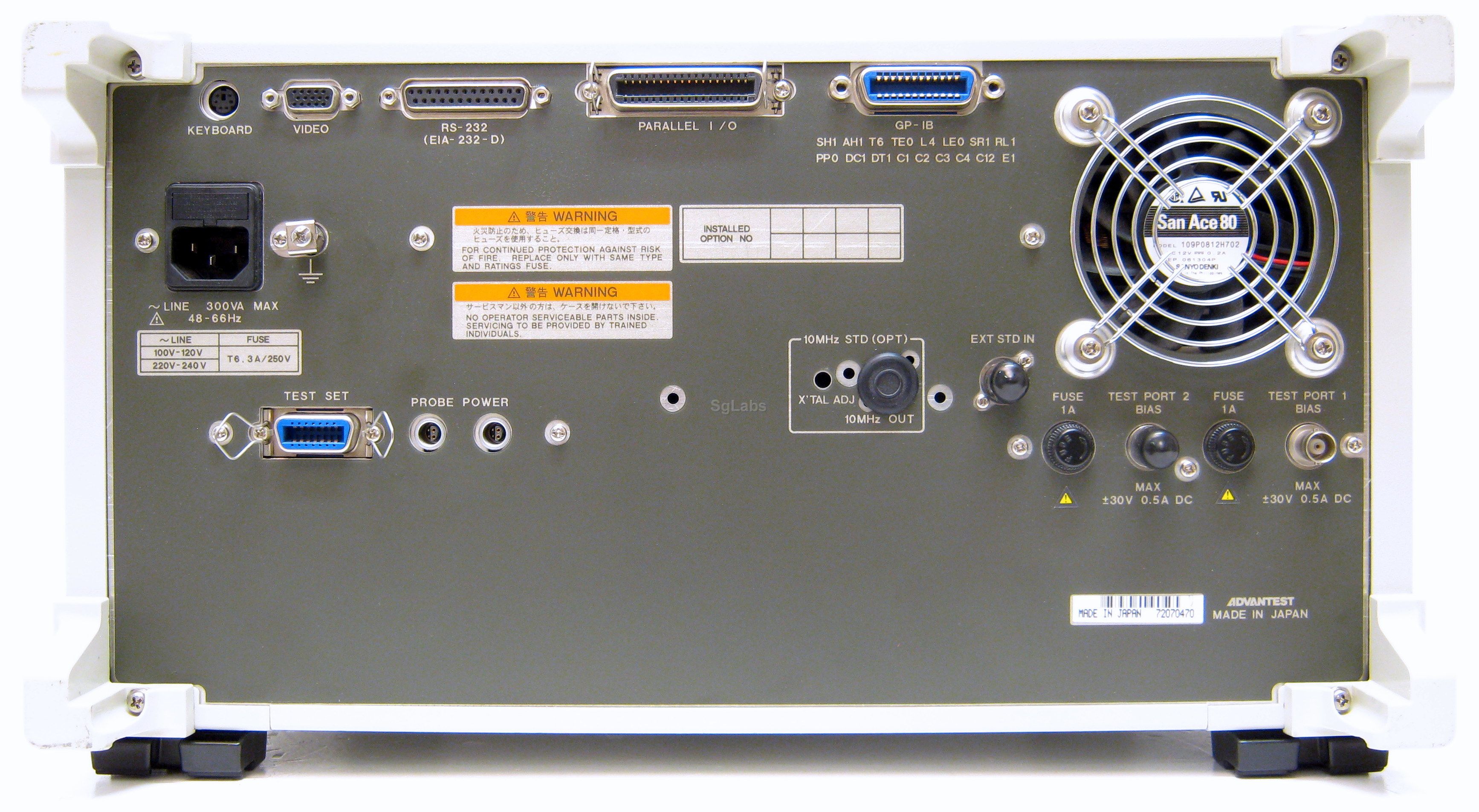

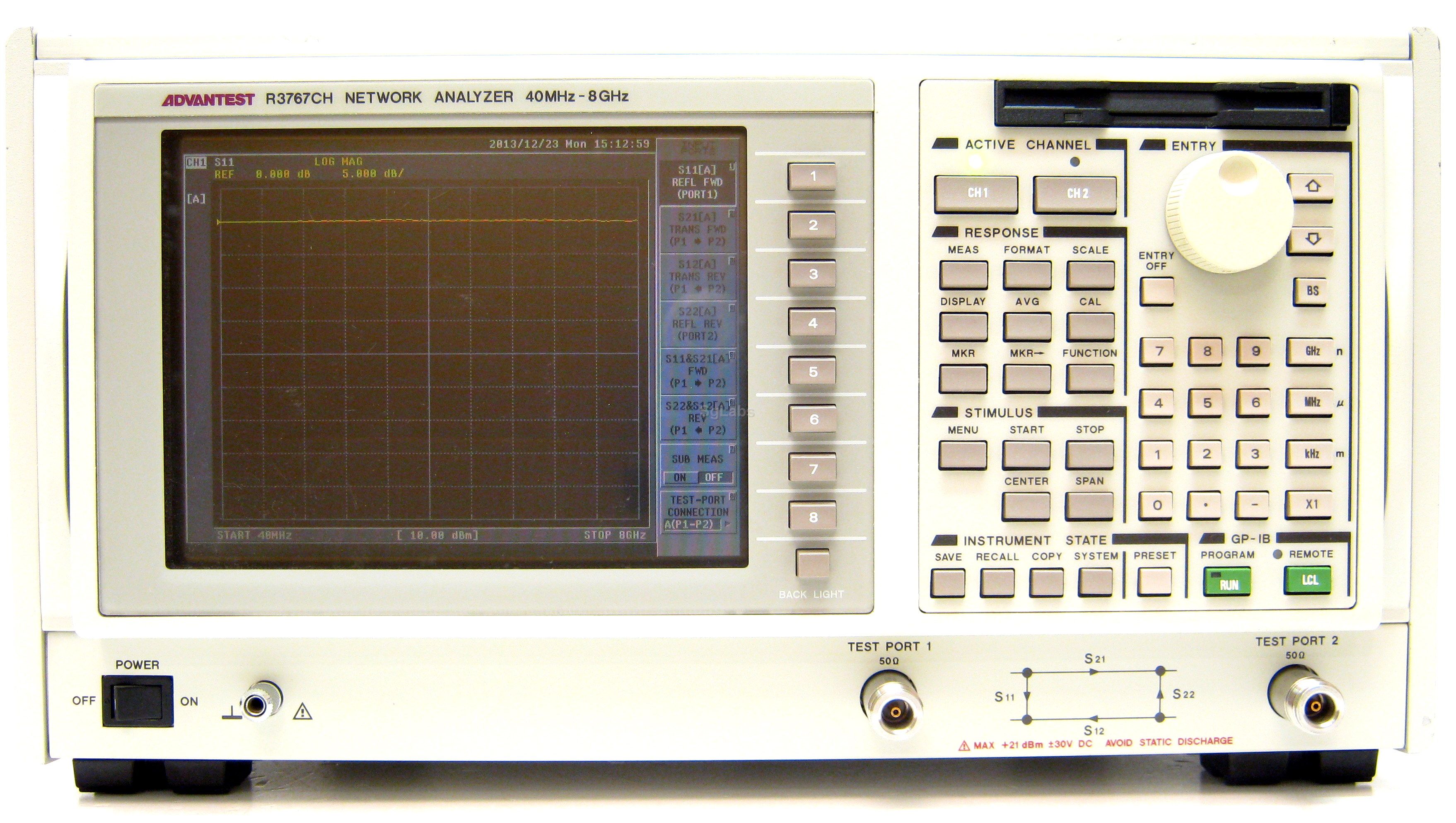

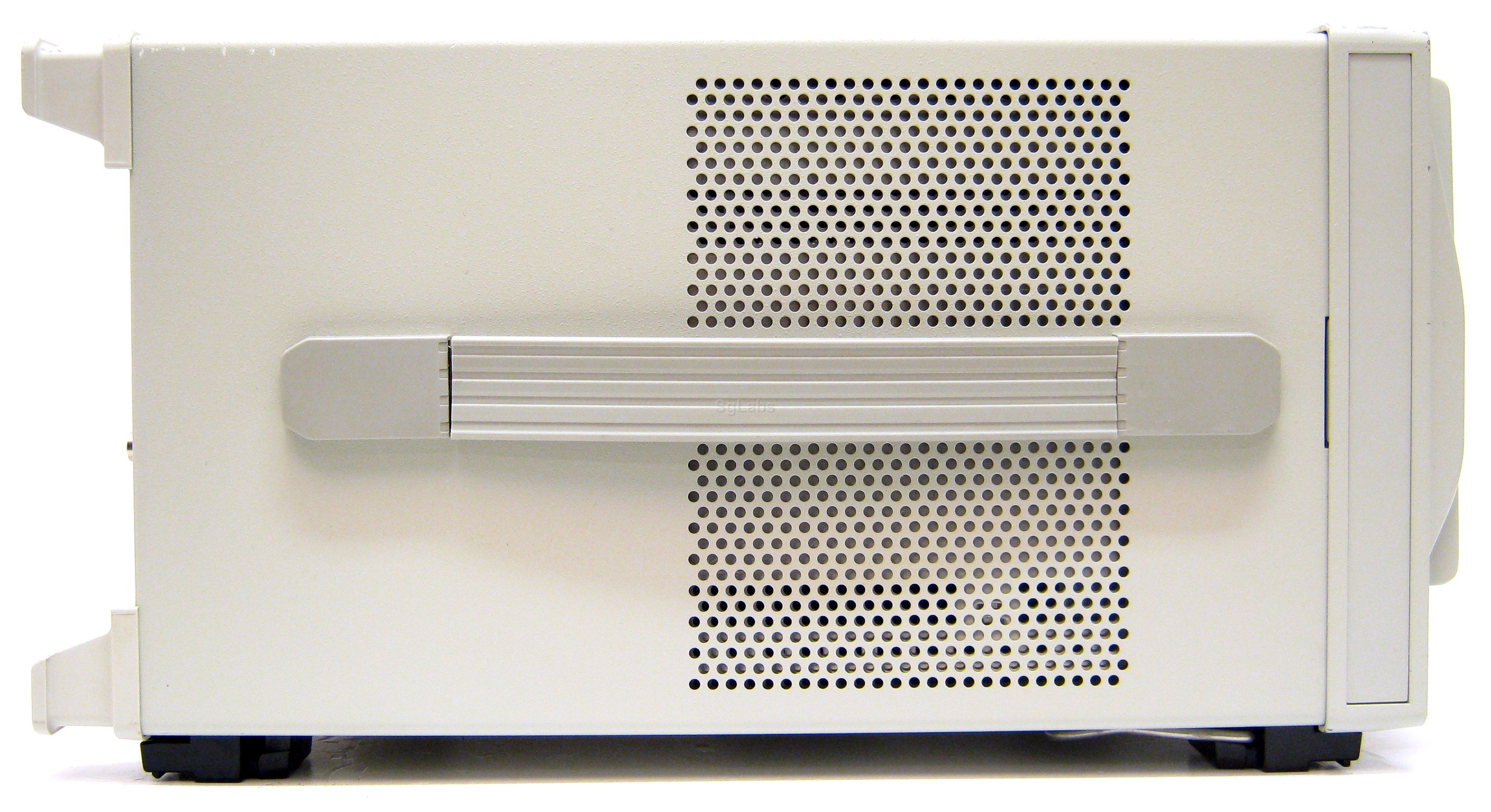

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Advantest R3767CH is a vector network analyzer which can measure amplitude, phase, group delay time and impedance of high-frequency electronic devices.

The R3767CH includes a built in S-Parameter test set and the measurement frequency ranges from 40 MHz to 8 GHz.

The use of newly developed high-speed signal processing architecture realizes high speed measurement of 0.15ms / point (at normalized calibration) or 0.25ms / point (at 2-port full calibration) with 10 kHz resolution bandwidth.

The full color TFT screen of the R3767CH is perfect for production engineering
  • Minimum Frequency: 40 MHz
  • Maximum Frequency: 8 GHz
  • Frequency Resolution: 1 Hz
  • Frequency Accuracy: 0.002 %
  • Maximum Output Power: 10 mW
  • 2 Channels
  • Output Impedance: 50 Ohm
  • Maximum Dynamic Range: 100 dB
  • Minimum Displayed Average Noise: -100 dBm
  • Maximum Input Decibel: 15 dBm
  • GPIB
  • Color Display
  • Connector: N
  • Max. Frequency: 8 GHz
  • Min. Frequency: 40 MHz
  • Channels: 2
  • Source: internal
  • Test set: S-parameter integrated
  • Interface: GPIB
