Advantest R3765CH Vector Network Analyzer VNA 3.8 GHz
You are here: Network Analyzer » Vector
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

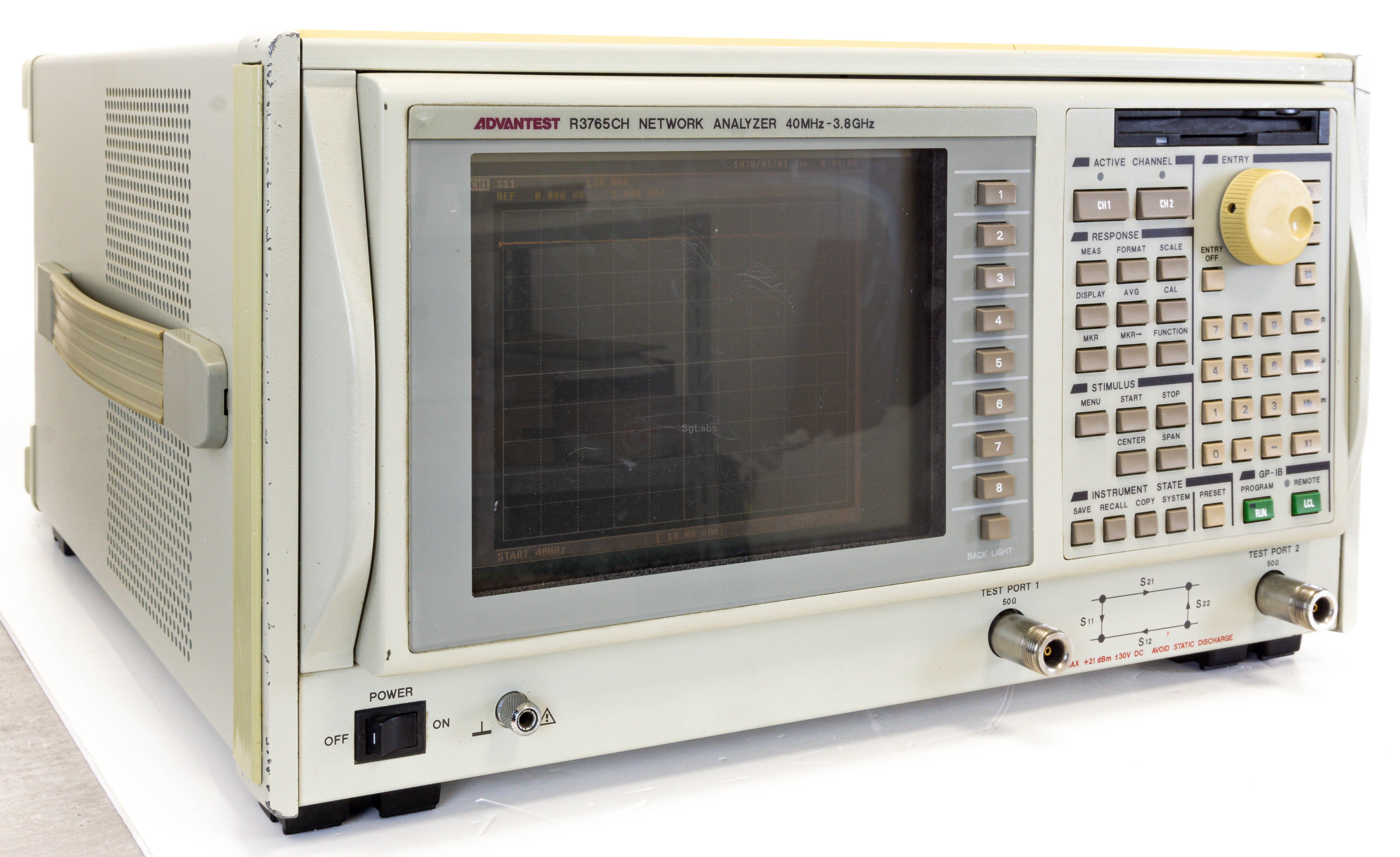

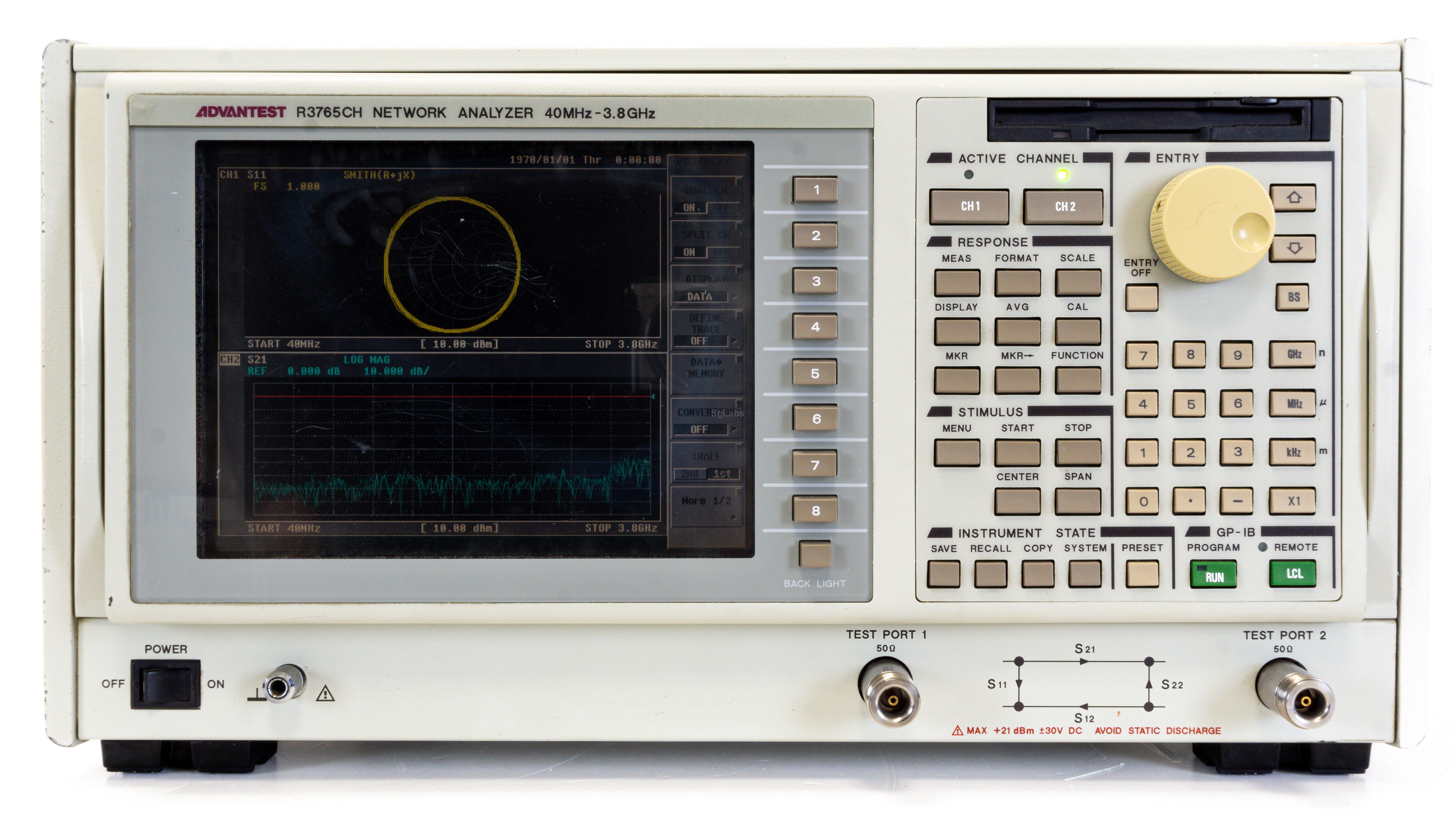

The R3765CH is a 3.8 GHz Network Analyzer from Advantest. A network analyzer is a powerful instrument that measures linear characteristics of radio frequency devices with unparalleled accuracy. A range of industries use network analyzers to test equipment, measure materials, and monitor the integrity of signals.
Features
- 40 MHz - 3.8 GHz, built-in S-param, Network Analyzer
- S-parameter test set
- 4-chan/8-trace
- Disp clr (256 clr)
- Hi-swp: 0.15ms/pt
- BASIC prog mem (1MB)
- Save reg cap (2MB)
- Faster BASIC proc spd
- Limit lines
- CDMA IF filter anal func
- Wide Dynamic Range: 100dB
- Output Accuracy : 0.5dB
- Connector: Nf
- Max. Frequency: 3.8 GHz
- Min. Frequency: 40 MHz
- Channels: 4
- Source: internal
- Test set: S-parameter
