Advantest, R3765CG

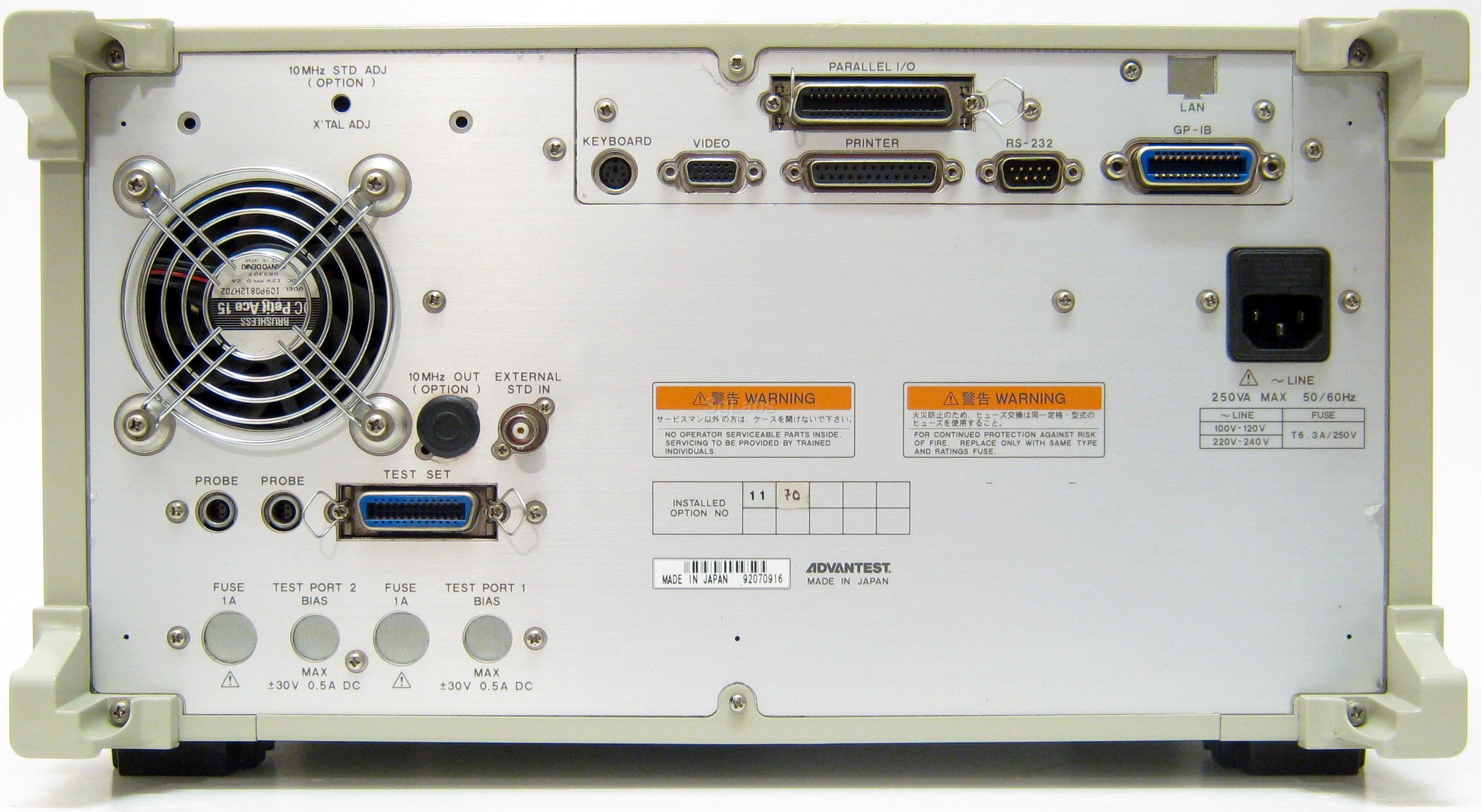

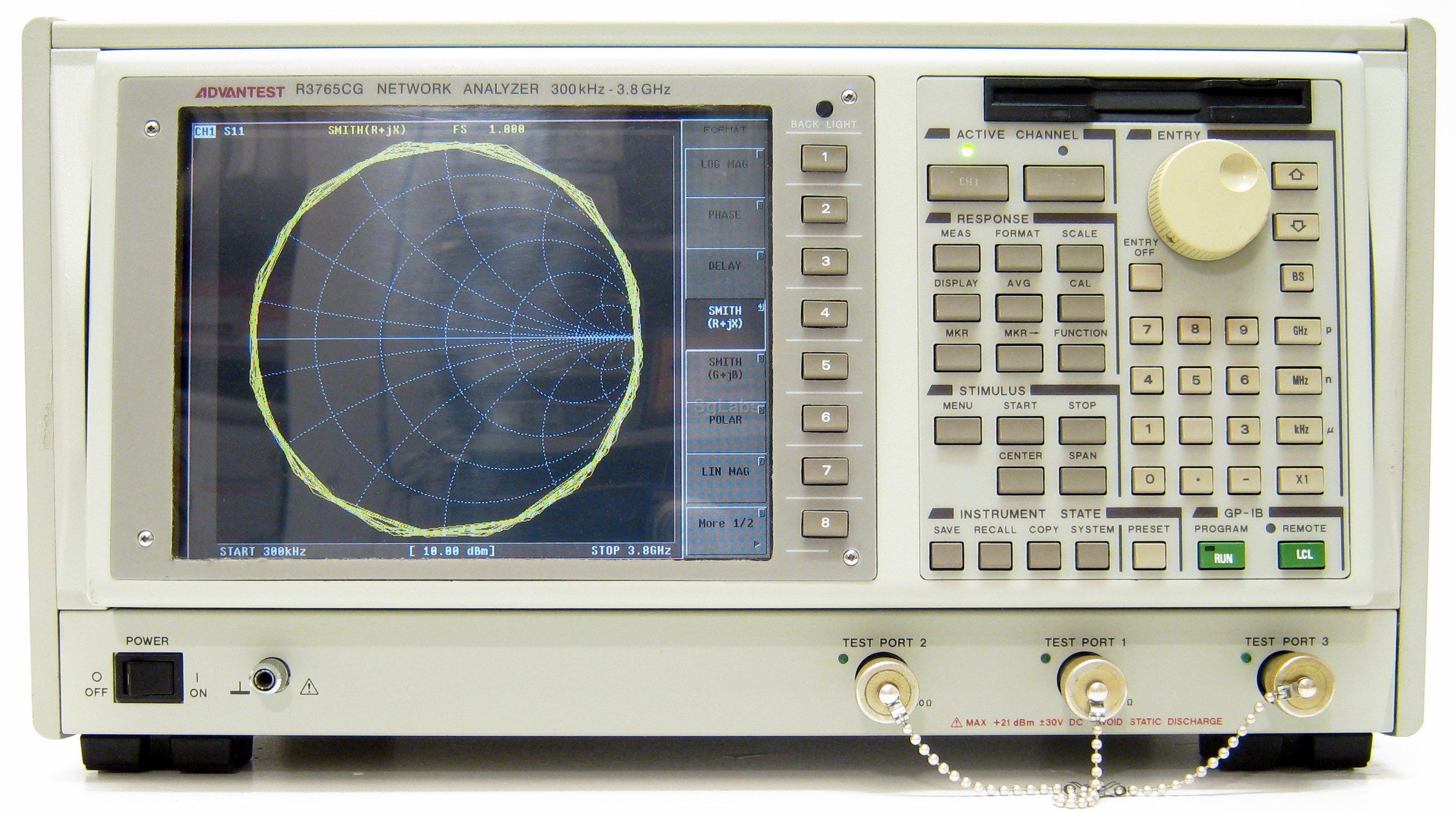

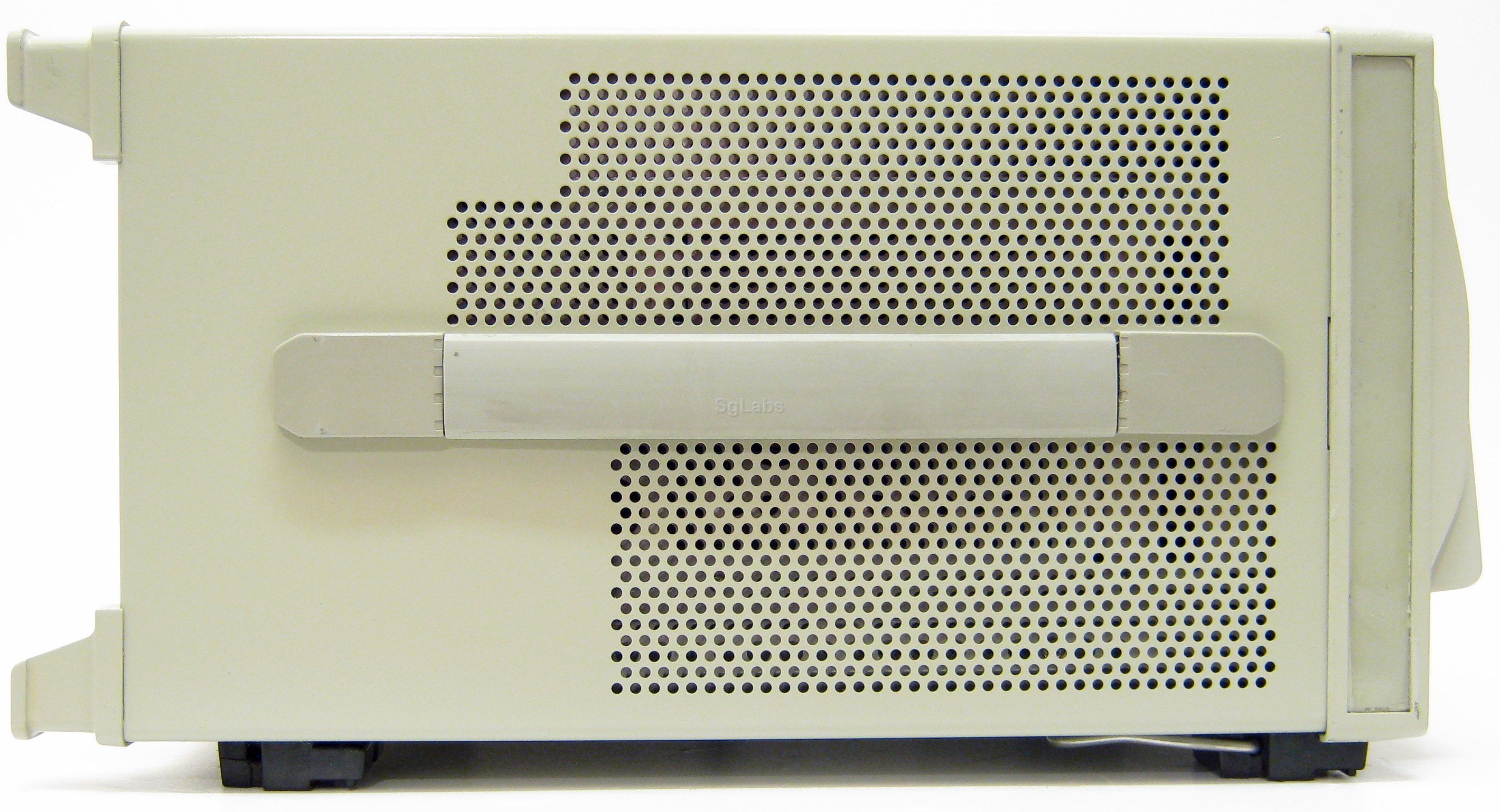

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Advantest R3765G-series network analyzers are vector network analyzers that incorporate a new RF circuit analysis technique. The measuring frequency range is from 300 kHz to 3.8 GHz . The R3765CGs unique high-speed signal processing technology enables a faster measurement speed.

In addition to the basic model, a model with built-in bridge transmission / reflection characteristic measurement and a model with a built-in S-parameter test set for forward and reverse measurement are also available. An optional 3-port test set or 4-port test set can be added to these models.
  • Connector: N
  • Max. Frequency: 3.8 GHz
  • Min. Frequency: 300 KHz
  • Channels: 3
  • Source: internal
  • Test set: S-parameter
