Advantest, R3765BH

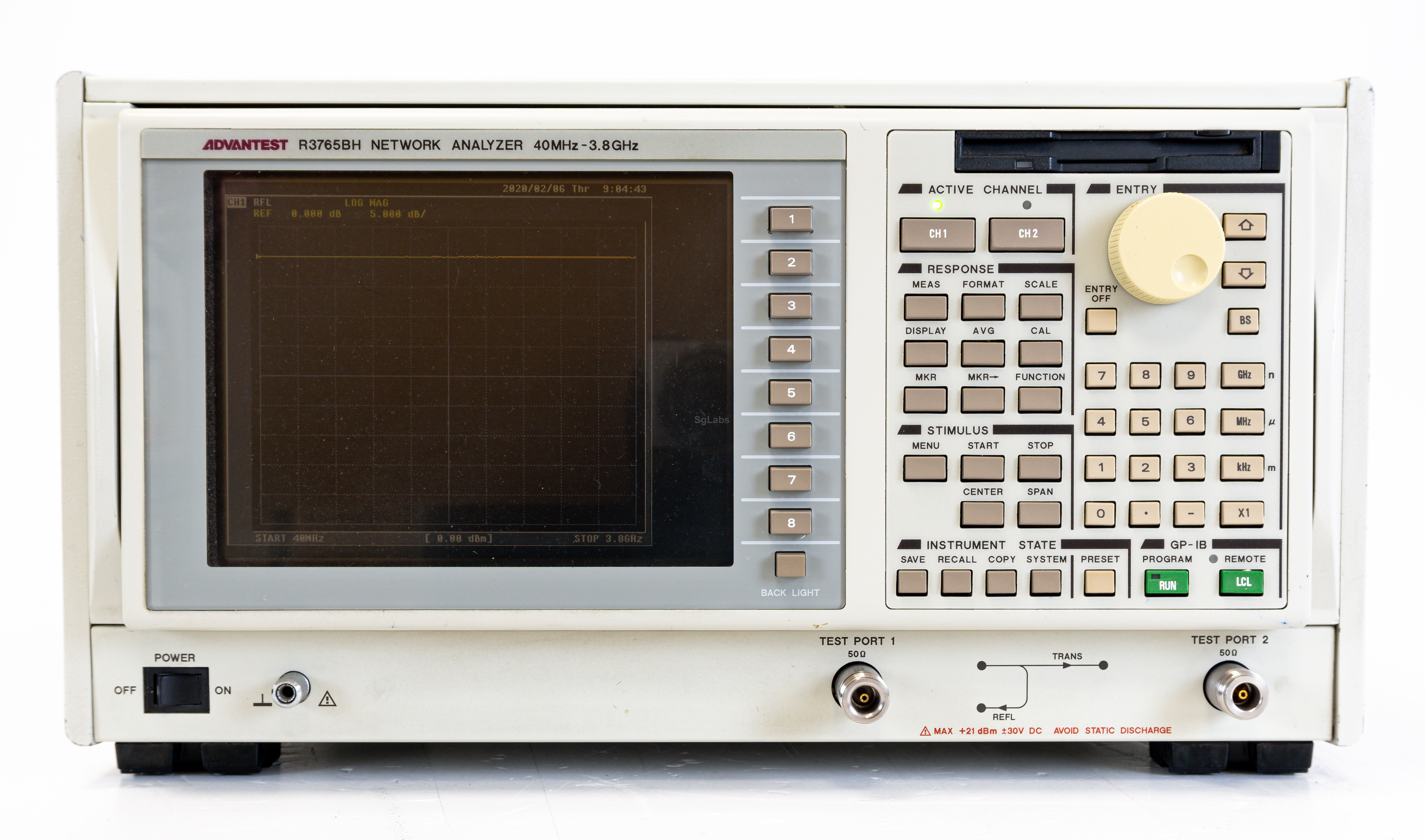

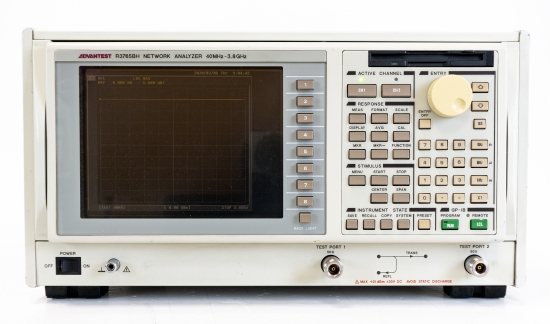

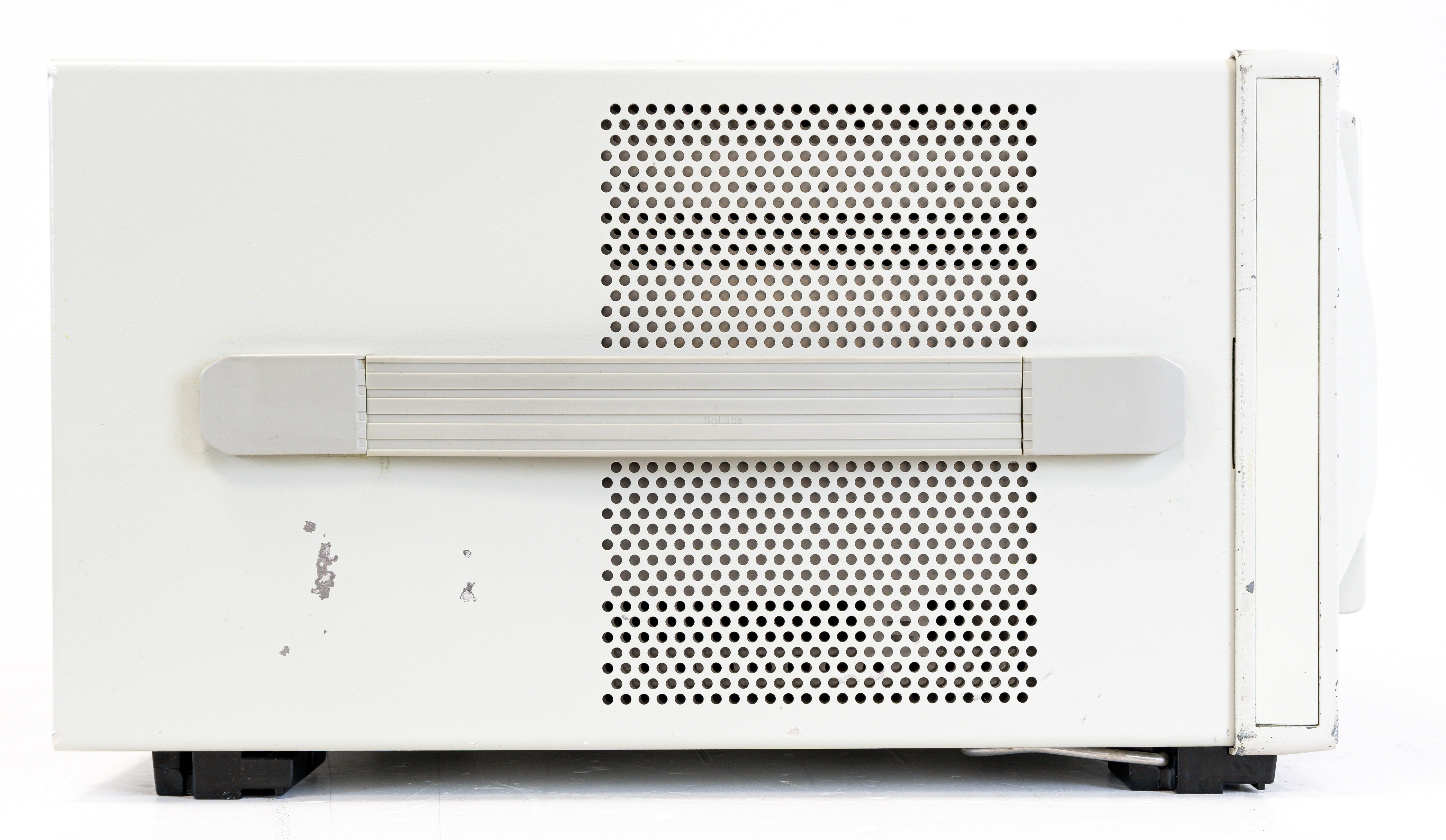

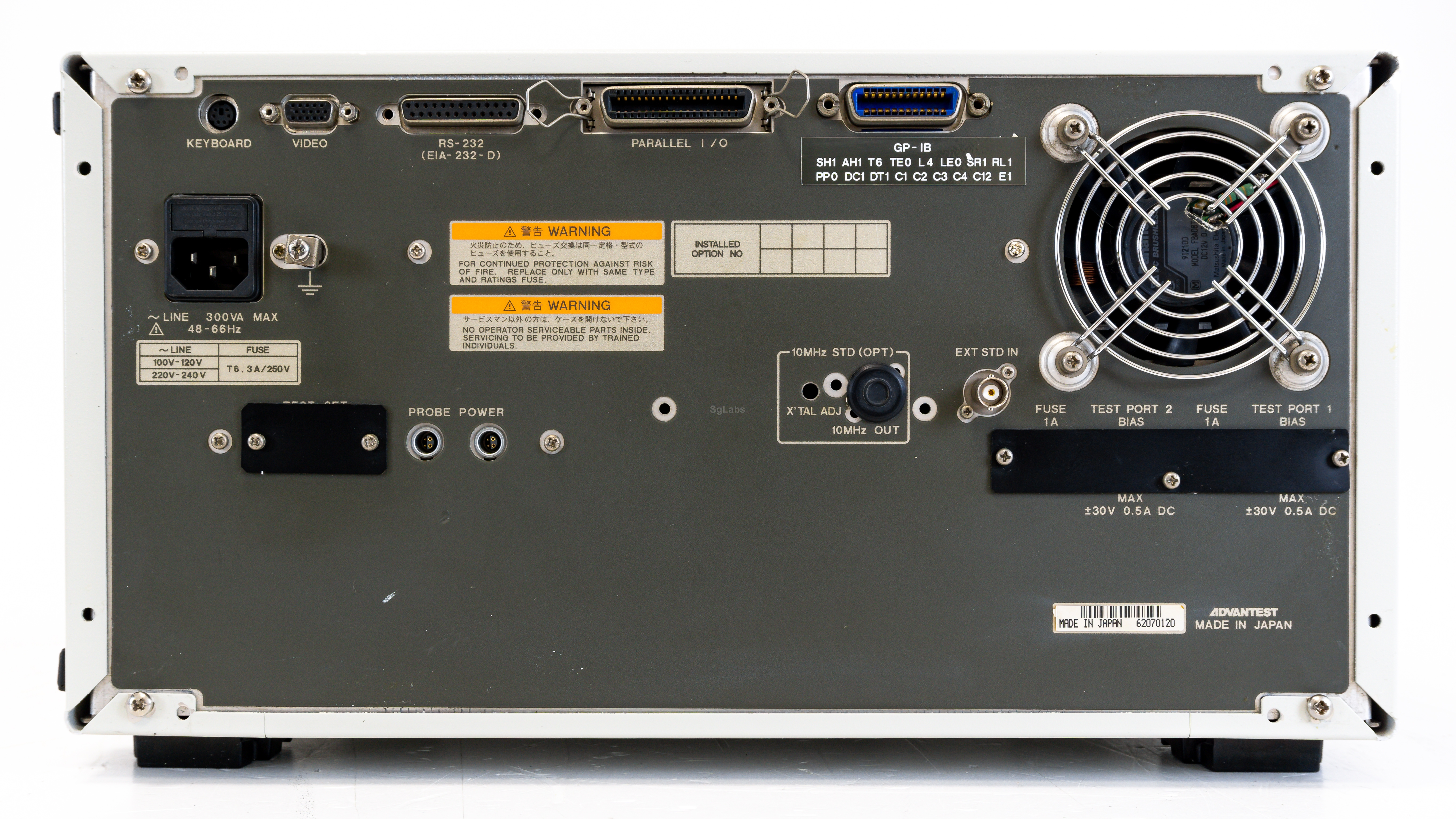

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Advantest R3765BH network analyzer is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
  • Connector: Nf
  • Max. Frequency: 3.8 GHz
  • Min. Frequency: 40 MHz
  • Channels: 2
  • Source: internal
  • Test set: Trasmission Reflection
 € 1.900,00
