Advantest, R3131

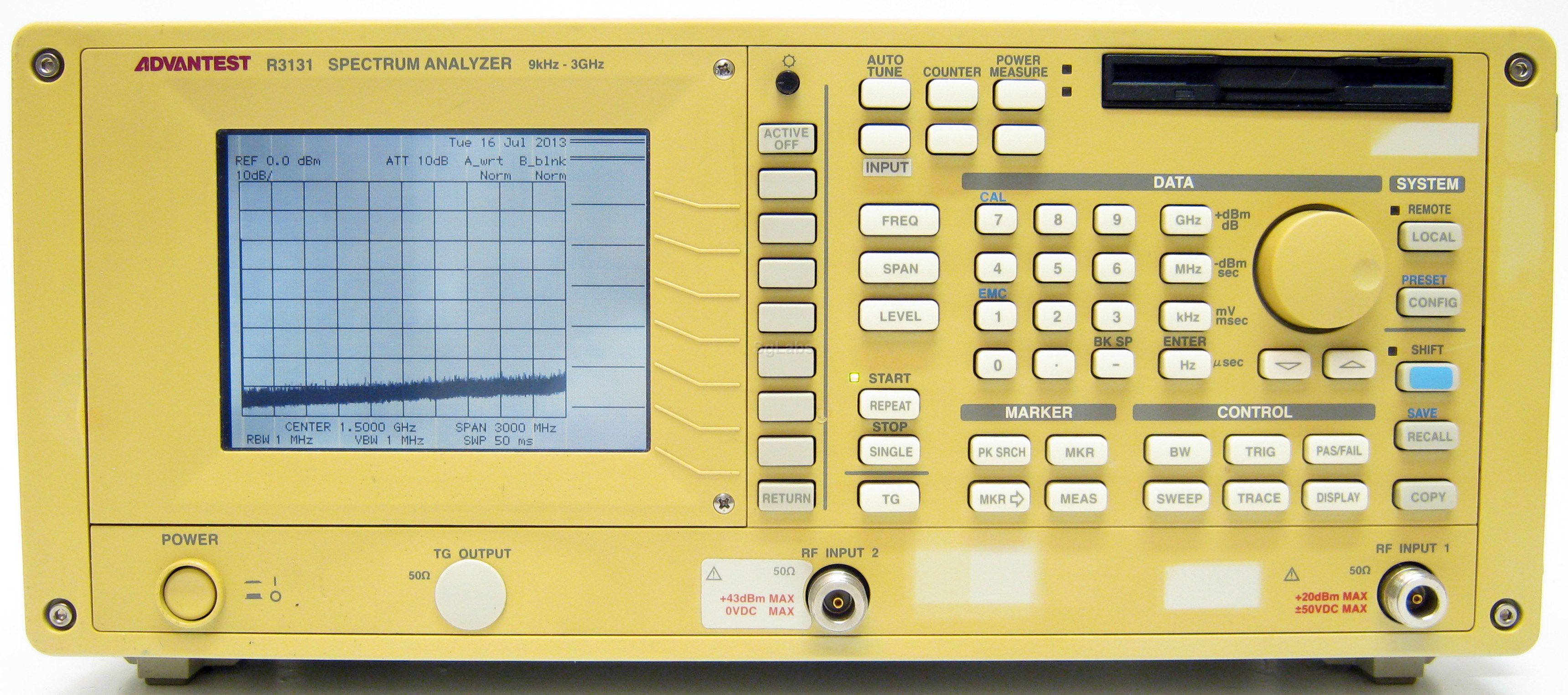

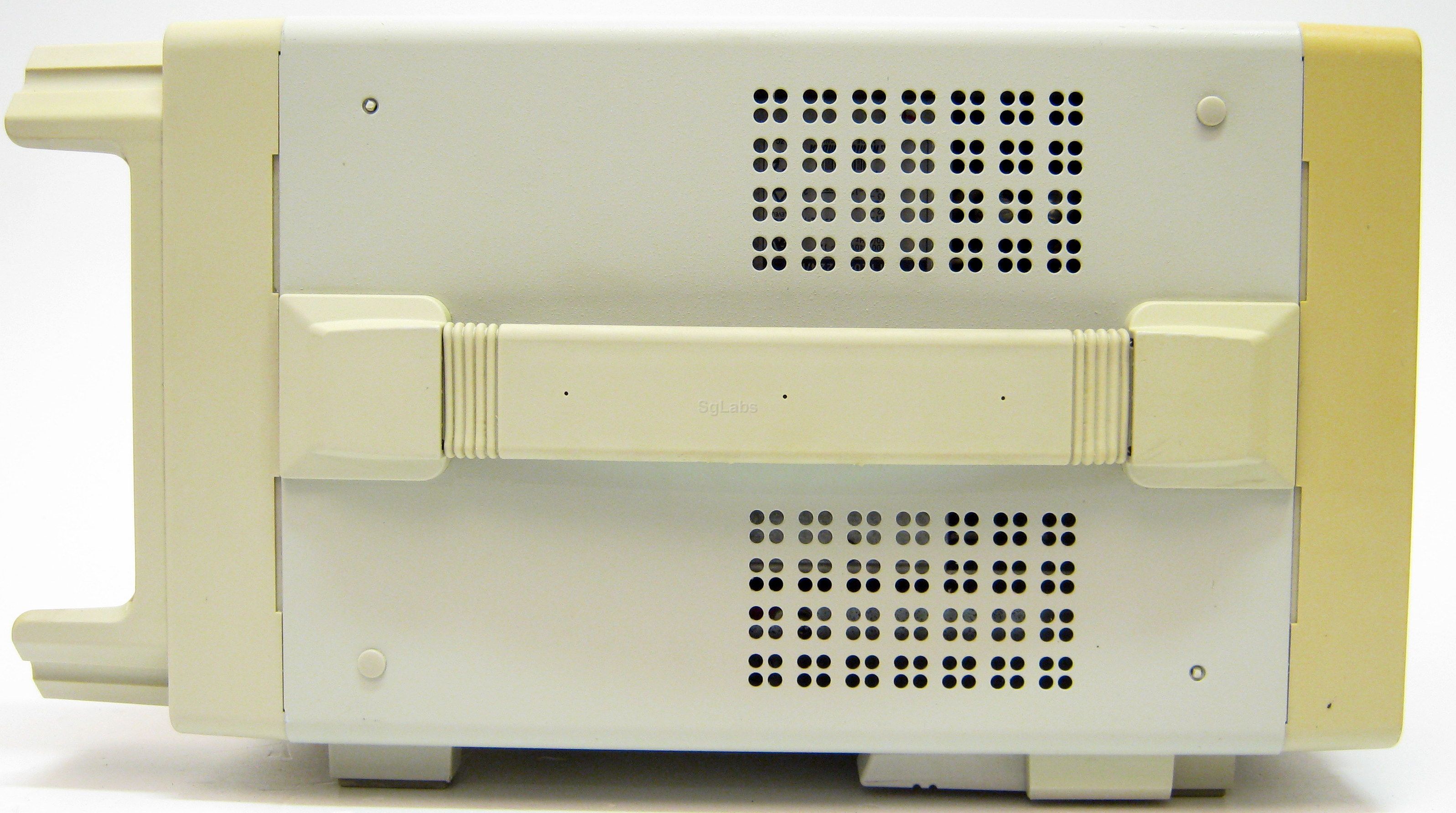

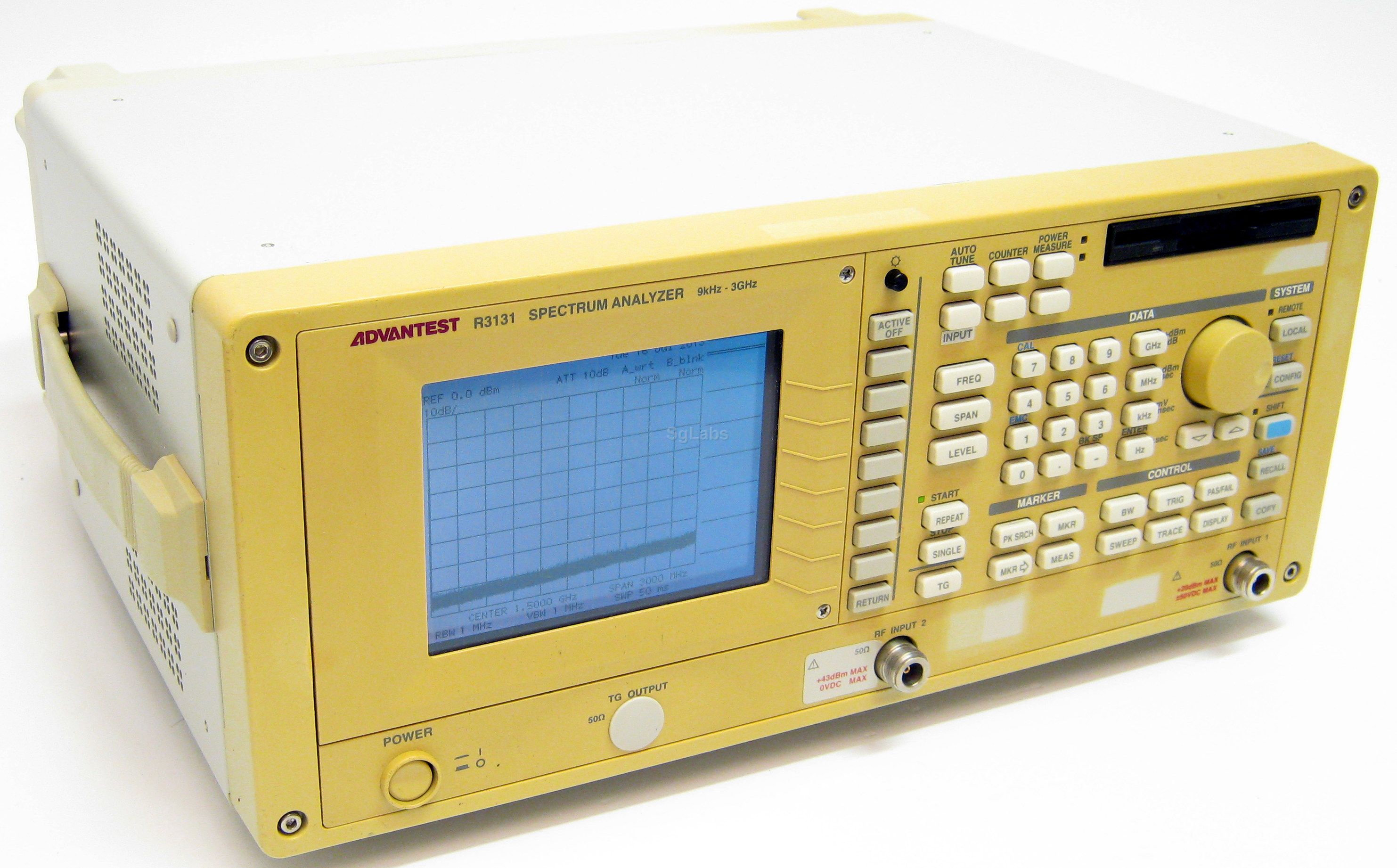

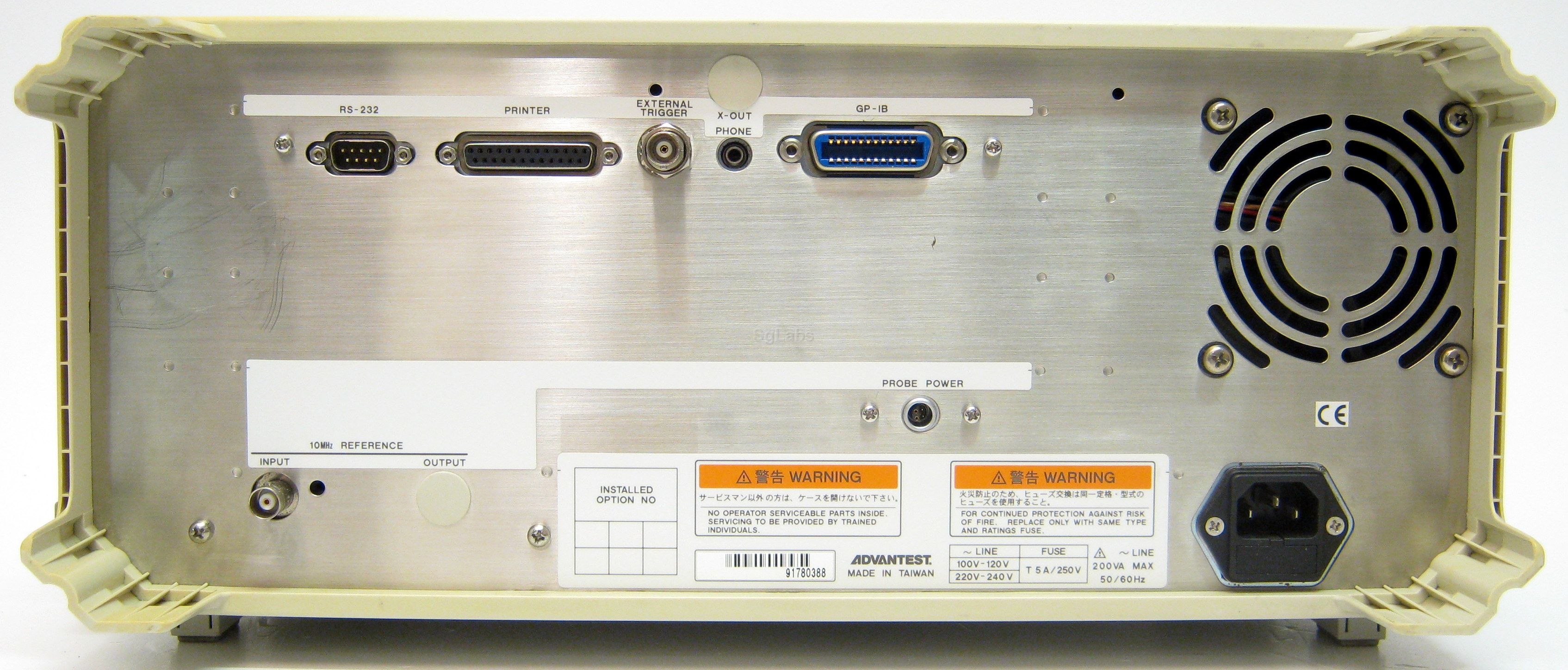

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Advantest R3131 Spectrum Analyzer offers a 9kHz to 3GHz frequency range, meeting the frequency needs of both PCS and cellular wireless standards.

The R3131 synthesized architecture and specifications such as phase noise lower than -100 dBc/Hz @ 20kHz offset, ensure measurement accuracy and repeatability across the instruments entire range. This level of accuracy, plus one-button automated measurements for adjacent channel power, occupied bandwidth, and average and total power, make the R3131 well-suited to wireless design and troubleshooting needs.

Supplementing these quantitative measurements, the R3131 also provides automatic pass/fail limit testing, a valued feature for manufacturing applications.
  • Frequency range: 9 kHz to 3 GHz
  • Marker counter resolution: 1 Hz to 1 kHz
  • Frequency span: zero, 50 kHz to 3 GHz
  • Video bandwidth: 10 Hz to 1 MHz, 1-10 step
  • EMC: CISPR 16 standard (QP, EMI Filters and Antenna factors)
  • Amplitude measurement range: +20 dBm to Average noise level
  • Sweep time: 50 ms to 500 s
  • Calibration signal: 30 MHz, -20 dBm ± 0.3 dB
  • Functions: Auto Tune, Power Measure and Counter
  • 2 inputs (input 2 up to 43 dBm)
  • AM-FM Demodulator
  • Demodulator: AM-FM
  • Display: LCD monochrome
  • Max. Frequency: 3 GHz
  • Min. Frequency: 9 KHz
  • Min. Resolution: 1 KHz
  • Tracking generator: optional
 € 1.400,00
