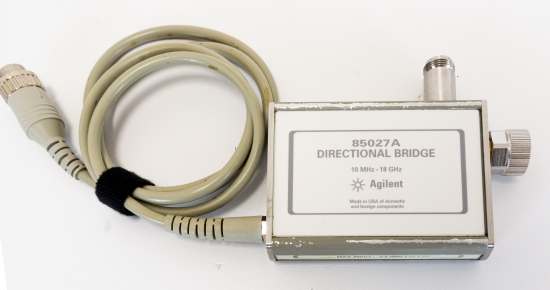

HP Agilent Keysight, 85027A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 85027A directional bridge is designed to operate with either the Keysight 8757 in ac or dc detection modes or with the Keysight 8756 or 8755 in ac detection mode. This bridge offers high directivity, excellent test port match, and a measurement range of up to 18 GHz in coax.
Features
  • Can detect both ac and dc signals depending on scalar network analyzer used
  • High directivity >= 40 dB
  • Excellent test port match
  • Measurement range up to 18 GHz in coax
  • Connector: N(f) input - APC-7 test port
  • Directivity: 40 dB
  • Max. Frequency: 18 GHz
  • Min. Frequency: 10 MHz
