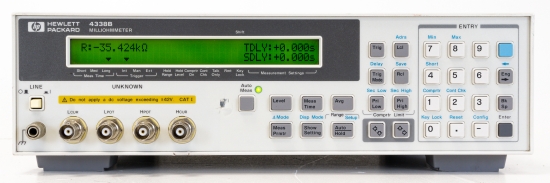

HP Agilent Keysight, 4338B
You are here: LCR / Impedance » Milliohmmeter
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 4338B milliohmmeter is a precise, reliable, high-speed test tool for measurements of low resistance. With five selectable test signal levels (1 uA, 10 uA, 100 uA, 1 mA and 10 mA), the 4338B can provide measurements under the DUT's actual operting conditions.
Features
Test current levels
- Low and selectable test signal current: 1uA to 10 mA
Measurement Range / Time
- Wide measurement range: 10u ohm to 100 k ohm
- High-speed measurement: 34 ms
Frequency
- 1 kHz ac measurement
More Features
- 10u ohm resolution
- Contact check function
- Built-in comparator
- Auto-measurement mode
- Frequency range: 1 kHz
- Display: LCD
- Resolution: 10 microohm
- Max. ohm: 100 kohm
- Min. ohm: 10 microohm
