The FSEM30 spectrum analyzers from Rohde&Schwarz have been optimized both for general-purpose measurements and meeting the stringent requirements of testing advanced digital communication systems. High measurement speed, future-proof modular design and excellent characteristics put the analyzers right at the top.

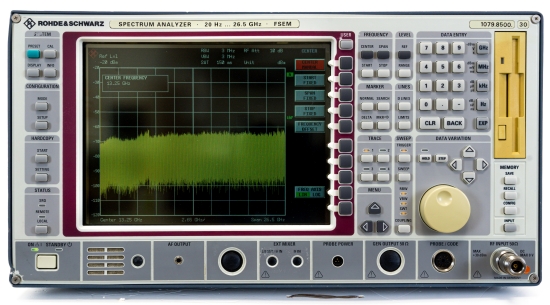

R&S Rohde & Schwarz FSEM30 Signal Spectrum Analyzere 26.5 GHz
You are here: Spectrum Analyzer » Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- Bandwidth: 20 Hz - 26.5 GHz
- Displayed noise floor –150 dBm (typ.) in 10 Hz bandwidth
- 3rd-order intercept point +20 dBm typ
- 1 dB compression point of RF input +10 dBm
- Phase noise at 10 kHz from carrier: –123 dBc (Hz) (typ.) (FSEA 30)
- Total level measurement uncertainty up to 1 GHz
- AM/FM audio demodulator (with built-in loudspeaker and headphones connector)
- Internal RF trigger (trigger threshold approx. –20 dBm)
- 5 ms full-span sweep time with fully synchronized sweep (FSEA, FSEB), 150 ms with FSEM, 230 ms with FSEK
- 1 µs zero-span sweep time
- Pretrigger and trigger delay
- Gated sweep
- Resolution bandwidths 1 Hz to 10 MHz, adjustable in steps of 1/2/3/5/10
- Spectrum analysis with ultra-wide dynamic range
- Noise figure = 18 dB/TOI = 20 dBm typ. (FSEB)
- Internal RF trigger (trigger threshold approx. –20 dBm)
- Universal analysis of digital and analog modulated signals (option) such as BPSK, QPSK, p/4-DQPSK, 8PSK, QAM, MSK, GMSK, 2FSK, AM, FM, PM
- High-speed synthesizer 5 ms for full span (FSEA, FSEB)
- Refresh rate, quasi-analog 25 sweeps/s
- Large LC TFT display 24 cm/9.5", active
- Demodulator: BPSK, QPSK, p/4-DQPSK, 8PSK, QAM, MSK, GMSK, 2FSK, AM, FM, PM
- Display: TFT
- Max. Frequency: 26.5 GHz
- Min. Frequency: 20 Hz
- Min. Resolution: 1 Hz
Price
€ 5.950,00
