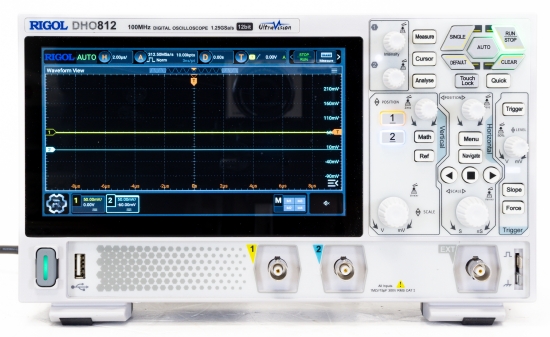

Rigol DHO812 Digital Oscilloscope 100 MHZ 2 channels 12 bit
You are here: Oscilloscope » Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
RIGOL DHO812 is a 12-bit high-resolution digital oscilloscope with 100MHz bandwidth, 1.25GSa/s sampling rate and 2 analog channels.
Features
- - Ultra-low noise level, purer signal, never missing small signals
- - Up to 12-bit resolution and 4096 vertical digitization levels (16 times the 8-bit quantization level, convenient for weak signal testing) for all models in this series
- - 1% DC gain accuracy
- - Maximum analog bandwidth of 100 MHz, 2 or 4 analog channels, external trigger output (standard) available for dual-channel model
- - Maximum real-time sampling rate of 1.25 GSa/s
- - Maximum memory depth of 25 Mpts
- - Vertical sensitivity range: 500 μV/div to 10 V/div
- - Maximum acquisition rate of 1,000,000 wfms/s (in UltraAcquire mode)
- - Phosphor digital display with 256-level real-time intensity gradation
- - The search and navigation function waveforms helps you find signal anomalies faster
- - 7" capacitive multi-touch screen (1024x600)
- - New Flex Knob provides an intuitive user experience
- - USB Device & Host, LAN and HDMI interfaces (standard) for all models in this series
- - USB-C power interface (12/4A or 15V/3A, 48W max. when connected to various interfaces, USB storage devices and active probes) requires only a mobile power supply, allowing field testing with a power bank
- - New and sophisticated industrial design, easy to use
- - Online upgrade
- - Supports installation on a standard monitor stand, effectively saving desktop space and making your workbench more spacious
- - Dimensions: 265.35mm (W) x 161.75mm (H) x 77.38mm (D)
- - Weight (excluding box): 1.78kg
- - Supports bus trigger and decoding RS232/UART, I2C and SPI
- Channels: 2
- Display: LCD
- BandWidth: 100 MHZ
- Sampling: 1.25 GSa/s
Price
€ 290,00
