HP Agilent Keysight 84906K Programmable Step Attenuator DC to 26.5 GHz 90 dB 10 dB steps

You are here: RF Component » Attenuator

HP Agilent Keysight 84906K Programmable Step Attenuator DC to 26.5 GHz 90 dB 10 dB steps

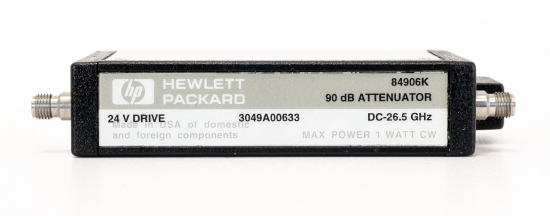

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 84906K programmable step attenuator offers coaxial measurements to 26.5 GHz in a compact, rugged design. It offers repeatability of better than 0.03 dB, excellent life (greater than 5 million switching cycles per section) and an attenuation range of 0 to 90 dB in 10-dB steps. This latest design evolution sets new standards for size and performance. High attenuation accuracy and low SWR are achieved through the use of miniature thin-film attenuation cards composed of high-stability tantalum nitride film of saphire substrate. Insertion loss is outstanding, with less than 2 dB of loss at 26.5 GHz. The compact size of the unit, 35 percent smaller than the Keysight 8495/7 (26.5 GHz) family, allows for easy integration into instruments and ATE systems.
Features

Superior RF Performance

  • Frequency range: dc to 26.5 GHz
  • Insertion loss at 0 dB: 0.8 dB + 0.04 dB/GHz
  • Maximum SWR: 1.3 to 12.4 GHz, 1.7 to 26.5 GHz

Repeatability and Life Span

  • Repeatability life: 0.03 dB max 5 million cycles per section, typical
  • 5 million cycles per section

Power Handling

  • Maximum RF input power: 1 W (average), 50 W (peak)

Features

  • Connector type: choice of 3.5 mm female, 3.5 mm male/female
  • Programming connector: 10-pin sockets
  • Attenuation: 90 dB
  • Connector: 3.5mm
  • Max. Frequency: 26.5 GHz
  • Min. Frequency: DC
  • Max. power: 1W
  • VSWR / RL: 1.3 to 12.4 GHz, 1.7 to 26.5 GHz
