Mitek, MK1020 AG-2603AD
Sei in: FREQUENZIMETRI E CONTATORI » Fino a 1 GHz
Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto
The MK1020/AG-2603AD generates low distorsion sine wave and square wave from 10 Hz to 1 MHz in 5 ranges. Ideal for audio equipment. The 6 digit frequency counter can be used to measure the frequency of the generator itself or any external source up to 150 MHz.
Caratteristiche
-
Oscillator section
- Range in Frequenza: 10Hz ~ 1MHz 5 decade bands.
- Accuracy: With counter section accuracy.
- Impedenza d'uscita: 600Ω, unbalance.
- Output control: 0dB / -20dB / -40dB and fine adjuster.
-
Sine wave output
- Range: 10Hz ~ 1 MHz.
- Tensione d'Uscita: 8Vrms, max.
- Distorsione:
- Meno di 0.05% 500Hz ~ 50KHz.
- Meno di 0. 5% 50Hz ~ 500KHz.
- Output flatness: ±1dB (1KHz).
-
Square wave output
- Range: 20Hz ~ 20KHz.
- Tensione d'Uscita: 15Vp-p or more.
- Rise time: 0.5us.
-

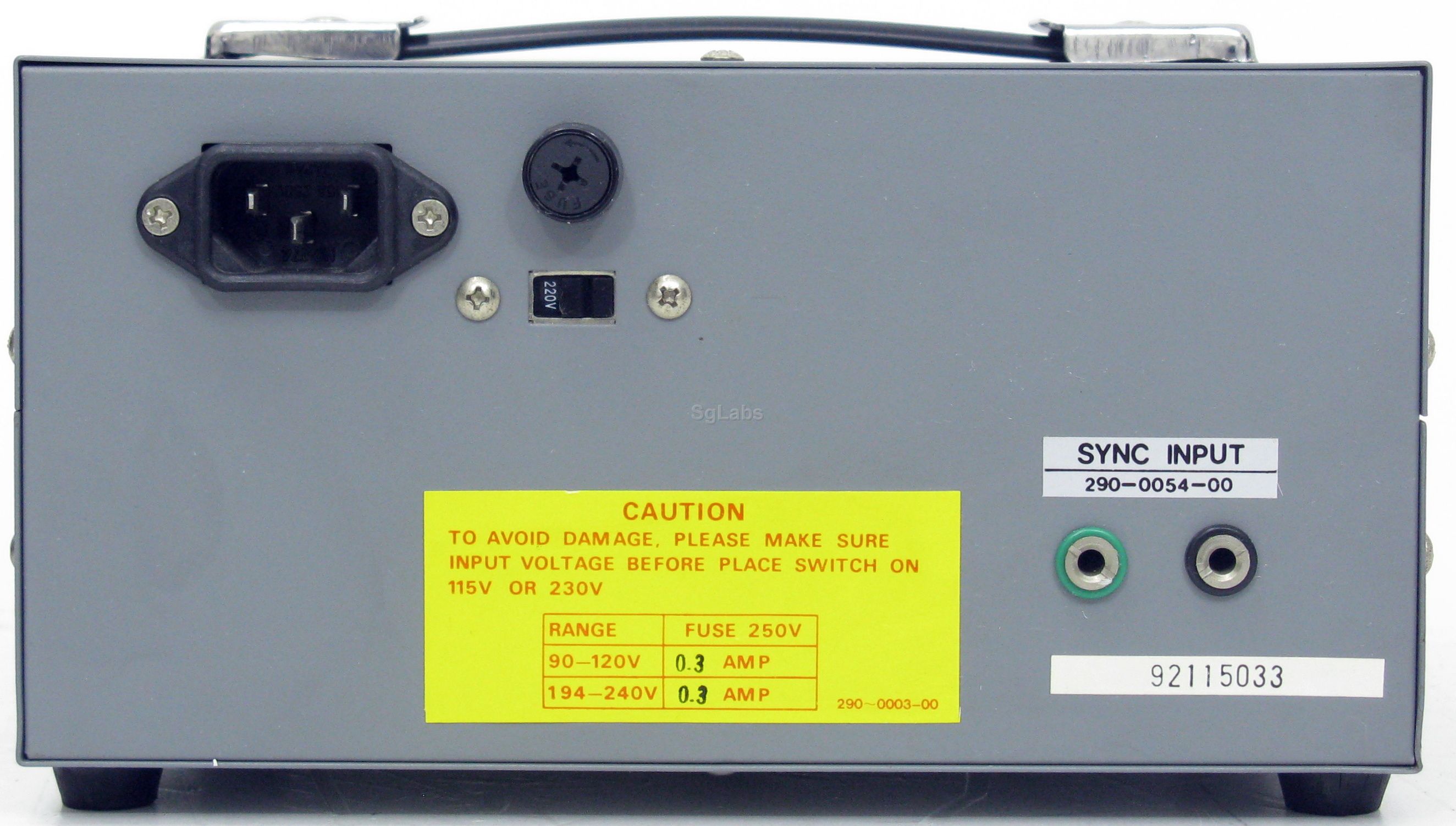

Synchronization
- Range: ±1% / V of oscillator frequency per Vrms.
- Input impedance: Approx 10KΩ.
- Maximum input: 10Vrms.
-
Counter section
- Frequency range:
- 10Hz to 150MHz.
- HF 10 Hz to 10MHz.
- VHF 10MHz to 150MHz.
- Accuracy: ±1 count, ±reference time accuracy.
- Gate time: 0.1 sec and 1 sec.
- Input sensitivity:
- 35mV ~ 50mV.
- 10Hz ~ 150MHz.
- Input Impedance: HF1MΩ VHF50Ω
- MAX input voltage: Less about 3V effective.
- Reference time frequency: 10MHz.
- Reference time accuracy:
- 5 x 10-5 (50ppm) 0°C to 40°C.
- 1 x 10-5 (10ppm) 23°C ±3°C.
- Display: Decimal 6 digital LED.
- Frequency range:
