Marconi, 2051

Sei in: GENERATORI RF » Digitale

Marconi, 2051

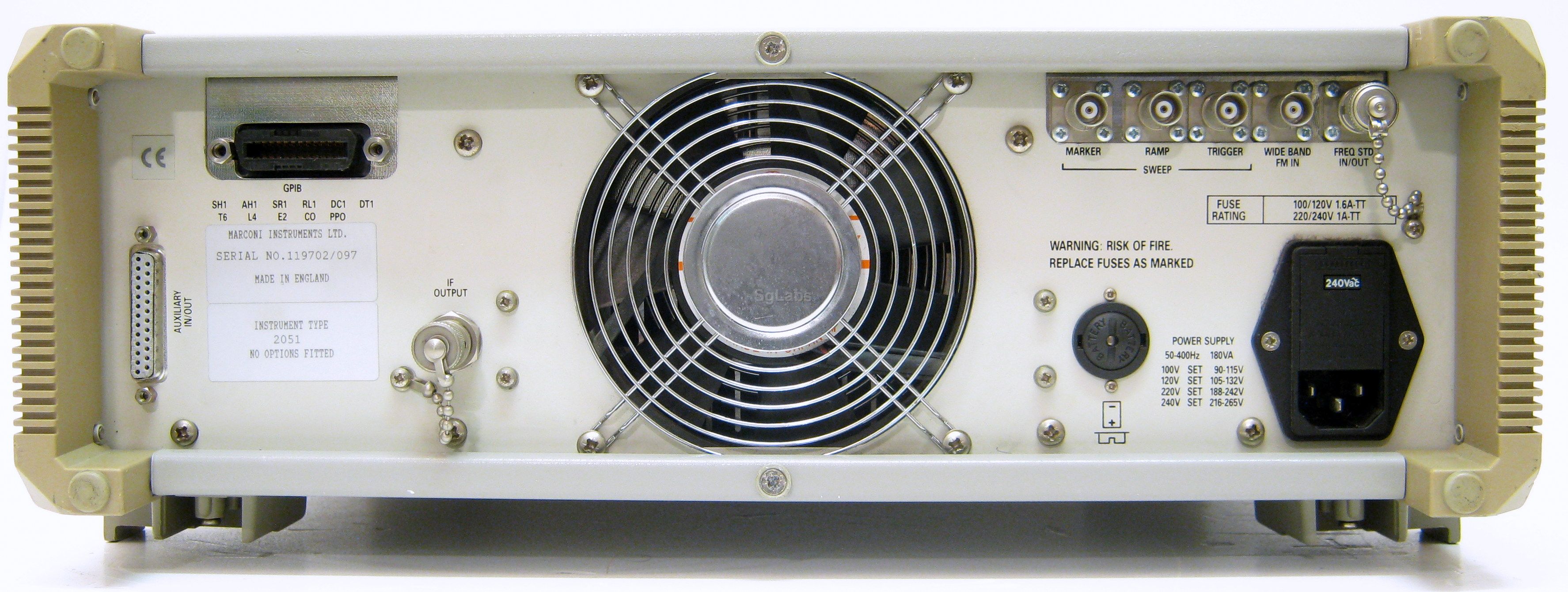

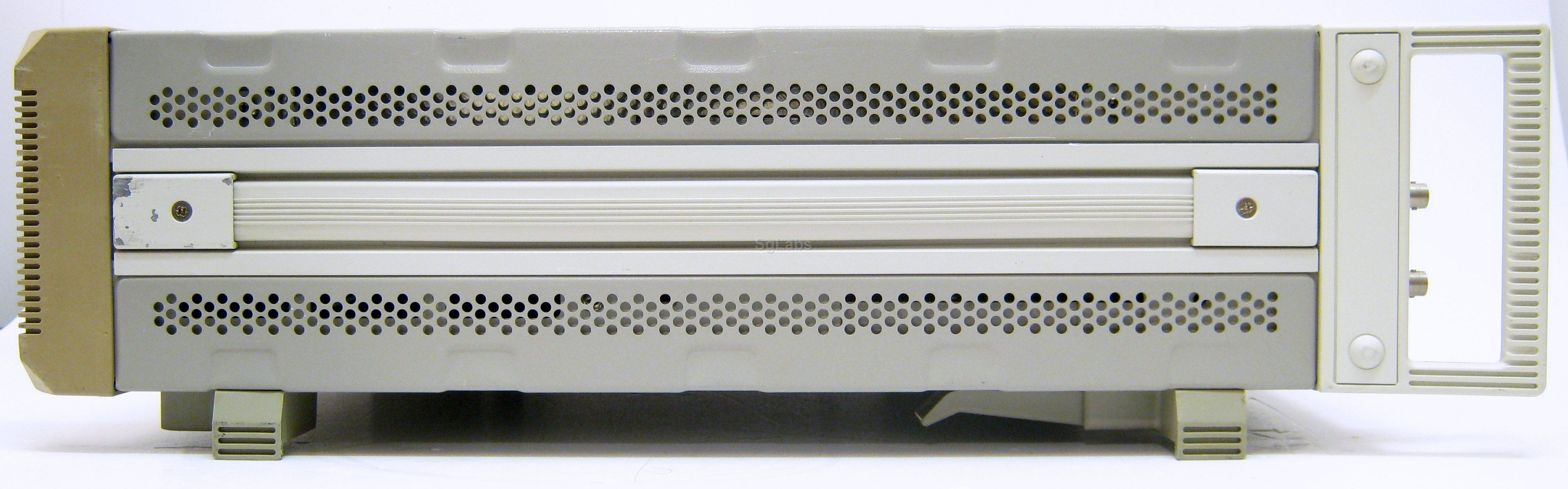

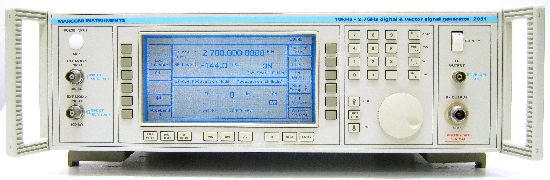

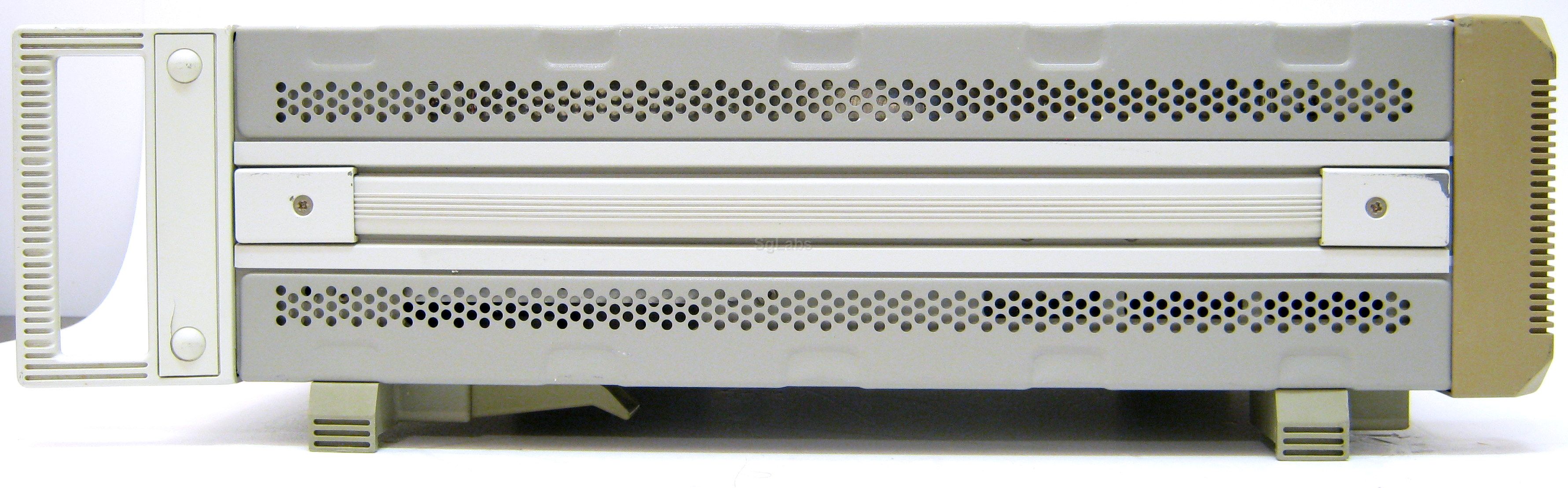

Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto
The 2051 digital and vector signal generator covers the frequency range 10 kHz to 2.7 GHz. These instruments are suitable for
a wide range of applications including the testing of new digital communication systems. The 2050 combines comprehensive analog modes, AM, FM, PM and Pulse (optional), with I Q vector modulation. A digital mode using internal DSP (digital signal processing) is provided to convert digital data into complex modulation formats as shown in the following table.
In Vector mode the signal generator accepts I and Q modulation inputs with 10 MHz, 1 dB bandwidth. This precision modulator enables any modulation characteristic to be simulated with a high degree of accuracy, typical vector errors of less than 0.5% are possible. The excellent temperature stability and drift characteristics of the modulator ensure calibrated signals are always  available making this the ideal choice for demanding research and development applications as well as in manufacturing of digital communications systems.
  • Range di Frequenza: 10 kHz to 2.7 GHz
  • Risoluzione: 0.1 Hz
  • Range di ampiezza -144 to +13 dBm
  • Risoluzione: 0.1 dB
  • modulazioni: AM/FM/impulsi/digitali/vettoriali
  • PSK, FSK, QAM, GMSK per NADC e GSM
  • Generator PRBS interno
  • GPIB
  • Frequenza massima: 2.7 GHz
  • Frequenza minima: 10 kHz
  • Modulazioni: AM/FM/impulsi/digitali/vettoriali
  • Potenza massima: 13 dBm
  • Potenza uscita minima: -144 dBm
  • Risoluzione: 0.1 Hz
Prezzo
 € 1.600,00
