HP Agilent Keysight, E4433B

Sei in: GENERATORI RF » Digitale

HP Agilent Keysight, E4433B

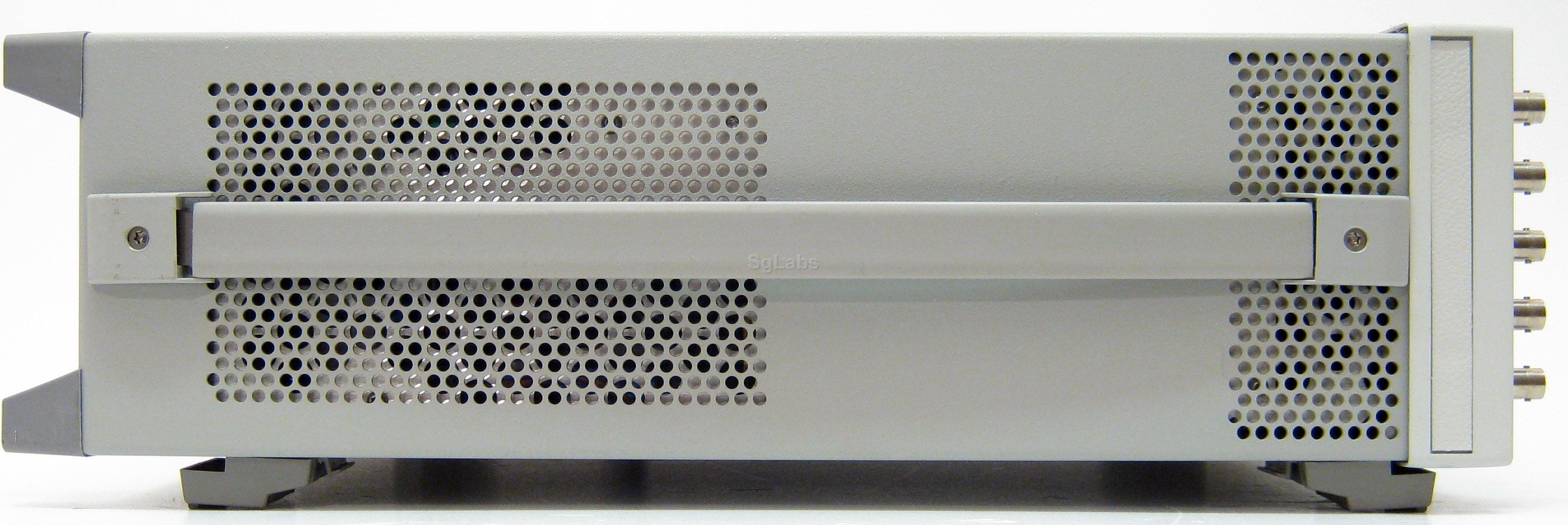

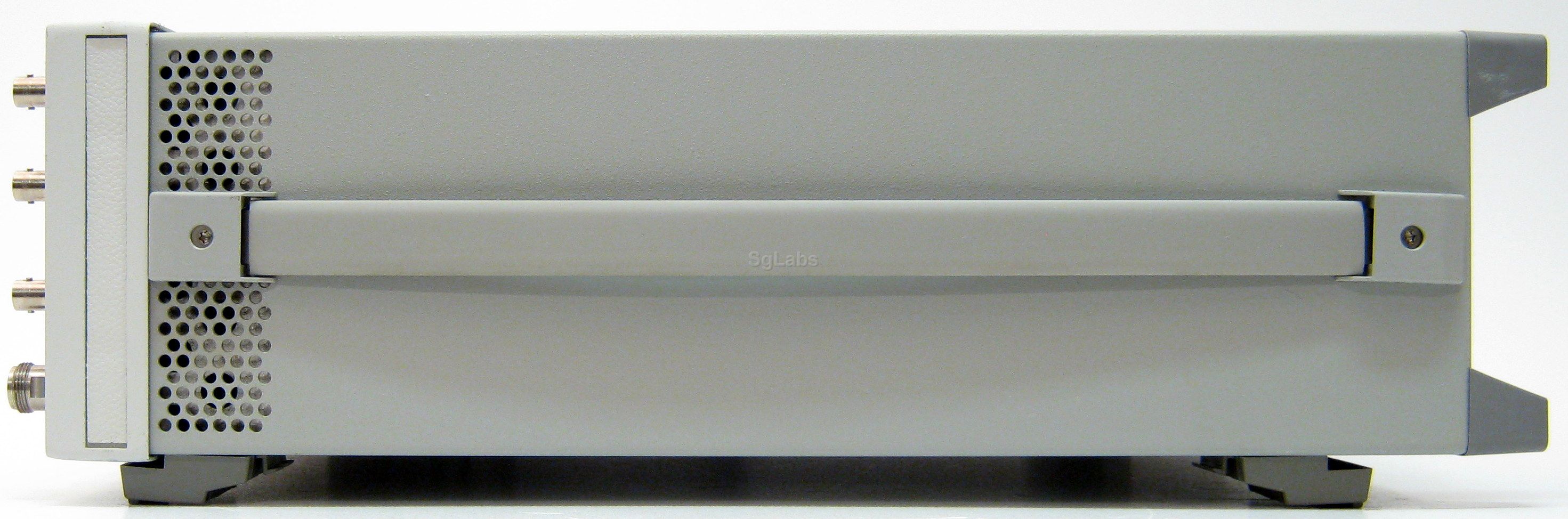

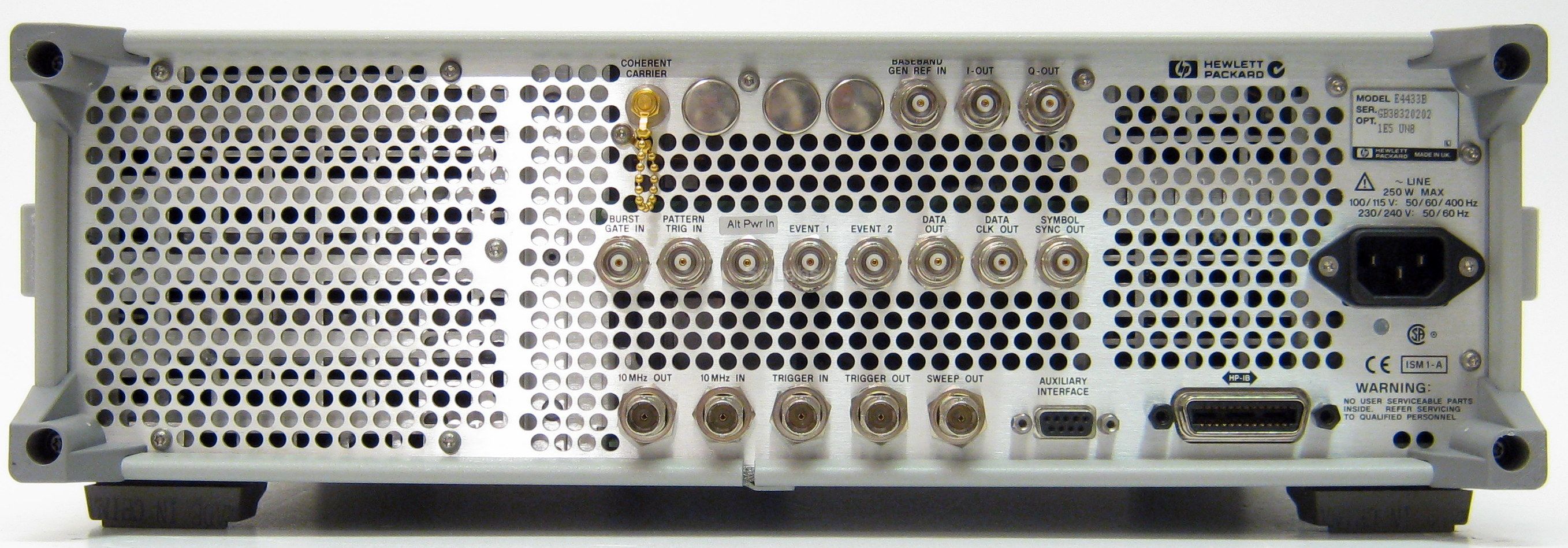

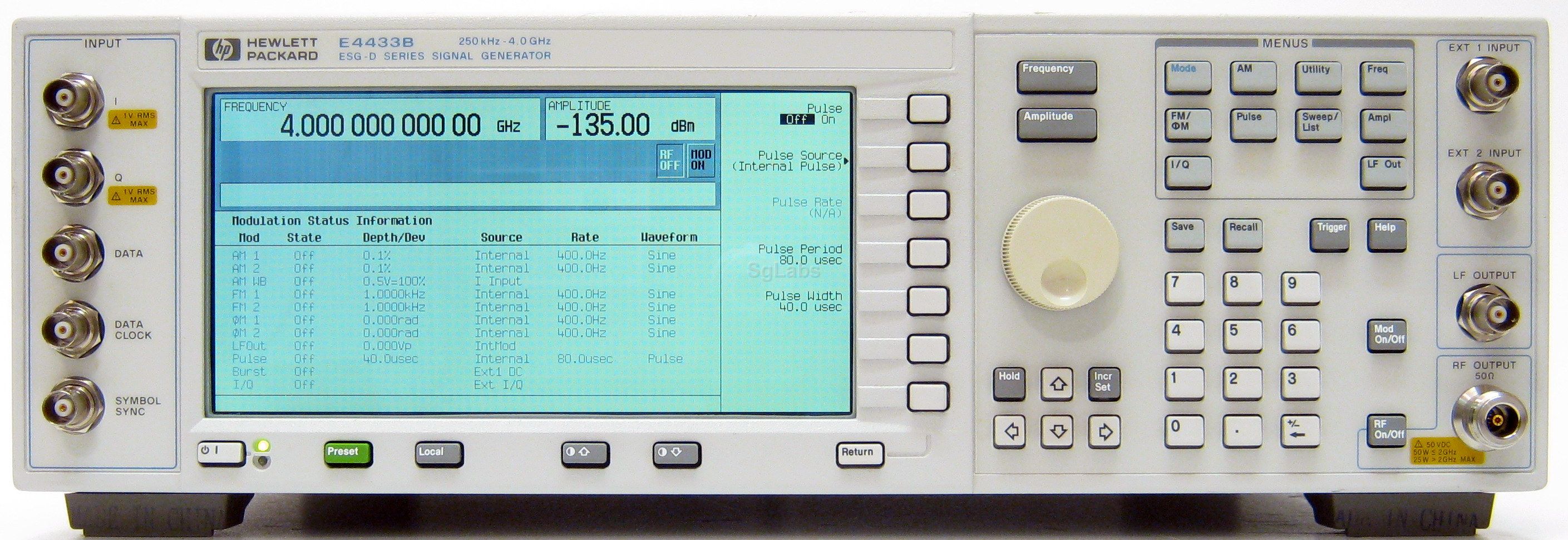

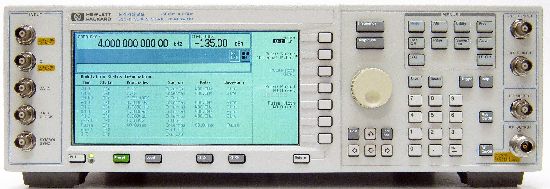

Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto
The HP / Agilent E4433B digital RF signal generator provides a wide range of digital modulation capabilities, in addition to a comprehensive feature set and excellent analog performance. The first in a new generation of signal generators, it provides excellent modulation accuracy and stability, as well as unprecedented level accuracy. It is ideally suited to meet the demanding requirements of today's digital receiver test, component test and local oscillator applications. The innovative design of the HP / Agilent E4433B provides a flexible architecture that can be tailored to meet the changing demands of evolving markets. Lower initial cost, high reliability and a two-year calibration cycle, all minimize the cost of ownership. The HP / Agilent E4433B digital generator is designed for long-term dependability, which maximizes production throughput and uptime.

  • Range di frequenza: 250 kHz fino a 4 GHz
  • Risoluzione Massima 0.01 Hz
  • RF Output Level: +13 dBm -136 dBm
  • Impedance: 50 Ohm
  • Modulazione FM, AM, Impulsi (generatore interno), Phase, I/Q
  • Frequenza massima: 4 GHz
  • Frequenza minima: 250 kHz
  • Modulazioni: AM FM PM e digitali I-Q
  • Potenza massima: 13 dBm
  • Potenza uscita minima: -136 dBm
  • Risoluzione: 0.01 Hz
