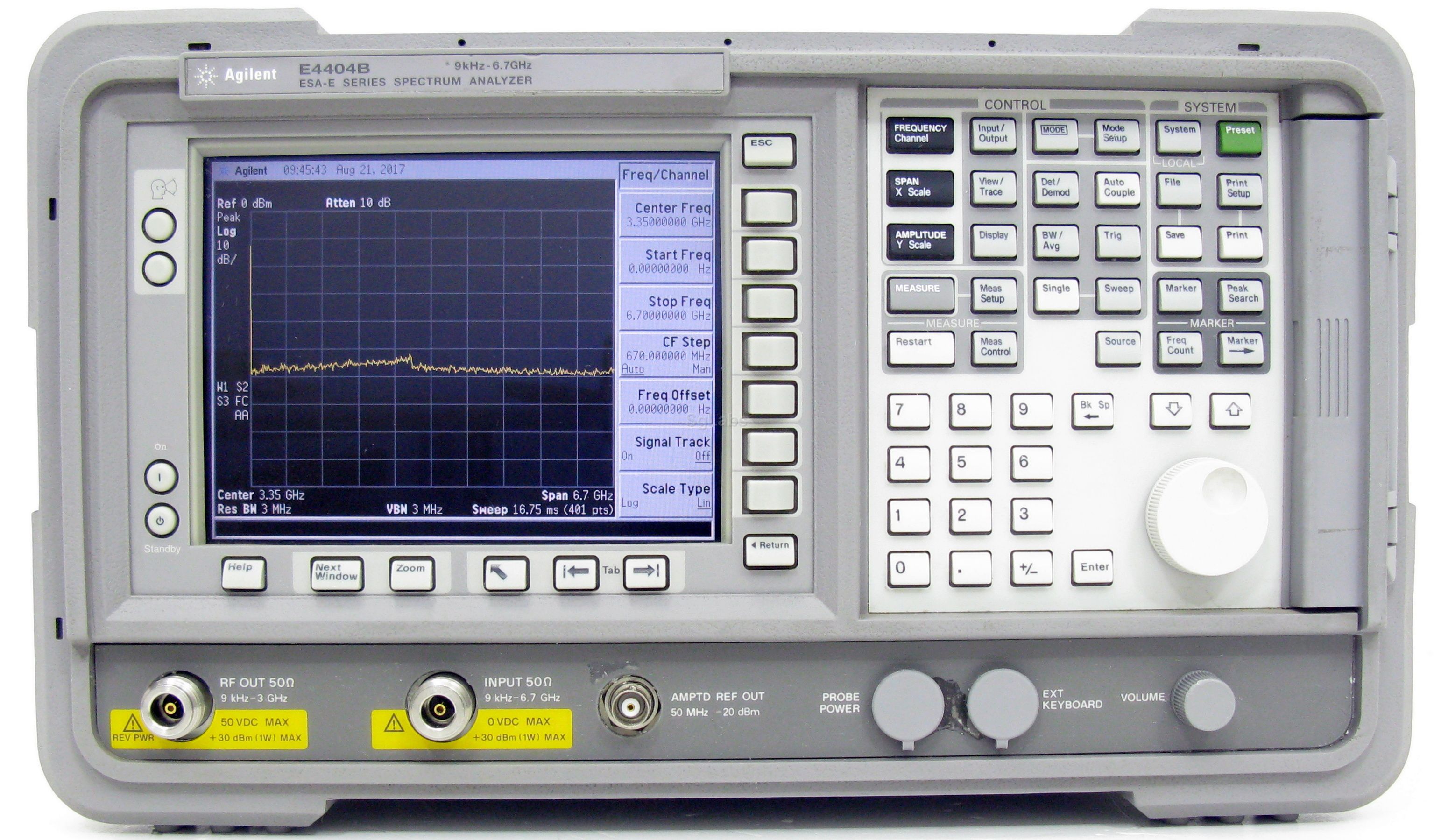

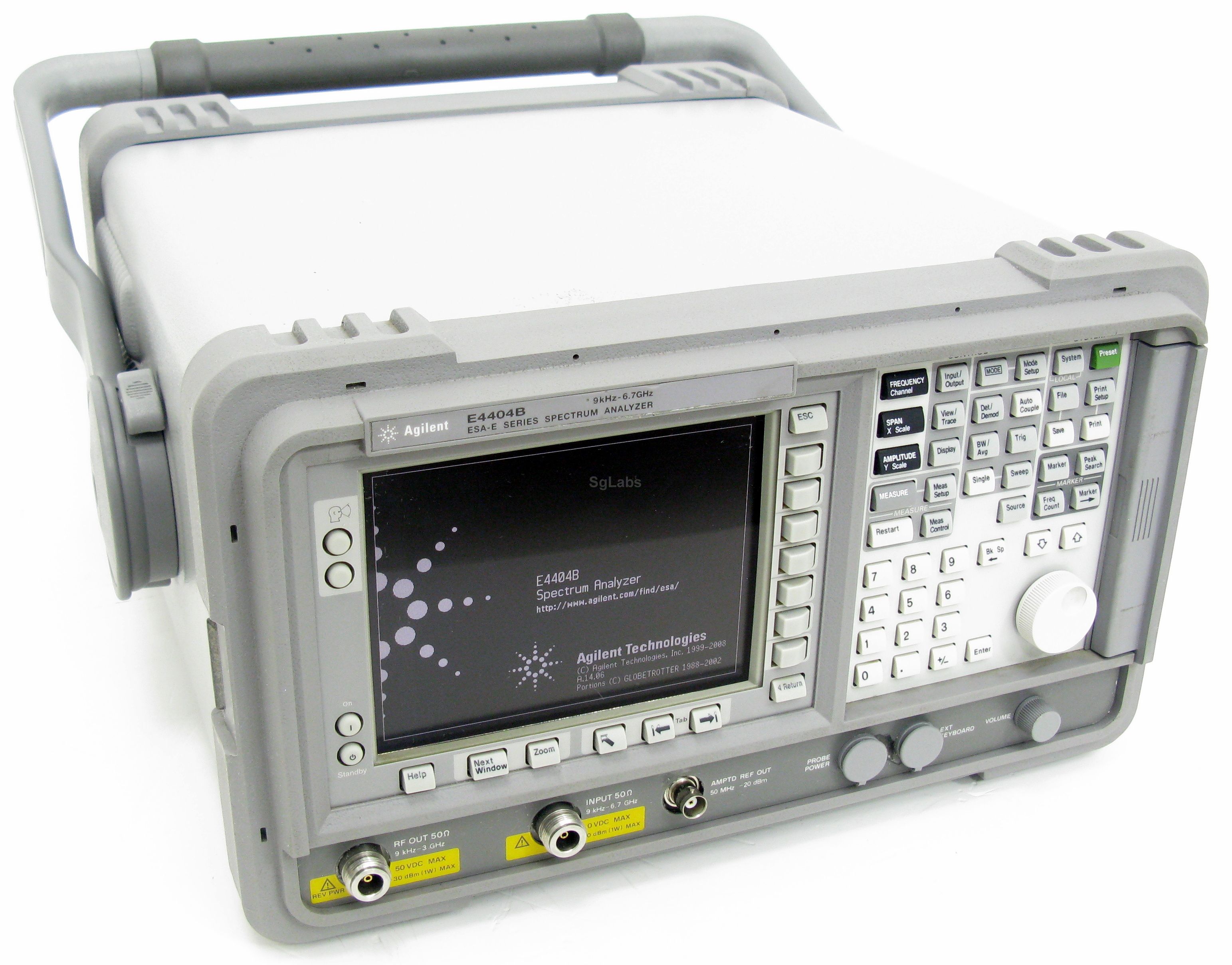

HP Agilent Keysight, E4404B


HP Agilent Keysight, E4404B
Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto

The Agilent / HP E4404B Spectrum Analyzer is part of Agilent's general purpose line of ESA spectrum analyzers which can offer the ideal balance between economy and performance.

Depending on your application, the Agilent / HP E4404B Spectrum Analyzer may be fitted with application software such as Phase Noise, Noise Figure, GSM/EDGE, cdmaOne, Modulation Analysis, Blue Tooth, Cable Fault, and more.

With the free IntuiLink software you can conveniently save and document your results by linking the ESA to MS Word or Excel applications. In addition, the IntuiLink software provides a simple programming interface to the ESA spectrum analyzer, allowing you to easily write macros or functions with Windows applications to control the ESA spectrum analyzer.

  • Range di Frequenza: 9 kHz - 6.7 GHz
  • 0.4 dB overall amplitude accuracy
  • +16 dBm TOI
  • -167 dBm DANL, se installato il preamplificatore (Opt.1DS)
  • 10 MHz di banda di demodulazione
  • 1 kHz - 5 MHz narrow resolution bandwidth (opt. 1DR anggiunge 10 e 300 Hz, l'opt. 1D5 aggiunge 1 e 3 Hz)
  • 1 ms sweep time (50 ns 0 span)
  • Variable sweep (trace points) from 2 to 8192
  • Segmented sweep for up to 32 discontinuous spans in one sweep
  • Rugged and portable for lab grade performance in the field
  • 5 minute warm-up to guaranteed measurement accuracy
  • Amplitude correction
  • Automatic background alignment
  • Tracking Generator (opt. 1DN)
  • Includes Power Suite 1-button power measurements

The PowerSuite allows one button measurements for:

  • Channel power
  • Occupied bandwidth
  • Adjacent channel power (ACP)
  • Multi-carrier ACP
  • Power statistics (CCDF) (not available on the basic analyzer)
  • Harmonic distortion
  • Burst power
  • Intermodulation distortion (TOI)
  • Spurious emissions
  • Spectrum emissions mask
  • Compatibilità: EMI
  • Demodulatore: Opt.BAA (FM)
  • Frequenza massima: 6.7 GHz
  • Frequenza minima: 9 kHz
  • Tracking generator: Opt.1DN
