HP Agilent Keysight, 81534A

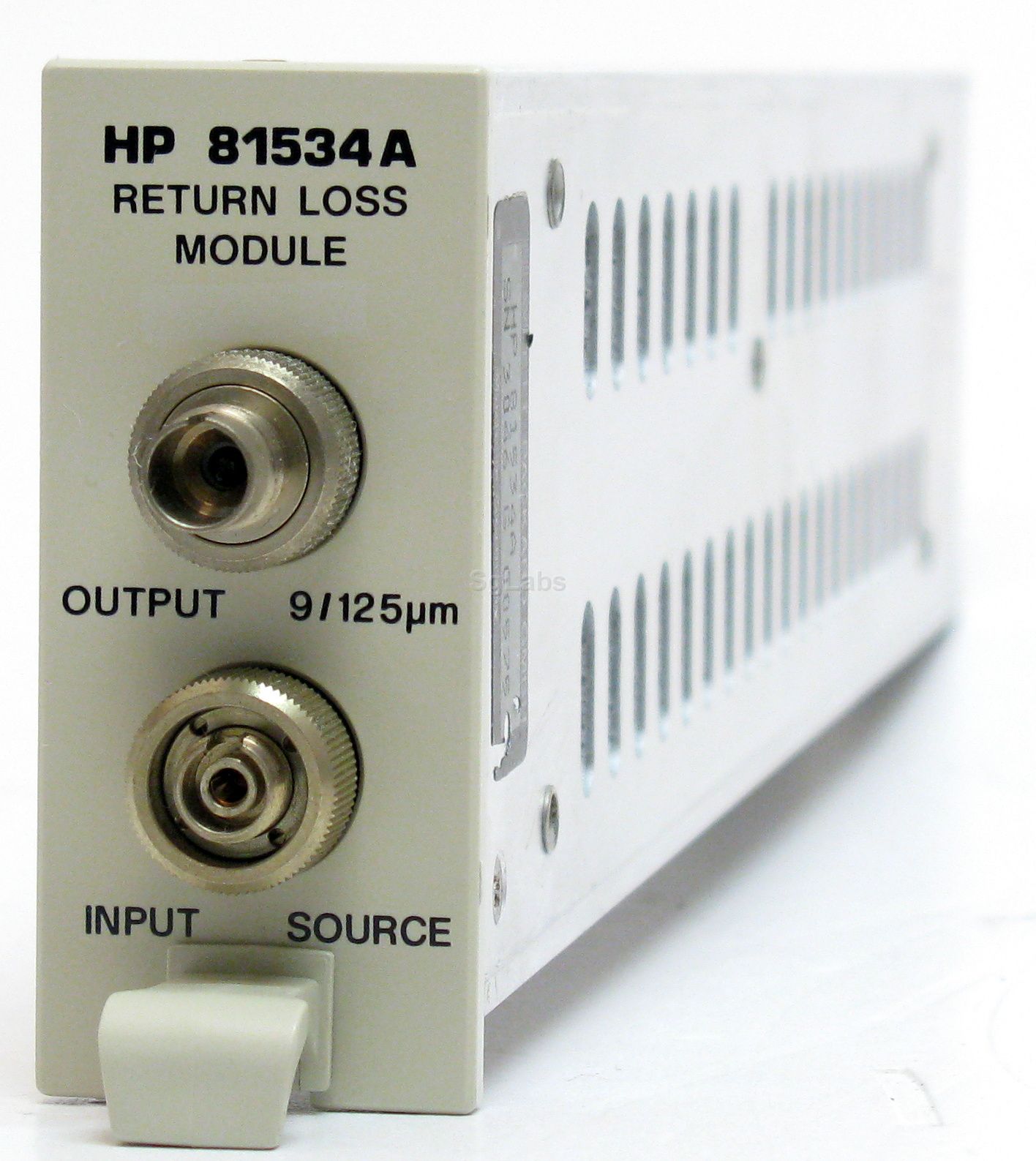

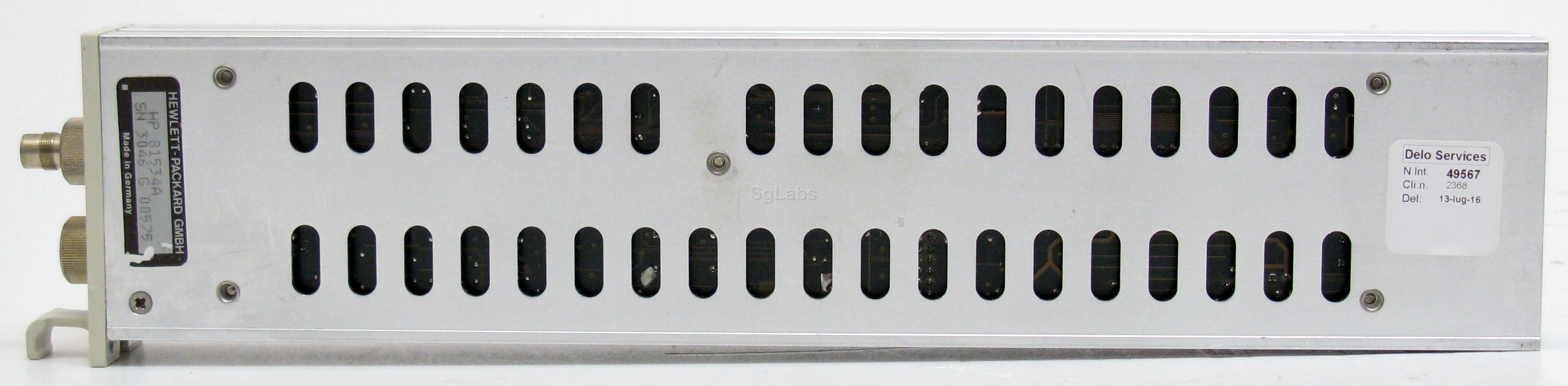

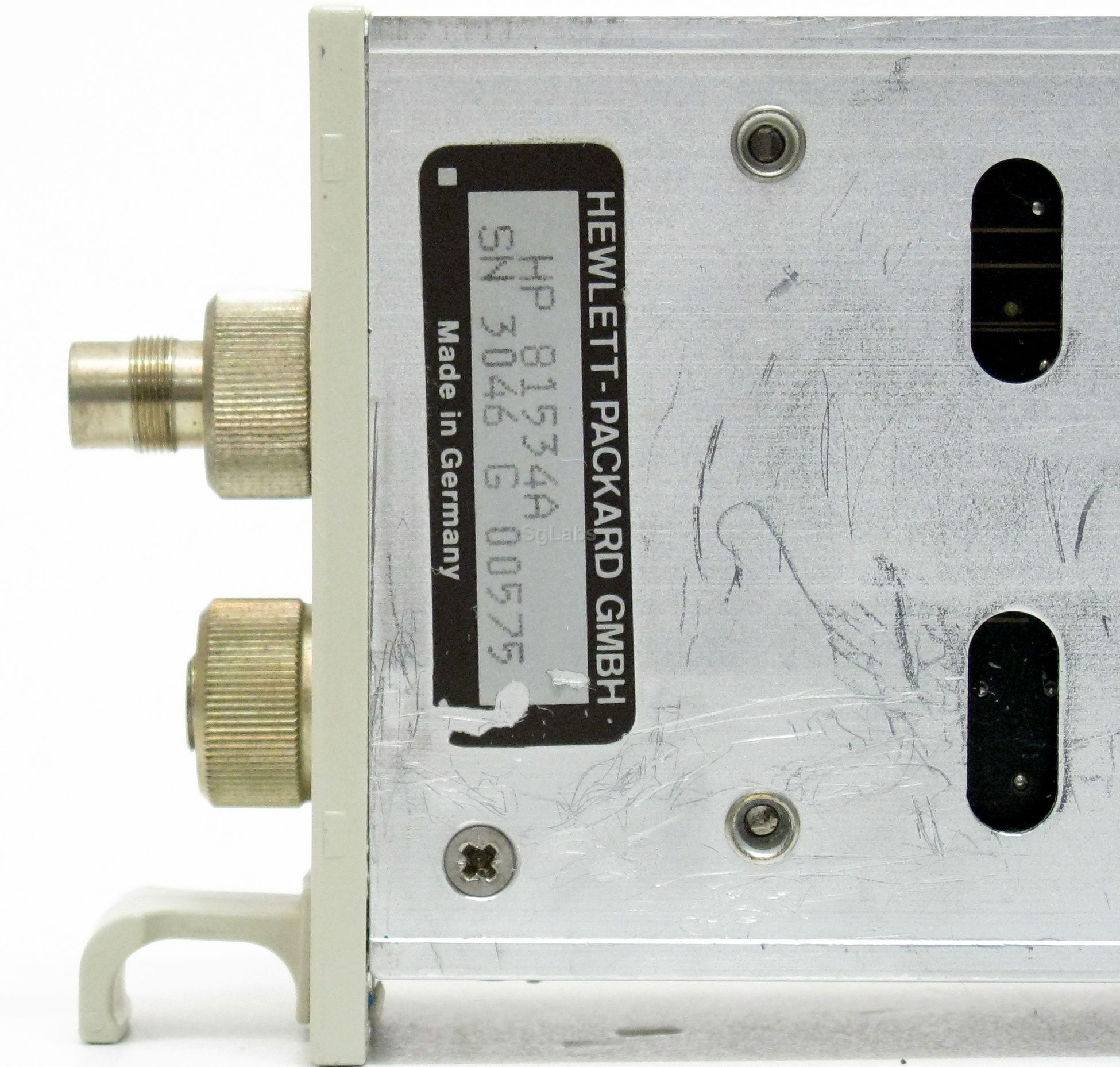

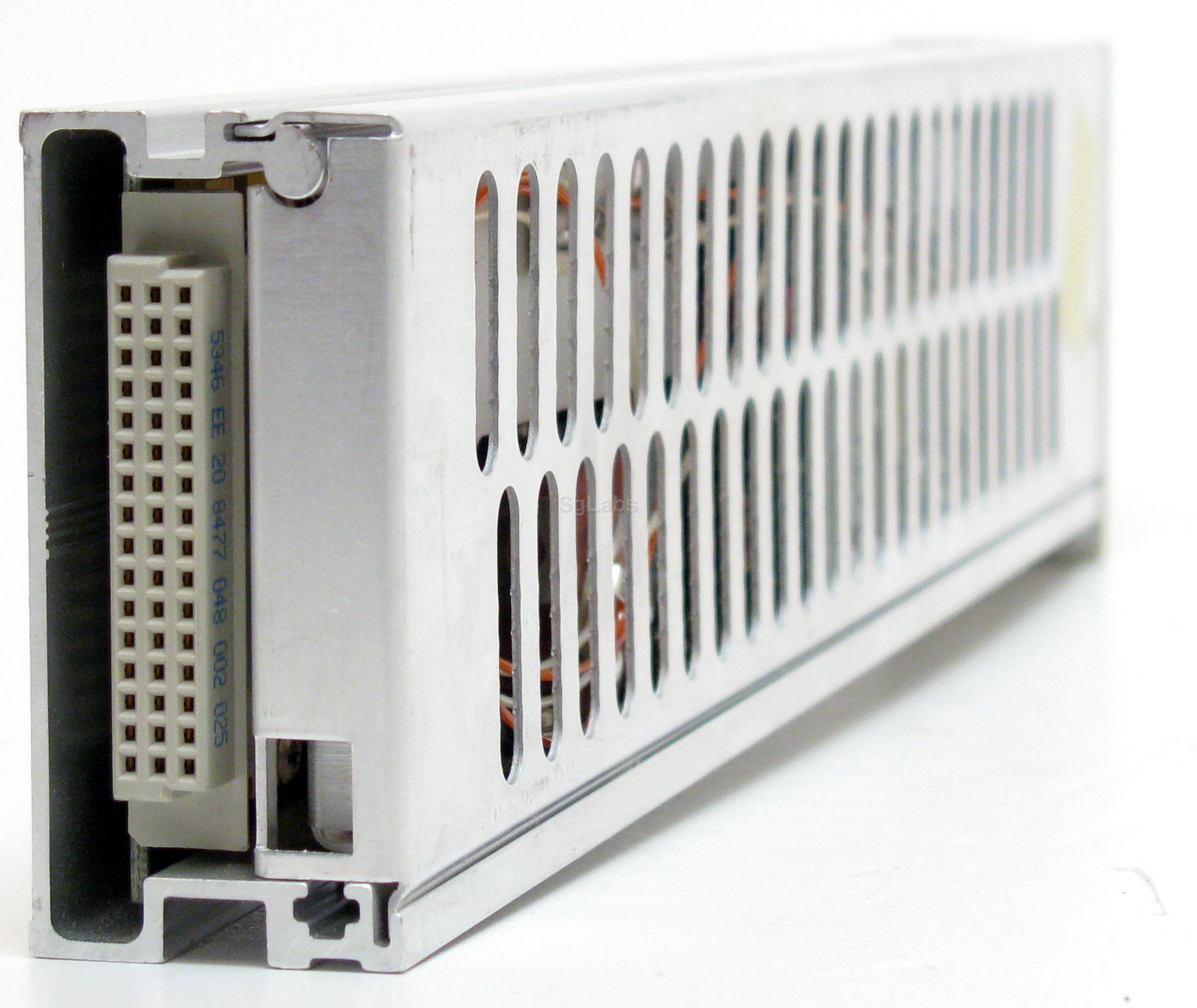

Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto
The Agilent Return Loss Meters are ideal for making measurements on fast telecommunications systems, such as filters, multiplexers, cross-connects, amplifiers and whole systems under test. They can also be deployed in both R&D and production environments and are suitable for singlemode applications.

    Return loss measurements can be made using a power meter such as the Agilent 8153A or 8163A lightwave multimeter and the Agilent 81534A return loss module. The return loss module contains a sensitive detector and a directional coupler. The source illuminates the test device, while the directional coupler and detector sense only the power that is traveling in the reverse direction. This system is best suited for accurate measurement of devices with a single reflection such as connectors, splices and attenuators. It is also used to measure the aggregate or "total" return loss of a device with multiple reflections.

Features:

  • Agilent Lightwave Mainframe Module
  • Sensitive Power Measurements
  • Integrated Directional Coupler
Caratteristiche
  • Tipo di Sensore InGaAs
  • Range di Lunghezza d'onda 1250nm - 1600nm
  • Fiber Interface 9/125um
  • Return Loss 65db
  • lunghezza d'onda massima (nm): 1600 nm
  • lunghezza d'onda minima (nm): 1250 nm
