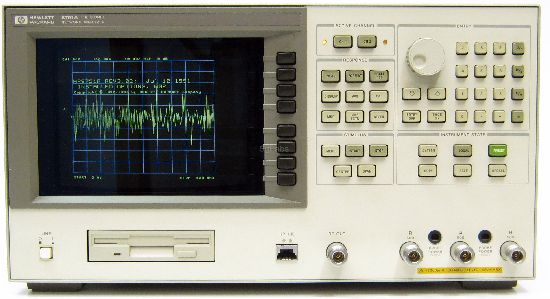

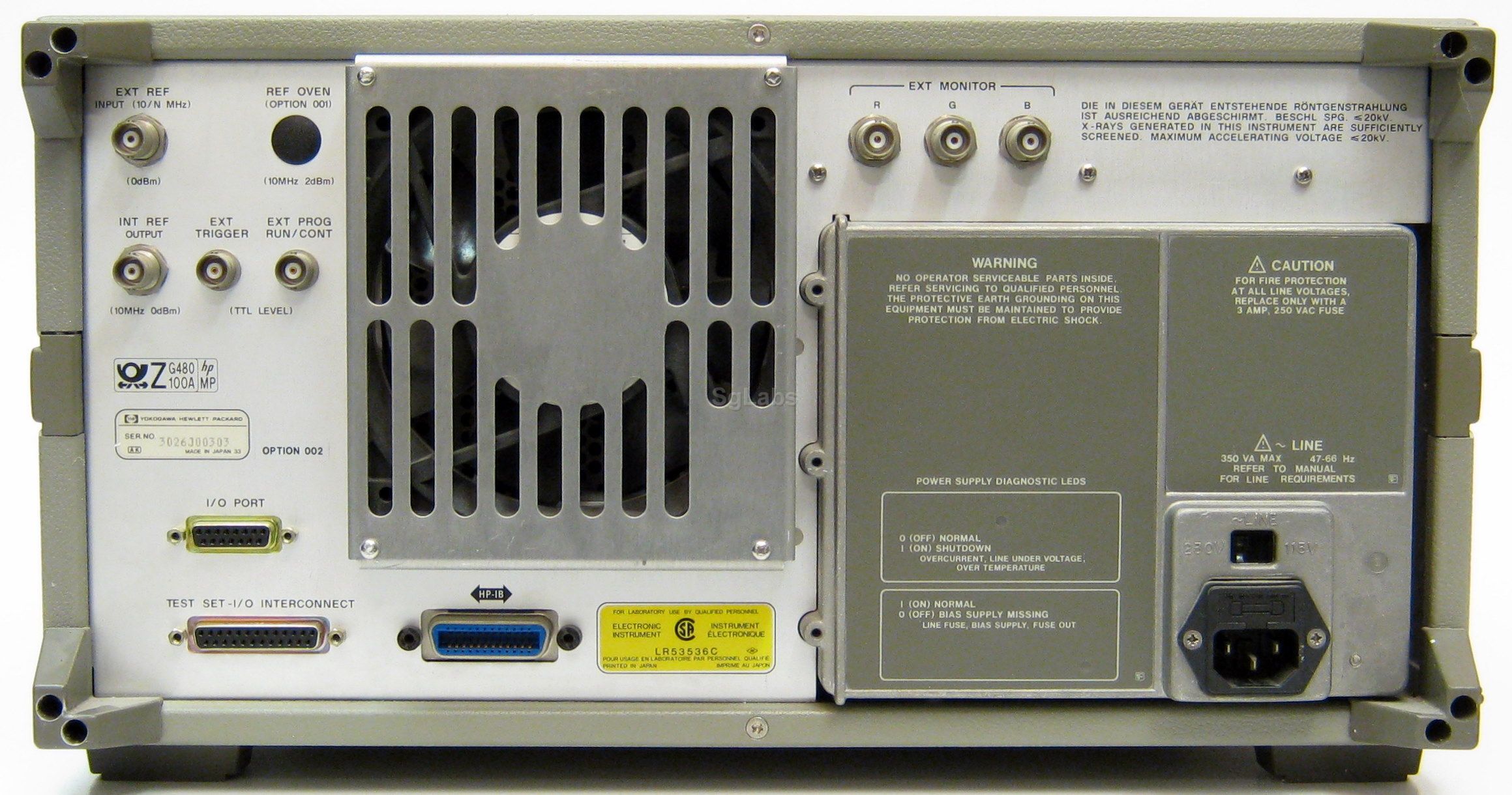

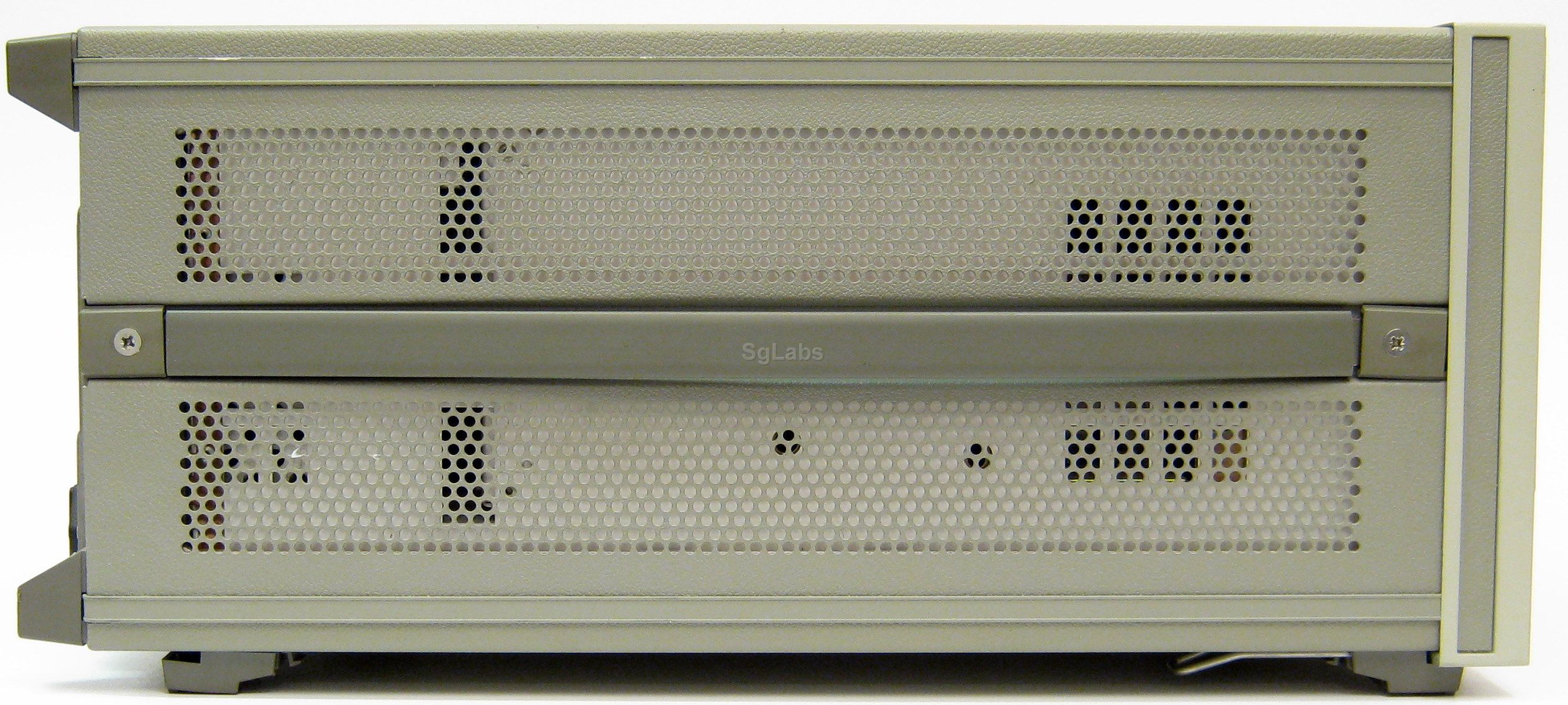

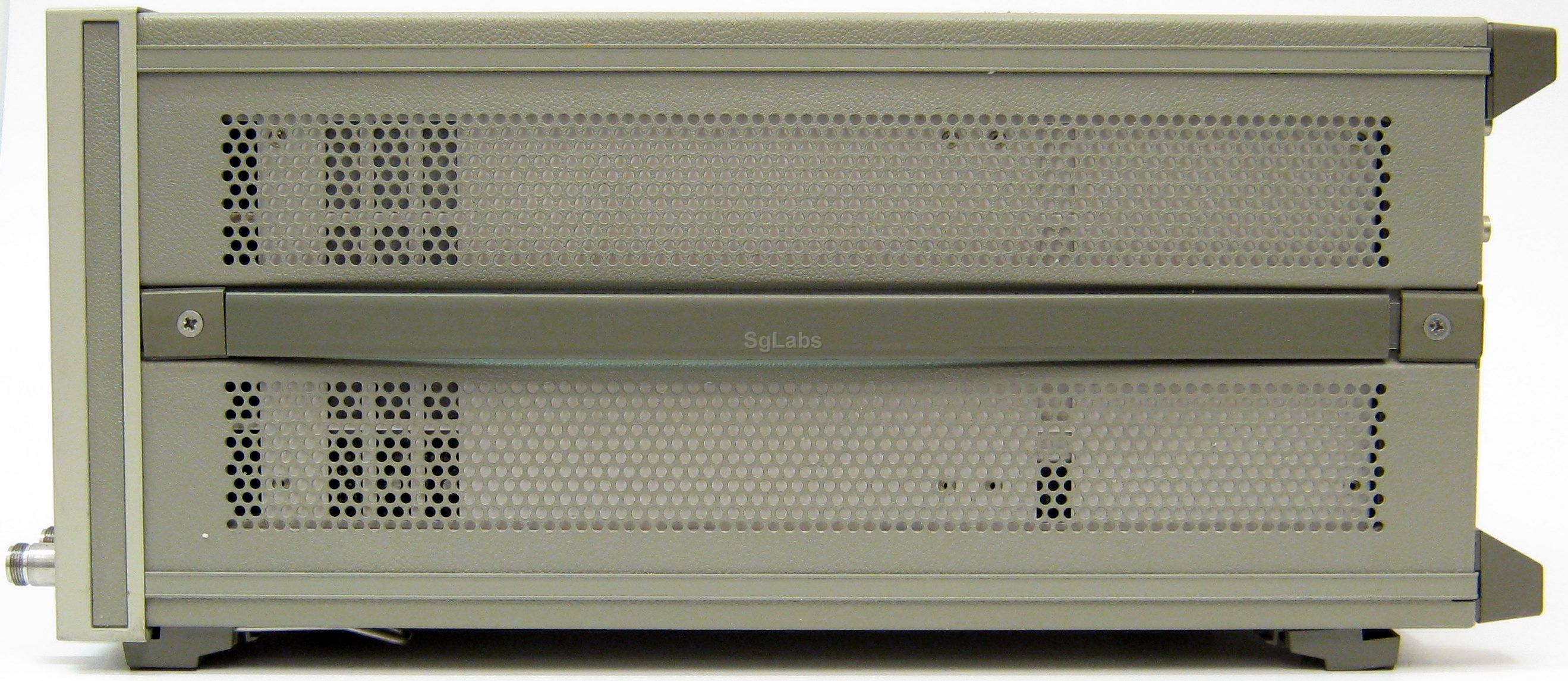

HP Agilent Keysight, 8751A


HP Agilent Keysight, 8751A
Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto

The HP Agilent 8751A, Network Analyzer, is a high-throughput instrument with lab precision that covers 5 Hz to 500 MHz.

The Agilent HP 8751A, Network Analyzer, provides resolution of 0.001 Hz, 0.001 dB, 0.001 degree, and 10 ps for characterizing the linear behavior of either passive or active networks, devices, or components in the lab and the production test areas.

The built-in 1.44 MB disk drive is for direct save/recall of instrument state, calibration data, and application programs for your customization.

Dedicated 50/75 O S-parameter test sets, 50/75 O T/R test kits, and the 1 M O input adaptors are all available.

  • 5 Hz to 500 MHz

  • ±0.02 dB, ±0.12°dynamic accuracy

  • 0.001 Hz, 0.001 dB, 0.001 degree, 10 ps resolution

  • Full 2-port and interpolative calibration

  • Conjugate matching analysis

  • 10 updates of 201 sweep points per second

  • 0.4ms/point fast list sweep (IFBW = 4 kHz)

  • Up to 4 traces simultaneous measurement/display

  • Eight active trace markers per channel

  • Instrument BASIC for customization

  • List sweep for efficient measurement
  • Connettore: N
  • Frequenza massima: 500 MHz
  • Frequenza minima: 5 Hz
  • Numero canali: 2
  • Test set: 87511A
