Bird, 8201

Sei in: ACCESSORI RF » Terminazione RF

Bird, 8201
Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto

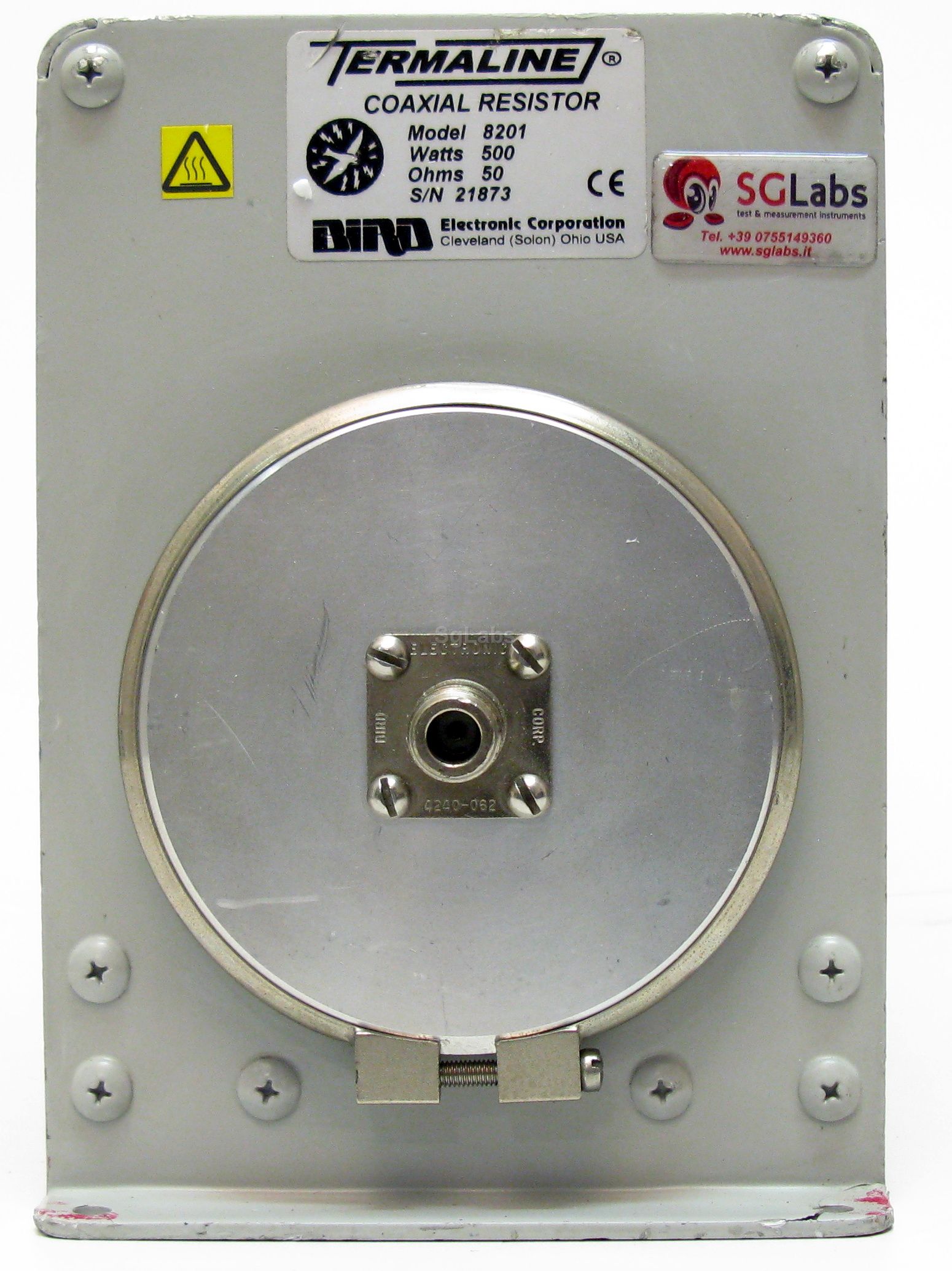

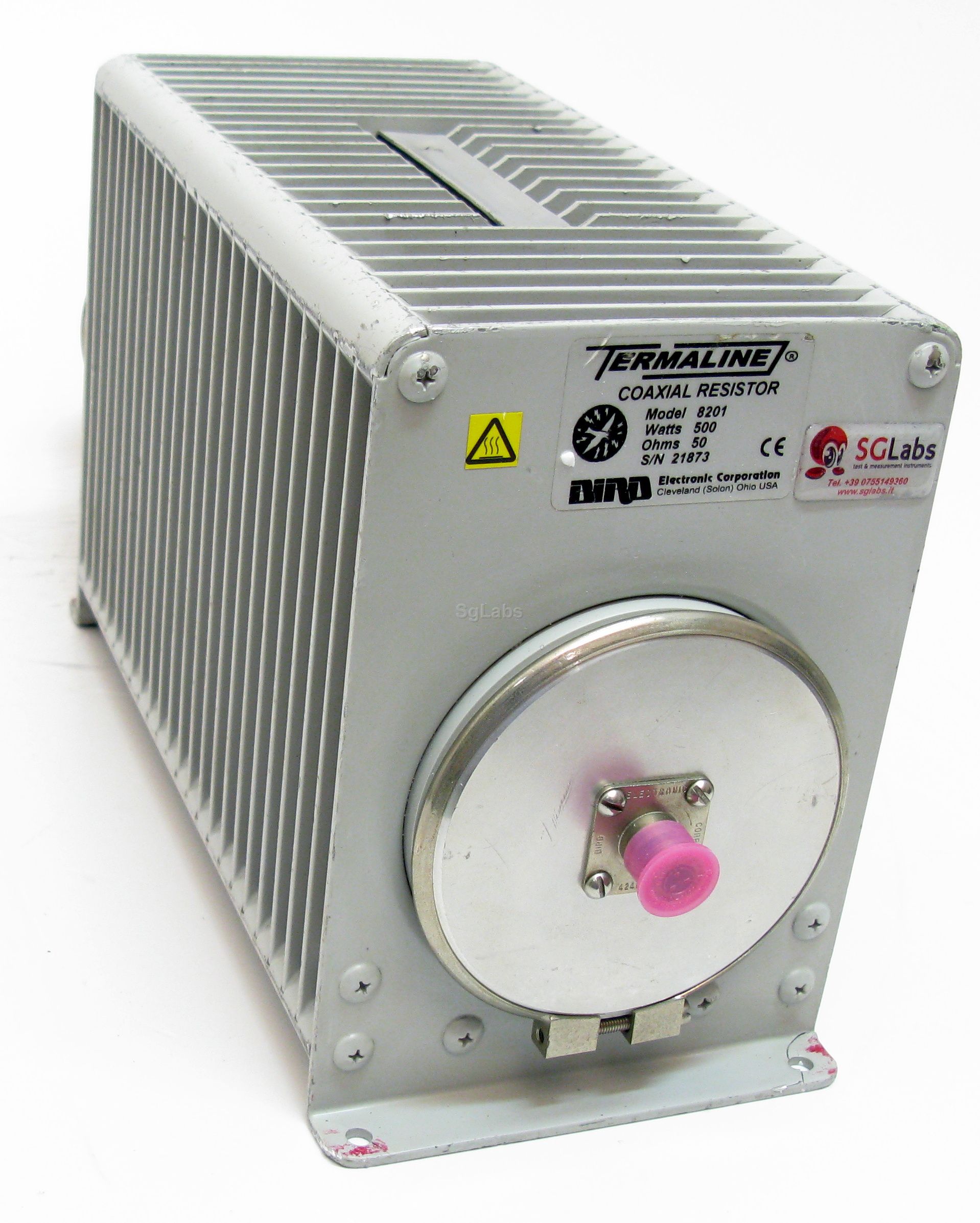

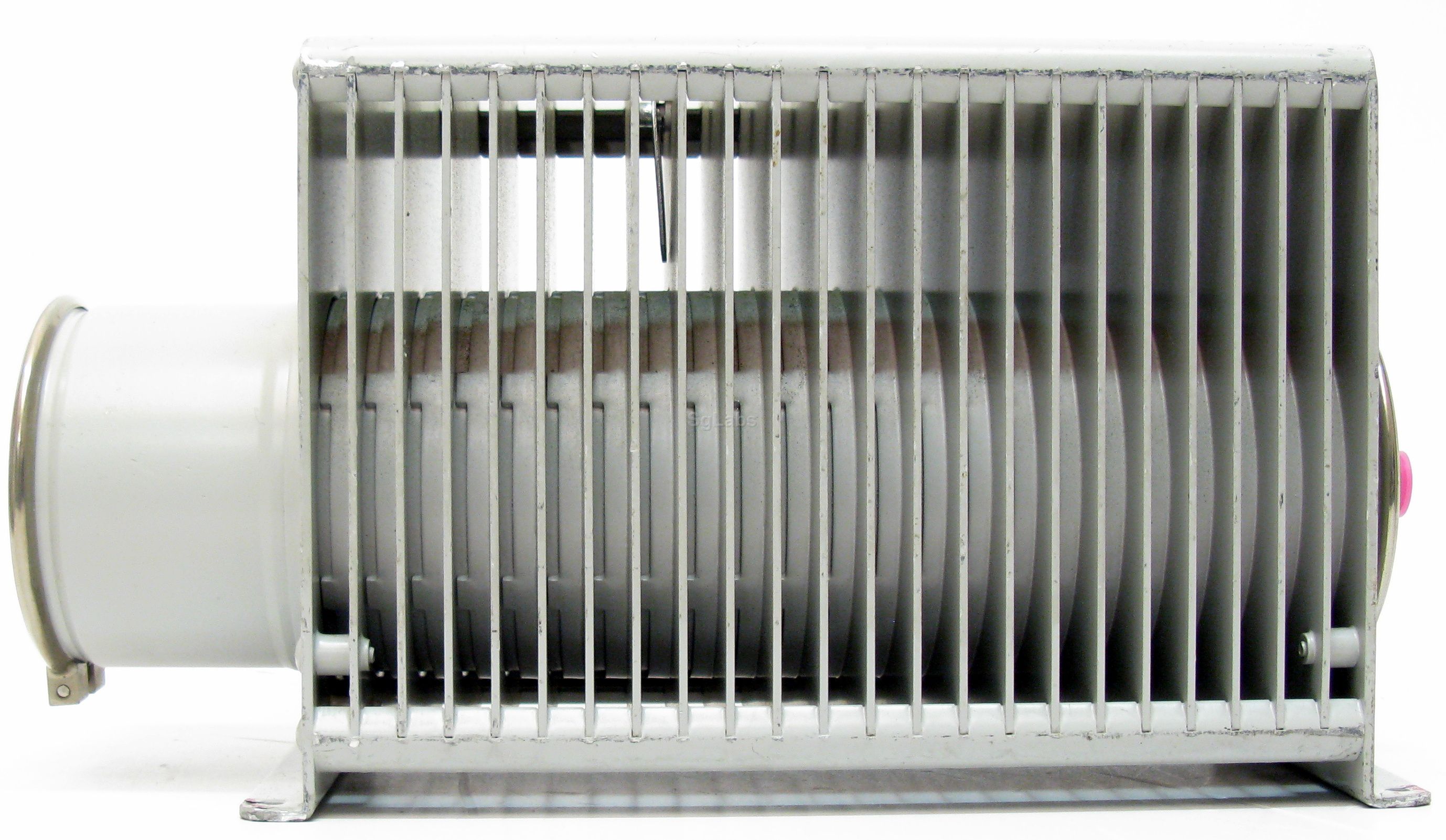

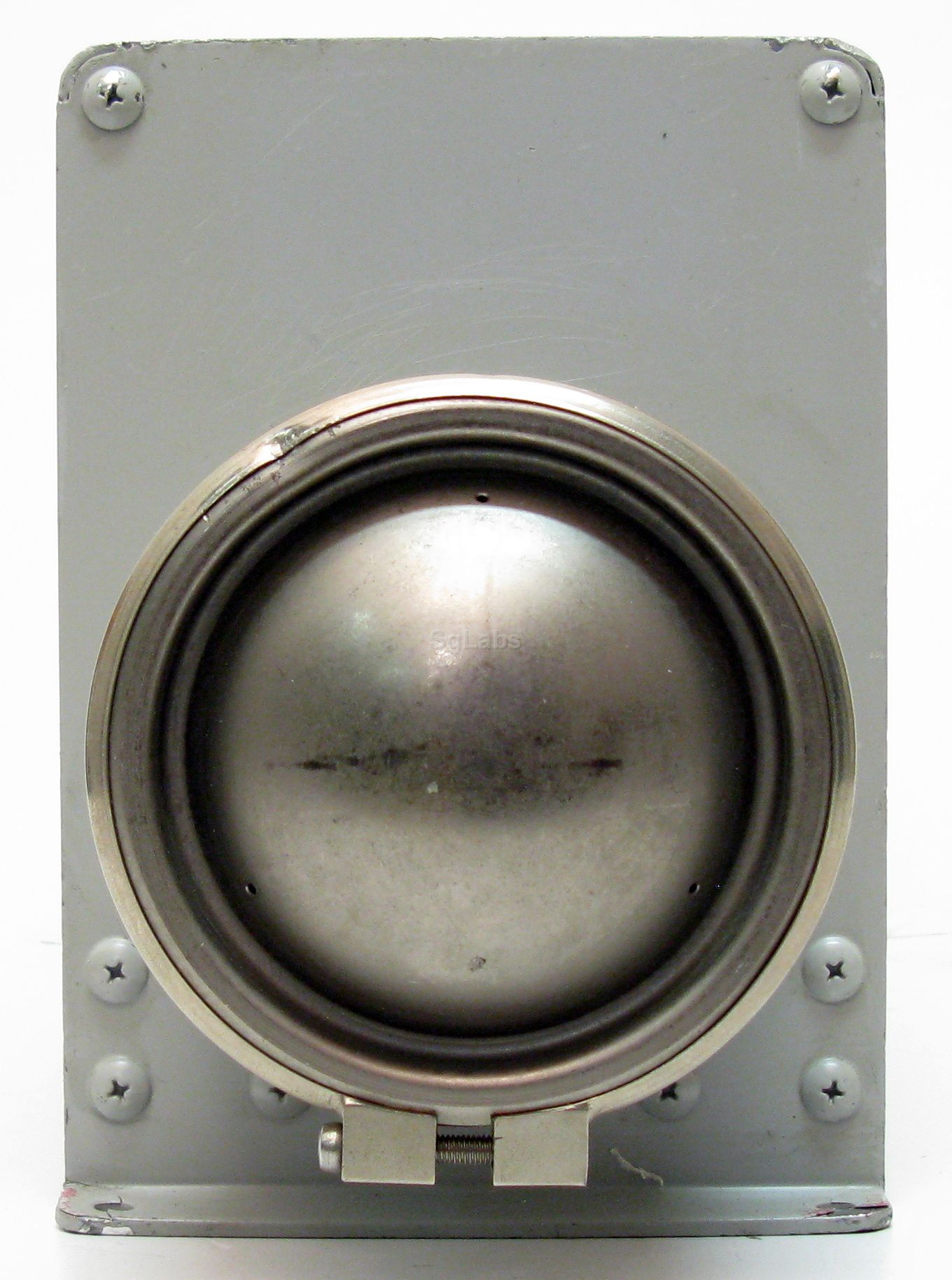

8201, 500 Watt, Oil-Cooled Termination is a portable, self-contained general purpose 50 ohm coaxial transmission line termination requiring no outside power source or additional equipment. It provides accurate, dependable, and practically nonreflective termination for testing and adjusting transmitters under nonradiating conditions. The load consists essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor. This produces the uniform, practically reflectionless line termination from dc to 2.5 GHz.

  • Rugged portable Bench load for medium power base station RF testing up to 2.5 GHz
  • Oil-assisted convection cooling for safe, continuous operation up to 500W full rated power
  • Quick Change (QC) connectors to minimize the need for adaptors when making critical measurements
  • Low-profile housing with handle and rubber feet for trouble-free operation in the most demanding environments
Caratteristiche
  • Potenza massima: 500W
  • Range di Frequenza: DC -2.5 GHz
  • VSWR: DC to 1 GHz @ 1.1 max, 1 GHz to 2.5 GHz @ 1.25 max.
  • Connettore: Nf
  • Frequenza massima: 2.5 GHz
  • Frequenza minima: DC
  • Potenza massima: 500 W
  • VSWR / RL: DC to 1 GHz @ 1.1 max, 1 GHz to 2.5 GHz @ 1.25 max.
Prezzo
 € 400,00
