Anritsu, MW9076C
Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto

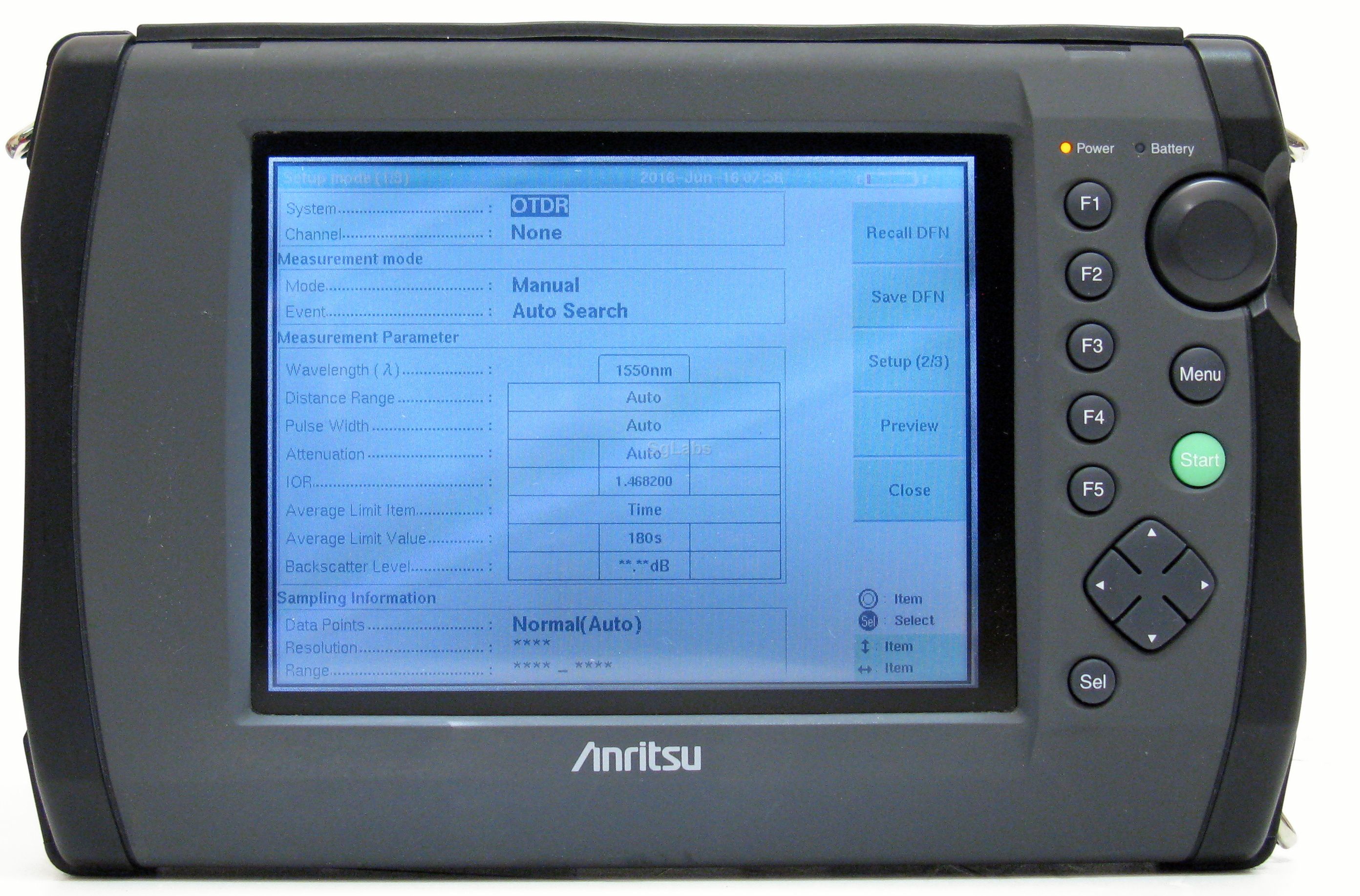

The MW9076 mini-OTDR series can perform a measurement three to five times faster than the well received, conventional MW9070B. Three and four-wavelength OTDRs are included among the new product lineup. The four-wavelength OTDR can measure the chromatic dispersion characteristics from one end of an optical fiber. Two types of color displays with high resolution (5cm) and many sampling points (50000 points) are available for indoor and outdoor use. The MW9076 series shows superior basic performance that enables a wide dynamic range and a short dead zone. It supports the construction and maintenance of the optical fiber cables. Moreover, using this OTDR, it is possible not only to quickly charge a lithium-ion battery but also to indicate the remaining battery charge.

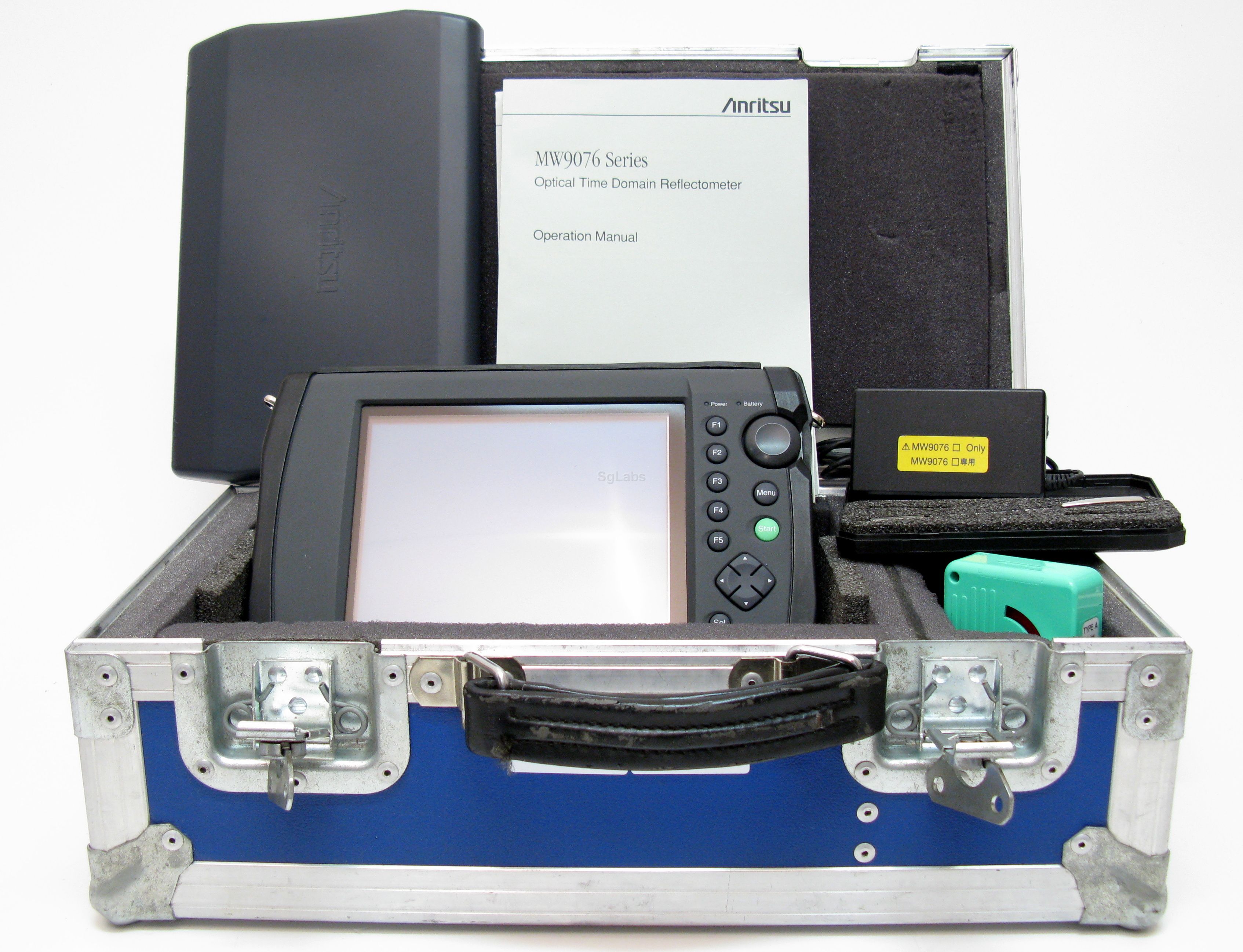

The MW9076C is a high performance three wavelength OTDR module used for testing at both the two standard SM window, but also the 1625 nm window used for fiber monitoring. Wavelength:1.31/1.55/1.625 µm, Dynamic Range: 41.3/39.5/37 dB (typical), Dead Zone: 1.6/8 m. Supplied with: MW9076 series operation manual, Serial interface manual, Connector adapter, Lithium ion battery pack. REQUIRES DISPLAY UNIT (MU250000A OR MU250000A4)
Caratteristiche
  • Fibra Ottica: SM
  • Lunghezza d'onda: 1.31/1.55/1.625 µm
  • Dinamica: 41.3/39.5/37 dB (tipica)
  • Dead Zone: 1.6/8 m

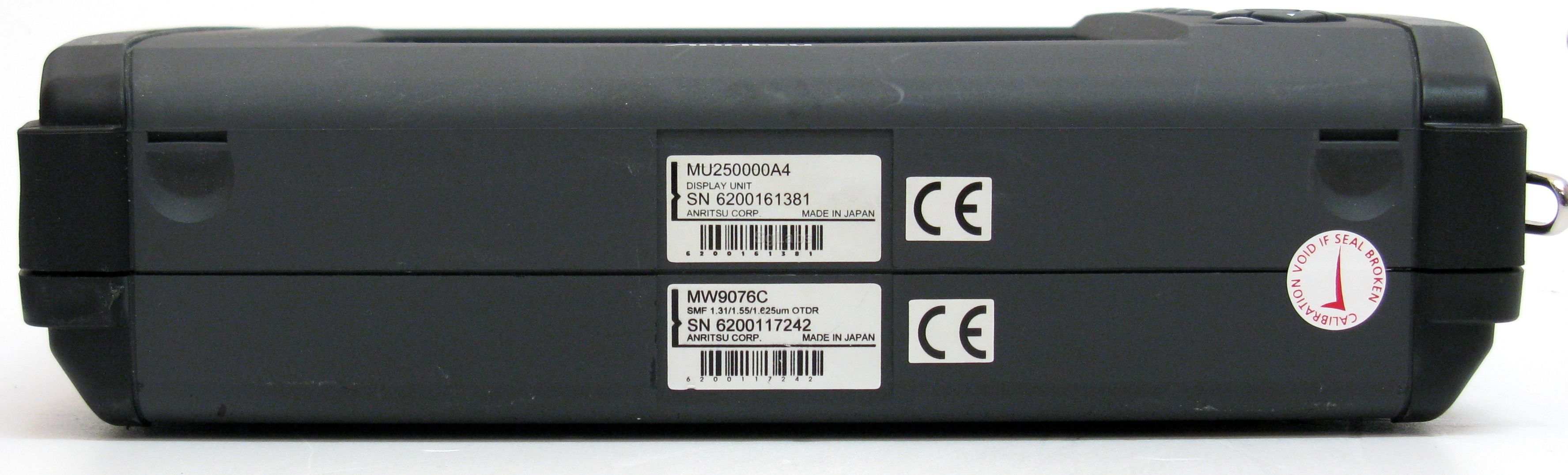

  • Richiede l'unità display (MU250000A o MU250000A4)
  • lunghezza d'onda massima (nm): 1.625 µm
  • lunghezza d'onda minima (nm): 1.31 µm
Prezzo
 € 1.800,00
