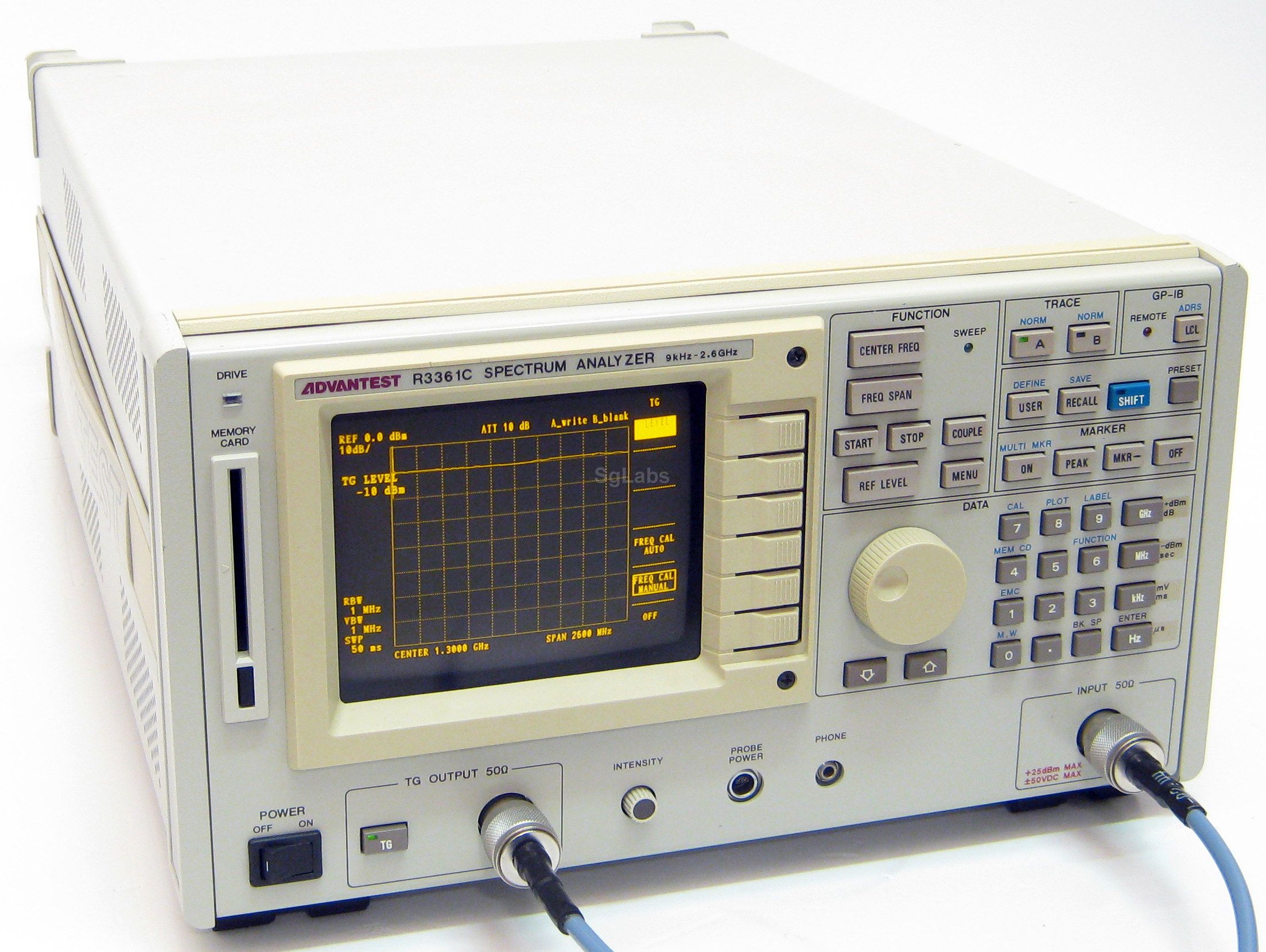

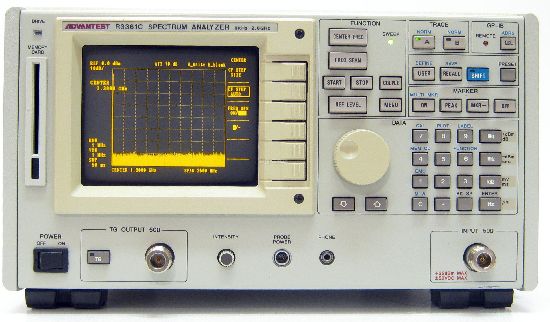

The Advantest 3361 Series are compact and lightweight spectrum analyzers which use a synthesized technique to cover wide frequency bands: 9 kHz to 2.6 GHz. ADVANTEST’s long experience in RF technology and software calibration technology have enabled a total level accuracy of 1dB. These compact analyzers also offer high performance functions such as a central frequency with a 1 Hz resolution, start/stop frequency setting and an internal frequency counter with a 1 Hz resolution.
Caratteristiche tecniche :
- Range in frequenza 9 KHz - 2,6 GHz
- Risoluzione in frequenza 1 Hz
- Risoluzione massima RBW 30 HZ
- Livello di ampiezza misurabile -130 dBm a +25 dBm
- Livello di ampiezza in uscita da 0 dBm a -50 dBm
- Sweep time da 50 ms a 1000 s
