Wavetek, 20

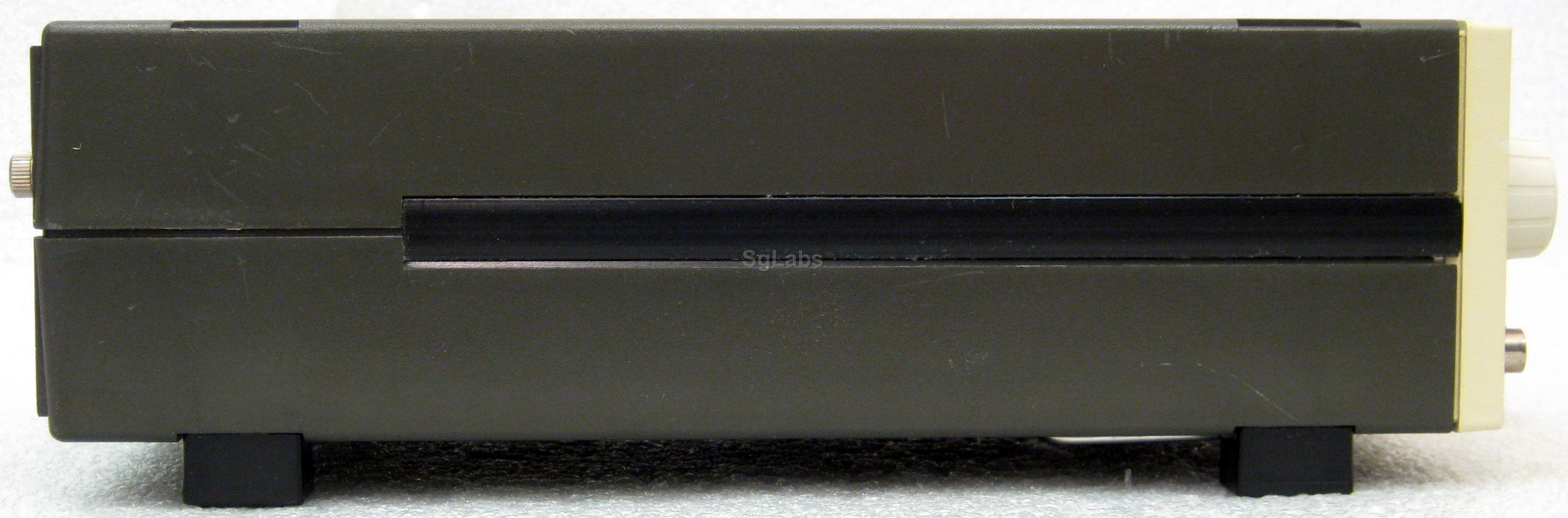

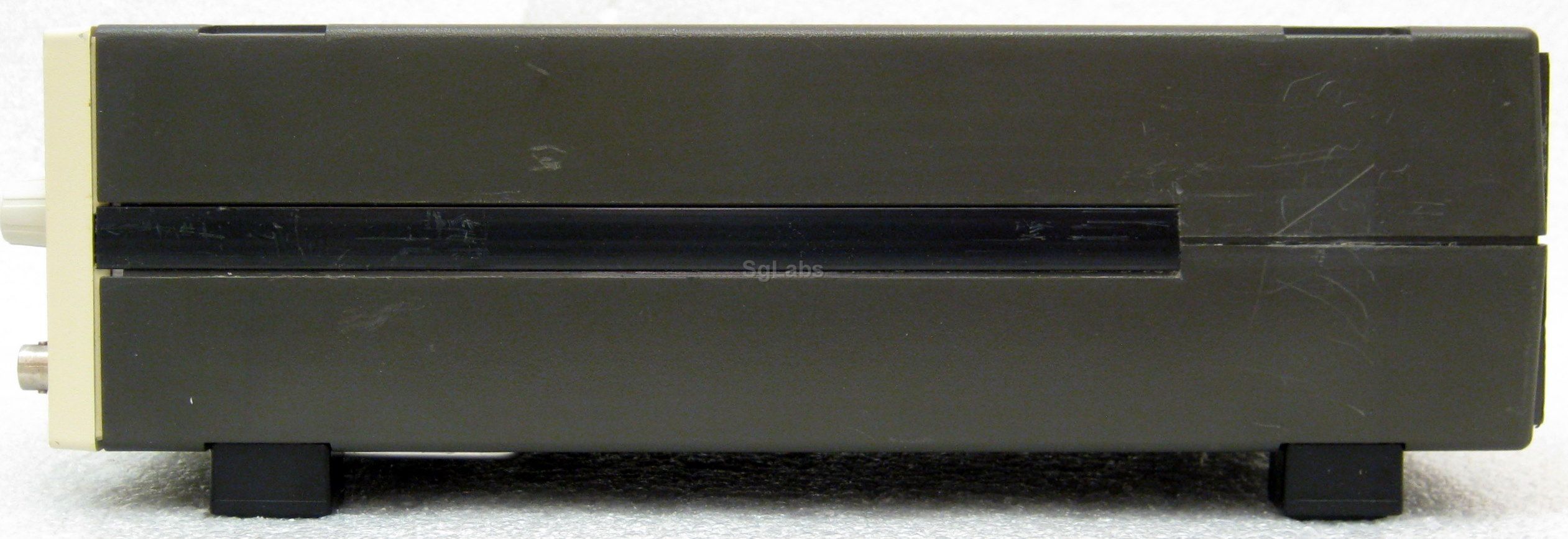

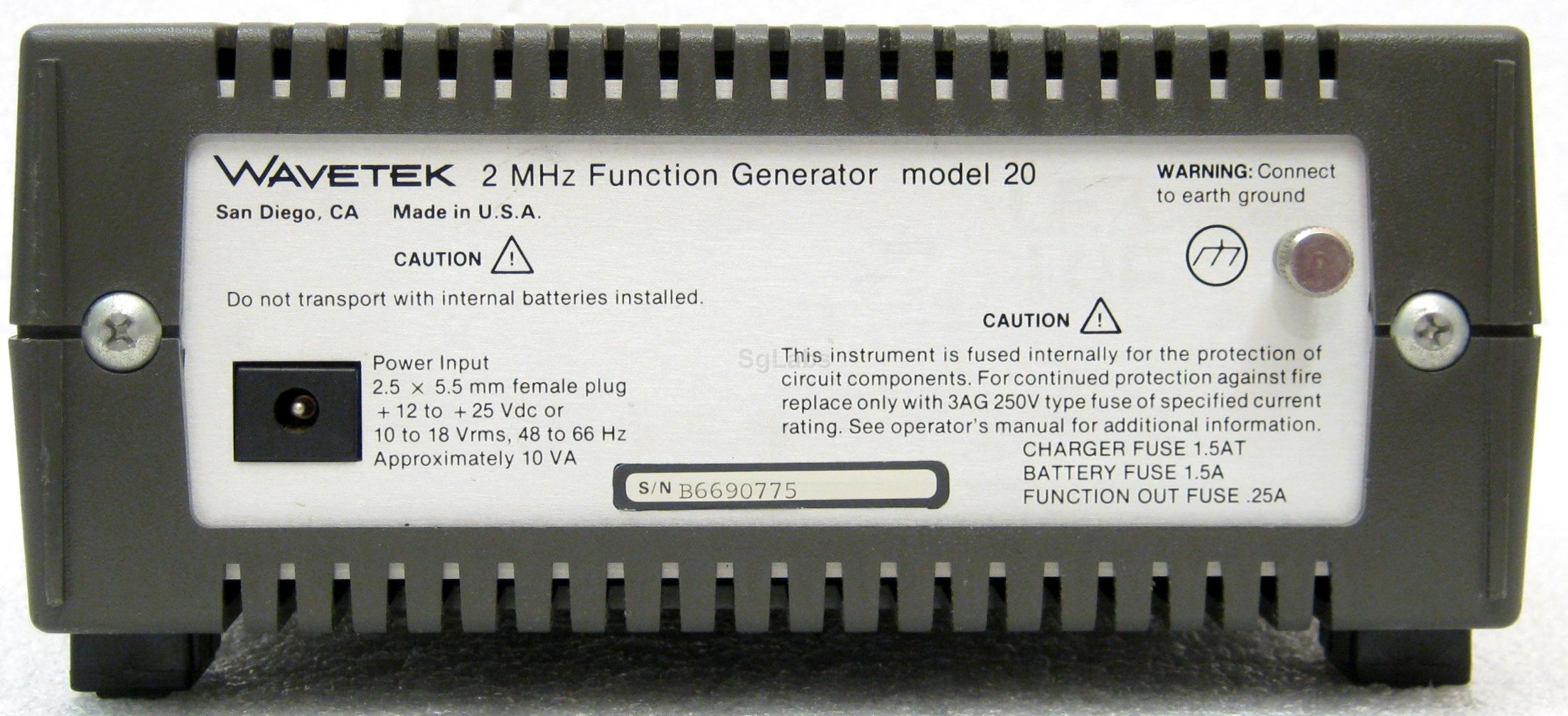

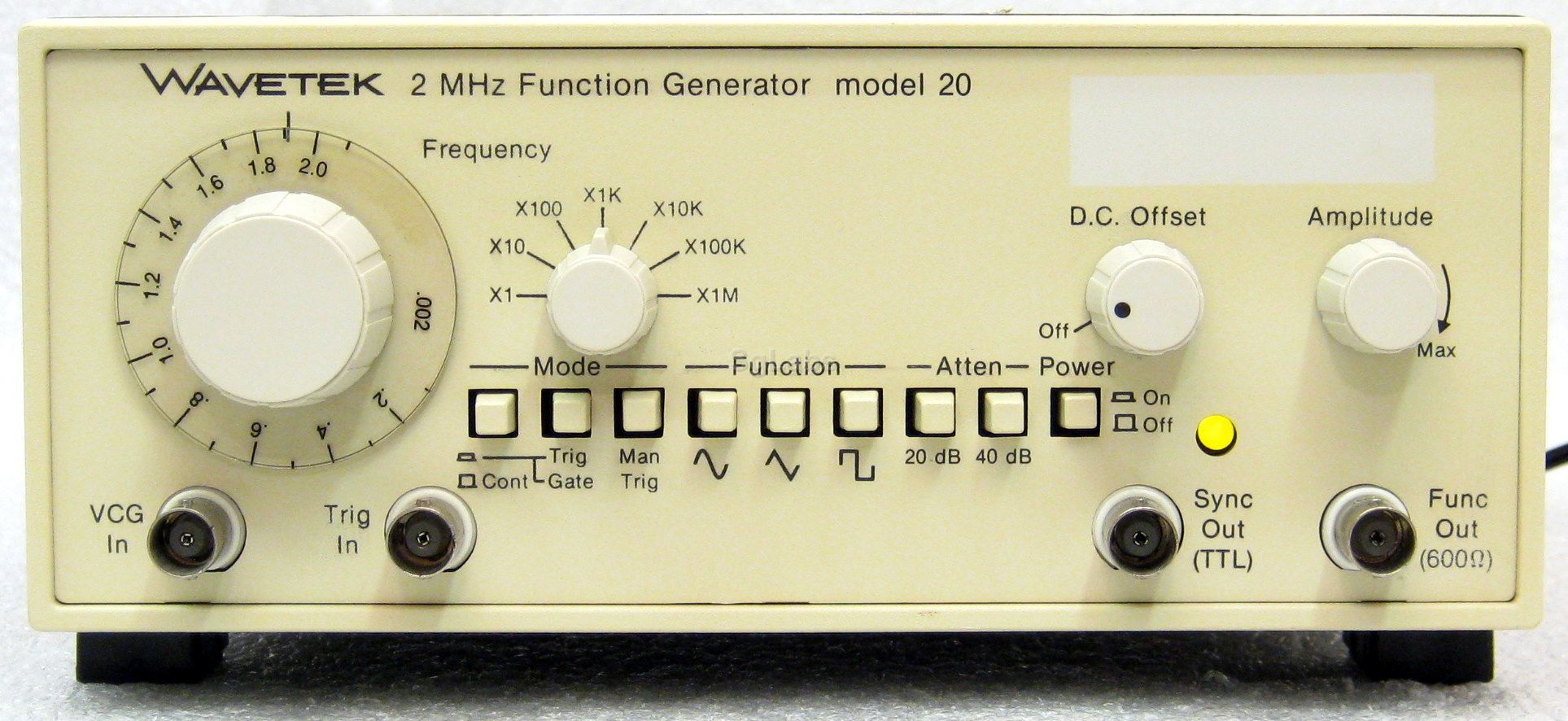

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Wavetek 20 Function Generator generates signals from 0.002 Hz to 2.1 MHz over 7 ranges. Frequency may be set with the calibrated dial, externally modulated, or swept over the three decades available per range. Triggered and gated modes give the instrument additional flexibility.

Form Factor Benchtop
Number of Channels 1 ch
Waveforms (Sine, Square, etc.) Sine,Square,Triangle
Minimum Frequency 0.002 Hz
Maximum Frequency, Sine wave 2.1 MHz
Maximum Frequency, Square Wave 2.1 MHz
Maximum Frequency, Triangle Wave 2.1 kHz
Frequency Accuracy 5 %
Minimum Output Voltage 1 mV
Maximum Output Voltage 10 V
Output Impedance 600 Ohm
Modulation FM,VCG
Trigger Modes Continuous,Gate,Trigger
  • Max. Frequency: 2.1 MHz
  • Min. Frequency: 0.002 Hz
  • Max. Level: 10 V
  • Min. Level: 1 mV
