Wavetek, 178

You are here: Function Generator » Analog

ZOOM

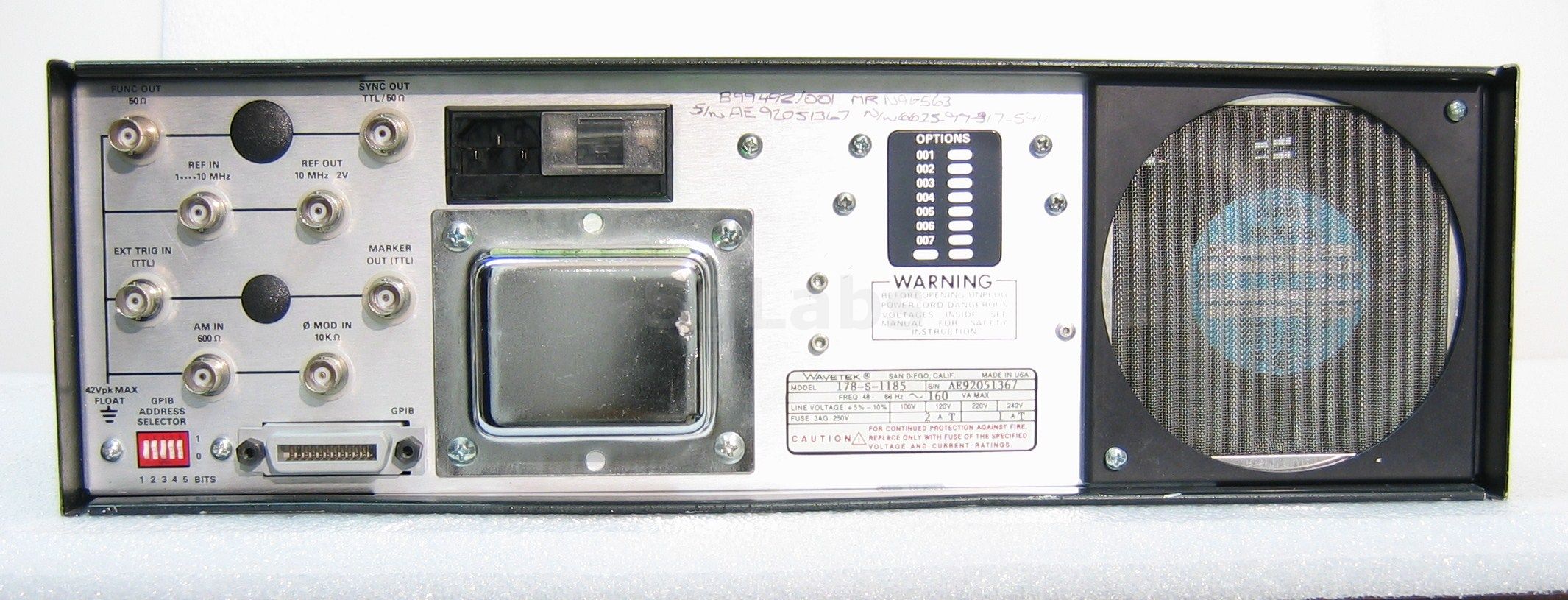

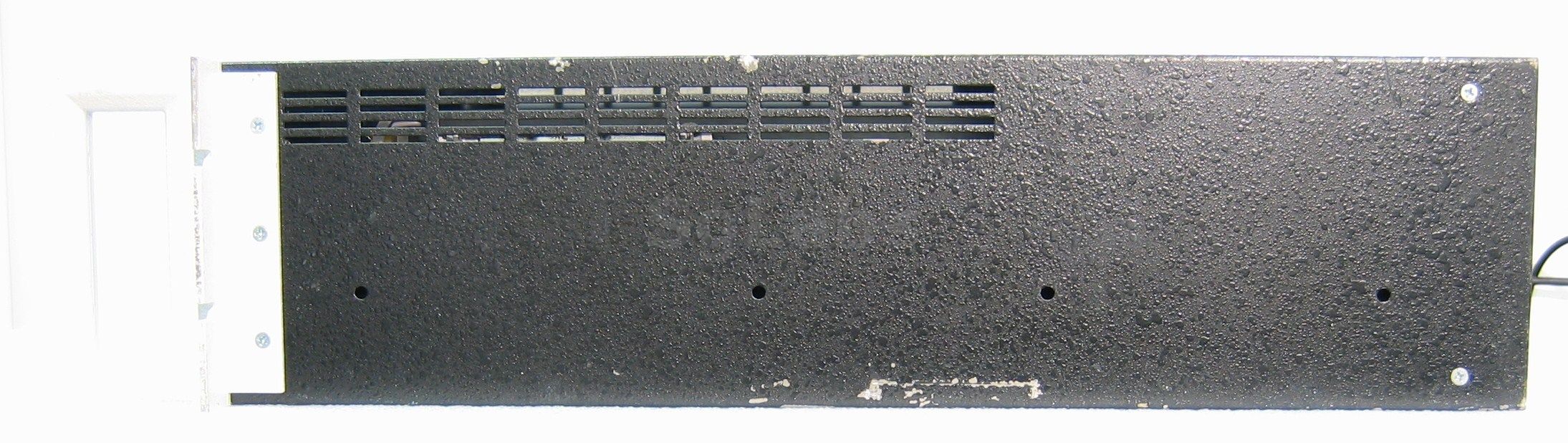

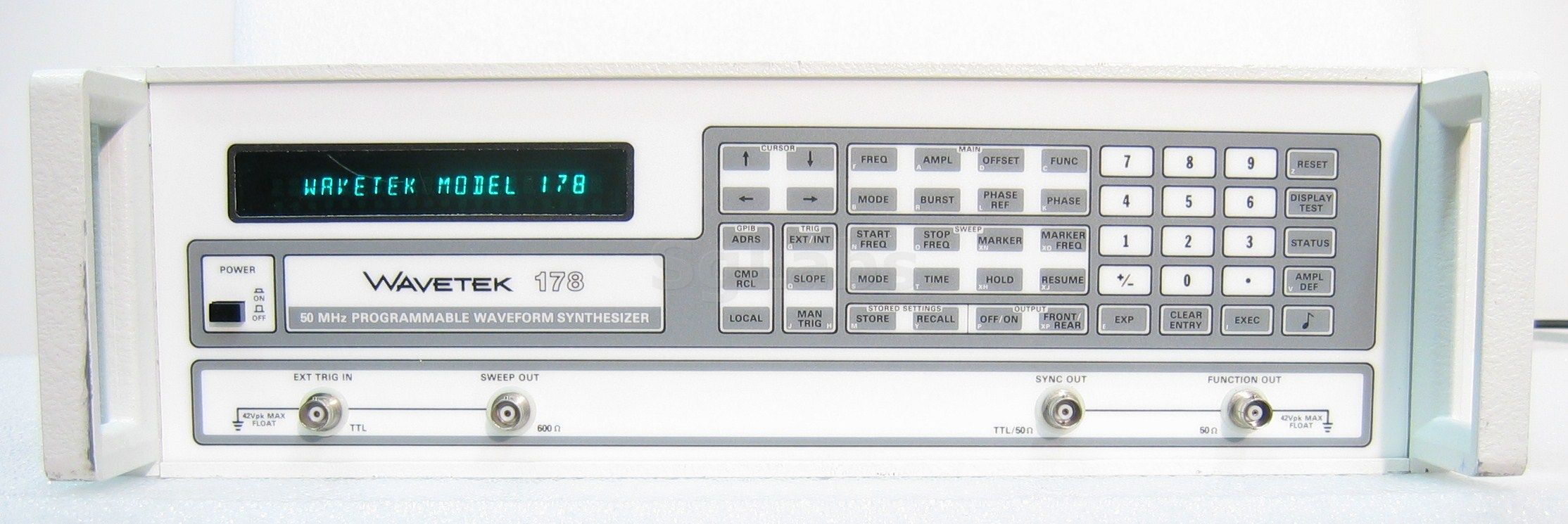

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.

Product description

The Wavetek 178 50 MHz Programmable Waveform Synthesizer is a bench top or ATE programmable instrument that combines the precision of an 8 digit, 50MHz synthesizer with function, signal and sweeper versatility. In addition to sine and square wave to 50MHz, the unit includes the popular triangle and ramps waves.

Technical details:

Frequency Range 1 μHz to 50 MHz

Frequency Resolution 8 digits or 1 µHz
Waveforms Sine, Square, Triangle, Ramps, Haversine

Main Output 20 Vp-p maximum into 50Ω load

Sweep Generator fully synthesized

Sweep Modes Continuous Sweep, Triggered Sweep, Triggered Sweep/Triggered Reset

Sweep Time 0.01 to 600.00s

Sweep Time resolution 0.01s

• Max. Frequency: 50 MHz
• Max. Level: 20 V p-p

Download datasheet: SgLabs_178.pdf (1700 kb)

REQUEST QUOTATION »
