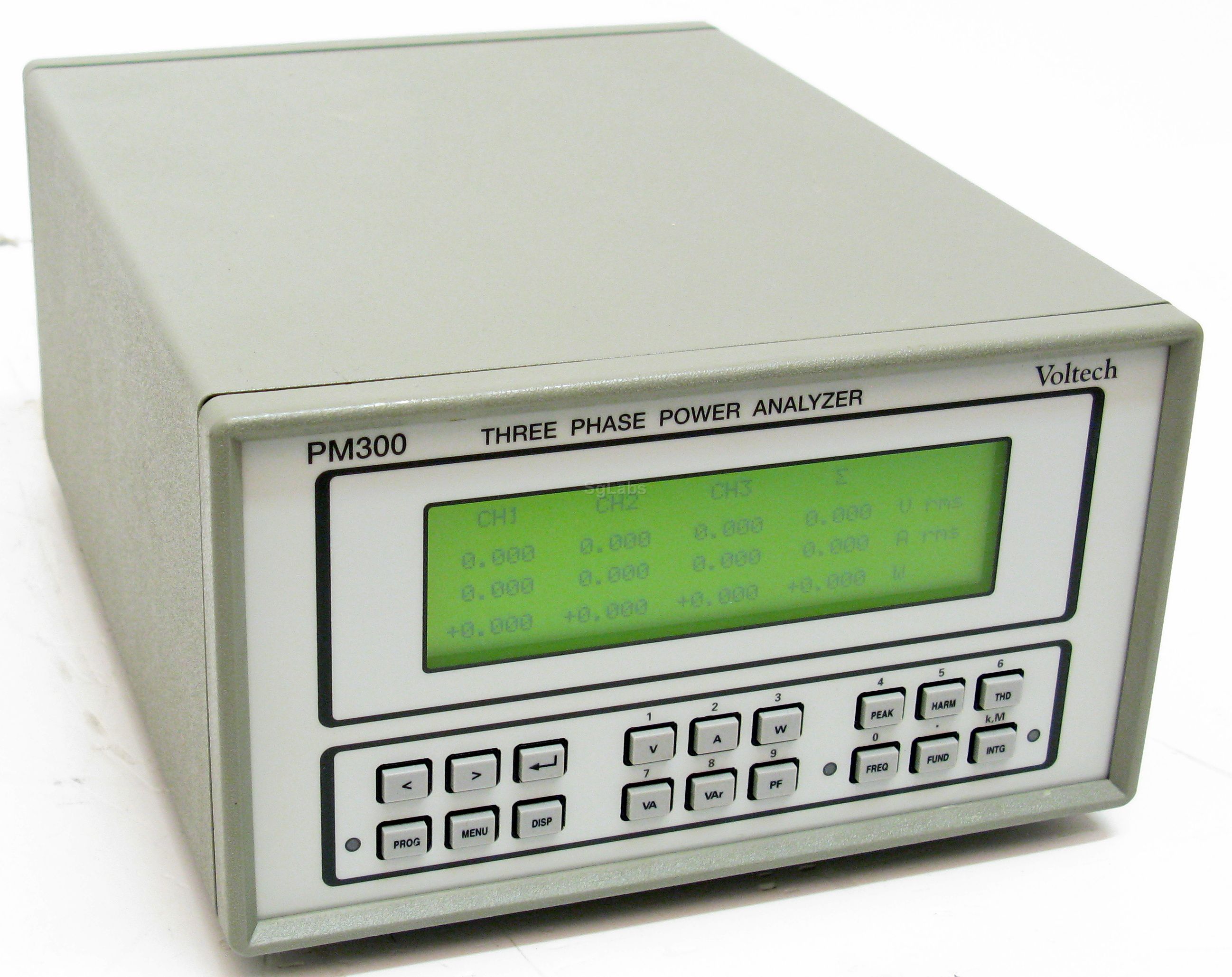

The Voltech PM300 AC three phase power analyzer is ideal for making measurements on most electronic and electrical equipment. It's frequency range is from DC to 250KHz.

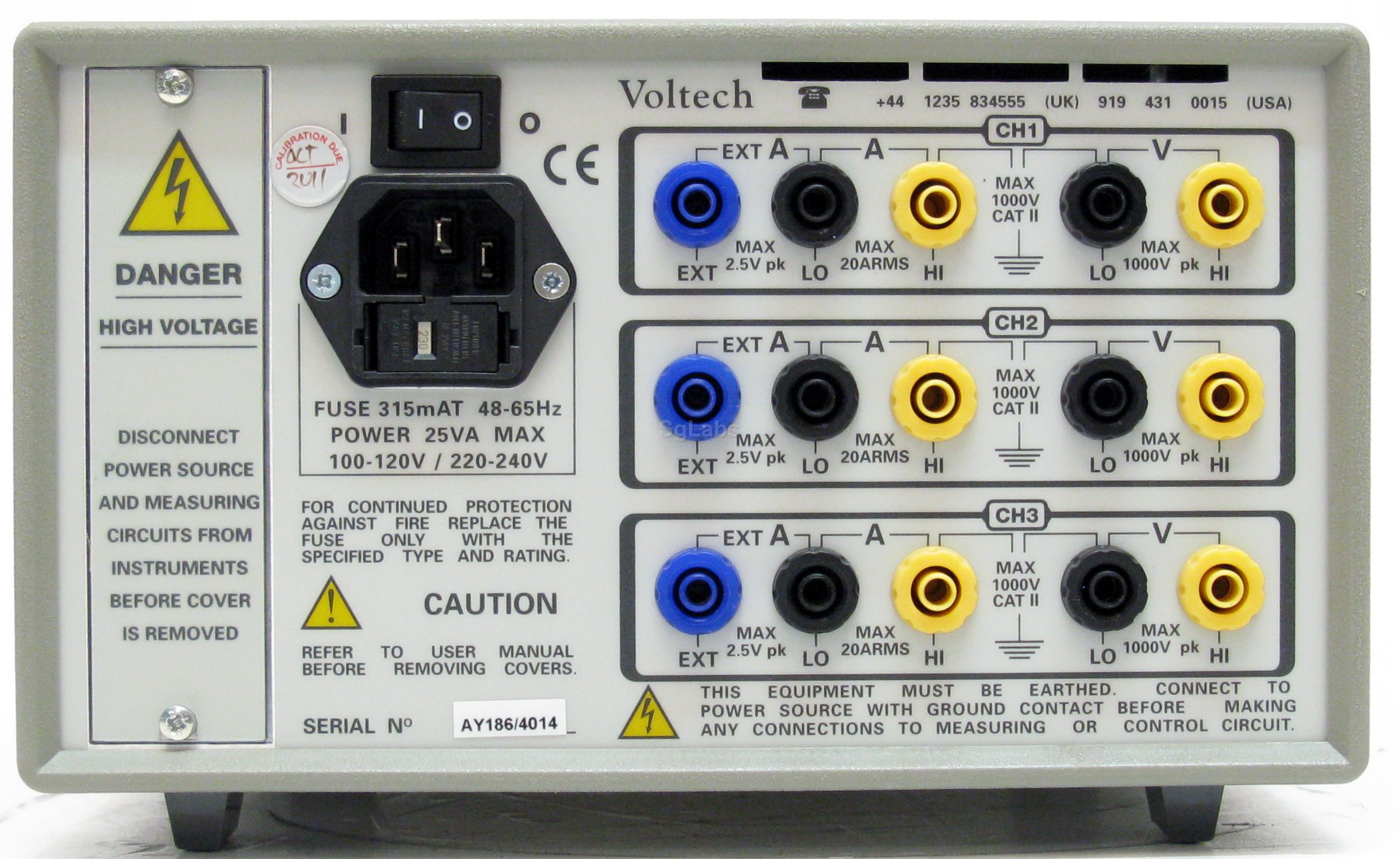

By connecting directly to the analyzer’s 20A-rated, internal shunts, the errors of gain and phase found in external current transformers and transducers are eliminated. For measurements above 20A and 1000V, a broad range of transformers, shunts and DC-coupled transducers can be accommodated. Ideal for general-purpose measurements of watts, power factor, harmonics and volts and amps in the design, evelopment and production of electrical and electronic equipment.
Voltech, PM300
You are here: POWER METER » 3 PHASE

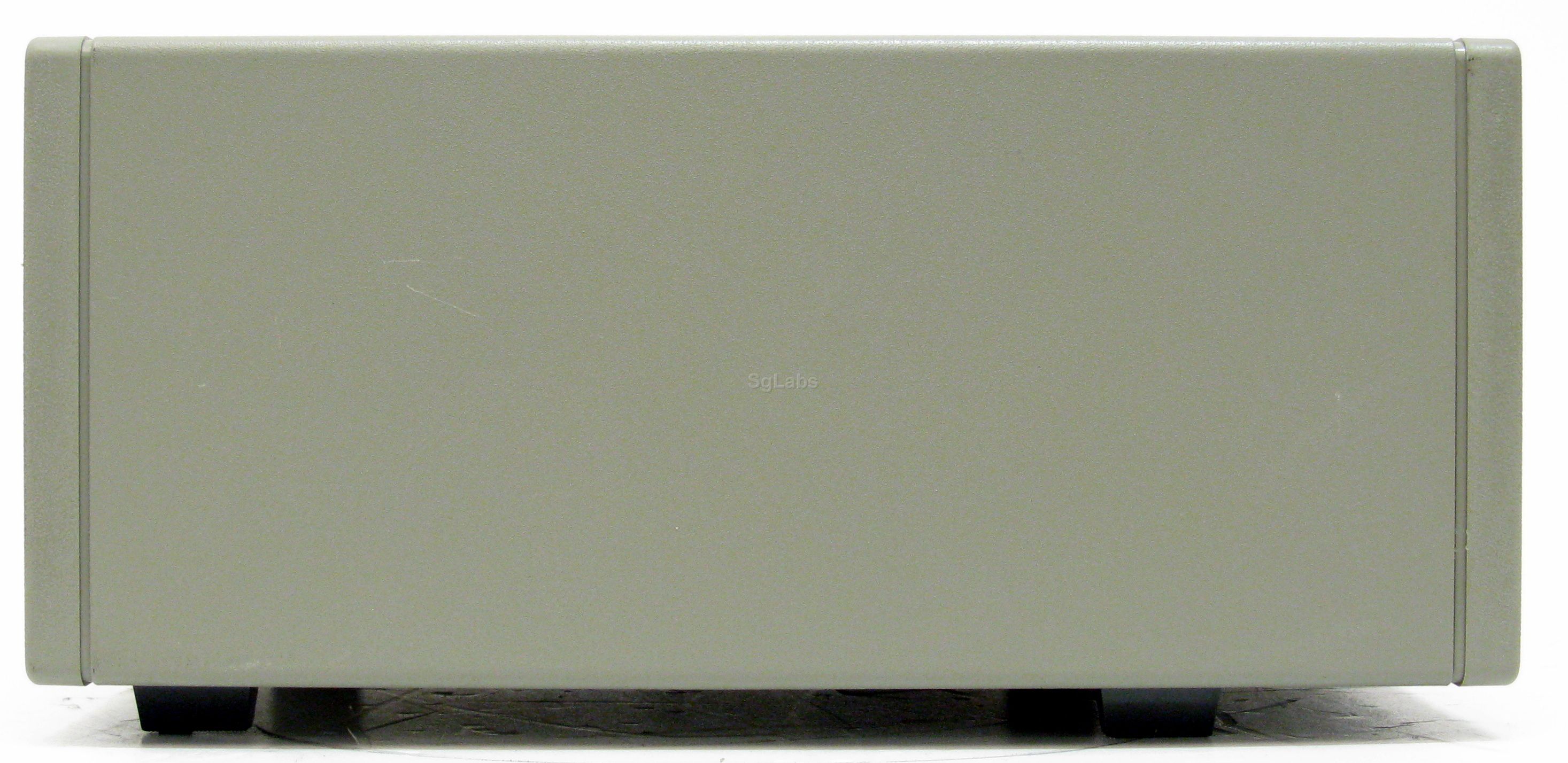

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features

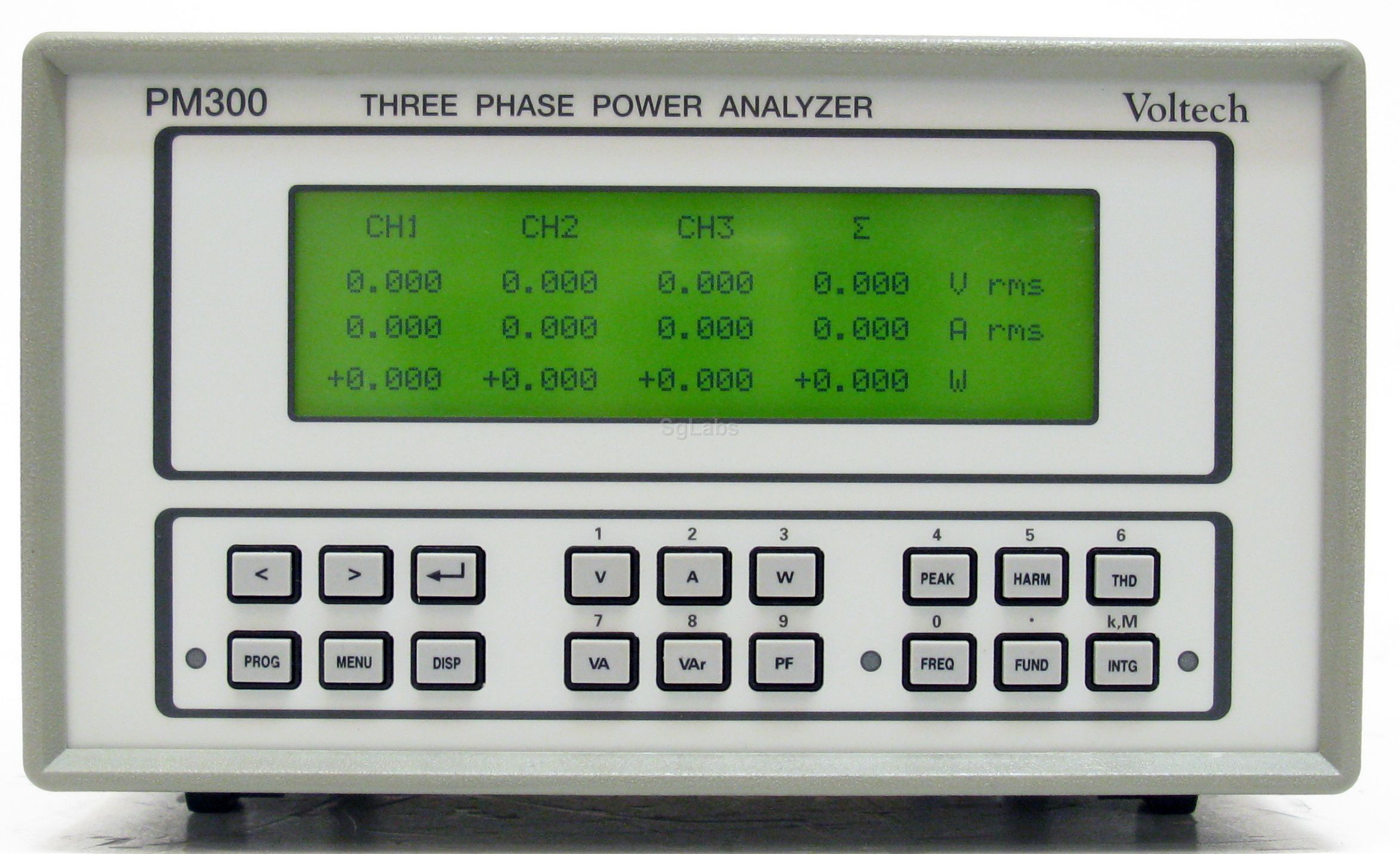

- Graphics display of waveforms and harmonic bar-charts
- W, V, A, VA, Var, power factor, cosØ, Vpk, Apk, crest factors and frequency
- Channel 1, 2, 3, SUM( ) and neutral quantities
- Harmonics V, A, (incl. phase) and W to the 50th; total harmonic distortion
- Integrator for W-hr, VA-hr, A-hr, VA-hr, average and target PF
- Easy-to-use menu structure available in different languages
- Accepts and scales for external current and voltage transducers; external shunt inputs for current transducers with voltage output
