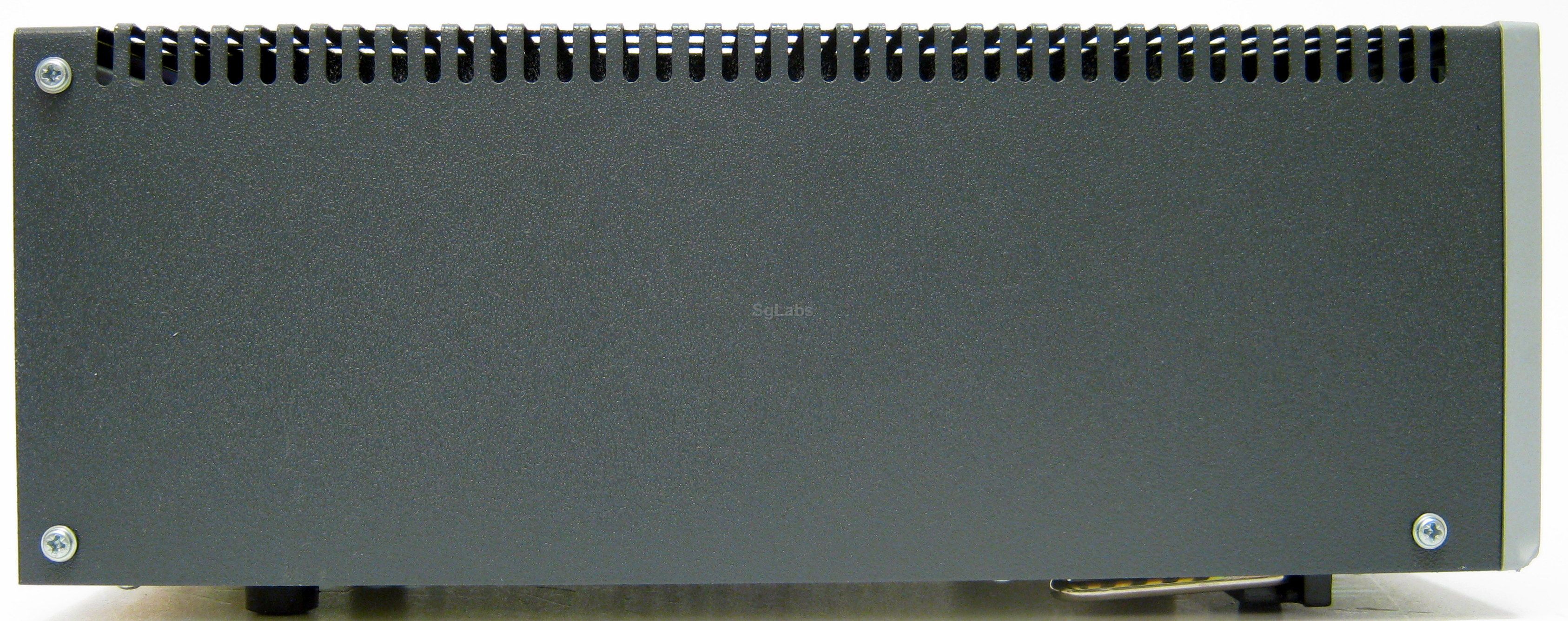

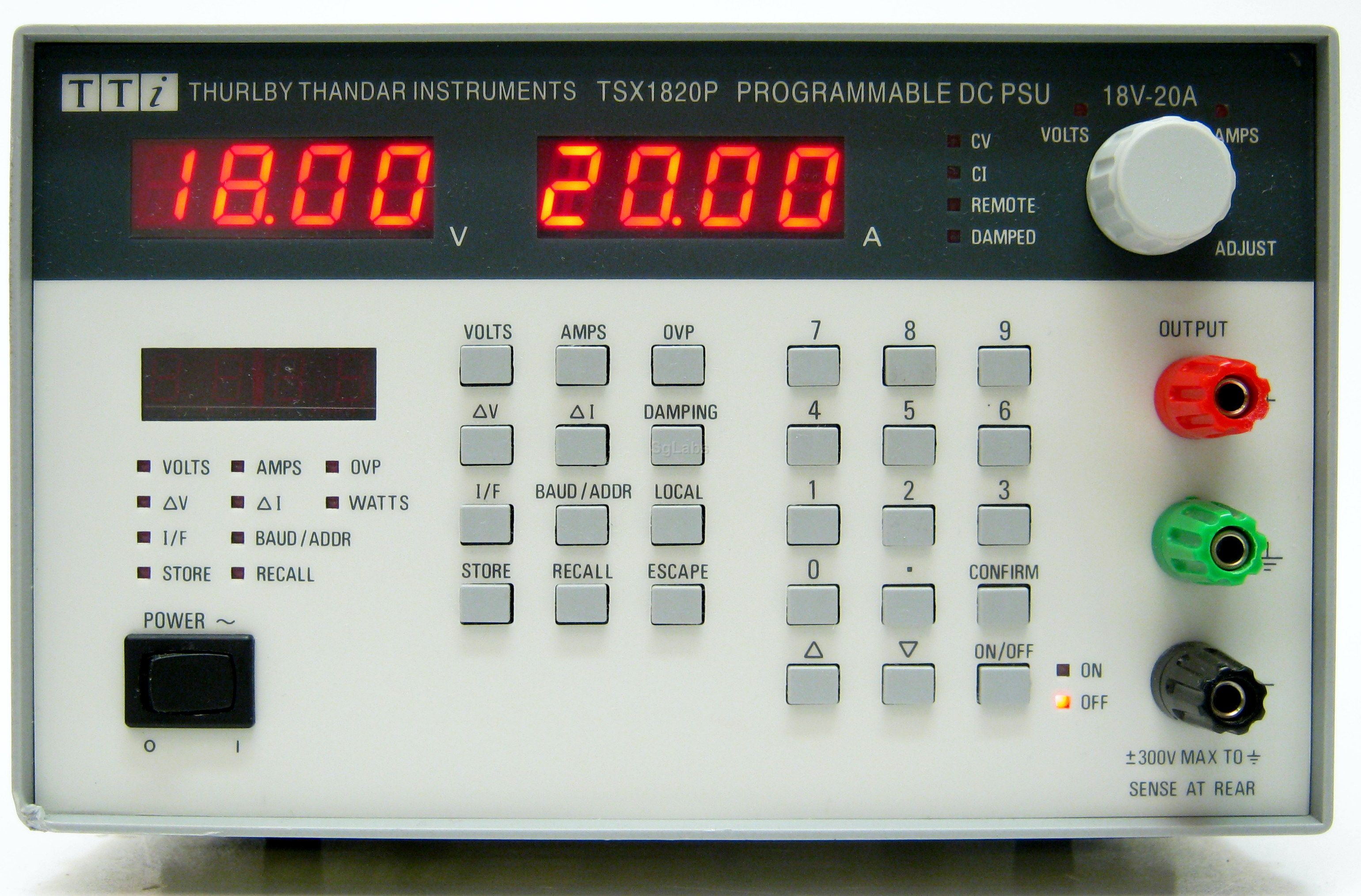

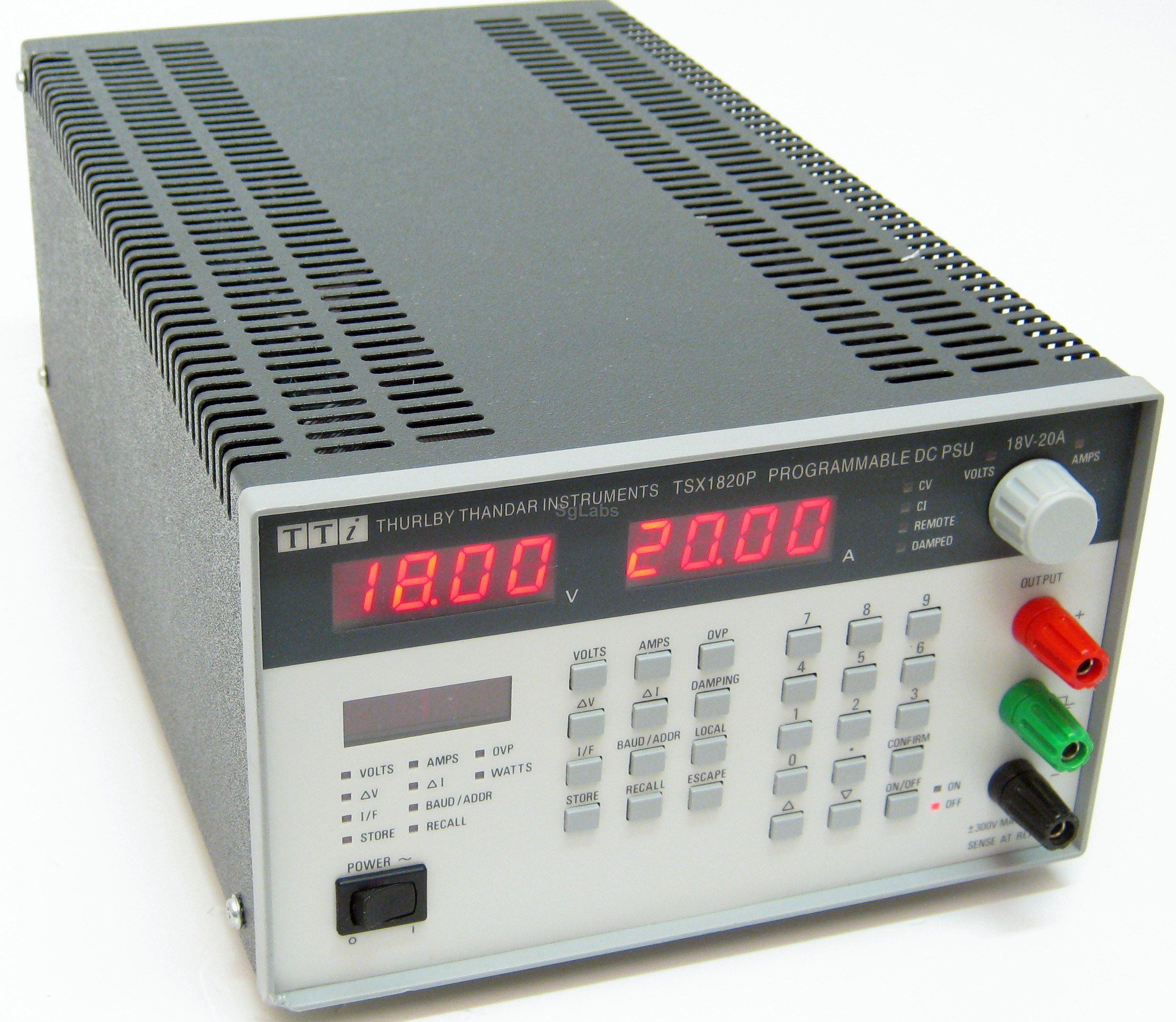

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Thurlby-Thandar TSX series represents the state of the art in high output PSU design.
A wide range of voltage-current output combinations will become available with power levels of 360 Watts and more.
Each output combination is available in two versions: with conventional analogue controls (TSX) and with programmable controls (TSX-P).

Full overvoltage protection

All versions incorporate a fully variable OVP trip to protect against regulator failure.
The output is fully protected and other protection functions include regulator overtemperature, and sense miswiring.

  • Operating modes: Constant voltage or constant current with automatic crossover.
  • Voltage range: 0V to 18V
  • Current range:  0A to 20A
  • Overvoltage protection: 10% to 110% of max. output voltage
  • Setting resolution: 10mV, 10mA.

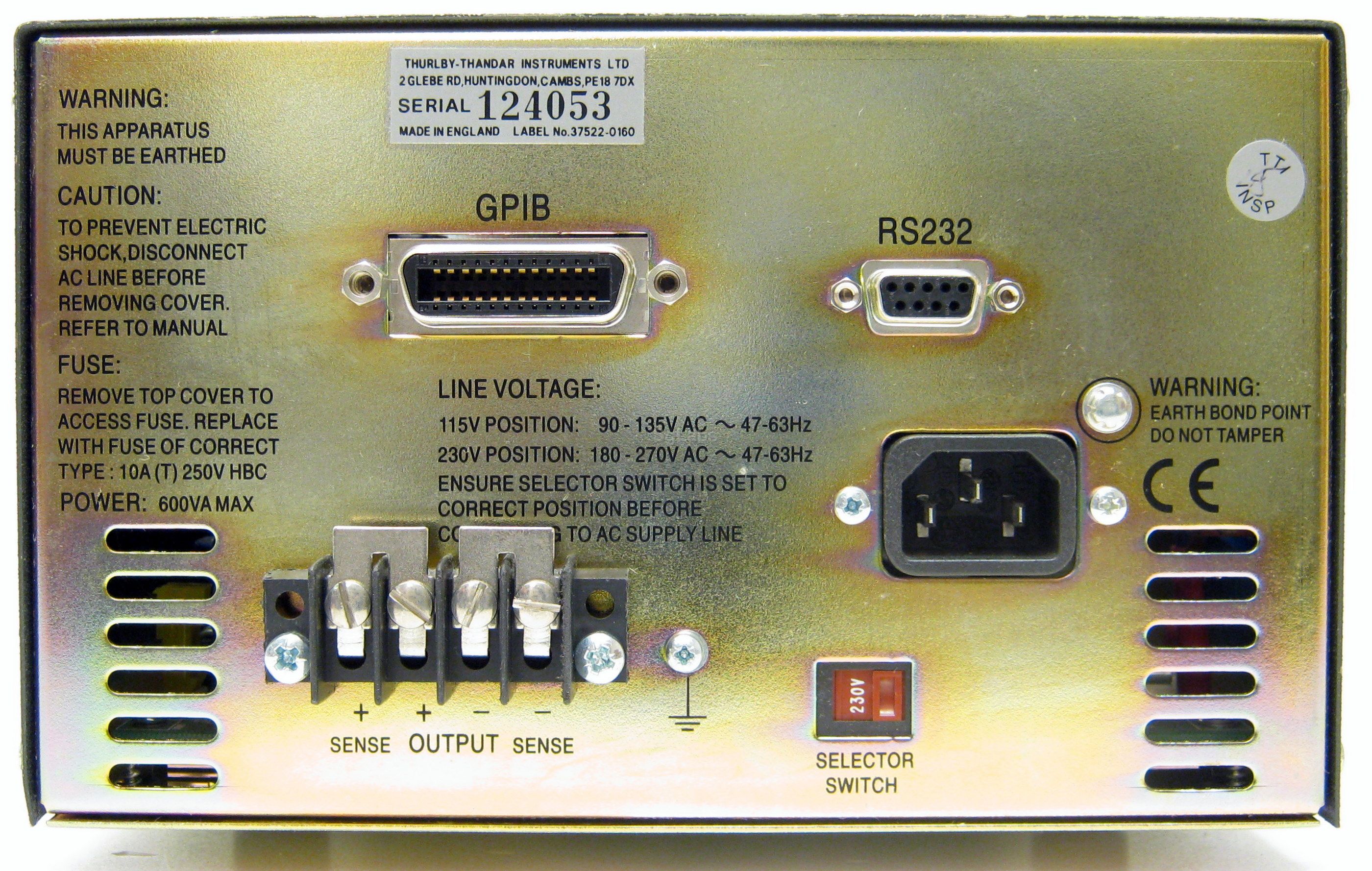

  • GPIB and RS232 Interface

  • Max current: 20A
  • Interface: GPIB-RS232
  • Max. Voltage: 18V
