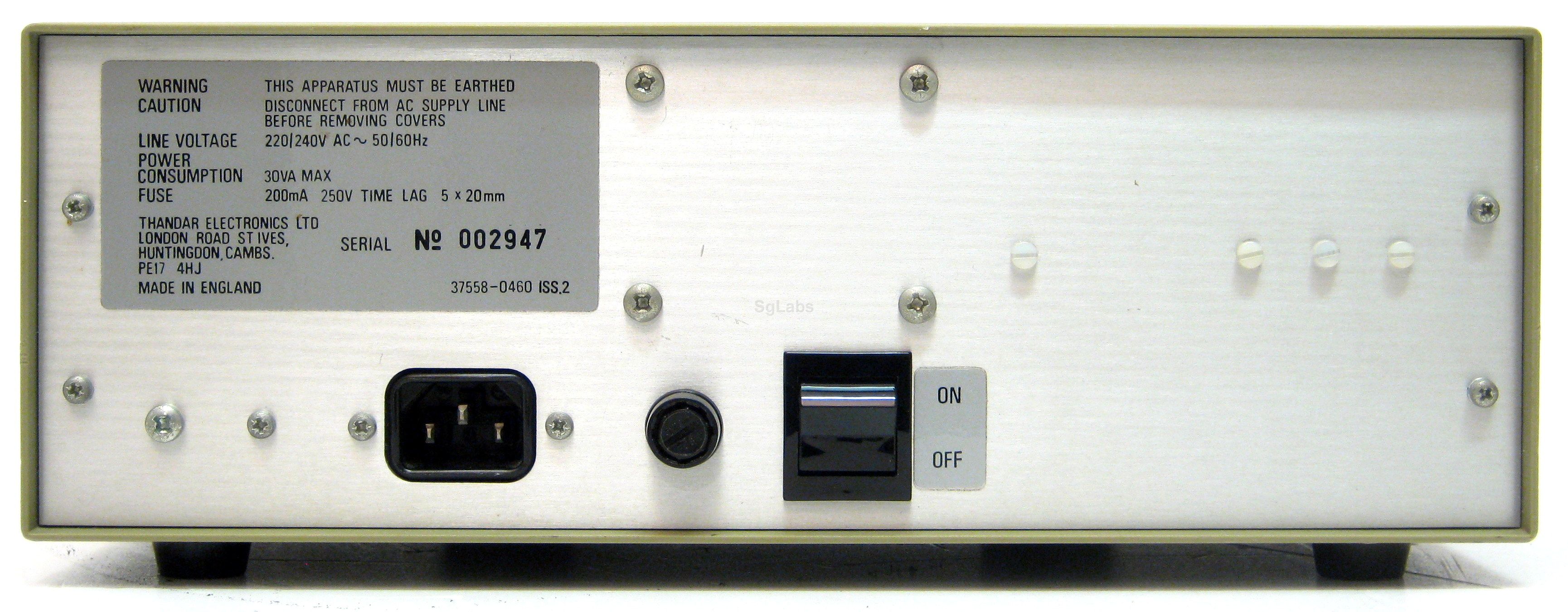

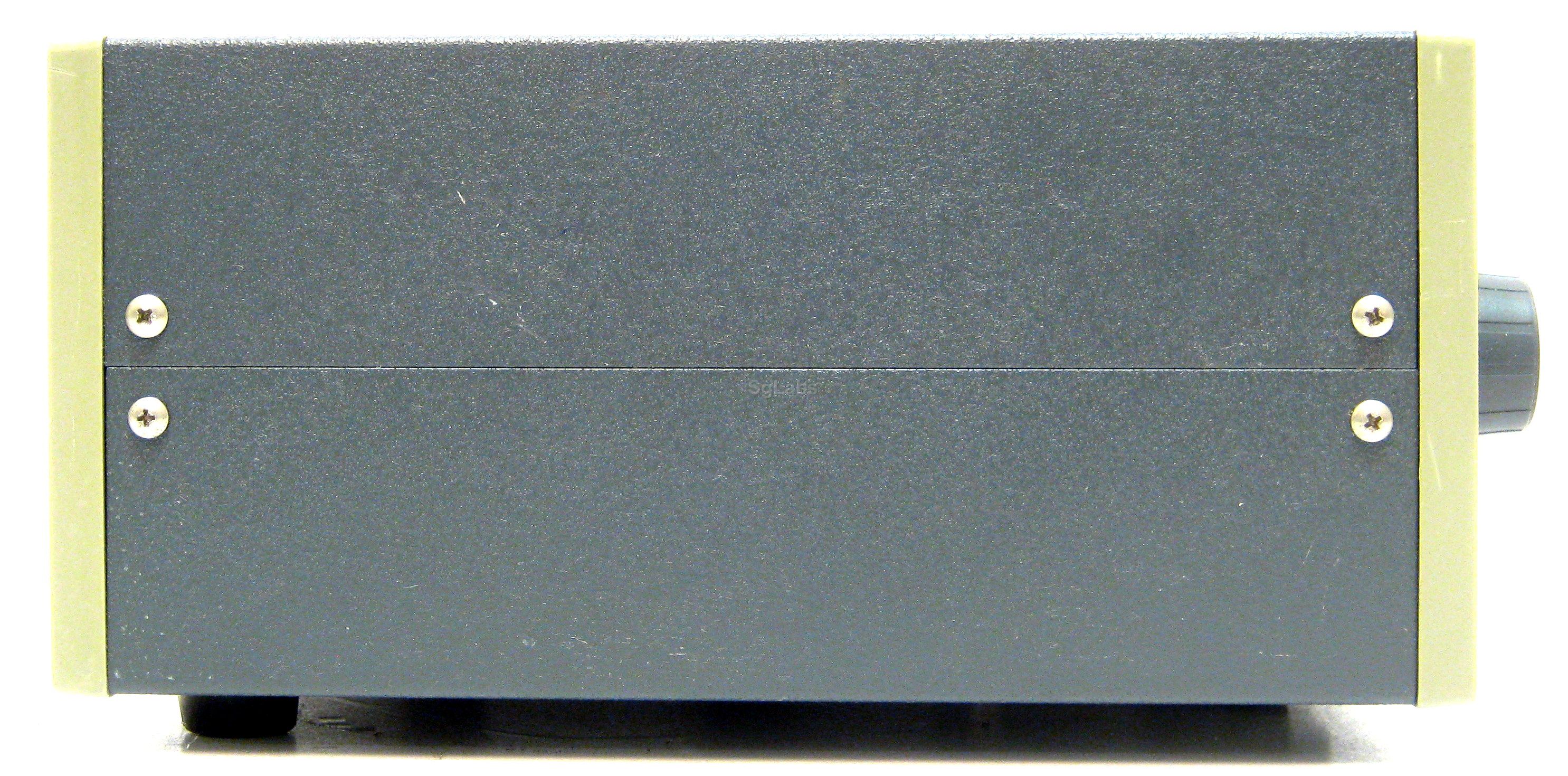

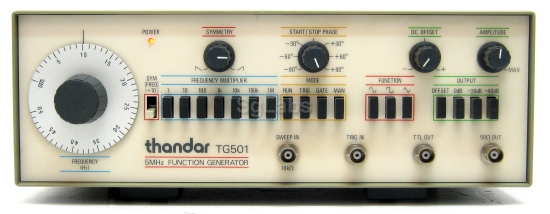

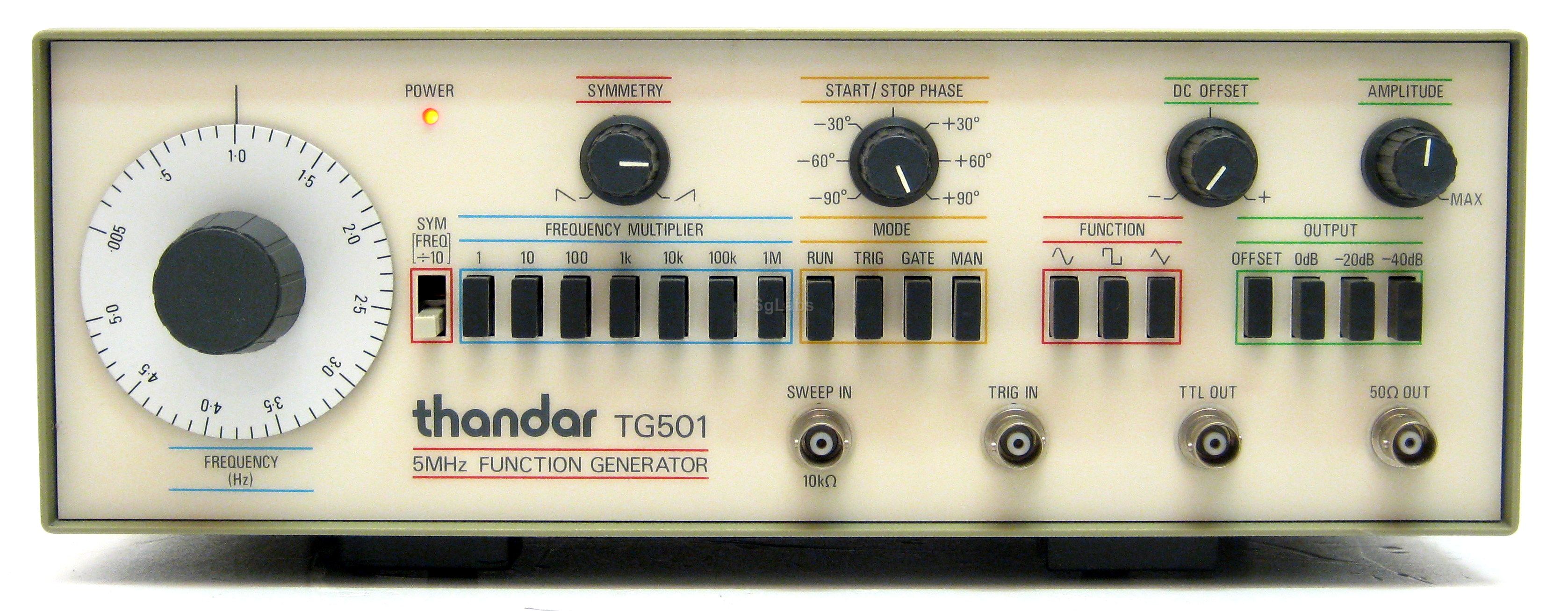

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The TG500 series from TTi represent the state of the art in pure analogue function generators and incorporate features not included on lower cost generators, such as triggering, gating and variable start/stop phase.
These generators provides exceptionally high waveform quality under all conditions. That means  low sinewave distortion, low aberation triangle waves and fast-edged square waves with low overshoot. This waveform quality is maintained throughout the frequency range, and at low output levels as well as high.
As well as continuous operation the TG500 series can operate in triggered or gated modes. In Triggered mode the generator is quiescent until triggered by an external input or by pressing  Manual. One complete cycle is then generated. In Gated mode the generator is quiescent until gated by an external signal or by pressing Manual. It then runs continuously for the duration of the gate signal. The Start/Stop Phase control varies the triggered and gated signal start/stop point between -90 to +90 degrees.
The TG500 series generators offer a frequency sweep range of more than 1000:1 using either the vernier or an external sweep voltage. Sweep linearity (voltage to frequency) is excellent.
  • 0.005Hz to 5MHz frequency range
  • Continuous, triggered or gated modes
  • Very high waveform quality at all frequencies & levels
  • Sine, square, triangle, ramp, pulse and haverwave outputs
  • Variable start/stop phase
  • 1000:1 frequency change by vernier or external voltage
  • Variable DC offset with disable switch
  • 19:1 symmetry range
  • 20mV to 20V pk-pk from 50 W, plus TTL output
  • Max. Frequency: 5 MHz
  • Min. Frequency: 0.005 Hz
  • Pulse generator: yes
  • Max. Level: 20Vpp
  • Min. Level: 20mVpp
  • sweep: yes
