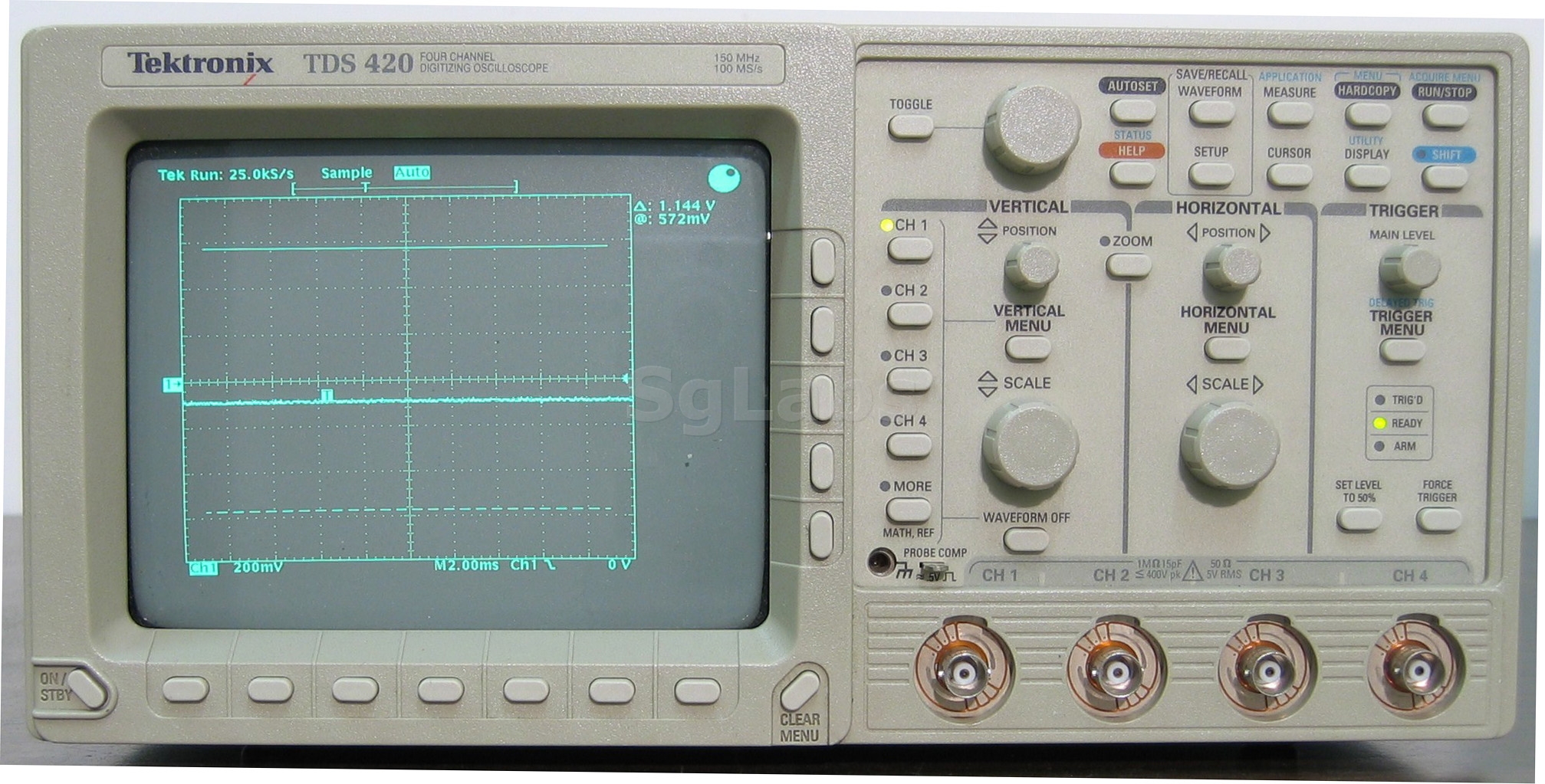

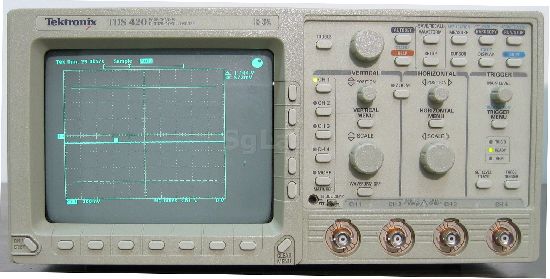

Tektronix, TDS420
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Tektronix TDS420 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.

The Tektronix TDS420 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.



Technical details:

  • Sample rate 100 Msa/s
  • 4 channels
  • Input Impedance Selections : 1MOhm or 50 Ohm
  • 150MHz Bandwidths
  • Time/division range 1ns to 20 s/div
  • Sensitivity - 1 mV to 10 V/div
  • Input coupling AC, DC or GND
  • Peak detect

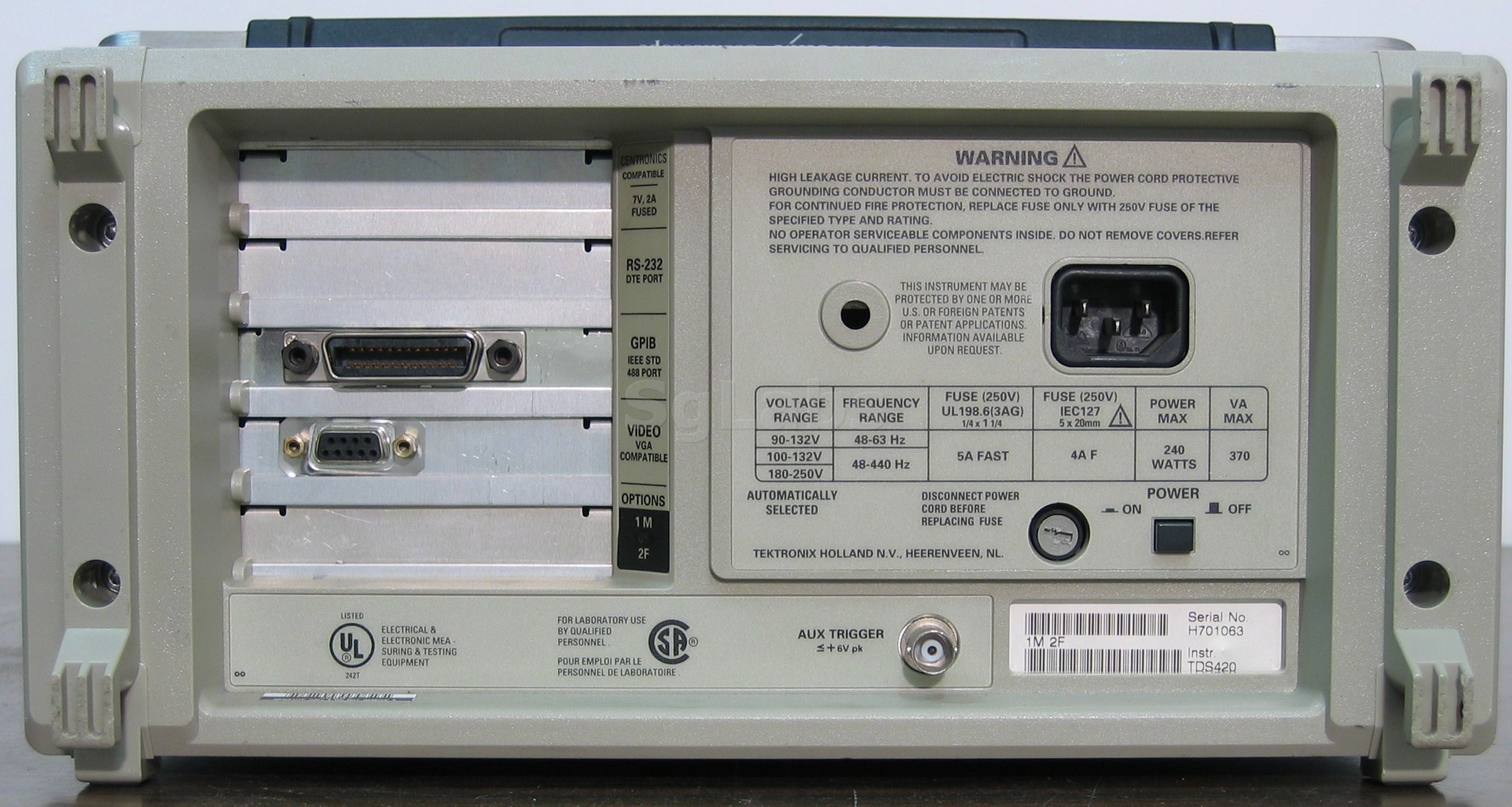

  • VGA, GPIB out



  • Time base: double
  • Channels: 4
  • Display: CRT
  • BandWidth: 150 MHz
  • Sampling: 100 Ms/s
