SGLabs, Step Attenuator 90dB

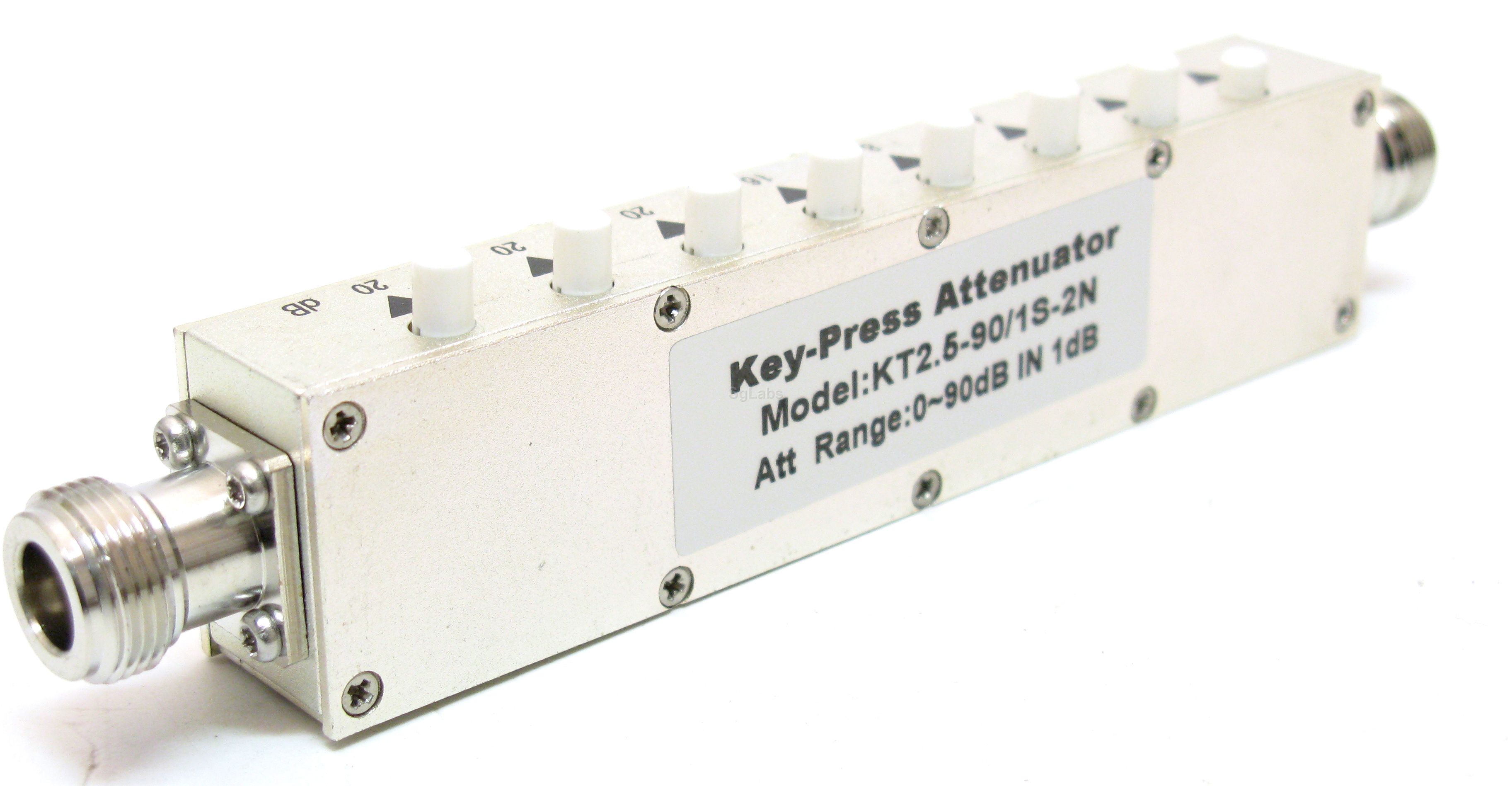

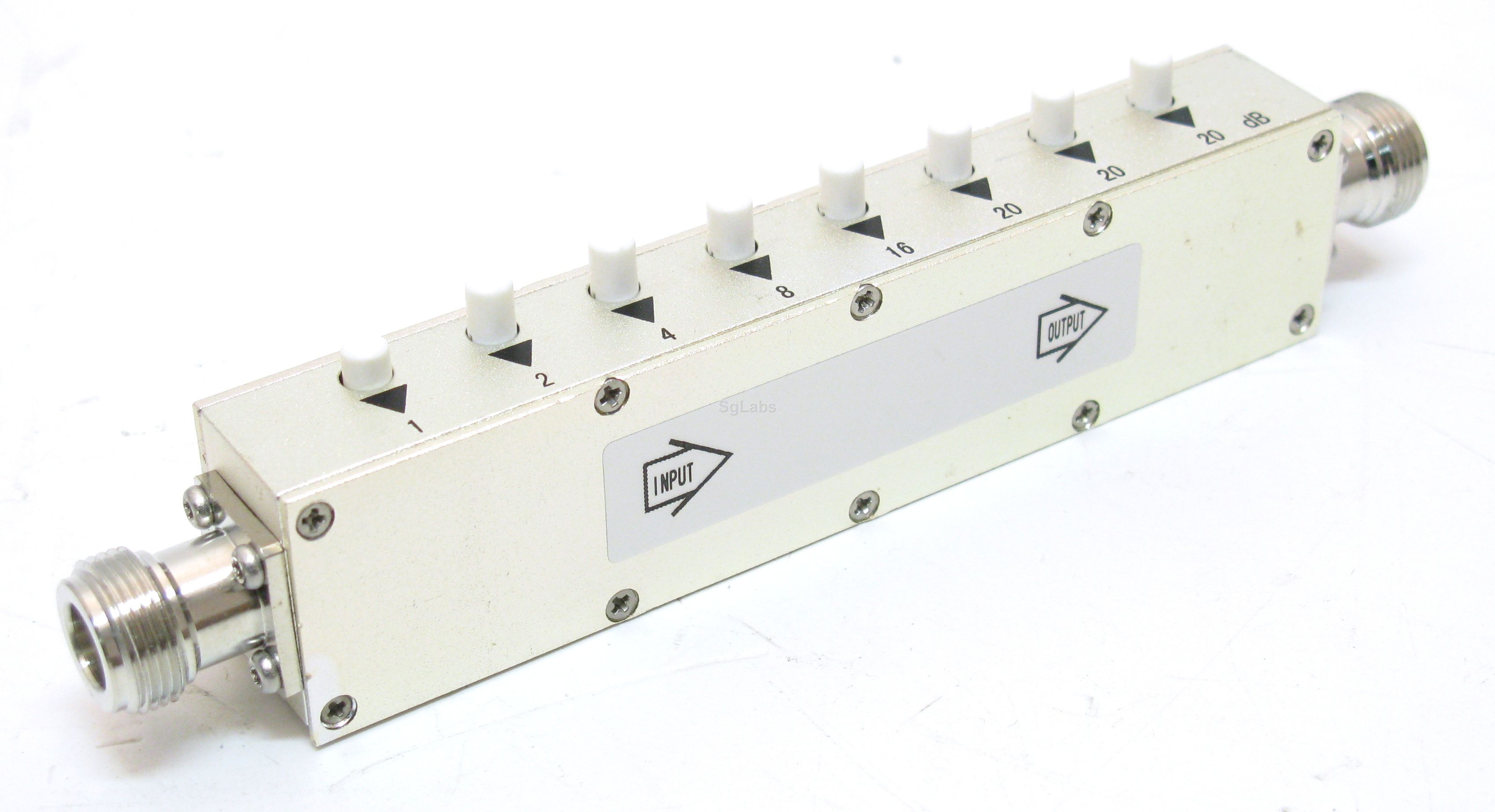

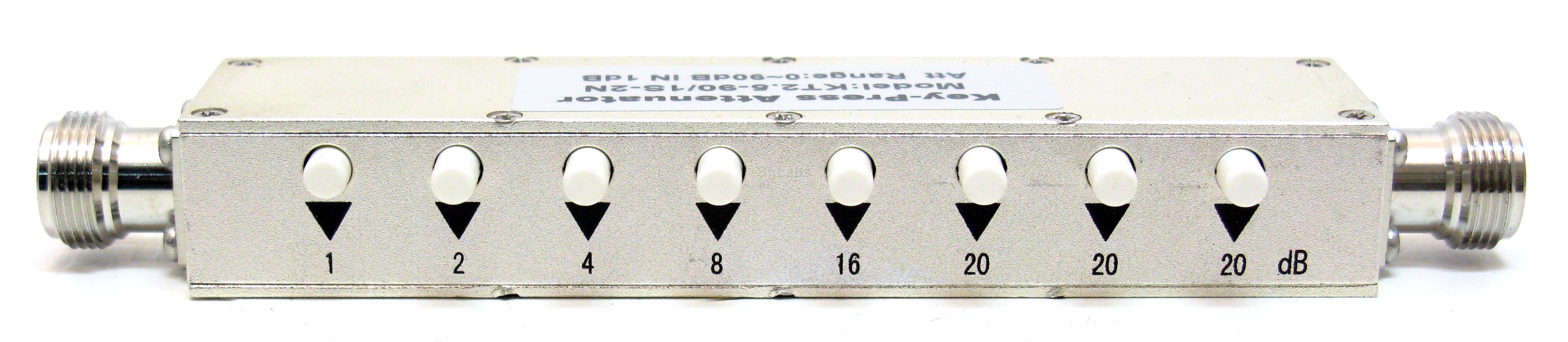

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Manual Step Attenuator, DC-2.5 GHz, with maximum attenuation of 90 dB and 1 dB of step. N or SMA connectors.
Features
  • NOMINAL IMPEDANCE: 50Ω
  • FREQUENCY RANGE: DC-2.5GHz
  • VSWR: 1.40 Maximum
  • POWER RATING: 5 watts average
  • Attenuation: 0-90dB; 1-10dB±0.8dB,10-50dB±1.25dB, 50-90db±3%
  • TEMPERATURE RANGE:-10°C to +50°C
  • CONNECTOR: N type connector (picture),SMA type available
  • DIMENSIONS:20x36x150mm
  • Attenuation step: 1,2,4,8,16,20,20,20(dB)
  • Insertion loss: ≤ 3dB
  • Attenuation: 90 DB
  • Connector: N (SMA)
  • Max. Frequency: 2.5 GHz
  • Min. Frequency: DC
  • Max. power: 5W
  • VSWR / RL: 1.40 max
Price
 € 180,00
