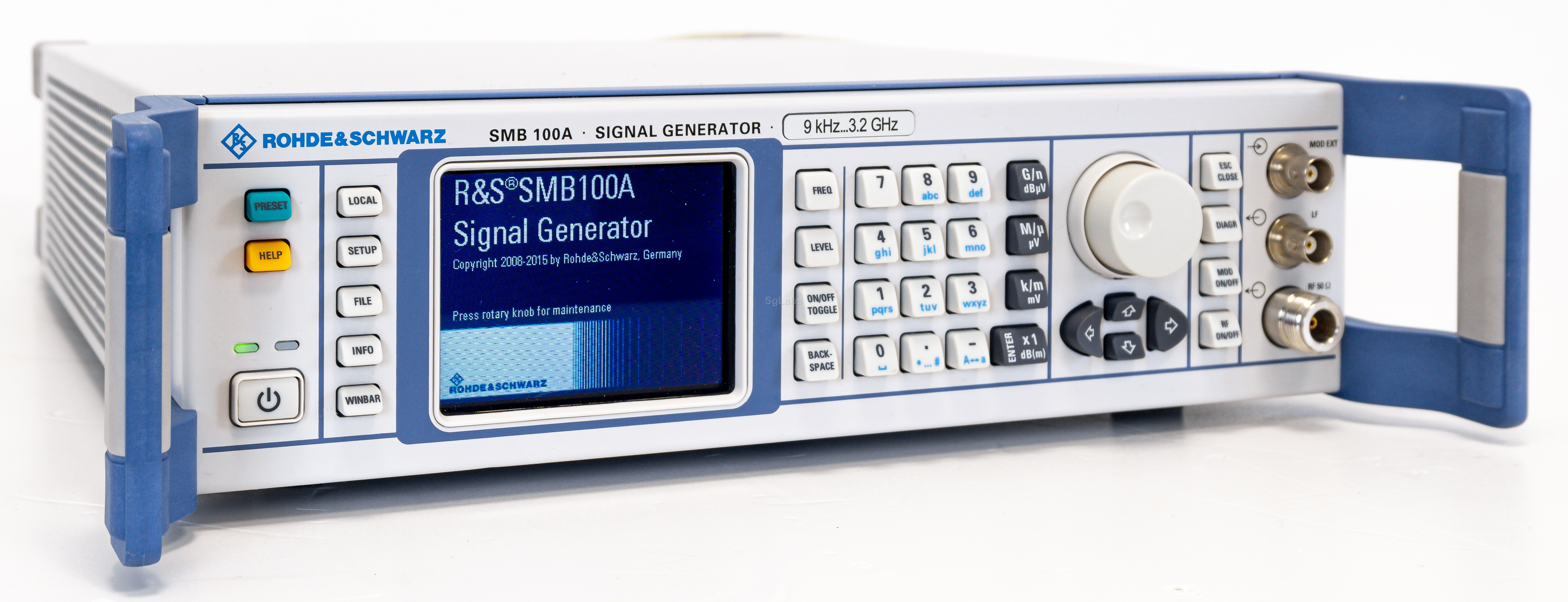

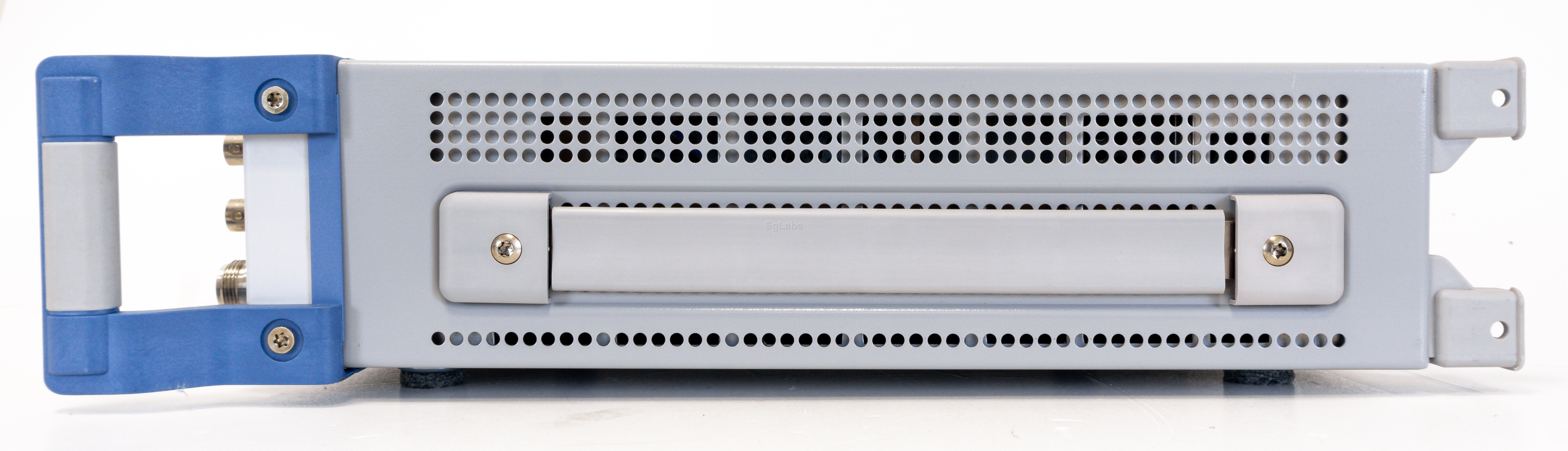

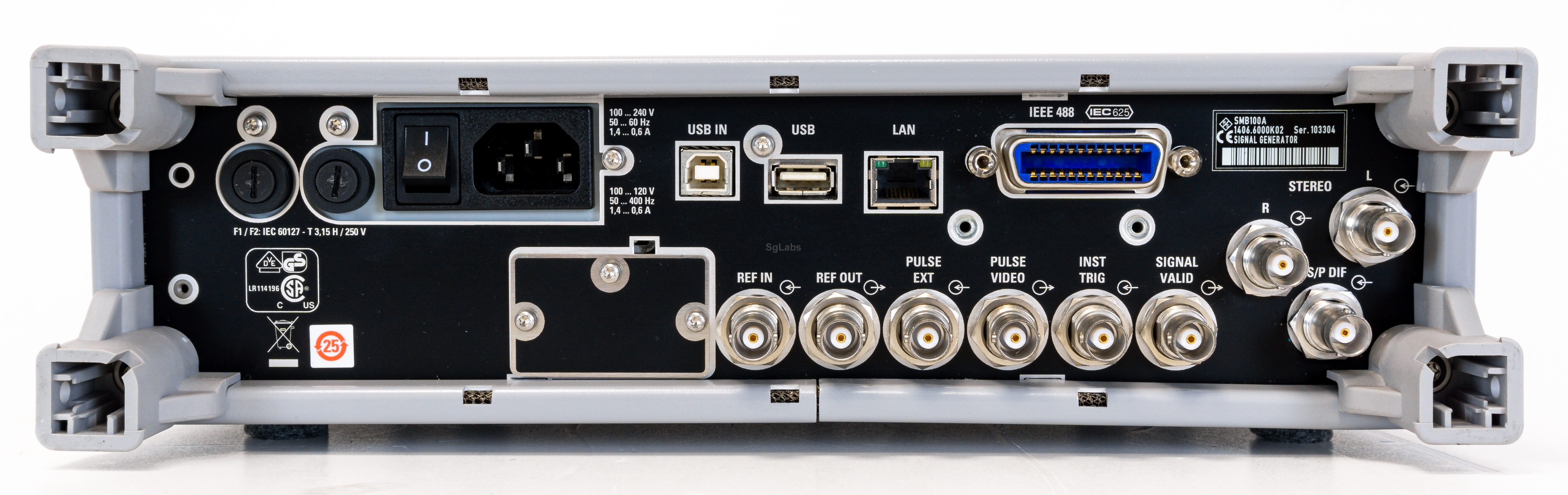

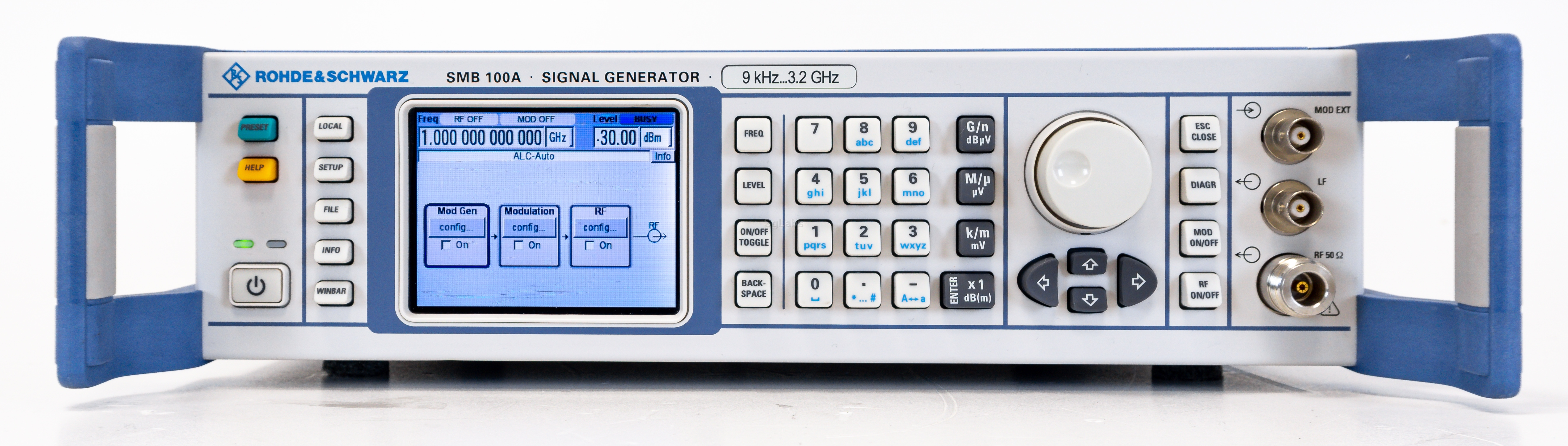

R&S SMB100A Signal Generator 3.2 GHz
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The compact, versatile R&S®SMB100A microwave signal generator with a frequency range up to 40 GHz provides outstanding spectral purity and high output power. In addition, it features easy operation, comprehensive functionality and low cost of ownership. The R&S®SMB100A provides microwave characteristics that are exceptional in its class, making it an excellent general purpose instrument. Its outstanding characteristics, compact size and low weight make the instrument ideal for a wide range of applications. The R&S®SMB100A is optimally suited for use in development, production and service, or simply wherever an analog microwave signal is needed.
  • Frequency ranges: 9 kHz to 3.2 GHz
  • RF output level of >+18 dBm from 1 MHz to 6 GHz (+25 dBm over range)
  • Fast: < 1 ms frequency and level setting times in "list mode"
  • SSB phase noise: typ -128 dBc/Hz (1 GHz/20 kHz offset)
  • Accurate: < 0.5 dB total uncertainty up to 3 GHz, (
  • No wear: Solid state RF attenuator up to 6 GHz, reverse voltage protection
  • Compact: < 12 lbs and only 2 rack-units high
  • Remote control via GPIB, LAN & USB
  • USB connectors for USB devices (keyboard, mouse, memory stick, etc.)
  • Connector for NRP power sensors for accurate power measurements
  • GPIB bus commands according to SCPI
  • R&S®SML GPIB command set compatible
  • Max frequency: 3.2 GHz
  • Minimum Frequency: 9 kHz
  • Modulation: AM FM Phase
  • Max. power: 18 dBm
  • Resolution: 0.001 Hz
