R&S Rohde & Schwarz, SM300
You are here: RF Signal Generator » Vector

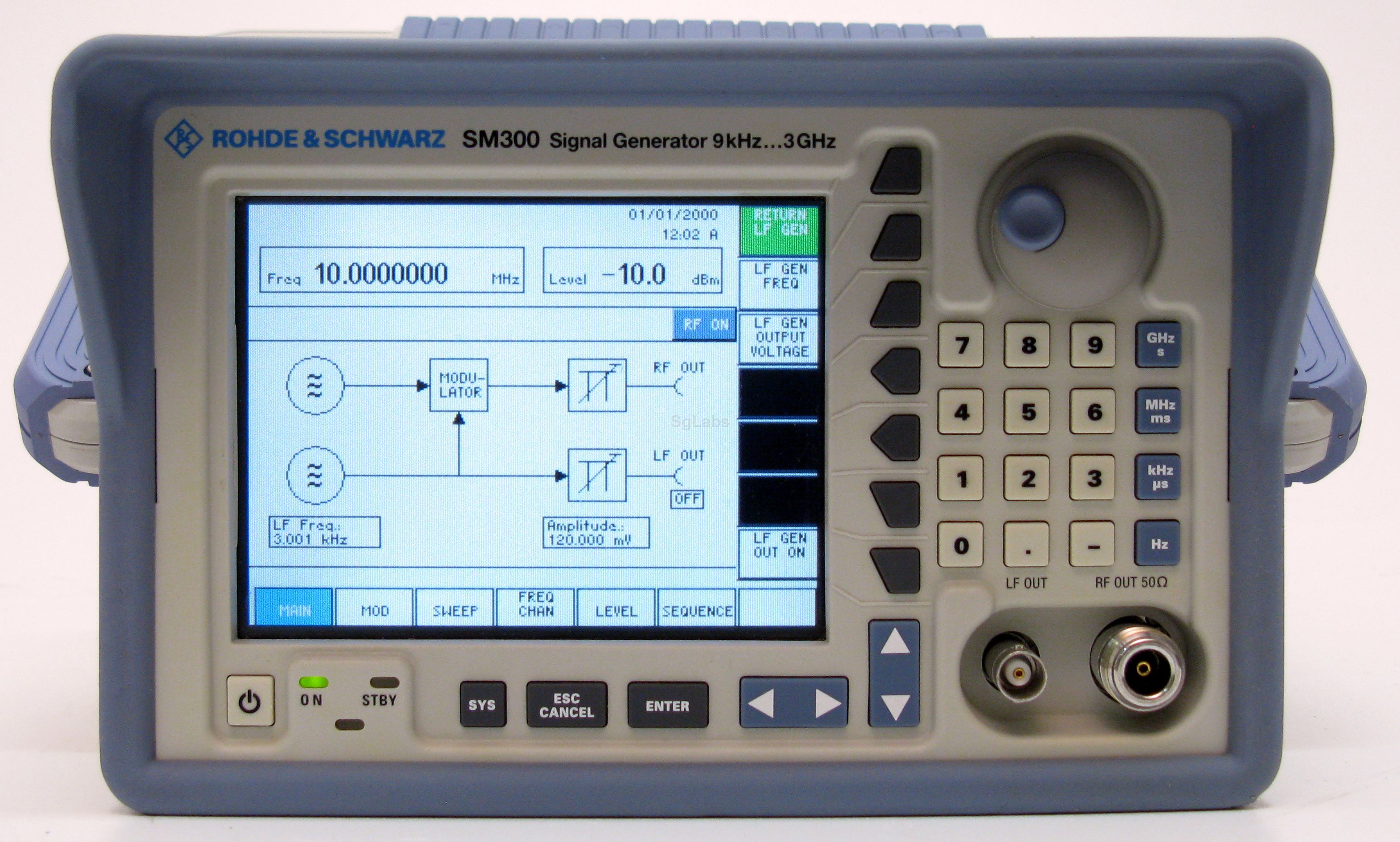

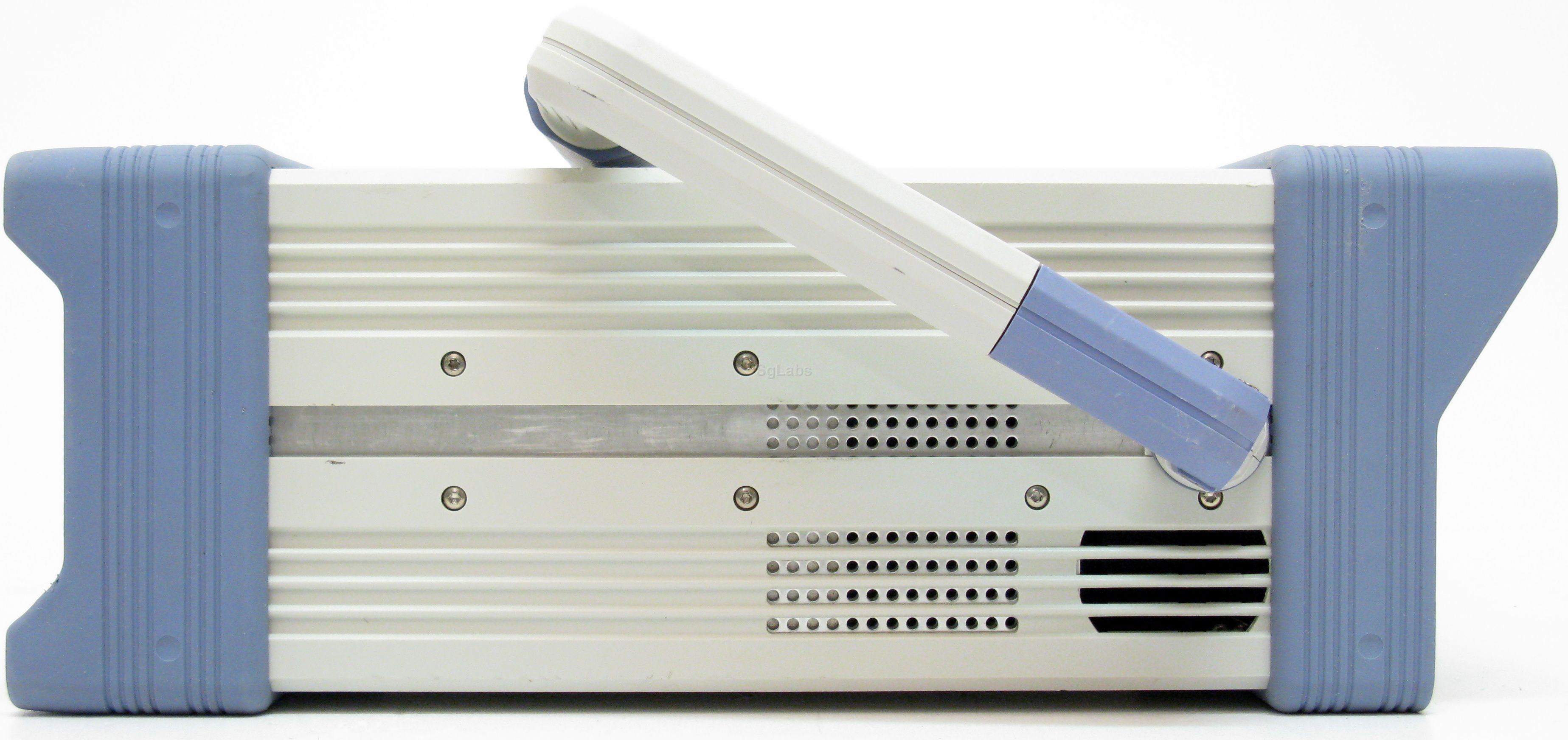

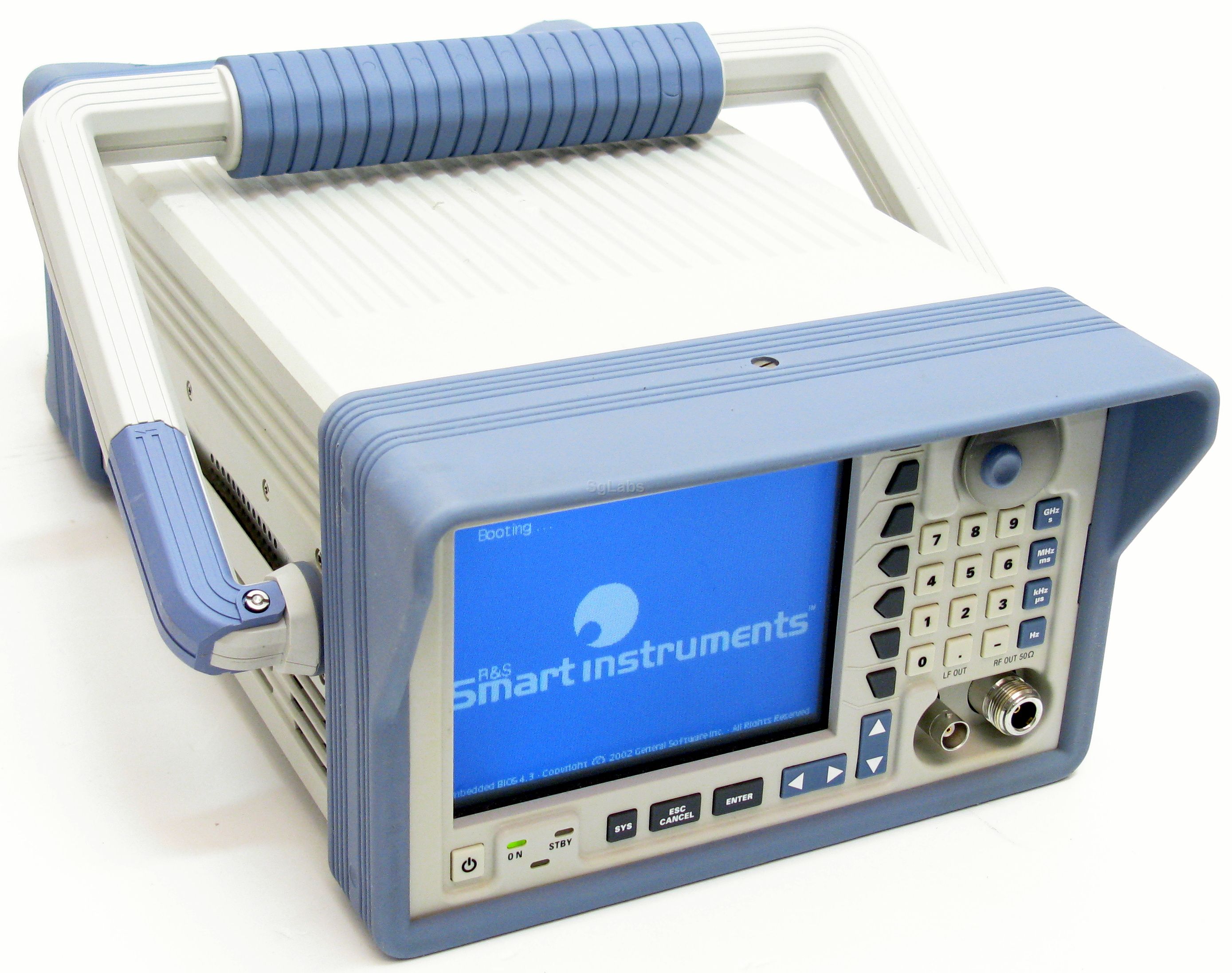

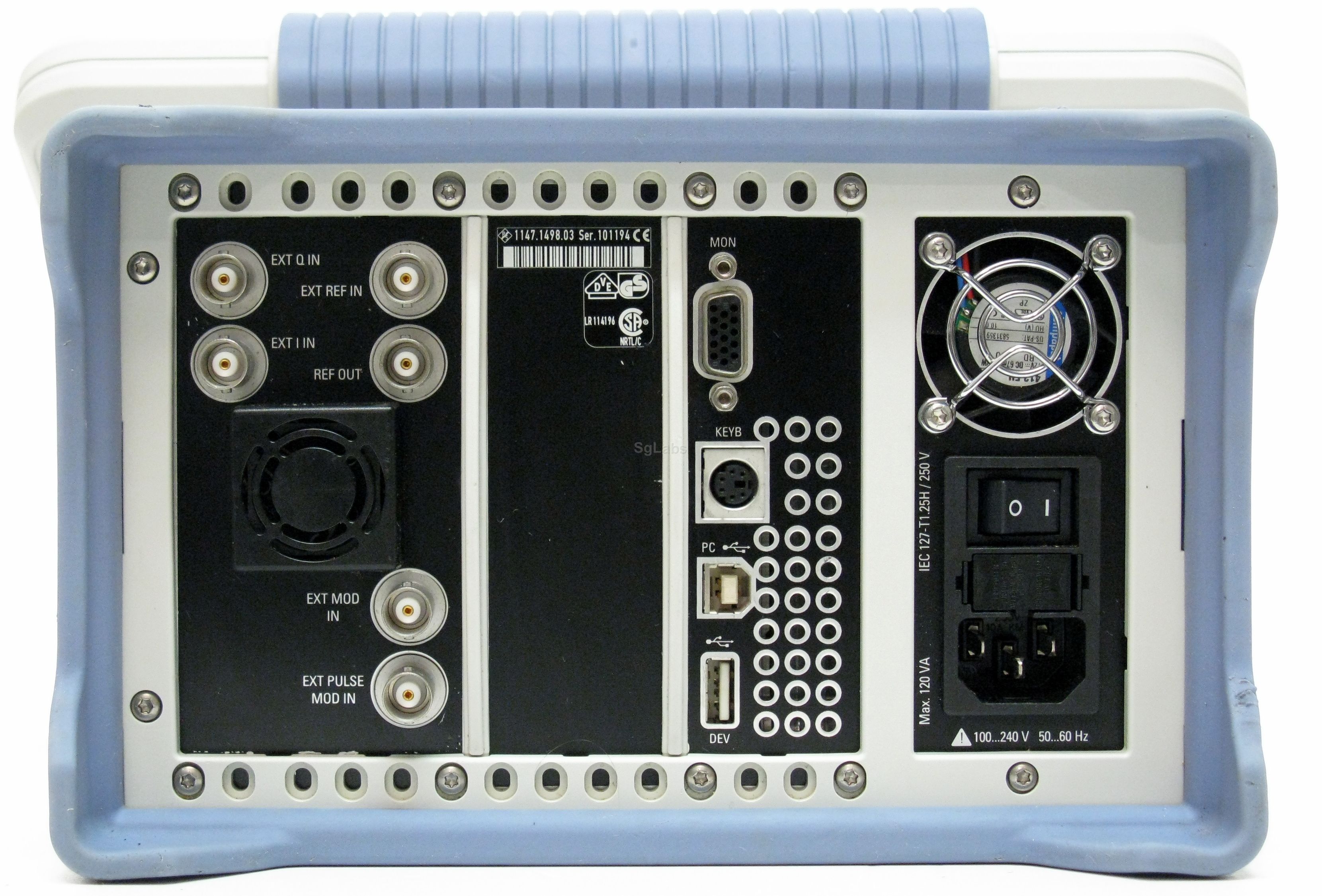

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The ̧SM300 is a favourably priced signal generator for applications in the 9 kHz to 3 GHz frequency range. The instrument features a broad scope of functions, outstanding technical characteristics and compact design. The analog modulation modes AM, FM, φM and pulse modulation can be set on the ̧SM300. The built-in I/Q modulator adds vector modulation capabilities to the ̧SM300. Digitally modulated signals can thus be generated, as required in mobile radio, for example. The ̧SM300 offers an immense range of applications – whether on the lab bench, in service or as a flexible measuring instrument in automatic production systems.
Features
- Frequency range: 9 kHz to 3 GHz
- Amplitude: -127 / +13 dBm
- Modulation types: AM, FM, φM, Pulse and I/Q
- LF output: 20 Hz to 80 kHz
- Max frequency: 3 GHz
- Minimum Frequency: 9 kHz
- Modulation: AM, FM, φM, Pulse and I/Q
- Max. Output level: +13 dBm
- Min. output level: -127 dBm
- Resolution: 0.1 Hz
Price
€ 1.300,00
