R&S Rohde & Schwarz RSP Precision RF STEP Attenuator 2.7 GHz

You are here: RF Component » Attenuator

R&S Rohde & Schwarz RSP Precision RF STEP Attenuator 2.7 GHz

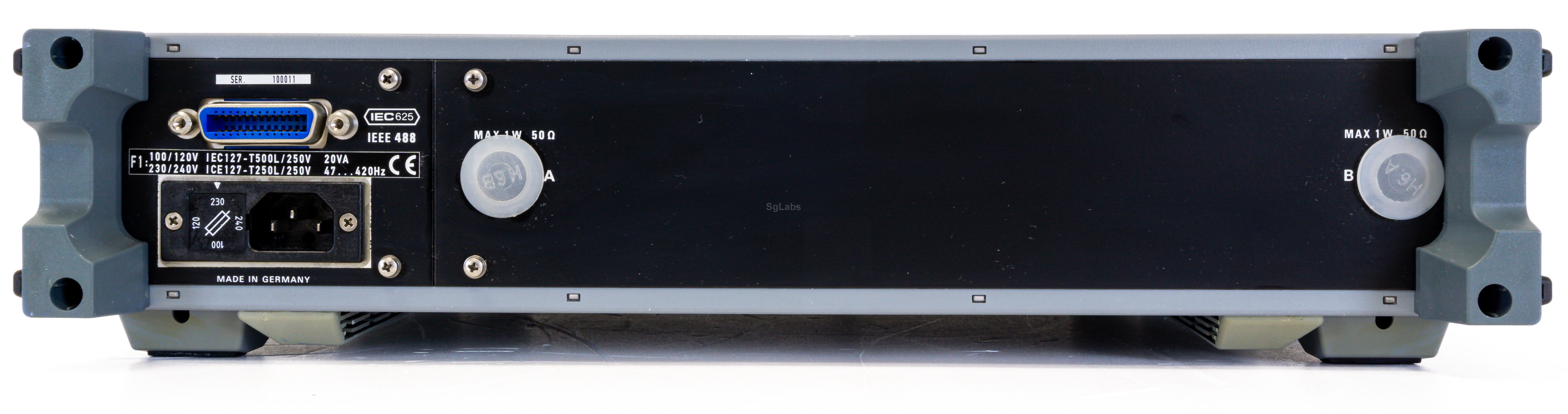

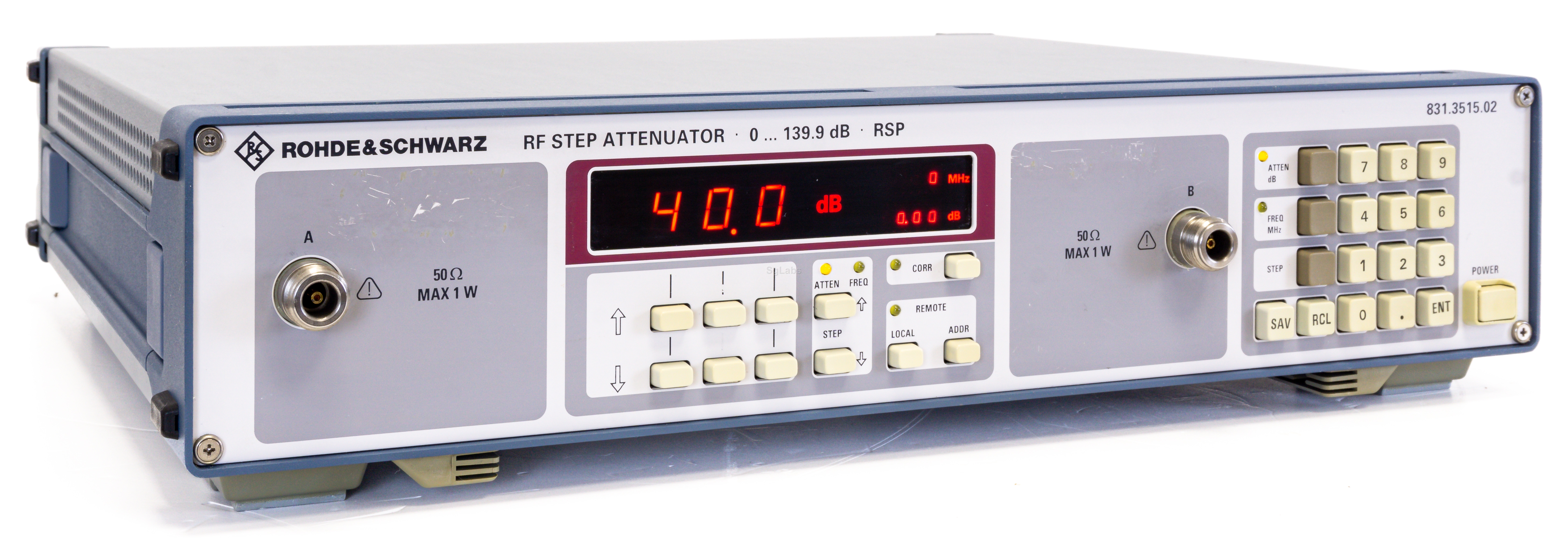

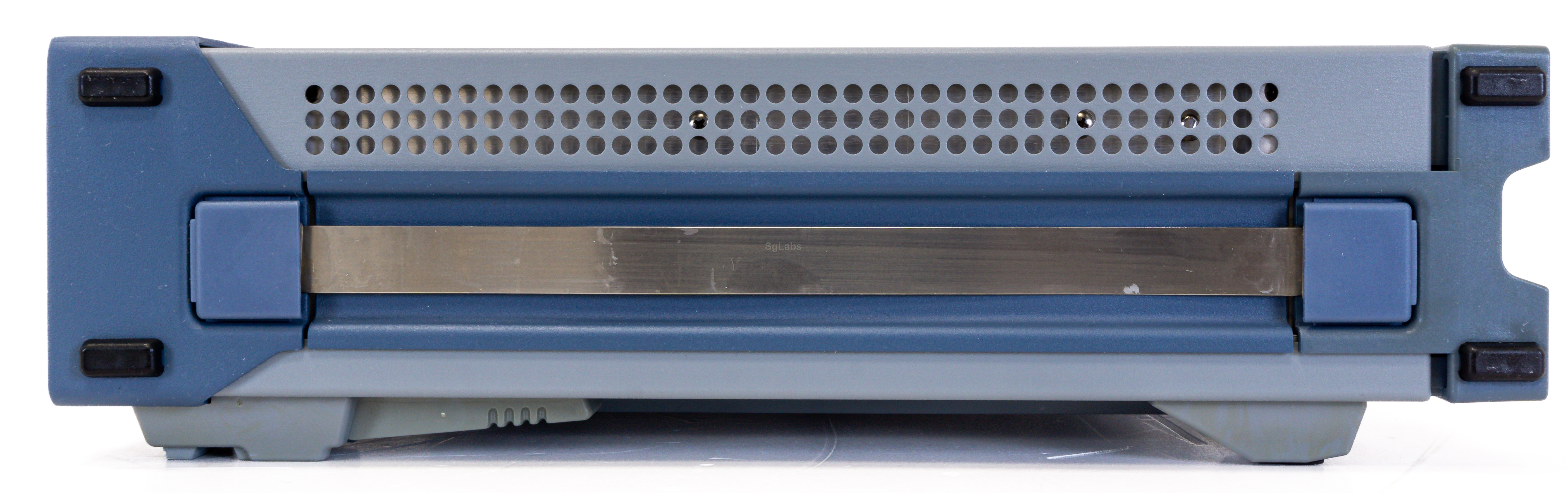

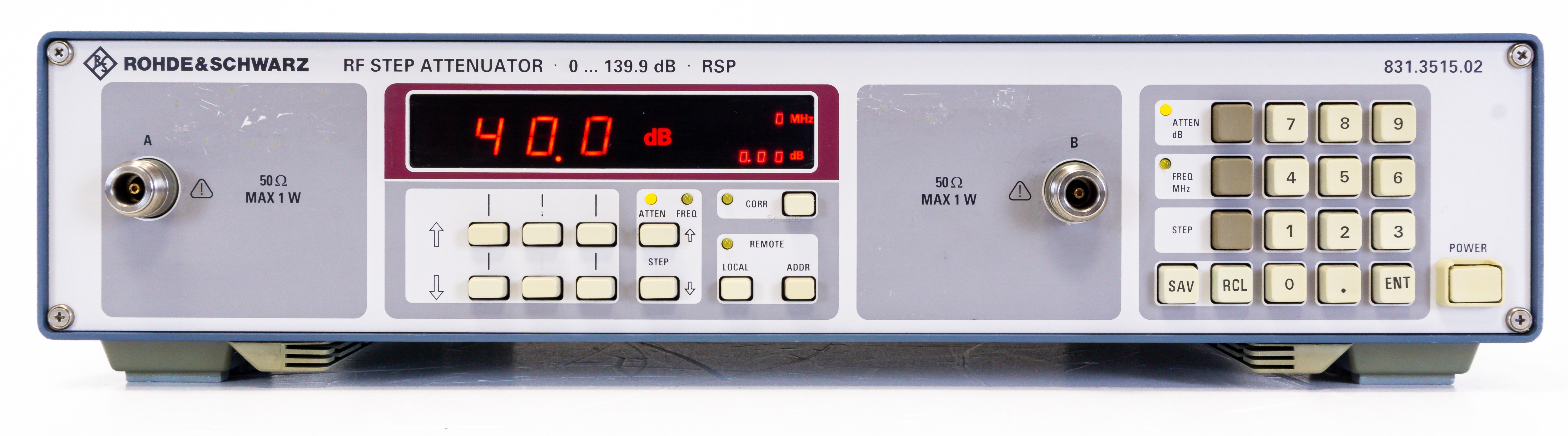

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The RF Step Attenuator RSP provides attenuation values between 0 and 139.9dB in the frequency range 0 to 2.7GHz. Above 1 dB, the smallest attenuation step is 0.1 dB. RSP is the first attenuator featuring automatic frequency-dependent attenuation correction which reduces errors to a minimum.

The variations of the individual attenuator pads (18 in total) have been measured throughout the frequency range at 50-MHz intervals and stored in the unit. The absolute accuracy of the selected attenuation values can be corrected by actuating the CORR key, the error being minimized by the automatic switching of appropriate attenuator pads. The sum of the attenuation errors of the pads is displayed. The residual attenuation is indicated in the 0-dB setting. the RCL99 function provides attenuation values between 3 and 139.9dB, the residual attenuation being taken into account when setting the attenuation.
Features
  • Frequency Range: DC to 2.7 GHz
  • Attenuation Range: 1 to 139 dB
  • Max power: 1W
  • Attenuation: 139 dB
  • Connector: Nf
  • Max. Frequency: 2.7 GHz
  • Min. Frequency: DC
  • Max. power: 1 W
Price
 € 1.600,00
