Rohde & Schwarz , FSH3

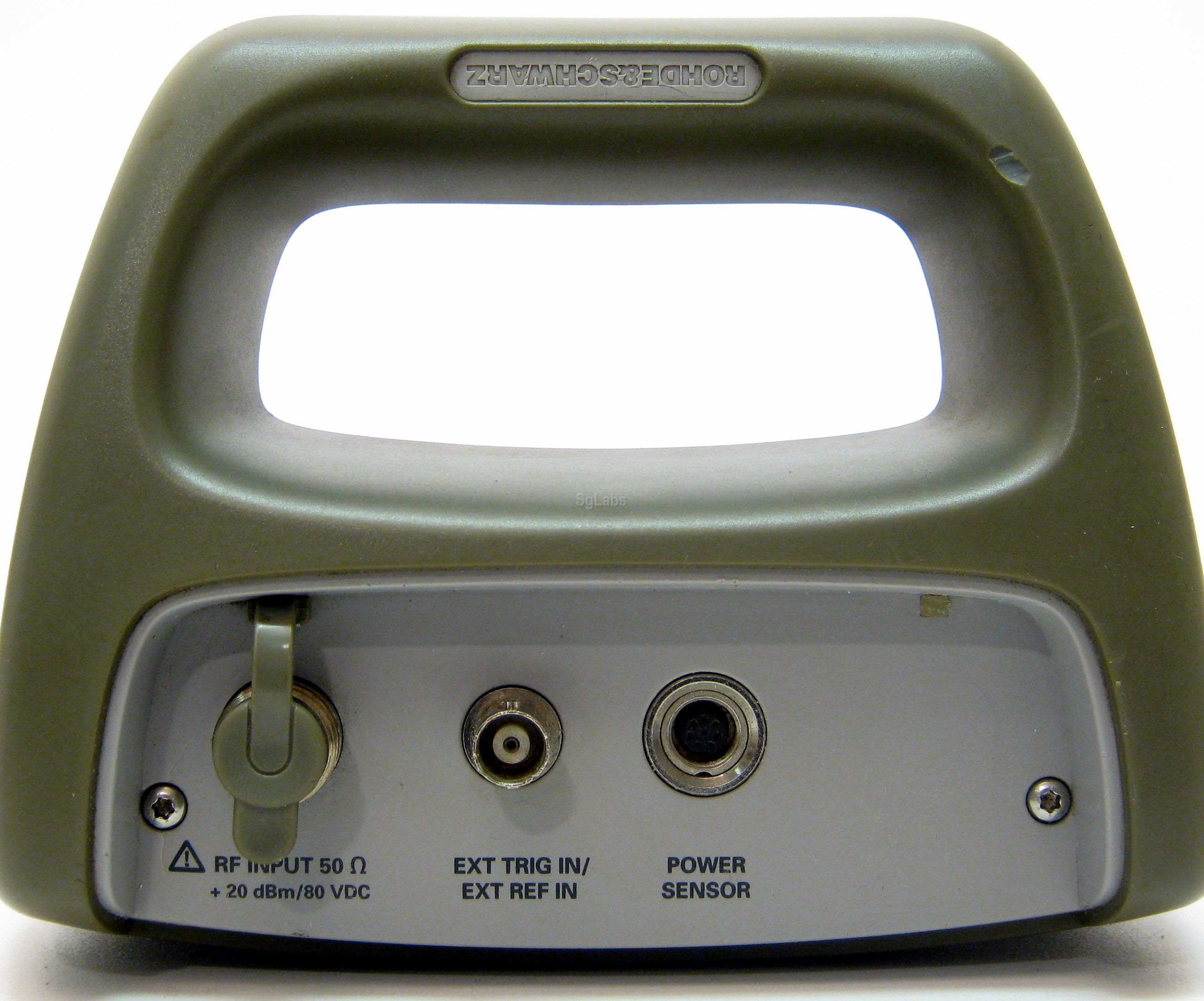

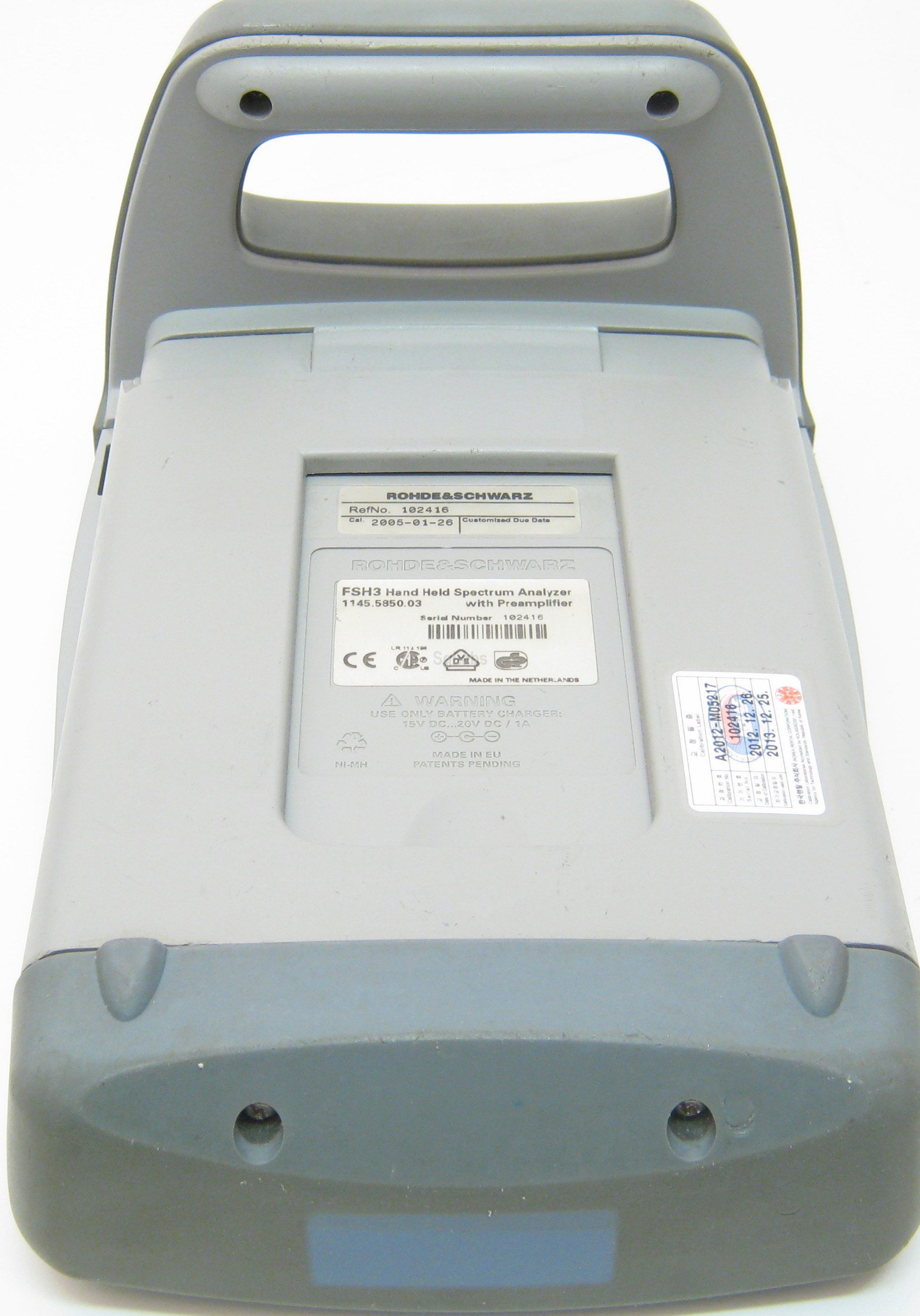

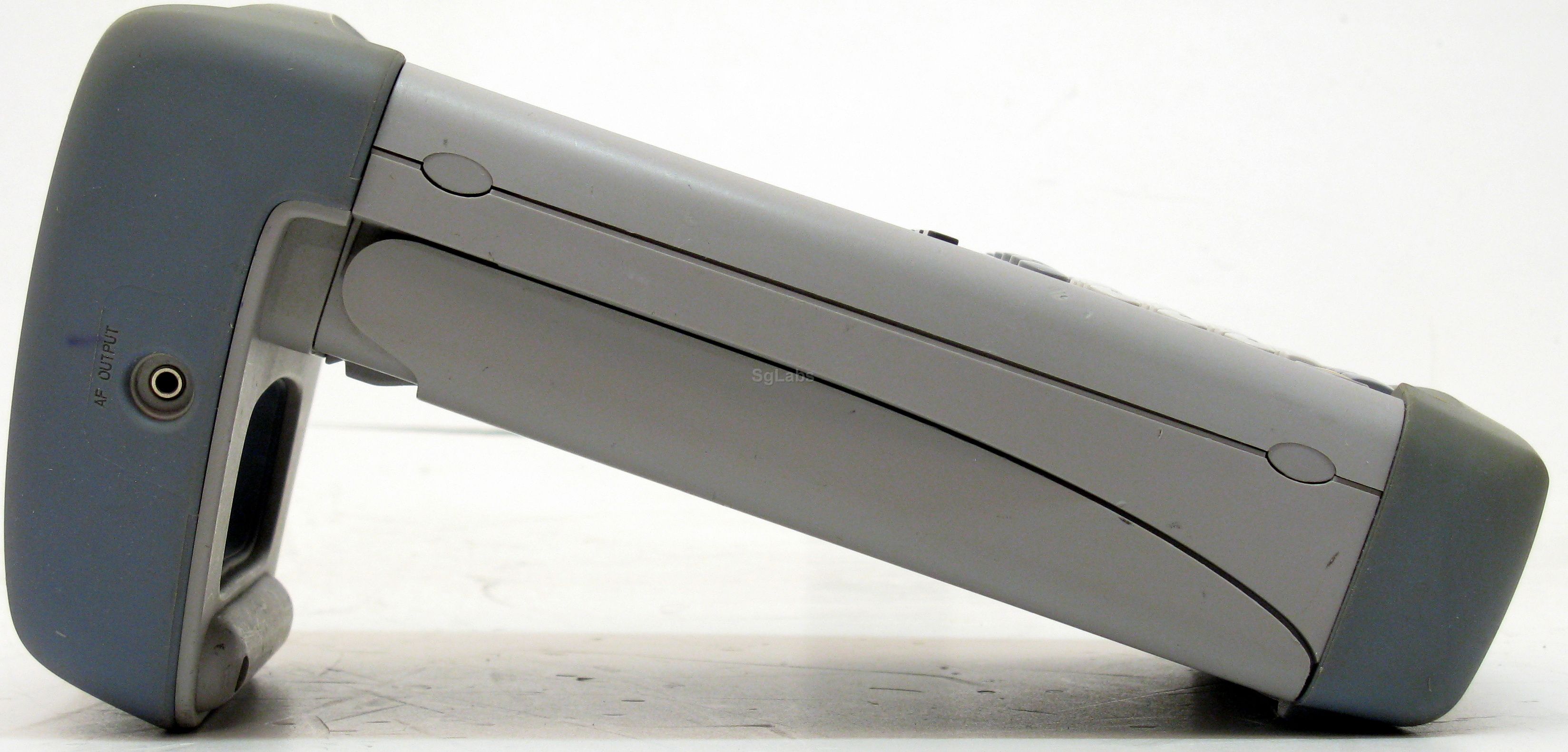

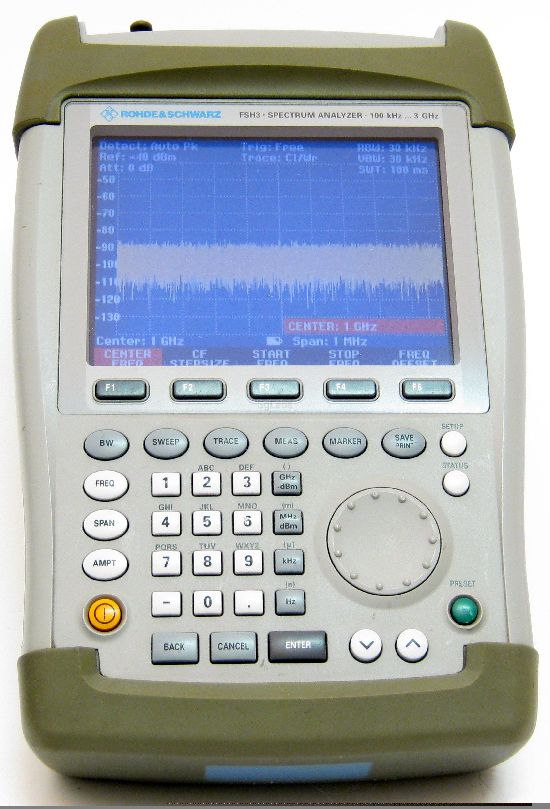

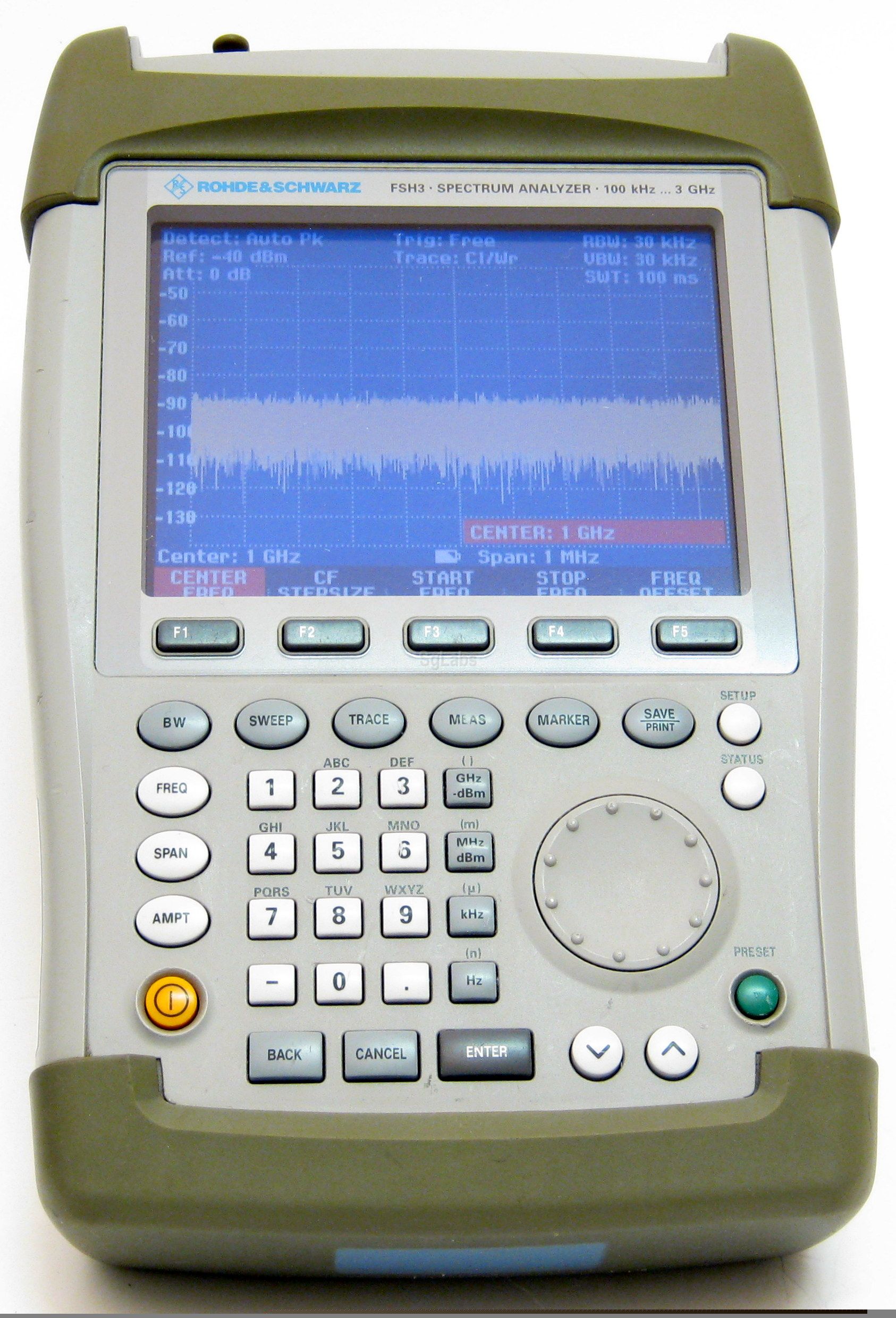

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The R&S®FSH is the ideal spectrum analyzer for cost-effective signal investigations in the field. It provides a large number of measurement functions and so can handle anything from the installation or maintenance of a mobile radio base station up to on-site fault location in RF cables to development and service – an extensive range of applications.


Features
  • Frequency range 100 kHz to 3 GHz
  • Resolution bandwidths
    • 1 kHz to 1 MHz (model .13)
    • 100 Hz to 1 MHz (models .03 and .23)
  • Video bandwidths 10 Hz to 1 MHz
  • Displayed average noise level:
    • typ. –114 dBm (1 kHz) (model .13)
    • typ. –135 dBm (100 Hz) (models .03 and .23)
  • TOI typ. 13 dBm
  • Model .03 = with preamplifier
  • Model .13 = with tracking generator
  • Model .23 = with preamplifier and tracking generator
  • SSB phase noise: < -100 dBc (1Hz) at 100 kHz from carrier
  • Detectors sample, max/min peak, auto peak, RMS
  • Level measurement uncertainty
  • Reference level –80 dBm to +20 dBm
  • Dimensions 170 mm × 120 mm × 270 mm (6.69 in × 4.72 in × 10.63 in)
  • Weight 2.5 kg (5.52 lb)
  • Display: TFT color
  • Max. Frequency: 3 GHz
  • Min. Frequency: 100 KHz
  • Min. Resolution: 1 KHz/100 Hz
  • Tracking generator: Models .13-.23
Price
 € 1.500,00
