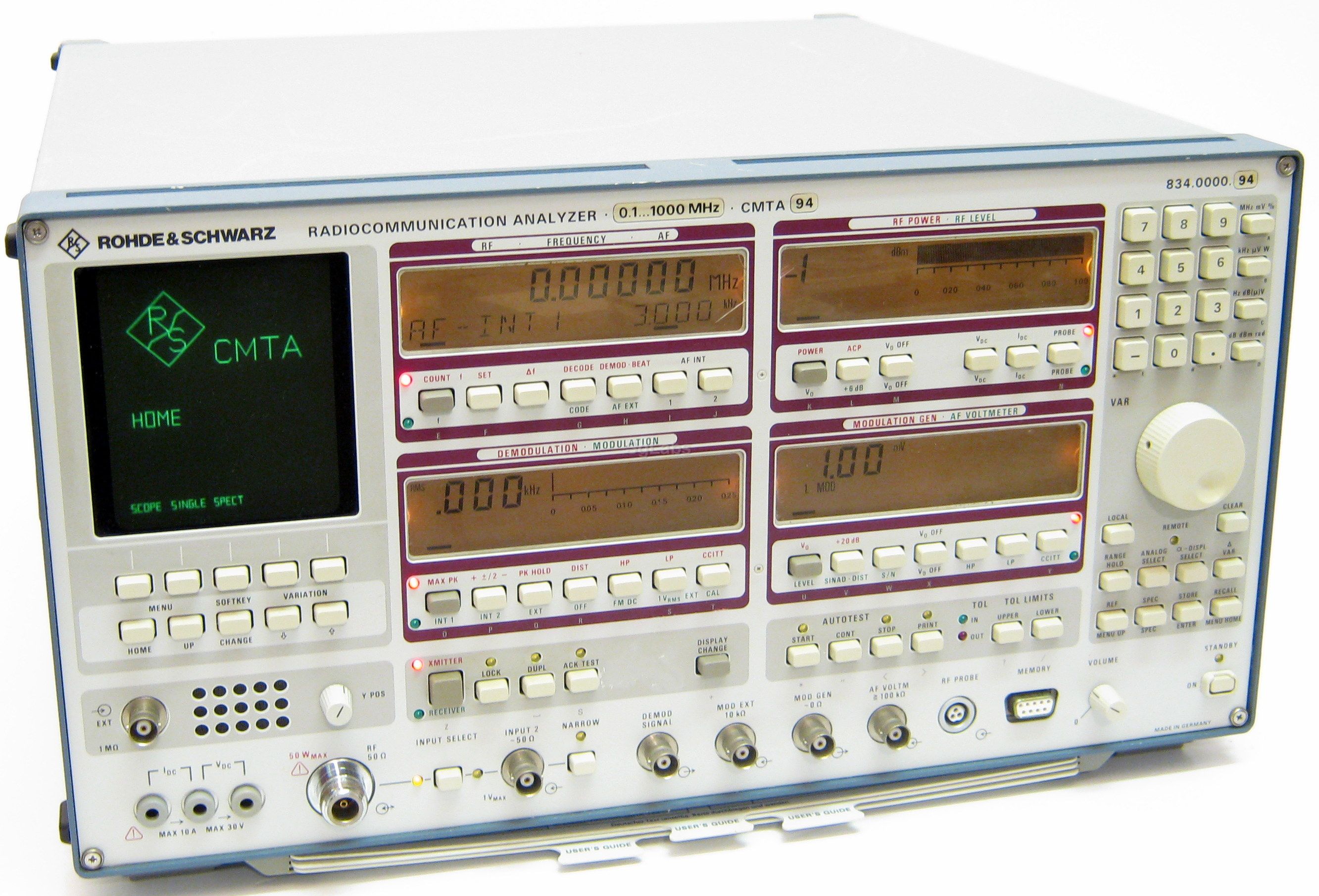

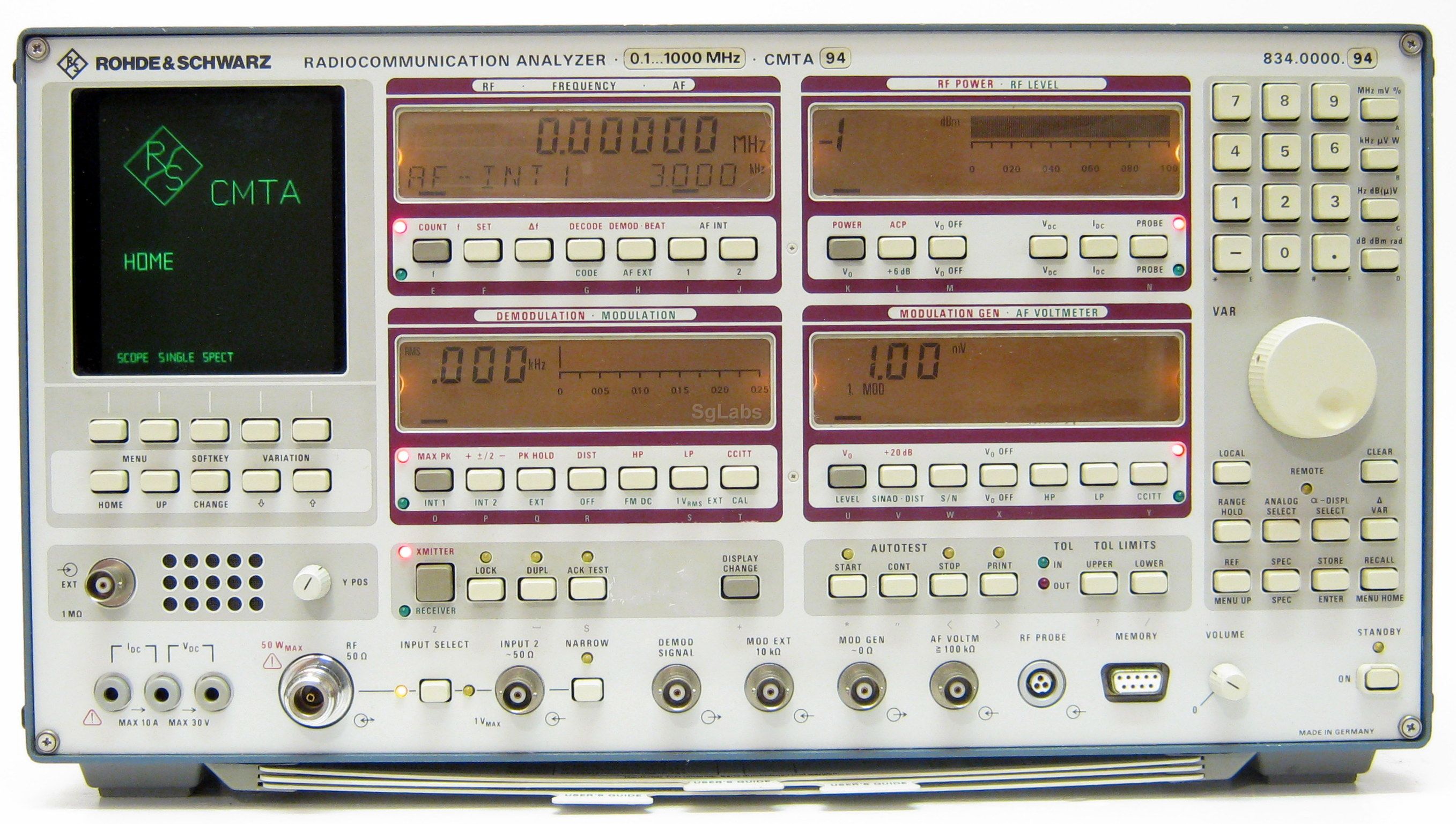

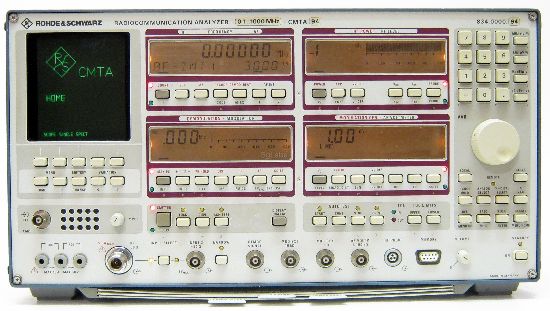

CMT and CMTA are able to perform any meosurementosn AM, FM, cpM and SSB ransceivers as weil as on mobile and base stotions in modem radio networks including ellulor radio. Futur&-proof design is ensured by providing a voriety of options. A wide choice of occessories including probes, detectors and VSWR insertion units, various printers as weil as plugin RF filters allow adaptation even to the mare exotic DUTs.
Its range of meosurement facilities makes the CMT ideal rar radio testing in production, simple development tasks and in mobile or stationary service. Applications also include maintenance and fast go/nogo testing for incoming inspection.
Thecnical Specifications:
- Receiver Measurement
- Frequency range: 0.1 up to 1000 MHz
- Resolution 1 Hz
- Level :-137 dBm up to +13 dBm
- Modulation : AM-FM-PM, multiple,internal and external
- Trasmitter Measurement
- Power meter: 1.5 up to 1000 MHz, from 5 mW to 50 W
- RF frequency counter: from 1 MHz to 1 GHz with max resolution 1 Hz
- AM-FM-SINAD meter
- Demodulator FM-AM-PM
- Integrated Spectrum Analyzer
- Power meter: 1.5 up to 1000 MHz, from 5 mW to 50 W
