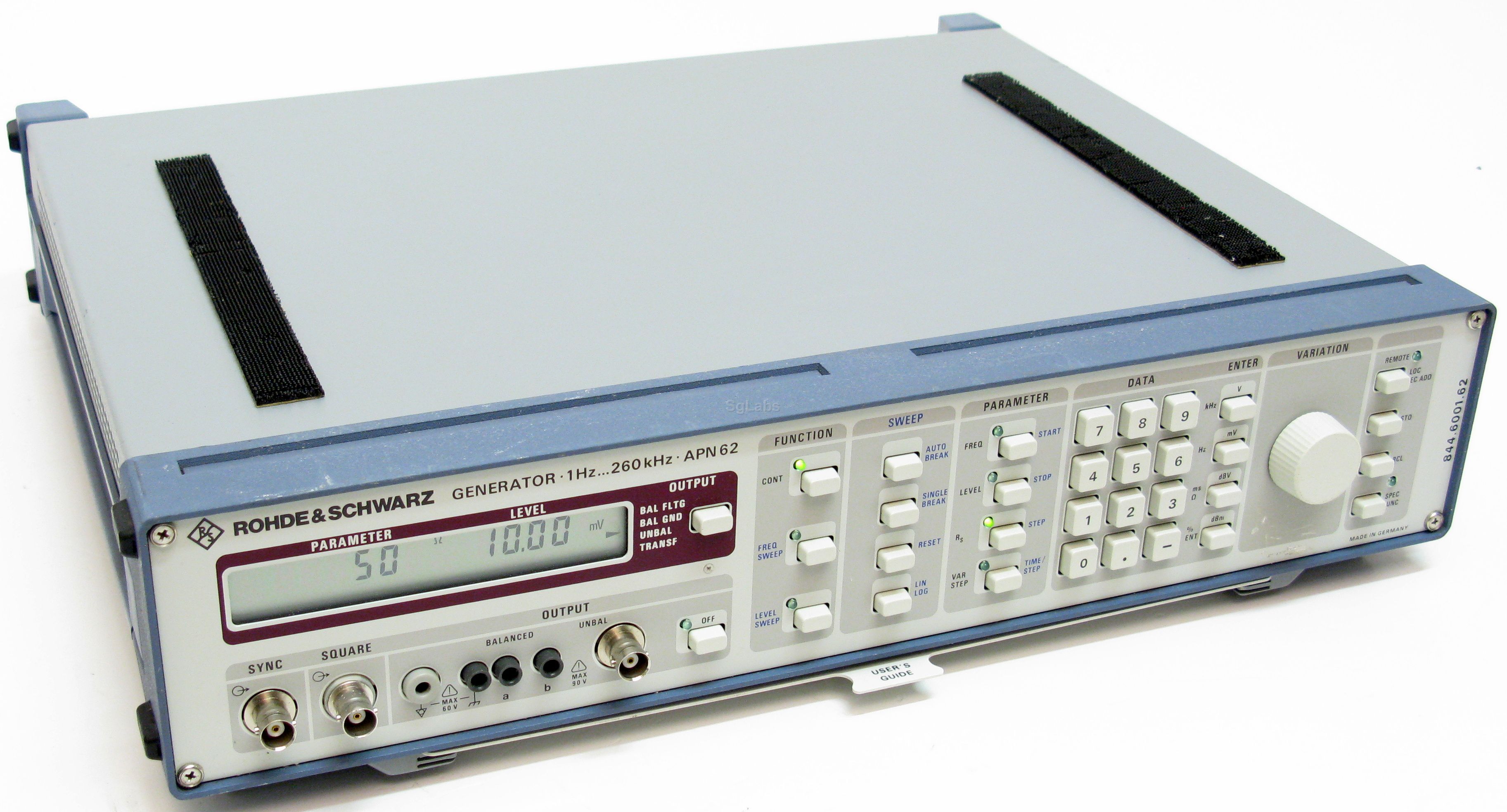

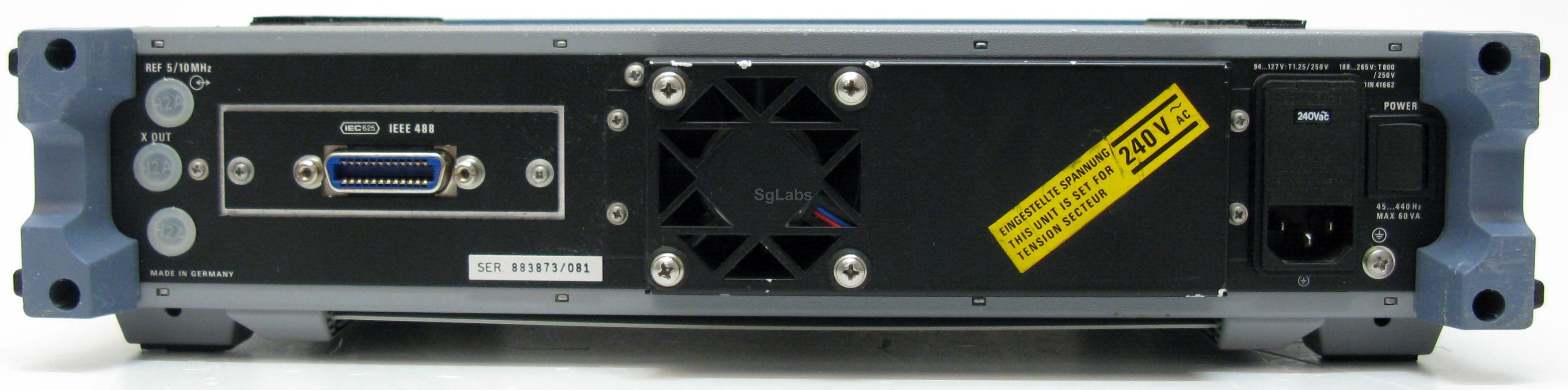

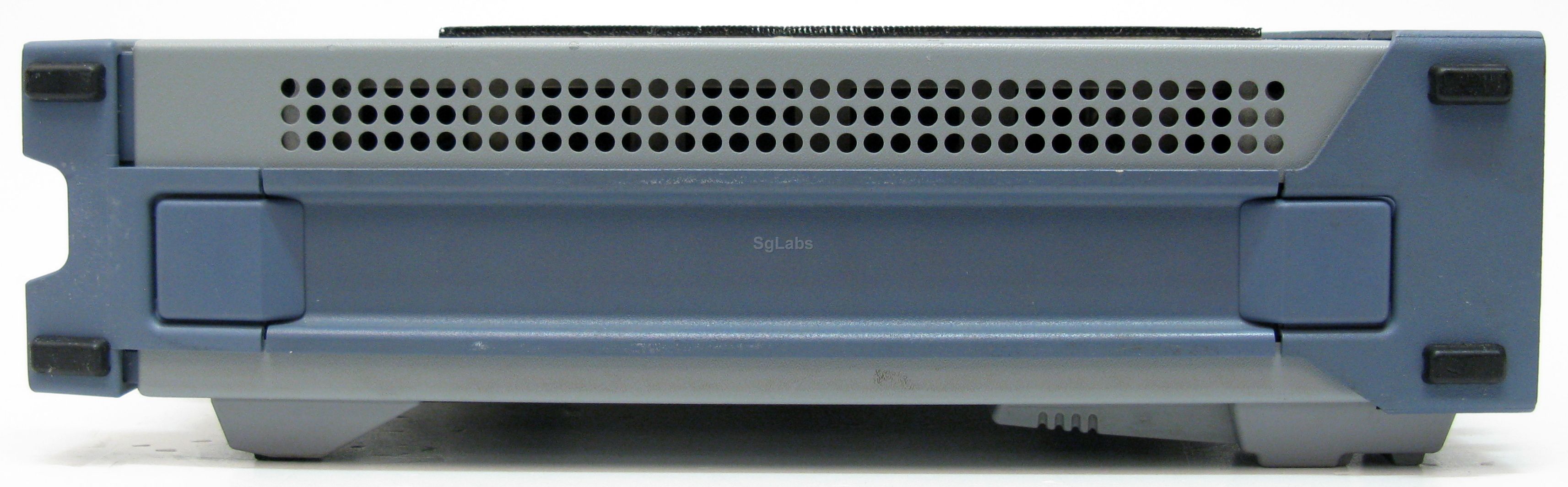

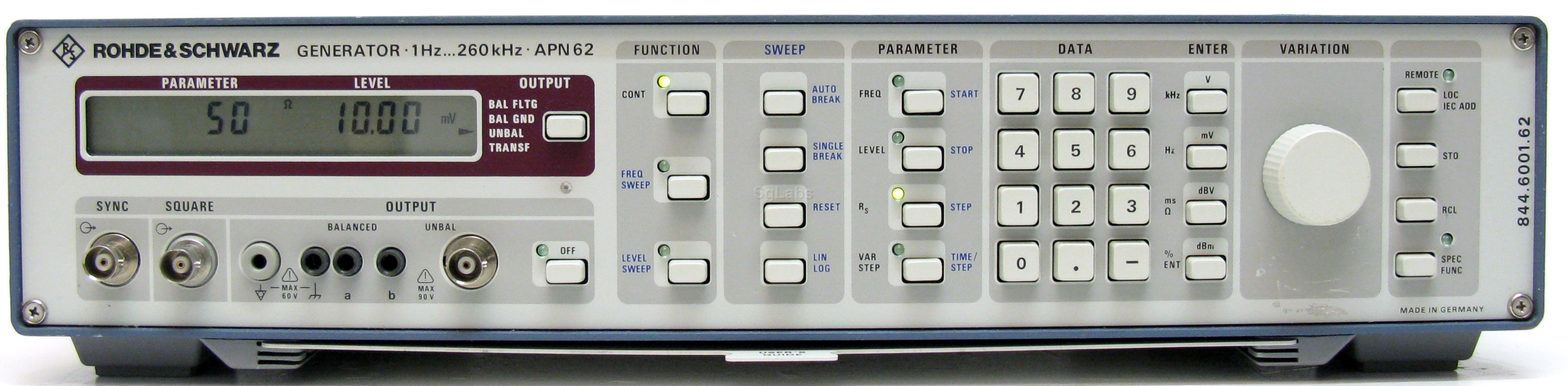

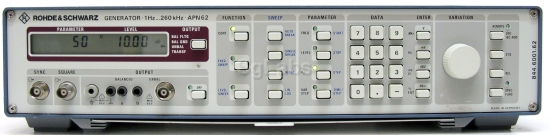

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Synthesizer Generator Rohde & Schwarz APN62 is a high-precision synthesized source for signals from 1 Hz to 260 kHz. It provides sinewave and squarewave signals and also incorporates many outstanding characteristics and functions, as for example frequency sweep and level sweep.
Technical details :

  • Frequency resolution: 1 Hz (up to 260 kHz) or 0,1 Hz (up to 20 kHz)
  • Output level:50 µV to 20 V (can be swept/ units in V - dbV - dBU - dBm)
  • Distortion: better 0,01% up to 20 kHz
  • Rise and fall time: better 100 ns
  • Output impedance: adjustable from 10 to 640 Ohm in 5 Ohm steps
  • Output: balanced floating, balanced ref. to ground or unbalanced
  • All functions remotely controllable by IEEE 488 interface.
Features
  • Frequency range 1 Hz  260 kHz
  • Resolution 0.1Hz up to 20 kHz and 1 Hz up to 260 KHz
  • Output level range 50 µV a 20 Vrms(V - dbV - dBU - dBm)
  • Source Impedance 10 - 640 Ohm; step 5 ohm
  • Low distortion< 0,01% up to 20 kHz, tipic -80dBc
  • Frequency and level Sweep
  • Remote controller HP-IB
  • Waveform sine, square, triangle, sawtooth
  • Max. Frequency: 260 kHz
  • Min. Frequency: 1 Hz
  • Max. Level: 20 V
  • Min. Level: 50 uV
