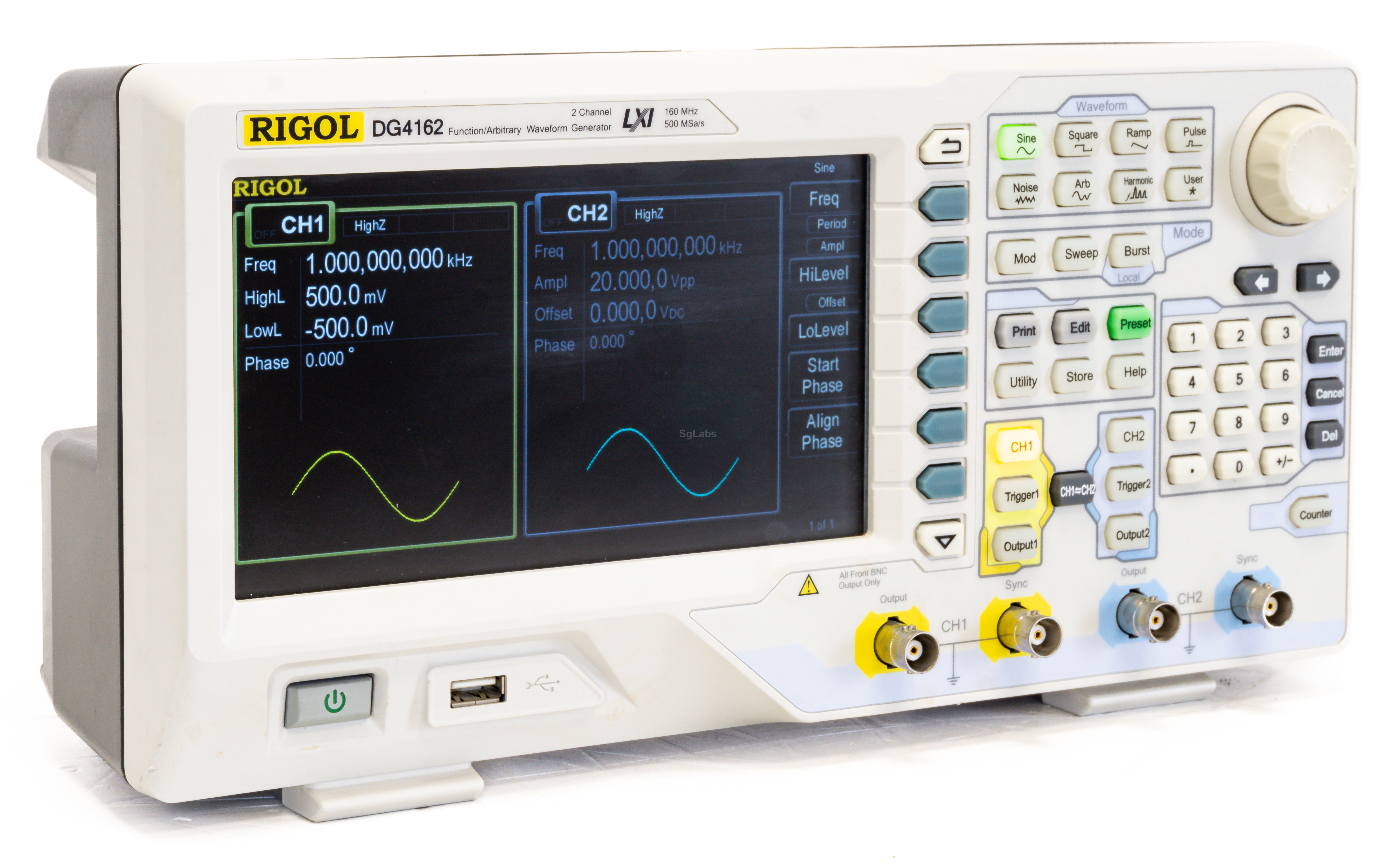

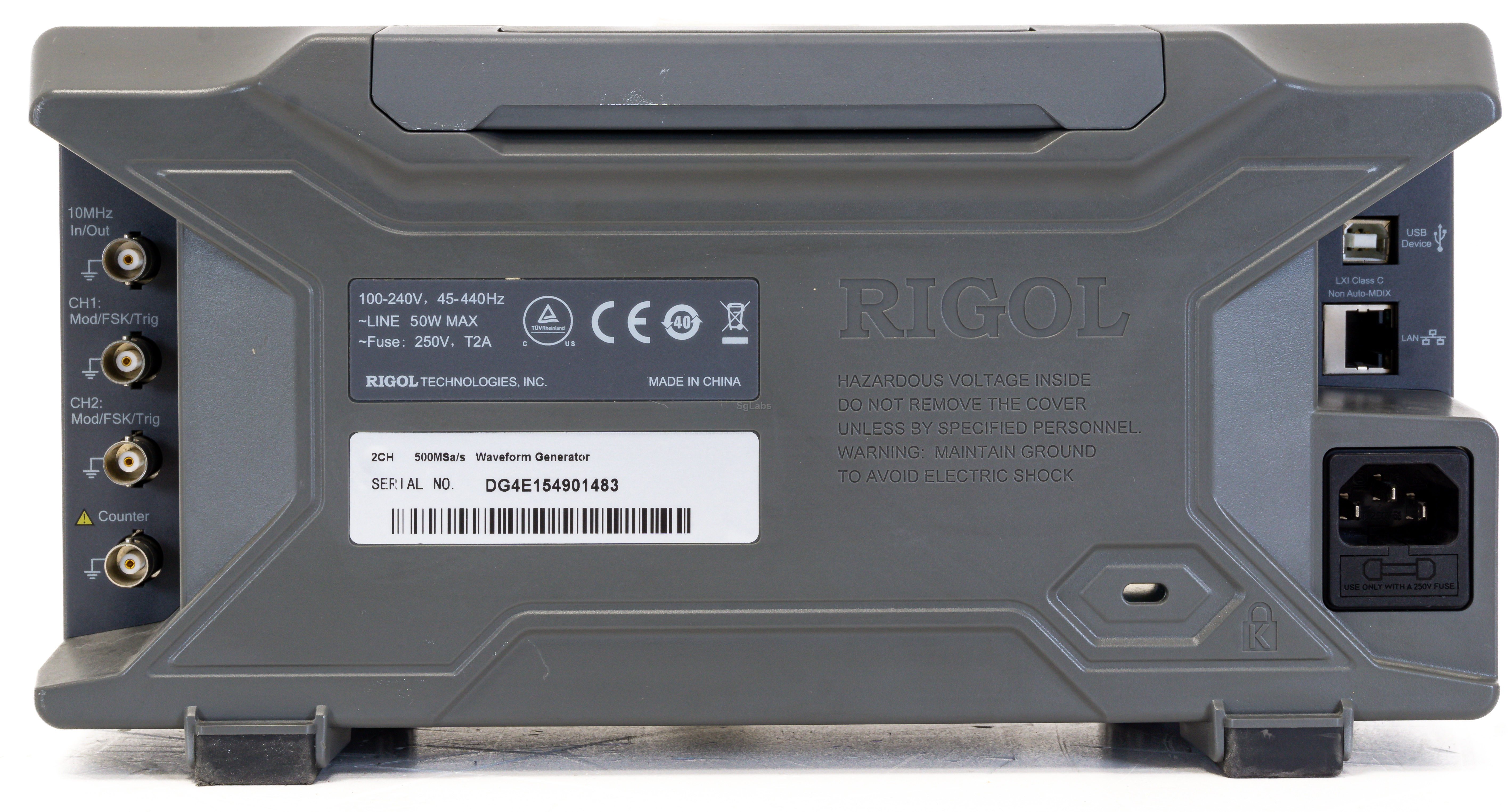

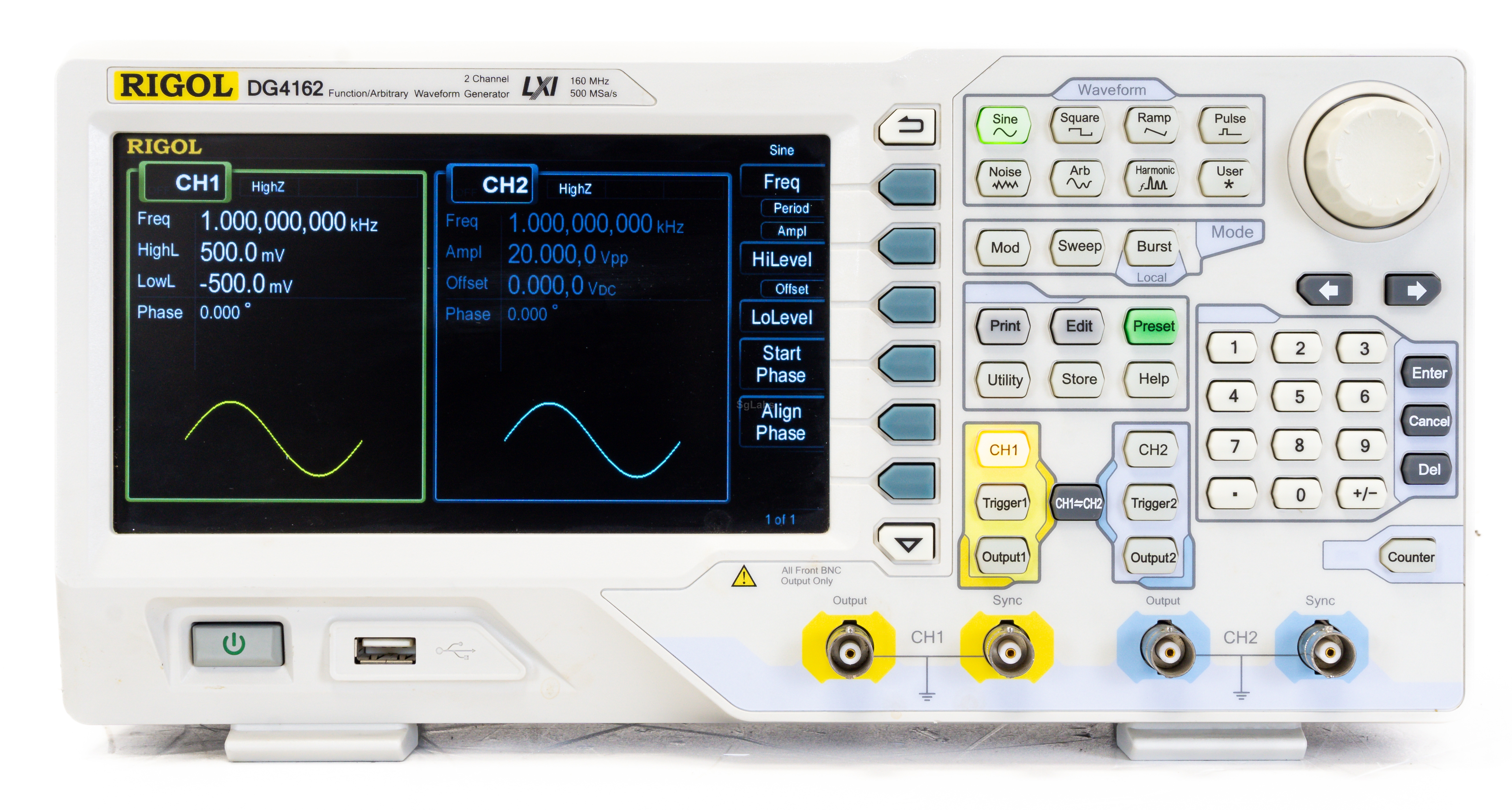

Rigol DG4162 Arbitrary Waveform Generator 160 MHz 2 Channels
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The DG4000 Series waveform generators are utilized in a wide range of applications because of the many functions combined into one instrument. With capabilities including Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, Analog/Digital Modulation source, and Counter the DG4000 series can handle a broad array of signal emulation applications from near DC up to 60 or even 200 MHz depending on model and function. The DG4000 utilizes Direct Digital Synthesizer (DDS) technology which delivers stable, precise, low distortion signals. The sleek, upright design features a high resolution 7" display screen, while the user-friendly interface design and panel layout improves efficiency.
  • Channels 2
  • Frequency 160 MHz
  • Sample Rate 500 MSa/s
  • Waveform Length 16 Kpts
  • Vertical Resolution 14 bits
  • Max. Frequency: 160 MHz
  • Min. Frequency: 1μHz
  • Max. Level: 10 Vpp 50 ohm
  • Min. Level: 1 mVpp
  • sweep: Linear, Log or Step
