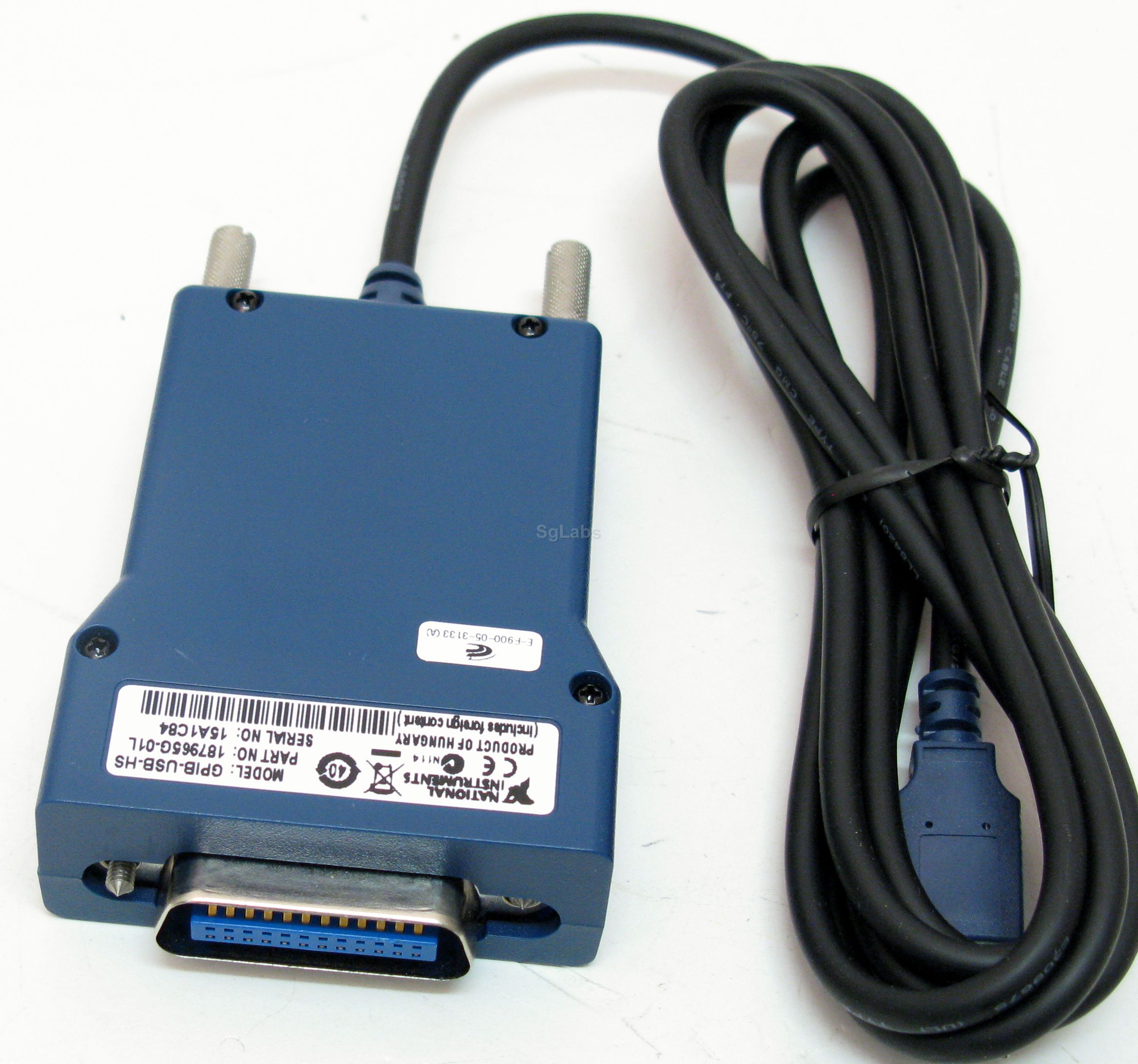

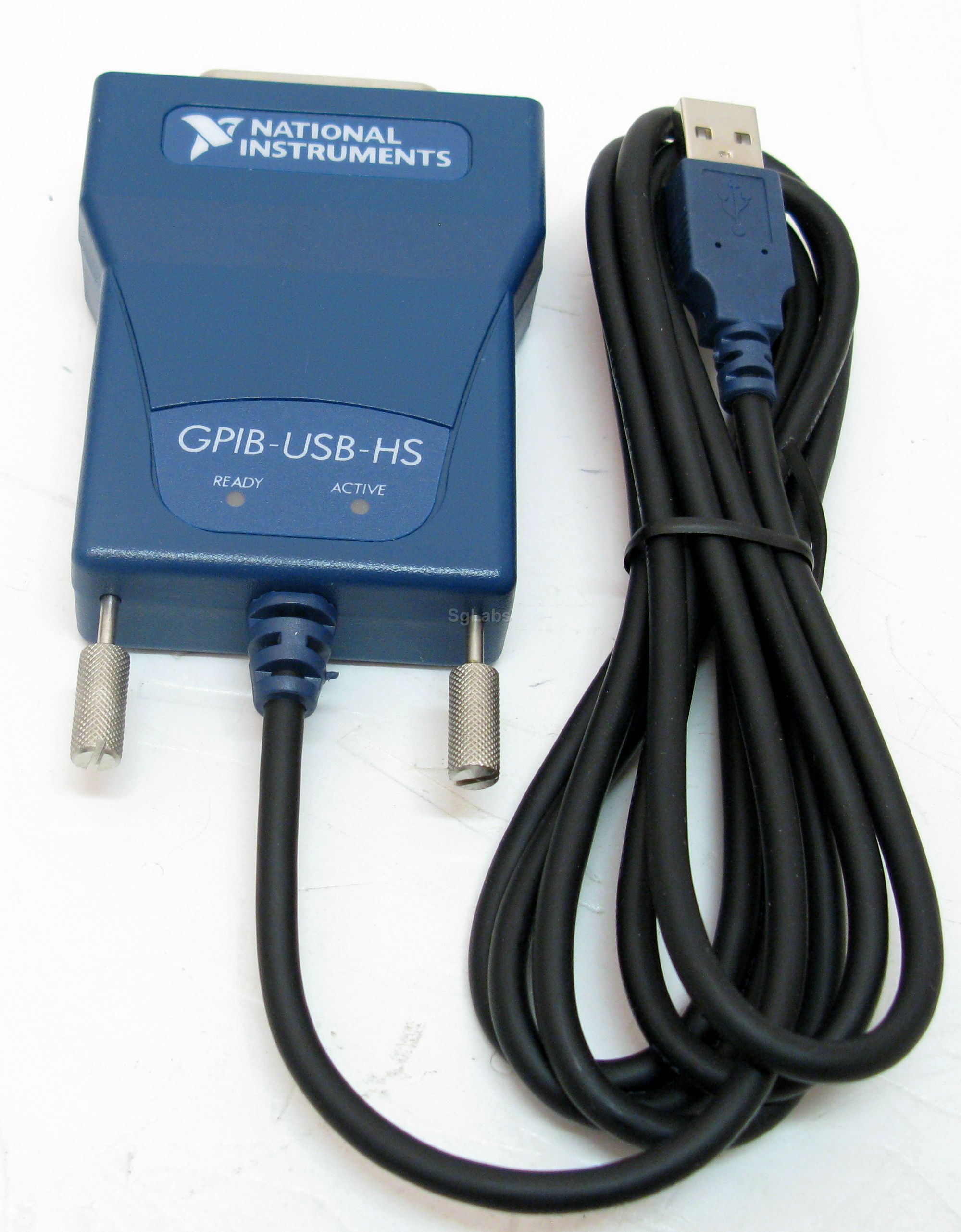

NI National Instruments, GPIB-USB-HS
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The NI GPIB-USB-HS with NI-488.2 driver transforms any computer with a USB port into a fully functional IEEE 488.2 controller for up to 14 programmable GPIB instruments. The GPIB-USB-HS takes advantage of Hi-Speed USB to provide superior performance of up to 1.8 MB/s with the standard IEEE 488 handshake and up to 7.7 MB/s with the high-speed IEEE 488 handshake (HS488). The RoHS-compliant GPIB-USB-HS includes a license for NI-488.2 that can be downloaded at ni.com/downloads.
Features
  • Custom ASIC provides maximum IEEE 488.2 performance
  • High-performance GPIB controller
  • No GPIB cable requirement for instrument connection
  • Transfer rates up to 1.8 MB/s (IEEE 488.1) and up to 7.9 MB/s (HS488)
Price
 € 320,00
