Narda, 765-20

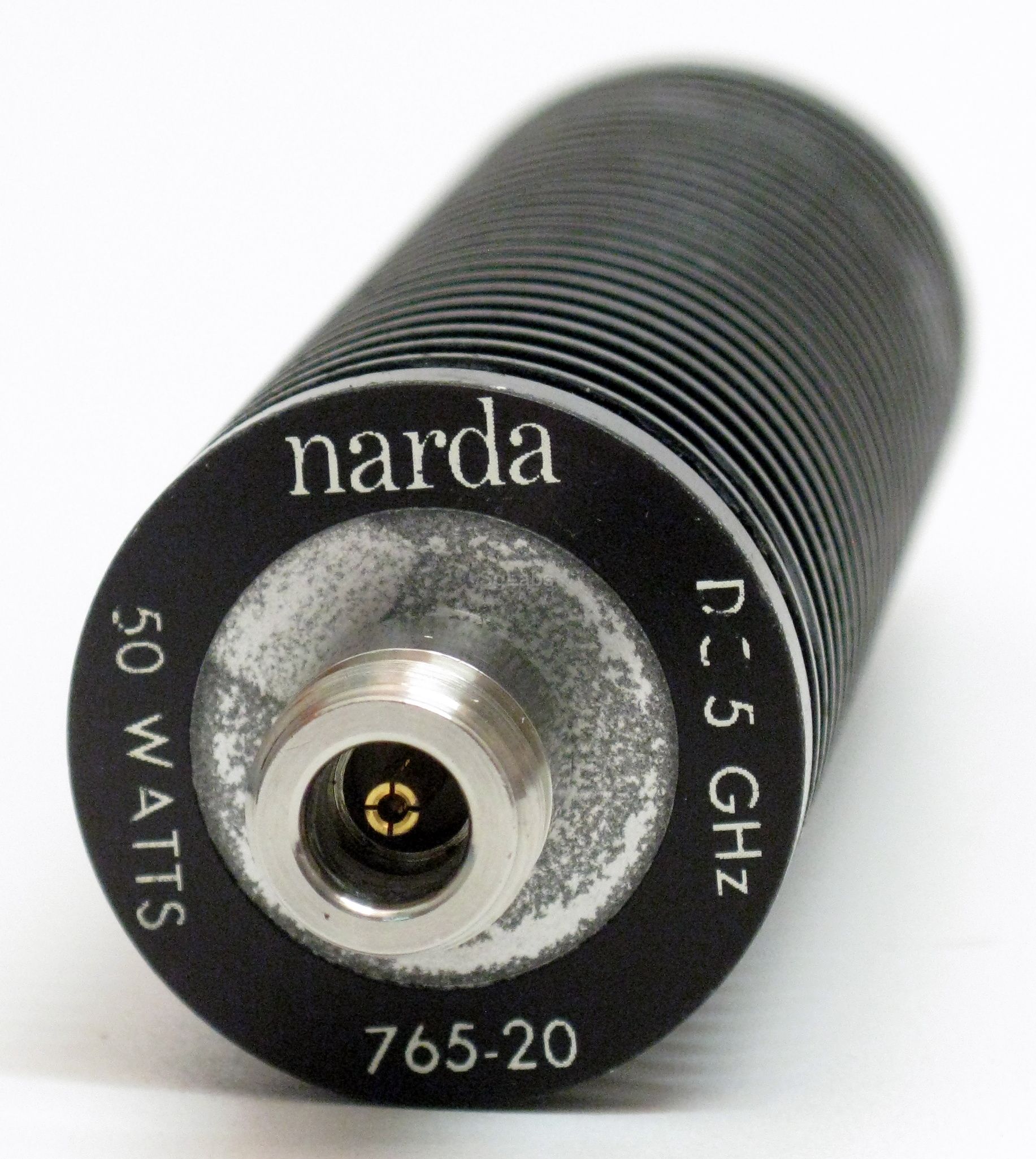

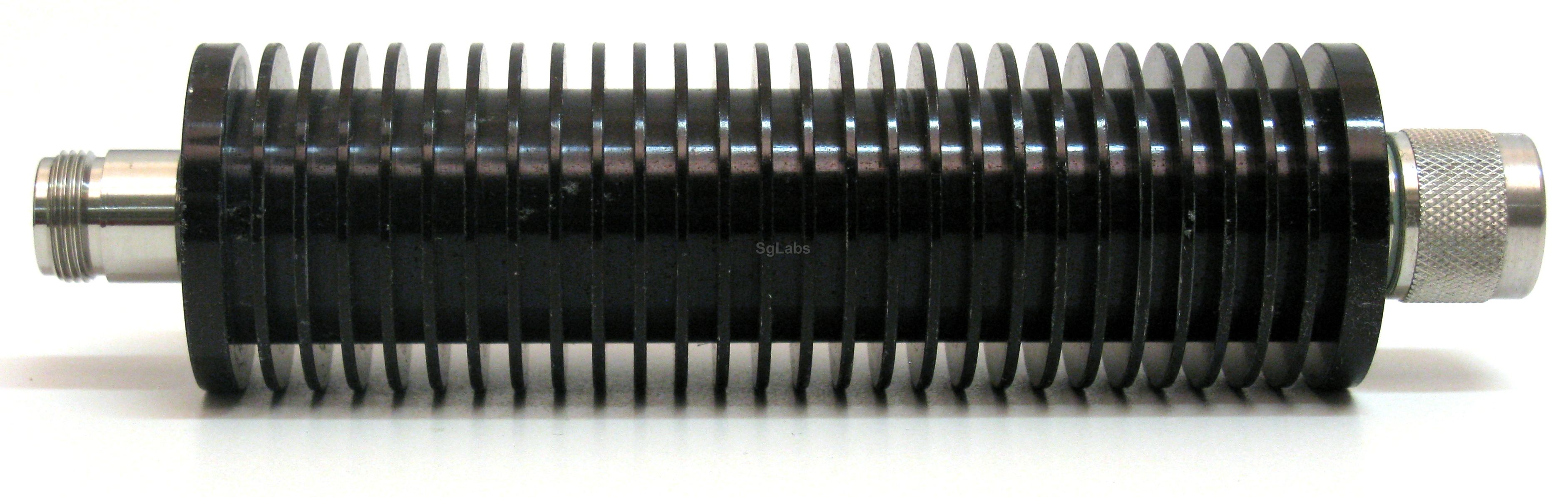

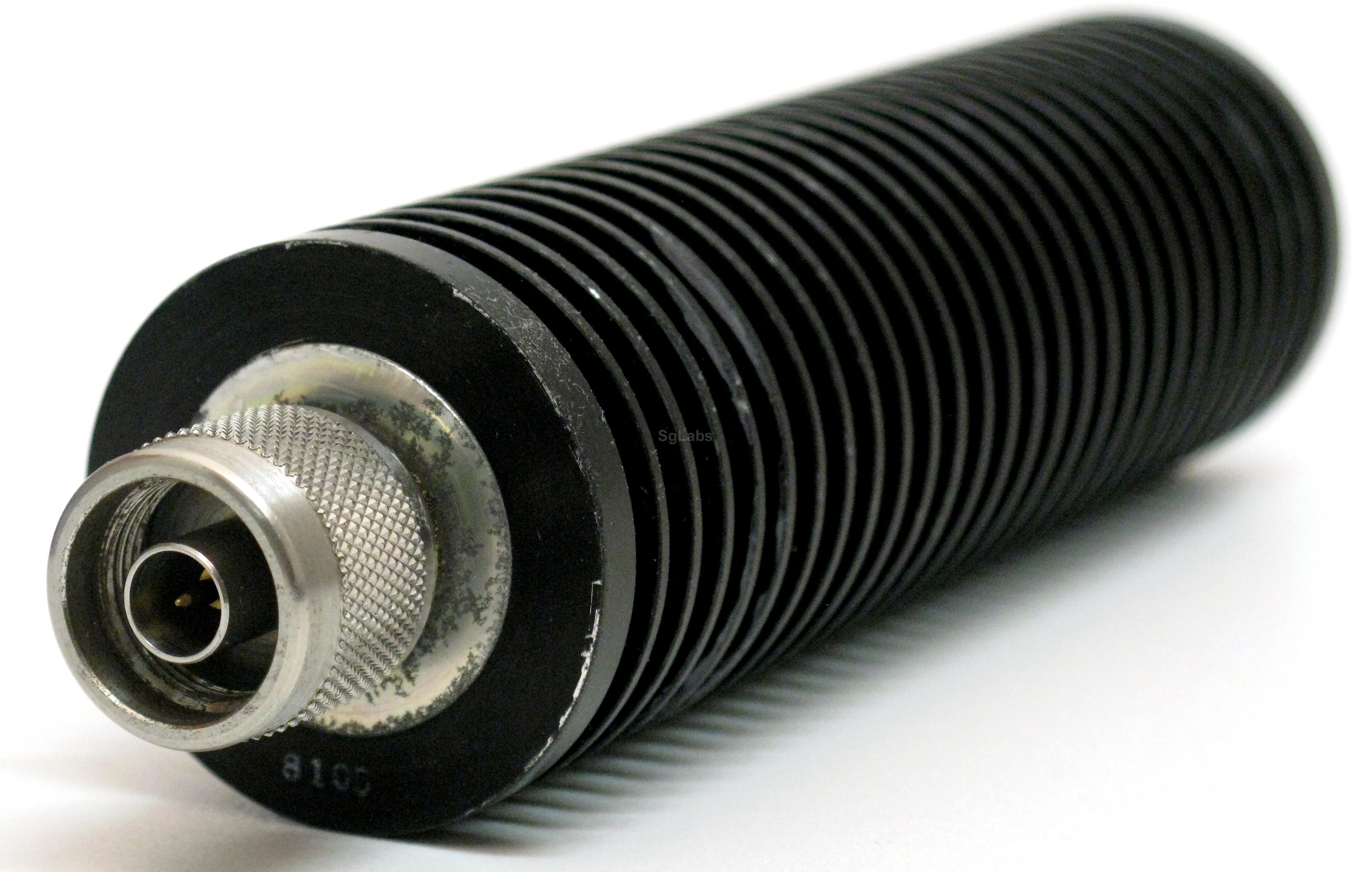

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Type N Medium Power Bi-Directional Fixed Coaxial Attenuators
Features
  • Frequency range: DC-5 GHz
  • Attenuation (nominal): 20dB
  • Deviation: 0.30dB up to 3GHz, 0.50 dB up to 5GHz
  • Power Input max: 50W (average), 2kW (peak)
  • VSWR: 1.20 up to 3 GHz, 1.30 up to 5 GHz
  • Attenuation: 20 dB
  • Connector: N
  • Max. Frequency: 5 GHz
  • Min. Frequency: DC
  • Max. power: 50W (2kW peak)
  • VSWR / RL: 1.20 up to 3 GHz, 1.3 up to 5 GHz
