Marconi IFR Aeroflex, CPM20

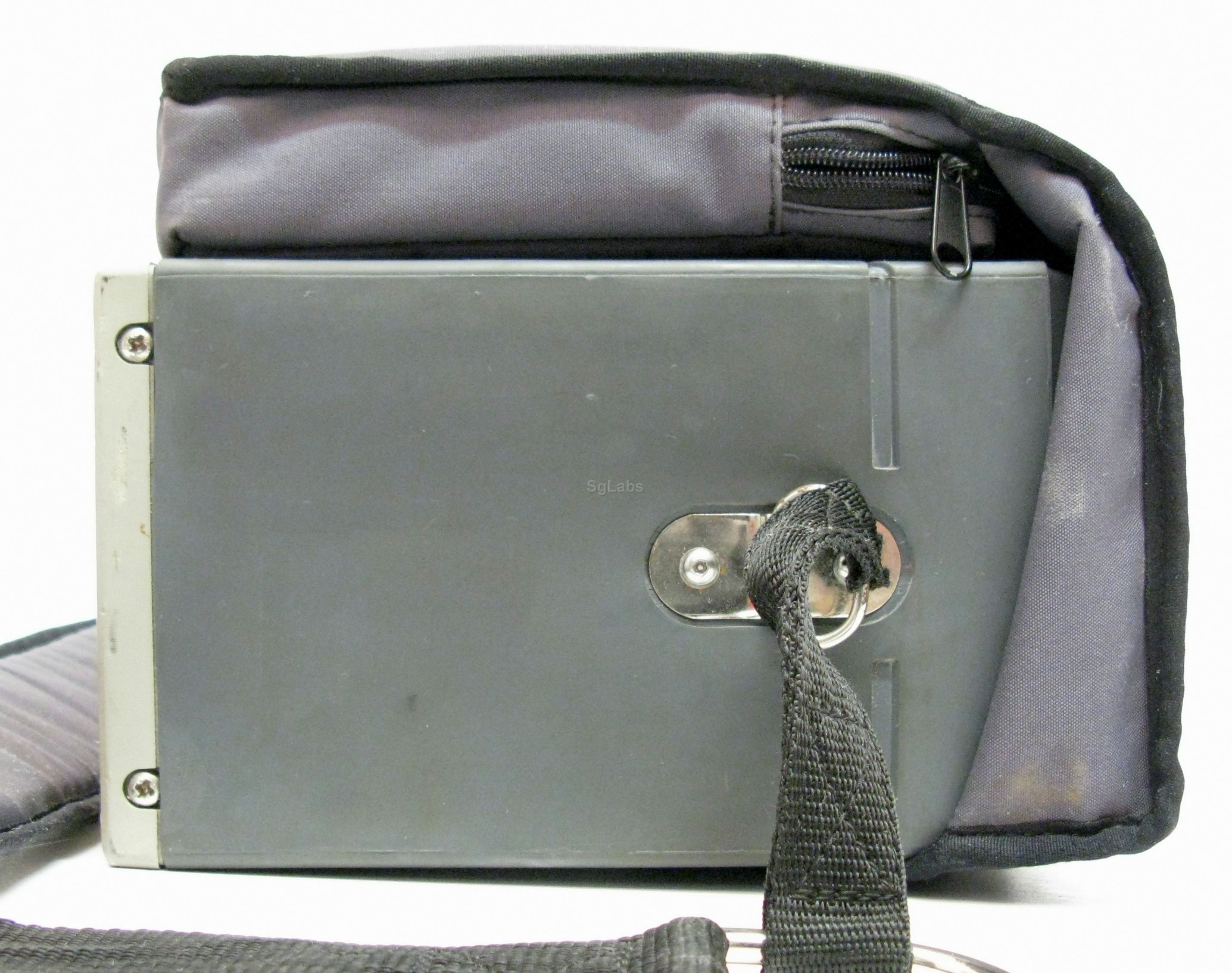

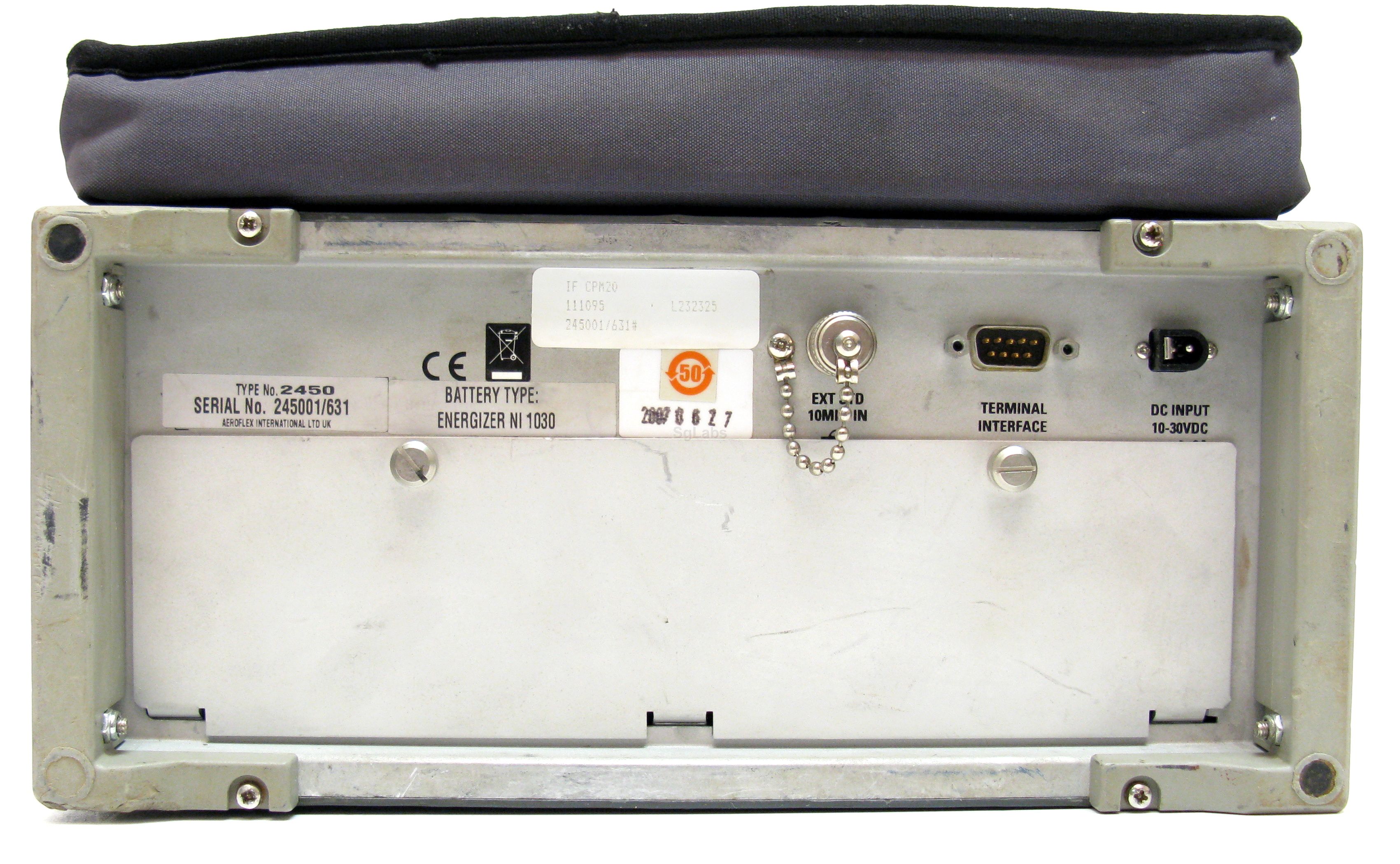

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

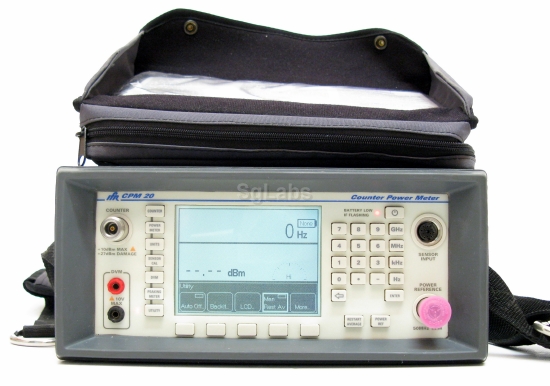

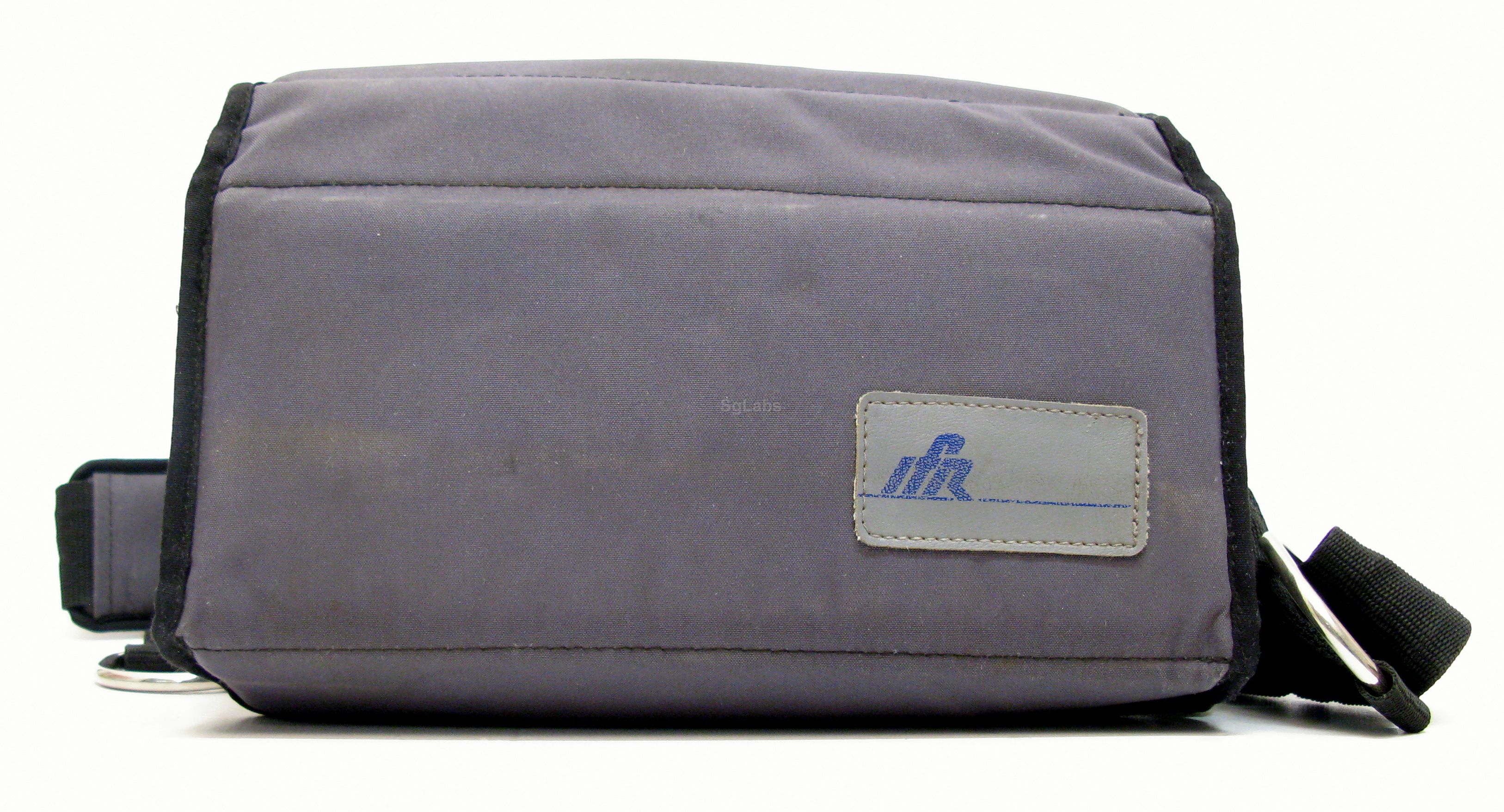

IFR’s Counter Power Meter (CPM) is a portable combination of three instruments: a Microwave Frequency Counter, true Power Meter and Digital Voltmeter. A compact instrument with internal rechargeable battery, ruggedized case and carrying strap, it can be used up a tower, on a roof top or at a field site. Digital microwave radios are commonly installed for network access to mobile radio cell sites and quick installation of business communications. The CPM is the ideal instrument for installation and maintenance engineers working on these systems.
Frequency measurement:
  • Range: 10 MHz - 20 GHz
  • Sensitivity:
  • 10 MHz to 20 GHz -20 dBm (typ, below 20 MHz)
  • Resolution: selectable from 1 Hz to 1 MHz

Power Meter

  • Frequency Range (sensor dependent): 30 kHz - 46 GHz
  • Power Range (sensor dependent): -65 dBm / +44 dBm
  • Power Sensors Supported: 6910, 6920, 6930, 6930 opt.2

Digital Voltmeter

  • 0-10 Vdc
  • Accuracy 2.5%
  • Resolution 10mV
  • Max. Frequency: 20 GHz
  • Min. Frequency: 10 MHz
  • Sensibility: -20 dBm
 € 800,00
