Leader, LAG-120A

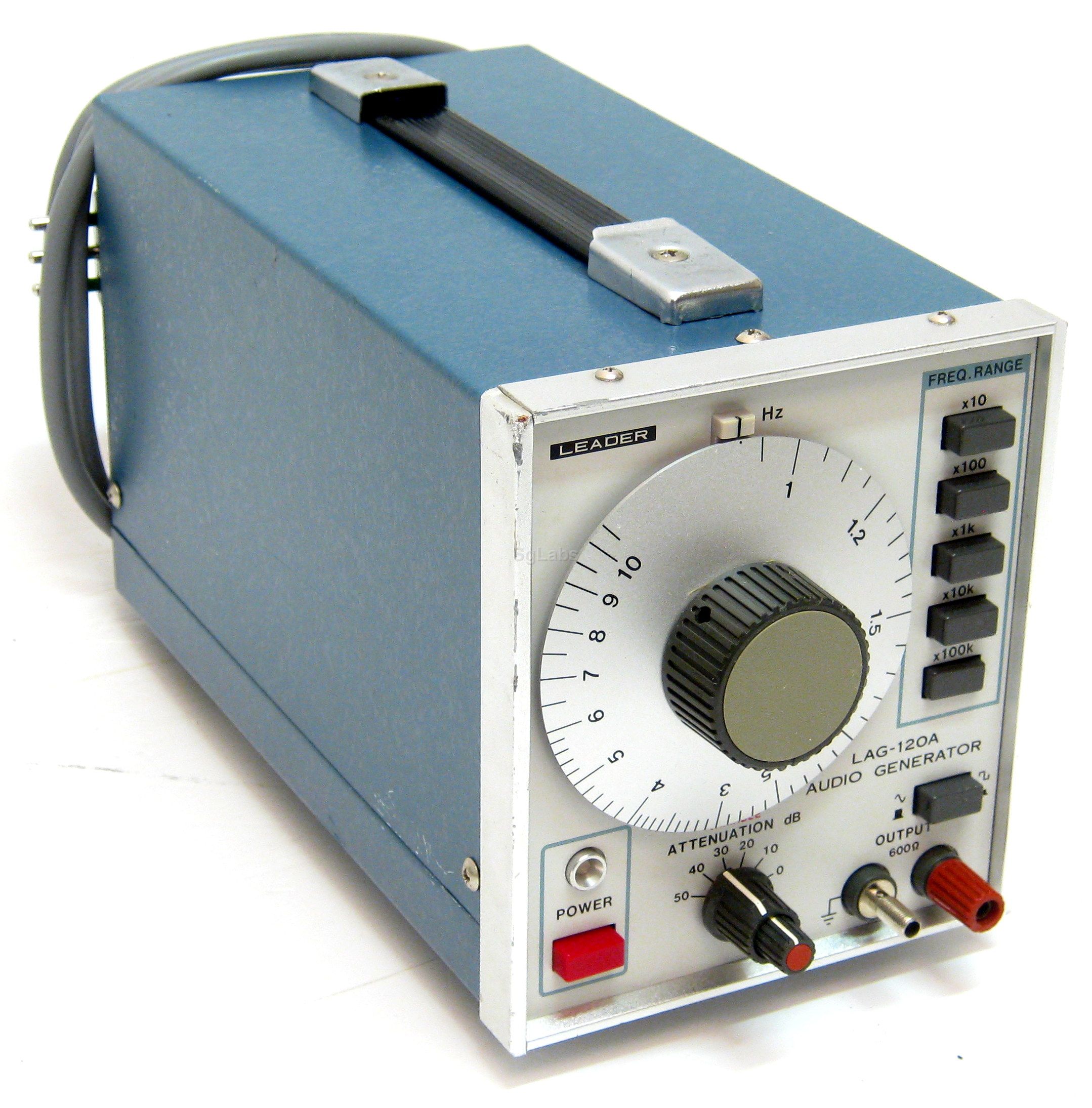

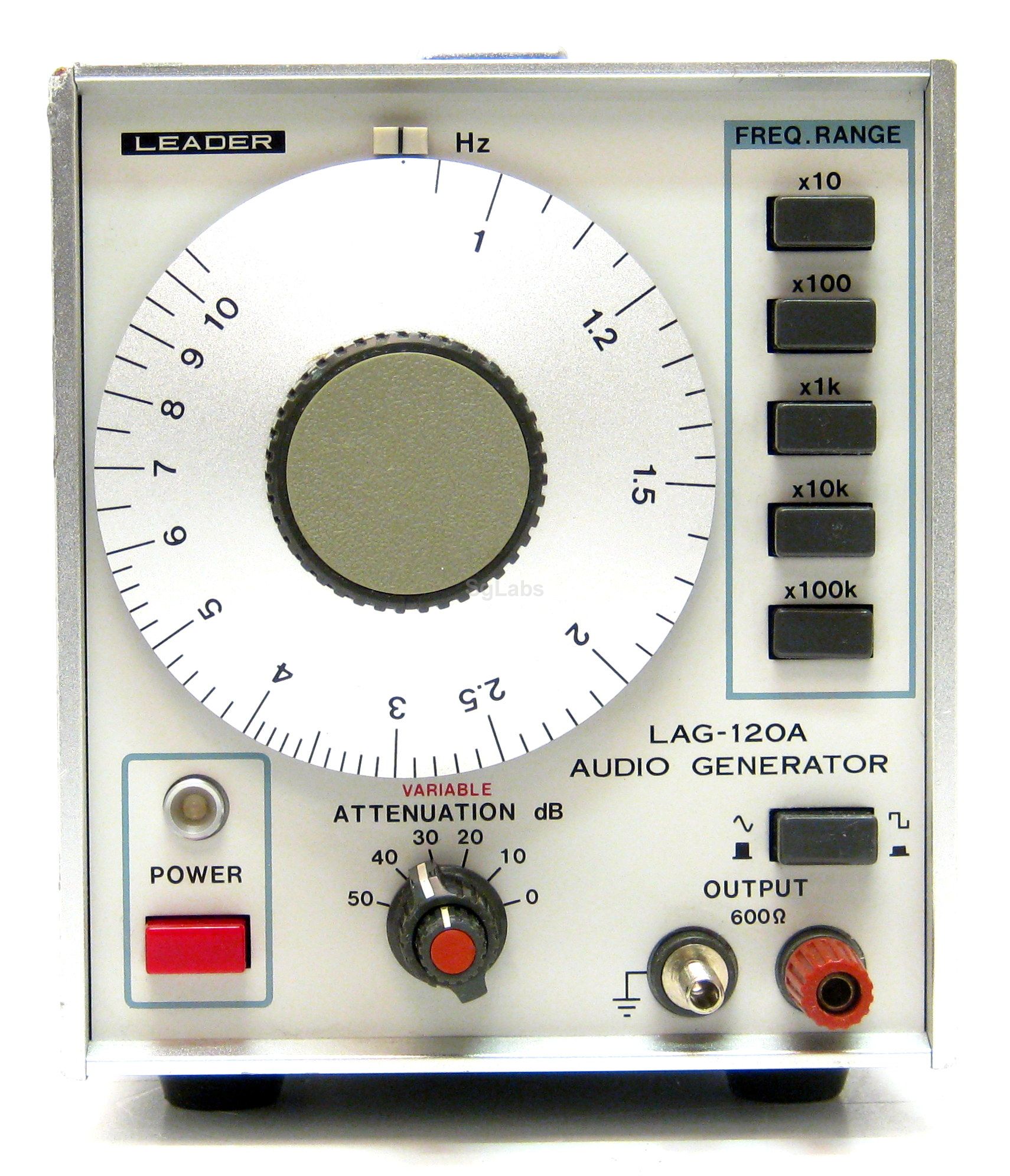

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The LAG-120A precision wide  band  audio sine/square wave  generator is used for testing and servicing audio equipment. Frequency dial accuracy is ± 3% across  the 10 Hz to 1 MHz range. The rotary 10 dB step attenuator and the  20 dB variable control  offer an attenuation range  of 70 dB. The rated output  is 3 V rms into a 600 W load and approximately 25 V p-p open  circuit. A terminator is provided as an accessory for 600 W source impedance requirements.
  • Frequency Range: 10 Hz - 1 MHz
  • Output Level: 3 Vrms (sine), 3 Vpp (square)

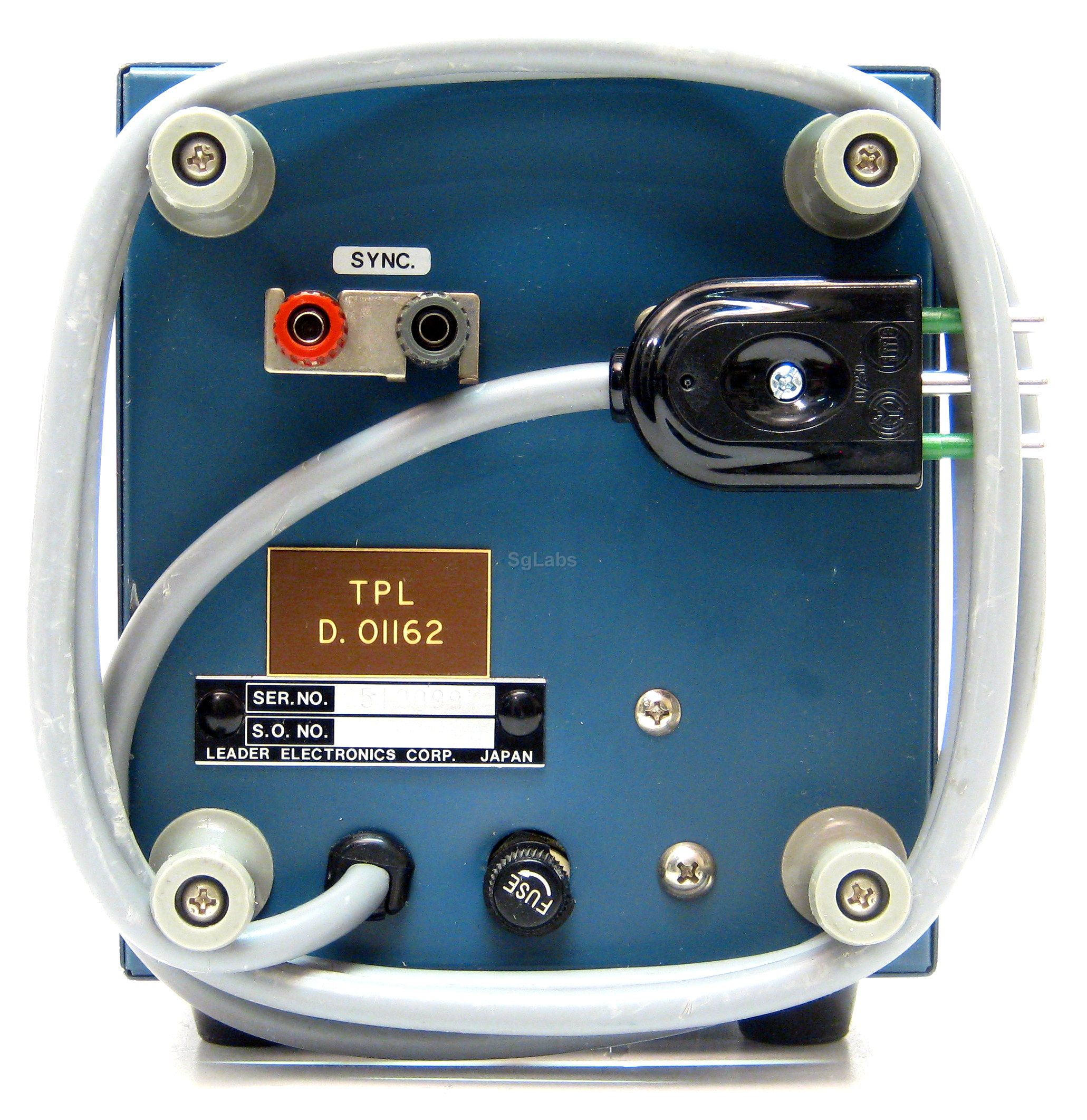

  • Rear panel SYNC Input
  • 50 dB step Attenuator
  • 20 dB variable Attenuator
  • Max. Frequency: 1 MHz
  • Min. Frequency: 10 Hz
  • Max. Level: 3 Vrms
