IFR Marconi, 2965

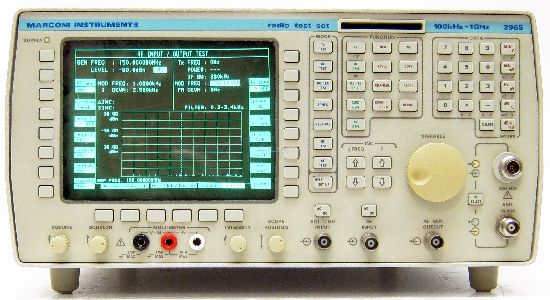

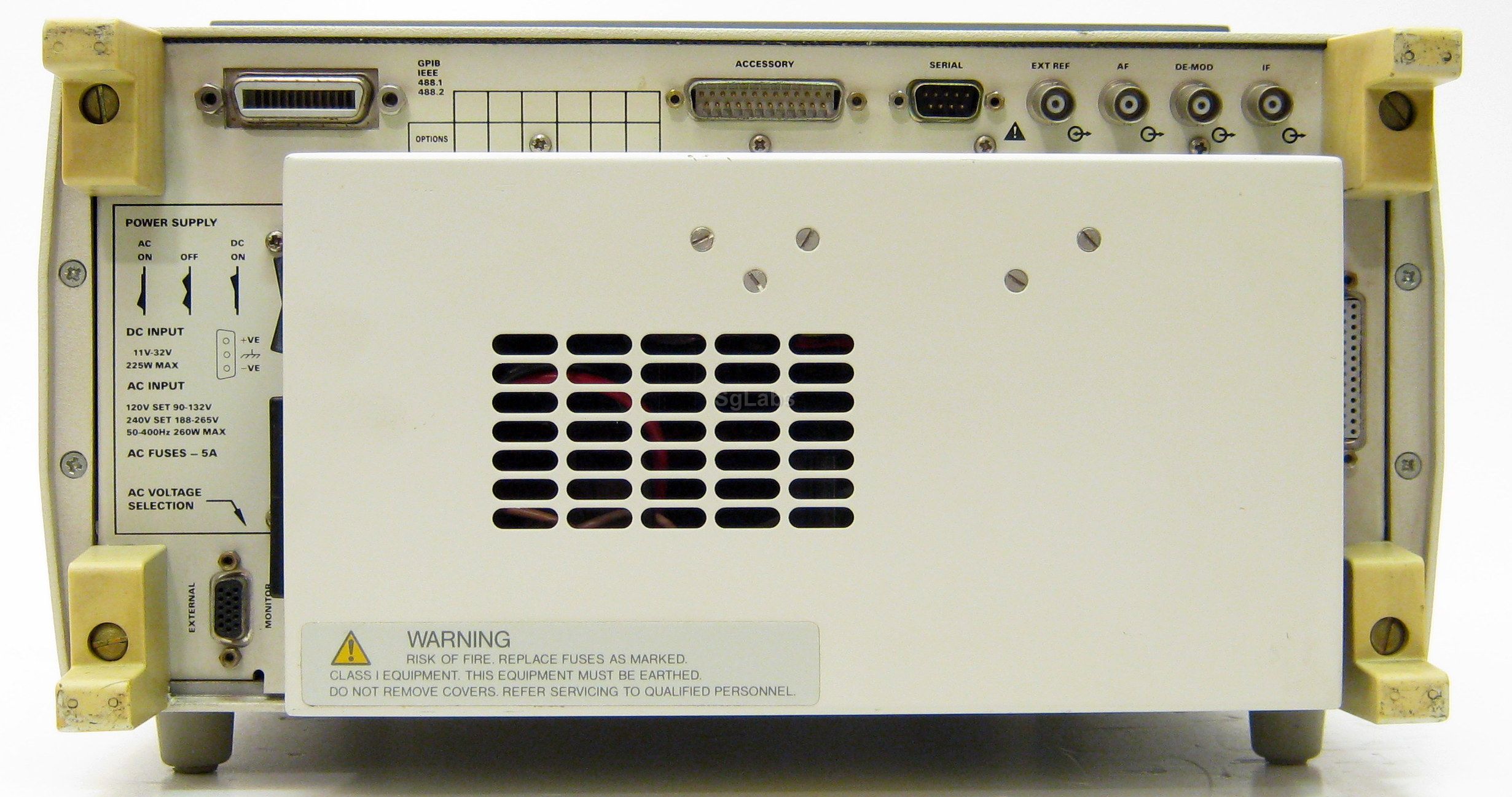

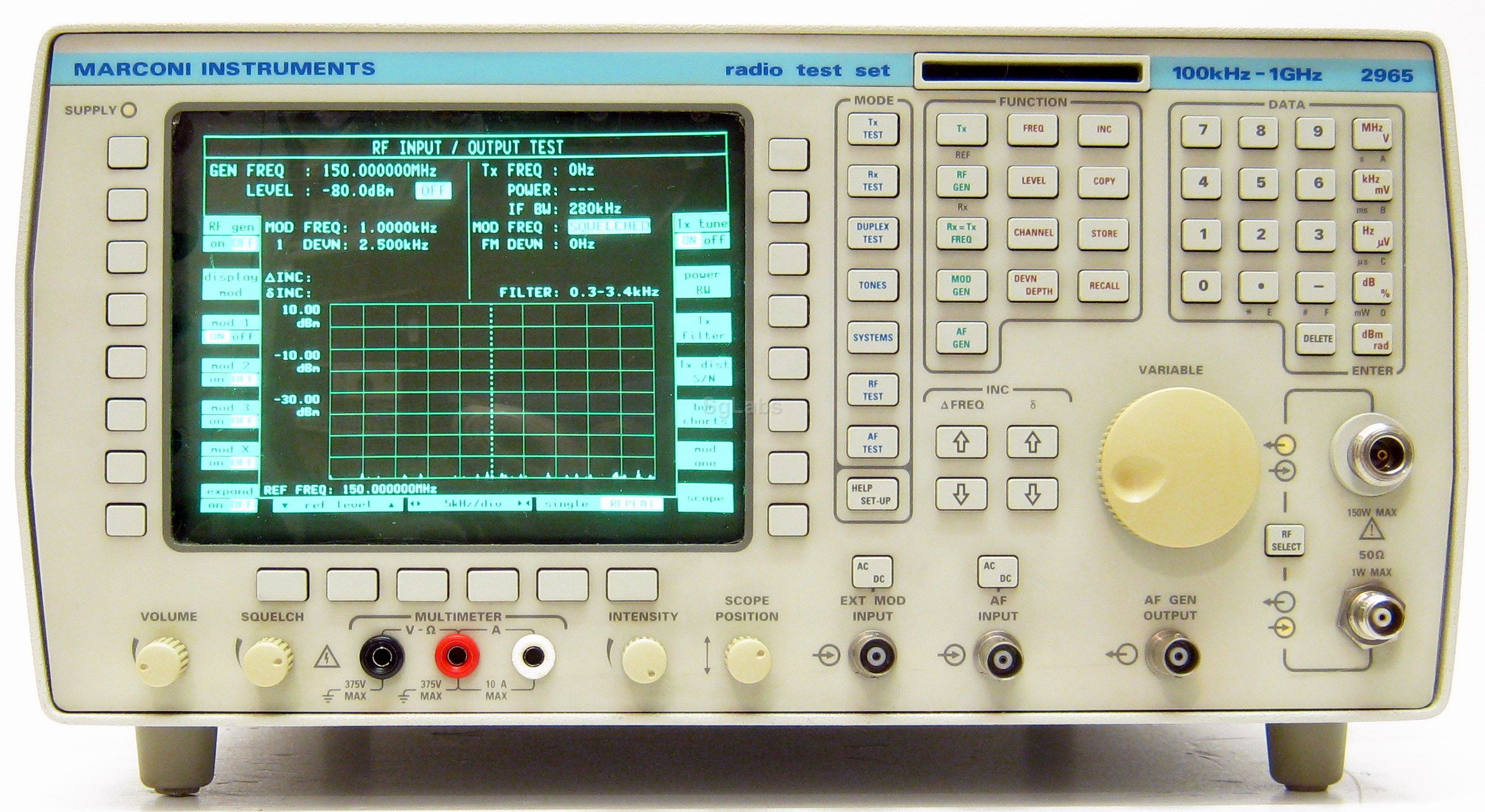

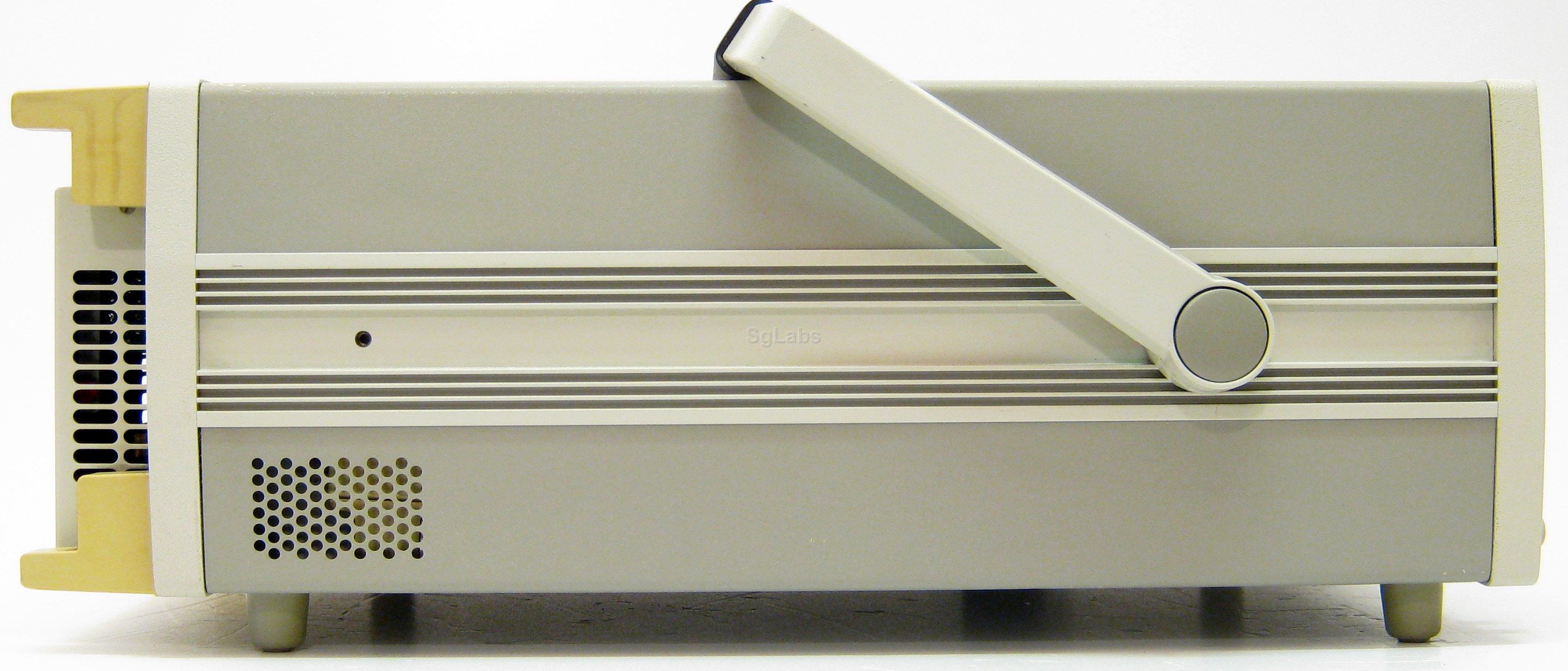

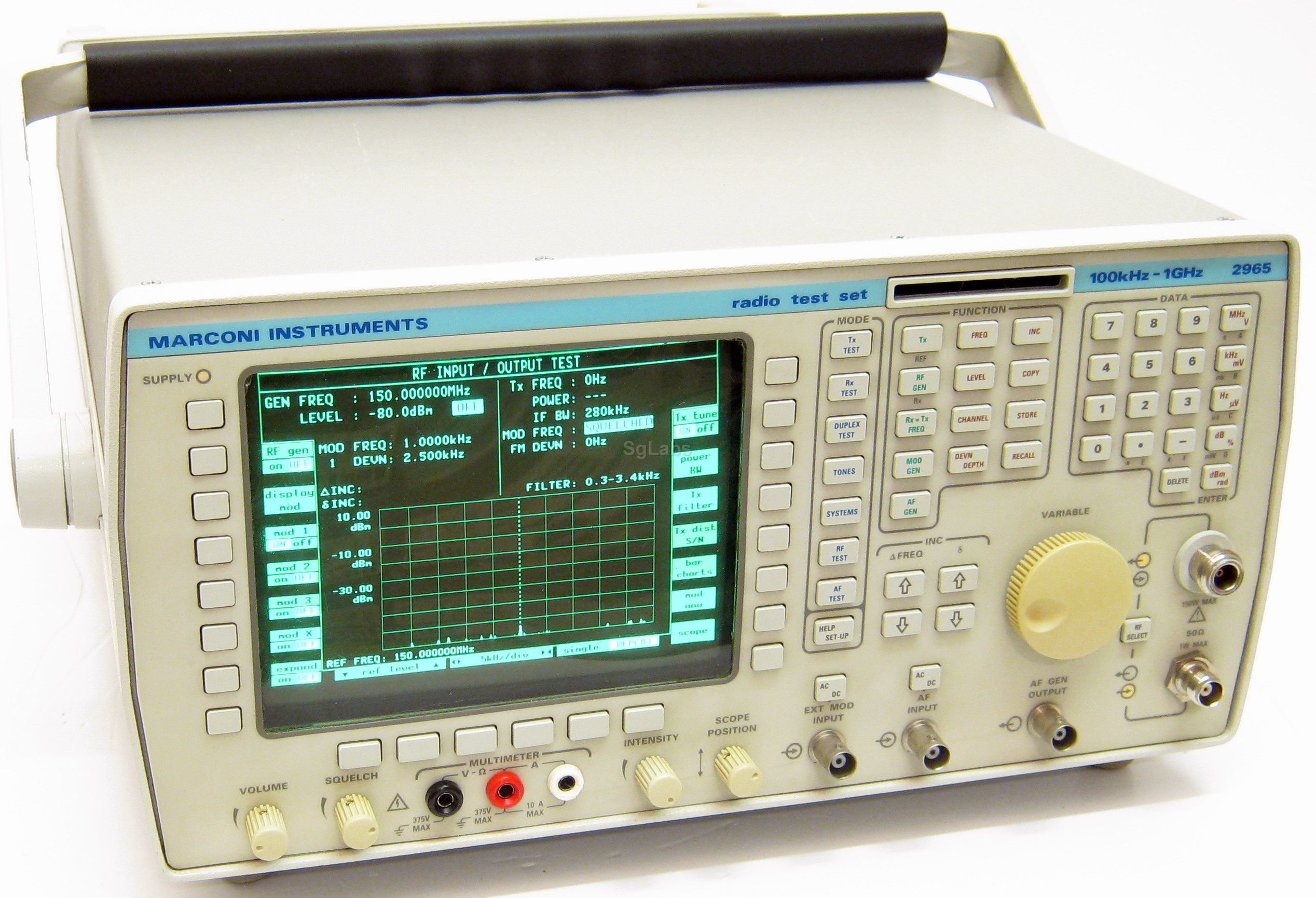

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Radio Test Set The Marconi/Aerflex/IFR 2965 Radio Test Set is a comprehensive measuement system for all types of mobile radio testing applications including personal mobile radio (simplex and duplex) and cellular systems. It is suitable for making high performance radio system measurements in research and development, production and maintenance. A high-performance, full-span RF spectrum analyzer with tracking generator is provided. This has features to enable component and sub-unit testing in addition to precision transmitter measurements. A 20Hz to 40kHz AF spectrum analyzer is provided to ensure total measurement capability. The large, bright display has soft keys at each side and beneath it. With the logical layout of the dedicated keys, this allows the many types of measurements of which the test set is capable, to be carried out quickly and easily. An important operating feature is the ability to utilize several forms of automatic control and interfacing standards. These include IEEE 488.2 and RS-232 remote control as well as a parallel printer port.

Options
:
Option 10 = NMT CELLULAR SOFTWARE
Option 11 = AMPS CELLULAR SOFTWARE
Option 12 = TACS CELLULAR SOFTWARE
Option 13 = MPT1327 TRUNKING SOFTWARE
Option 14 = PMRTEST SOFTWARE

Technical details:

  • High performance, full span spectrum analyzer
  • Tracking generator with variable level
  • Fast analyzer for audio & modulation signals
  • CRT display
  • VGA color monitor output
  • 500 kHz digital storage oscilloscope
  • Bilt-in analog cellular standards
  • Digital option for GSM
  • Fast, high performance signal generator
  • Built-in multimeter
  • LF generators
  • Accurate broadband power meter from 1mW to 150W
  • RS-232, IEEE 488.2 and Centronics interfaces
  • Power supply: AC/DC
  • Dynamic range spectrum analyzer: included with tracking generator
  • Max. Frequency: 1 GHz
  • Min. Frequency: 100 KHz
  • Measure: TX/RX
