IFR 2399CSpectrum Analyzer 3 GHz

You are here: Spectrum Analyzer » Digital

IFR 2399CSpectrum Analyzer 3 GHz
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The 2399C is the latest in the range of spectrum analyzers from Aeroflex providing exceptional performance at an exceptional price.

The local oscillator system in the 2399C is fully synthesized thus providing accurate frequency measurements with 1 Hz resolution.

With a weight of only 9.4 kg (20.7 lbs.) the 2399C is one of the lightest spectrum analyzers available. A truly portable unit!

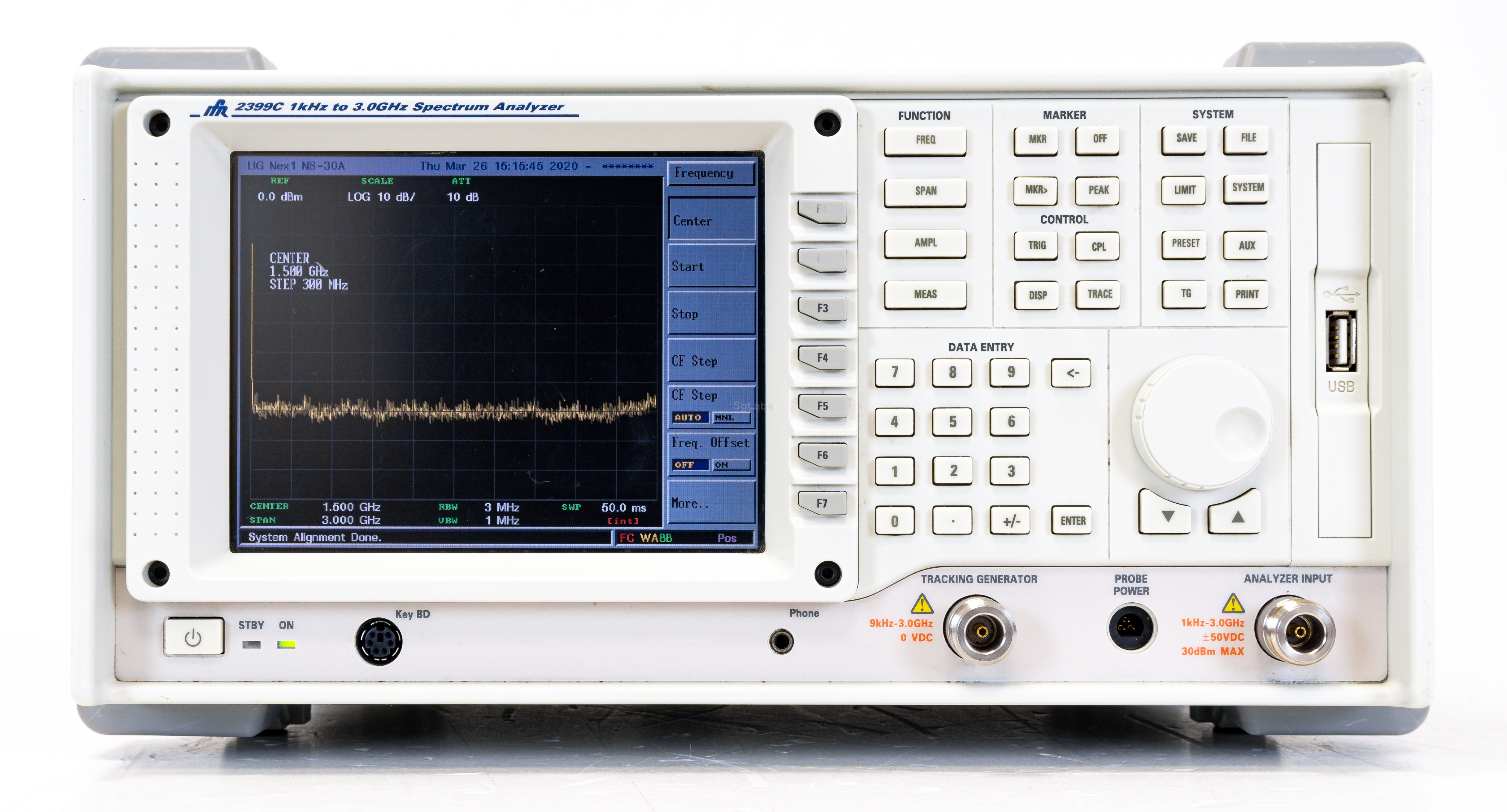

The 6.4 inch TFT color LCD in the 2399C provides a clear, bright, sharp display with a 640 x 480 pixel active display area viewable in high ambient light conditions.

The marker system allows up to a maximum of 9 markers to be displayed on the screen at any one time. A marker table shows the frequency and level of each marker selected thus allowing multiple signals to be evaluated simultaneously. In addition to the Normal markers 2399C provides Delta, Peak Search, Peak Track, 1/Delta, Marker Track, Marker to Center and Marker to Reference capabilities.

• 1 kHz to 3 GHz fully synthesized frequency range
• Lightweight, portable and rugged construction at 9.4 kg (20.7 lbs)
• Excellent TFT color display
• Comprehensive marker facility
• Wide input signal range +30 dBm to -110 dBm
• Optional tracking generator
• Semi-automated measurements
• USB 2.0 interface
• Extremely user friendly MMI reduces risk of operator error
• Auto-Tune facility
• GPIB as standard
• AM/FM demodulation
  • Demodulator: AM/FM
  • Display: TFT color
  • Max. Frequency: 3 GHz
  • Min. Frequency: 1 kHz
  • Tracking generator: Optional
