HP Agilent Keysight, 8502A H26

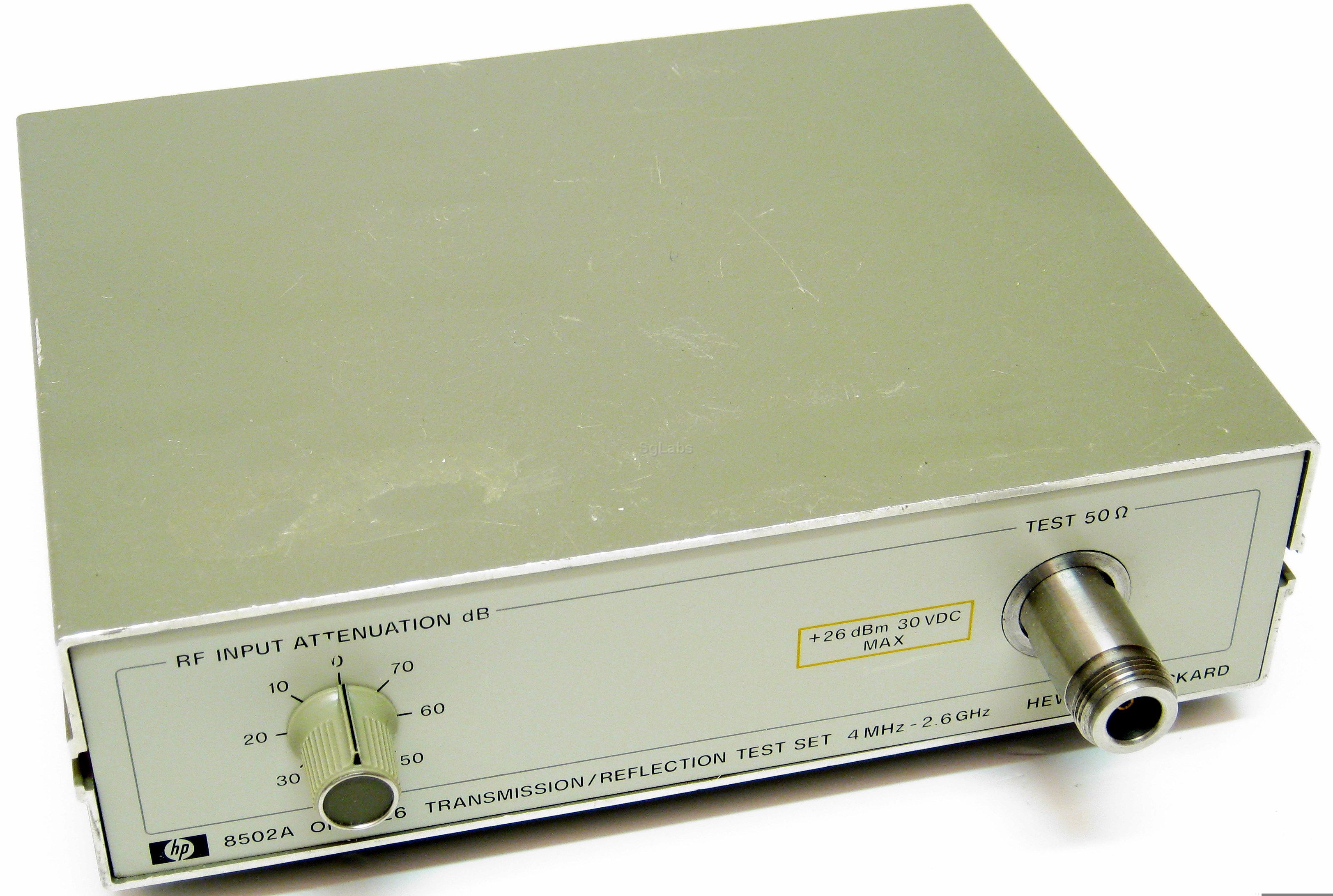

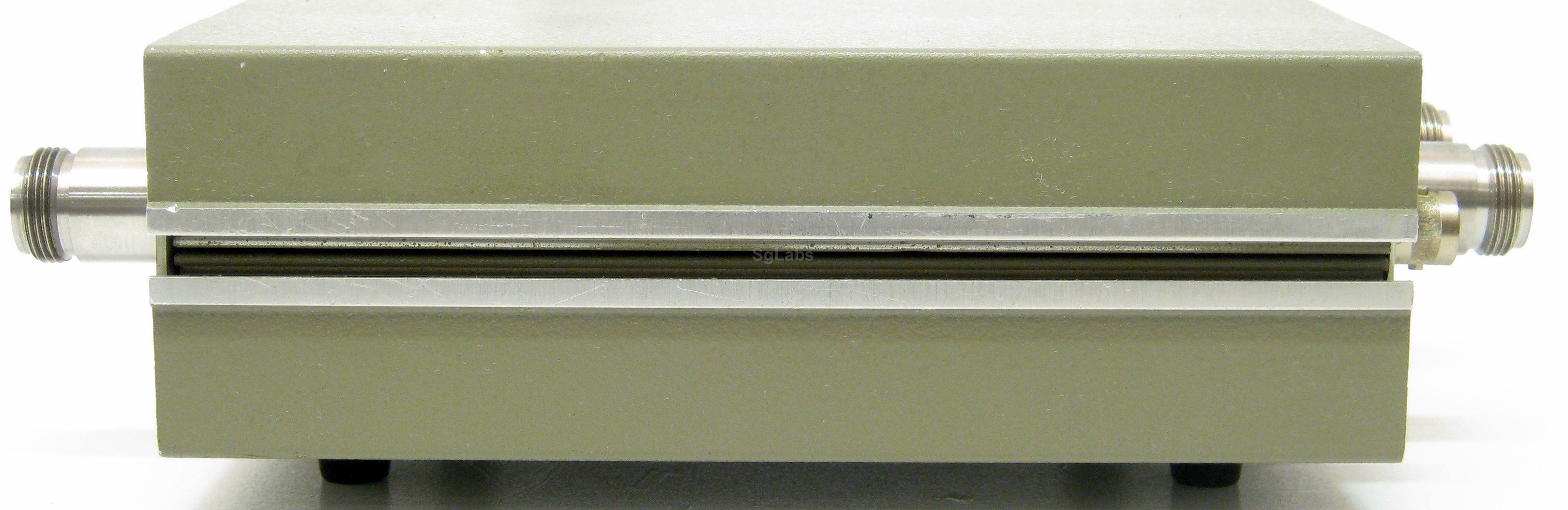

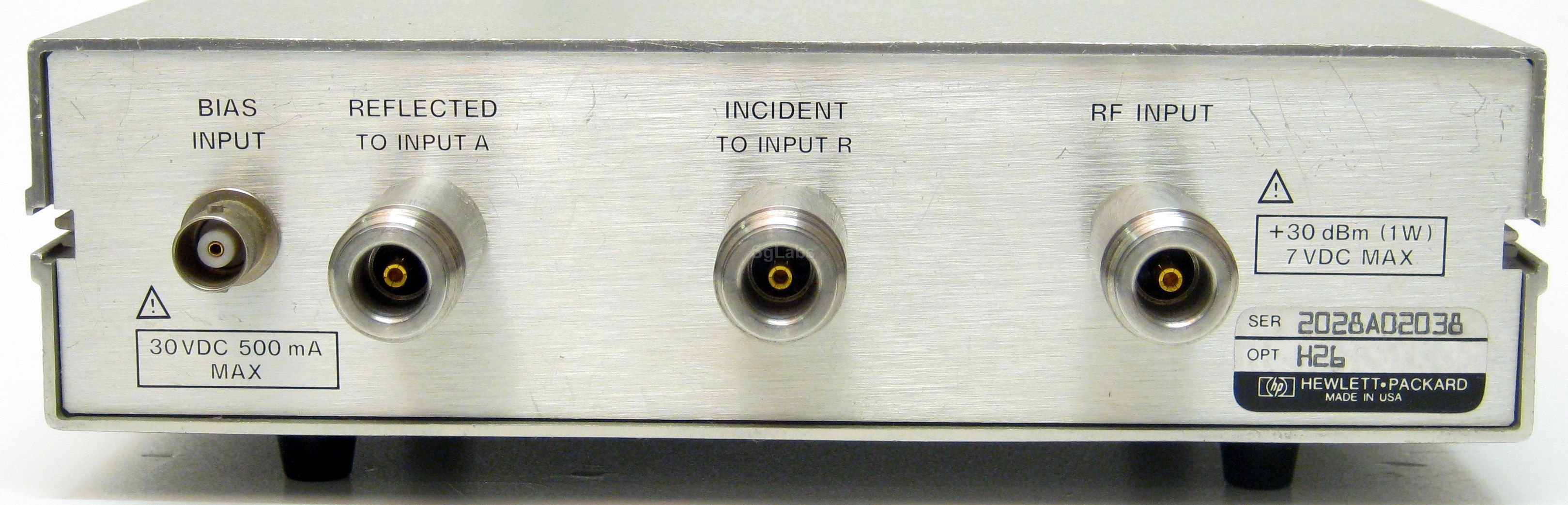

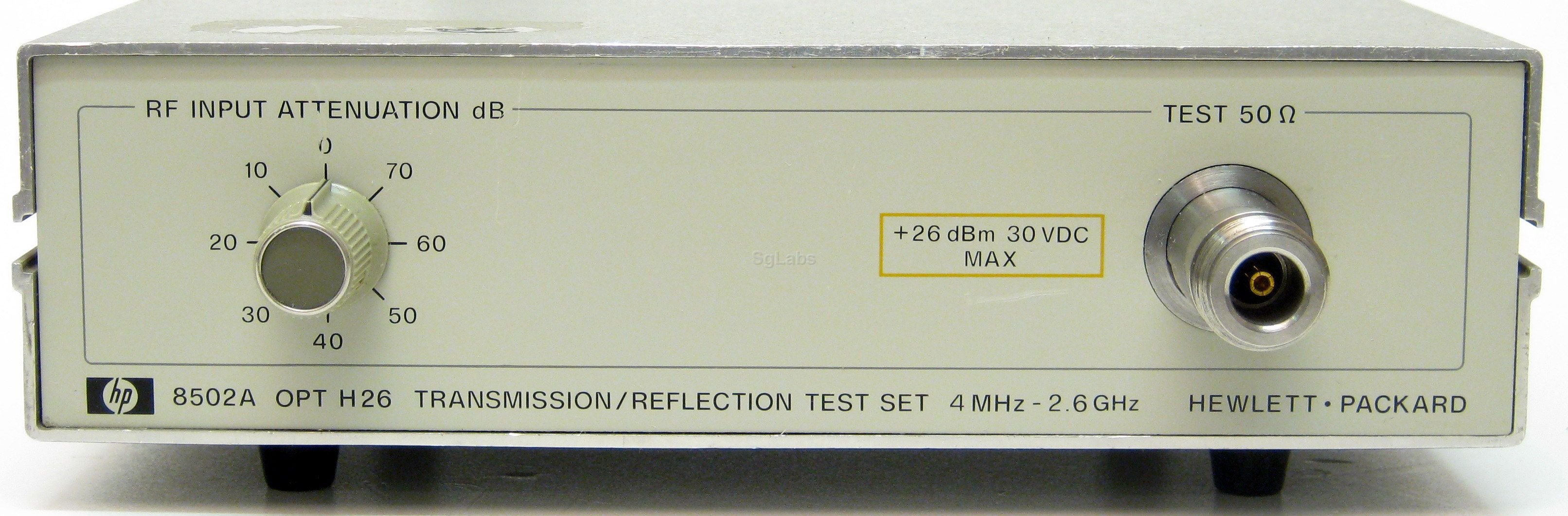

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP 8502A Transmission set provides all of the RF hardware necessary to make simultaneous transmission and reflection measurements between 500 kHZ and 1300 MHz (4 MHz -2.6 GHz opt H26). The test set consists of an RF power splitter to develop a reference or incident signal, a directional bridge to develop a reflected signal, and a attenuator to control the signal incident on the device under test.
Features
  • Frequency Range: 500 kHz - 1.3 GHz (4 MHz - 2.6 GHz w/ option H26)
  • Impedance 50 Ohms
  • Directivity: >35 dB up to 1300 MHz, >30 dB from 1.3 GHz up to 2.6 GHz
  • Frequency Response:
    • Magnitude: < 0.9 dB up to 1.3 GHz,
    • Phase: < +/-10 degree up to 1.3 GHz, +/-15 degree up to 2.6 GHz
  • Reflection:
    • Magnitude: < +1.8dB from 4 MHz to 1.3 GHz, 3 dB up to 2.6 GHz
    • Phase: < +/- 10 degree from 4 MHz to 1.3 GHz, +/-15 degree up to 2.6 GHz
  • Connector: N(f)
  • Directivity: 30 dB 2.6 GHz
  • Max. Frequency: 2.6 GHz (opt H26)
  • Min. Frequency: 4 MHz (opt. H26)
Price
 € 650,00
