HP Agilent Keysight, 5386A

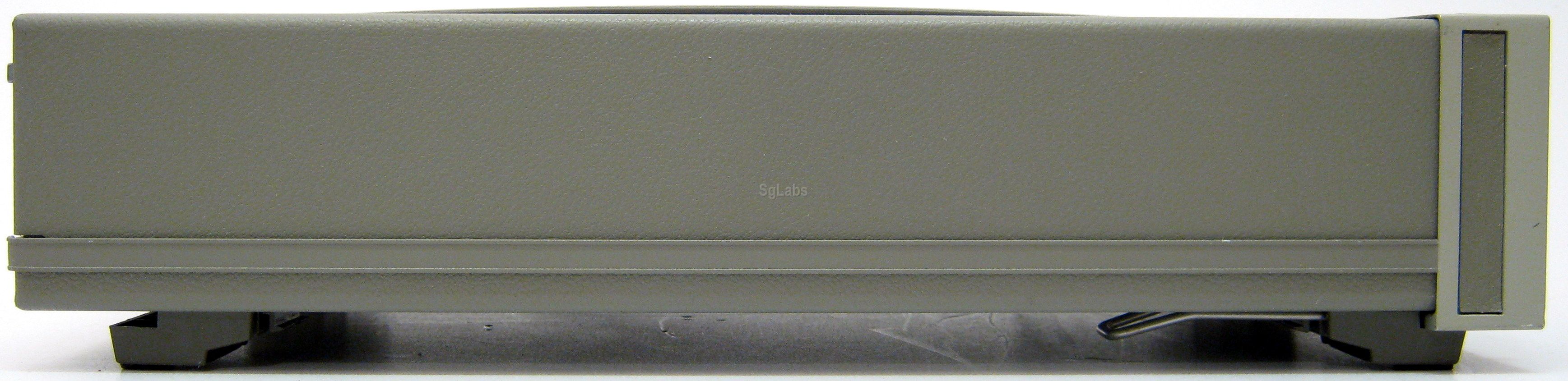

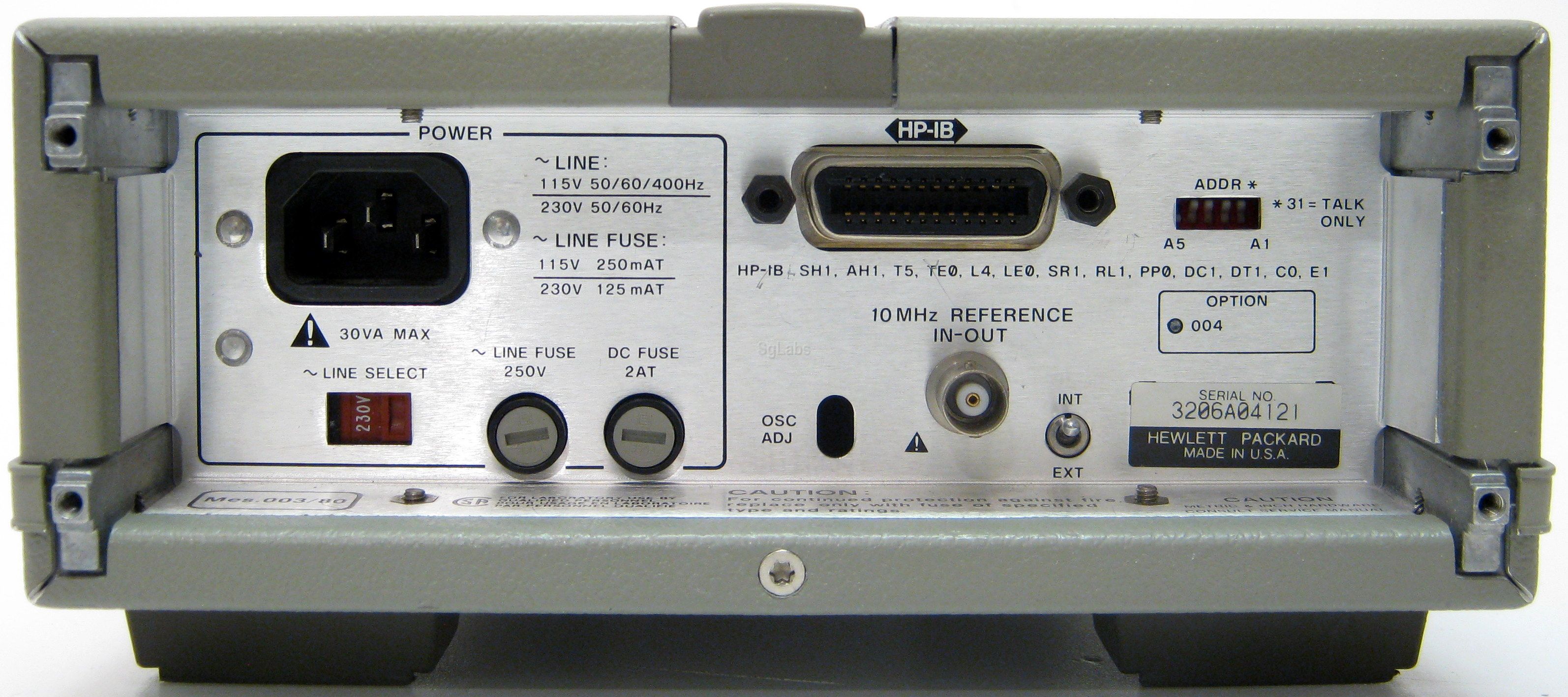

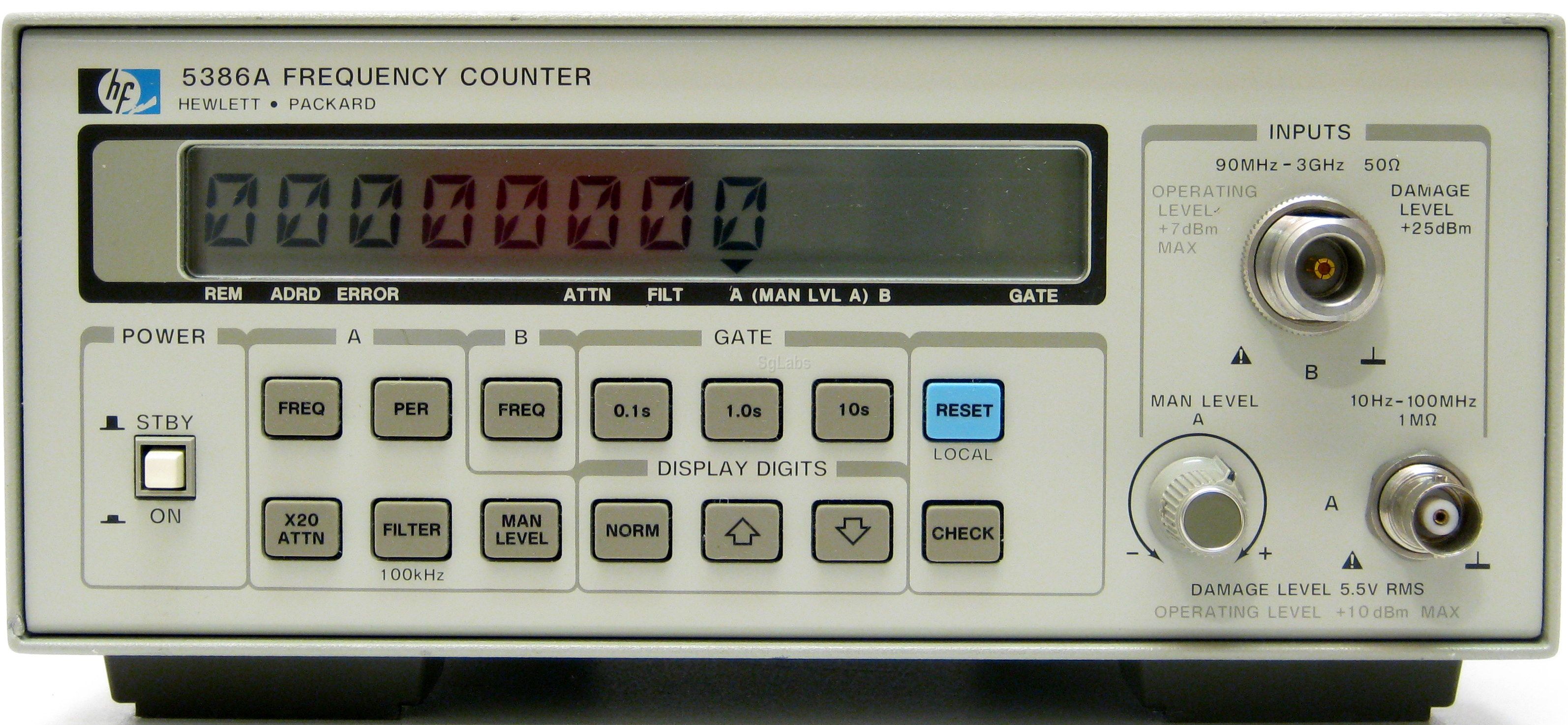

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Agilent 5386A Frequency Counter offers prescaled measurements to 3 GHz based on gallium arsenide (GaAs) technology. The GaAs prescaler and attenuator circuitry are integrated on a hybrid substrate. Bipolar technology permits the integration of reciprocal counting and interpolation techniques on a single integrated circuit. The tightly-integrated design achieves overall high performance, excellent reliability, and low cost of ownership.

The 5386A incorporates a 12-character display, accessible remotely via HP-IB. The liquid crystal display (LCD) can be read in direct sunlight, and has large characters that can be seen from the end of a bench or mounted high in a test rack. The 5386A can be easily carried to remote locations for service and calibration applications.

  • Min. Frequency: 10 Hz:
  • Max. Frequency: 3 GHz
  • Digit: 9
  • Channels: 2
  • Max. Frequency: 3 GHz
  • Min. Frequency: 10 Hz
  • Channels: 2
  • Digit: 9
  • Resolution: 12 digit display
  • Sensibility: -23.5 dBm
