HP Agilent Keysight, 35660A

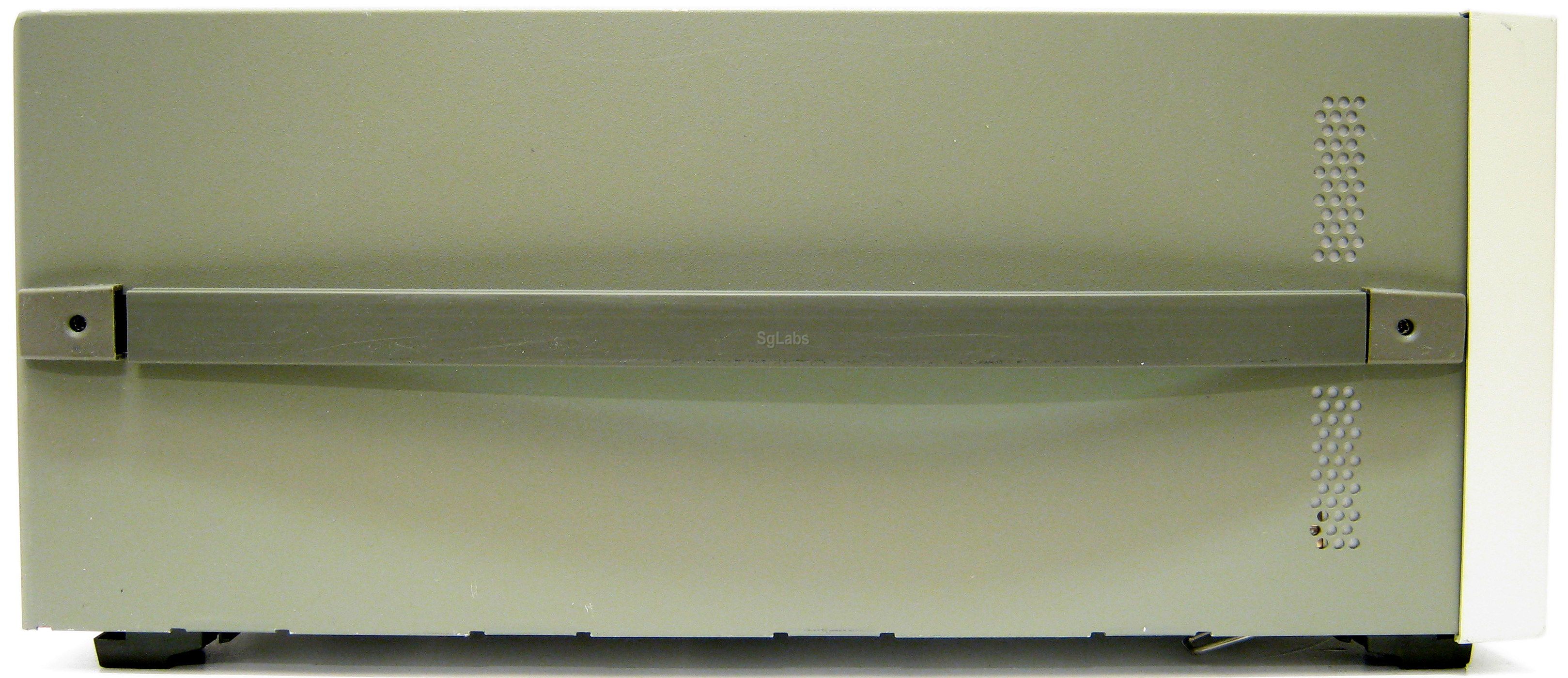

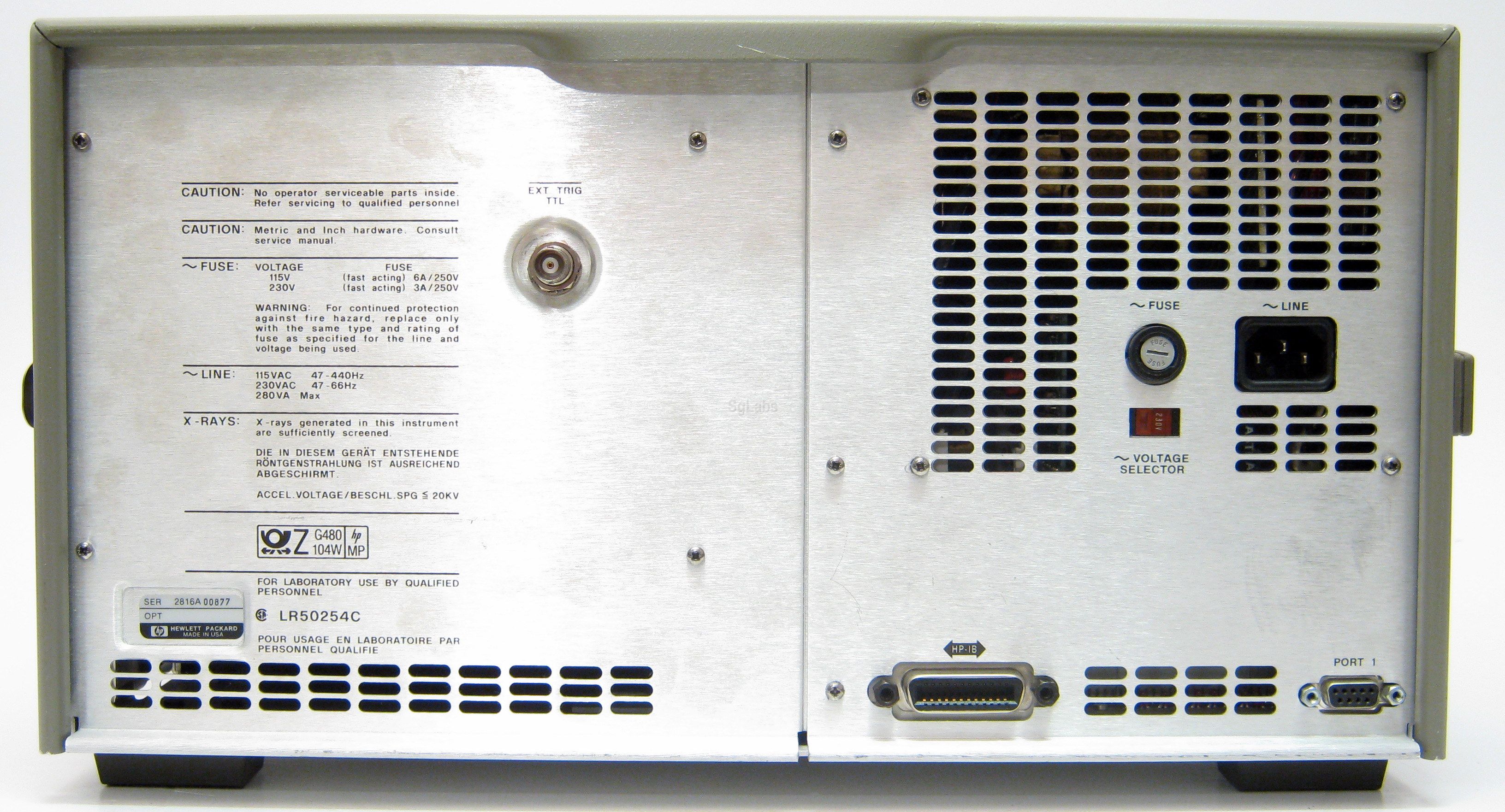

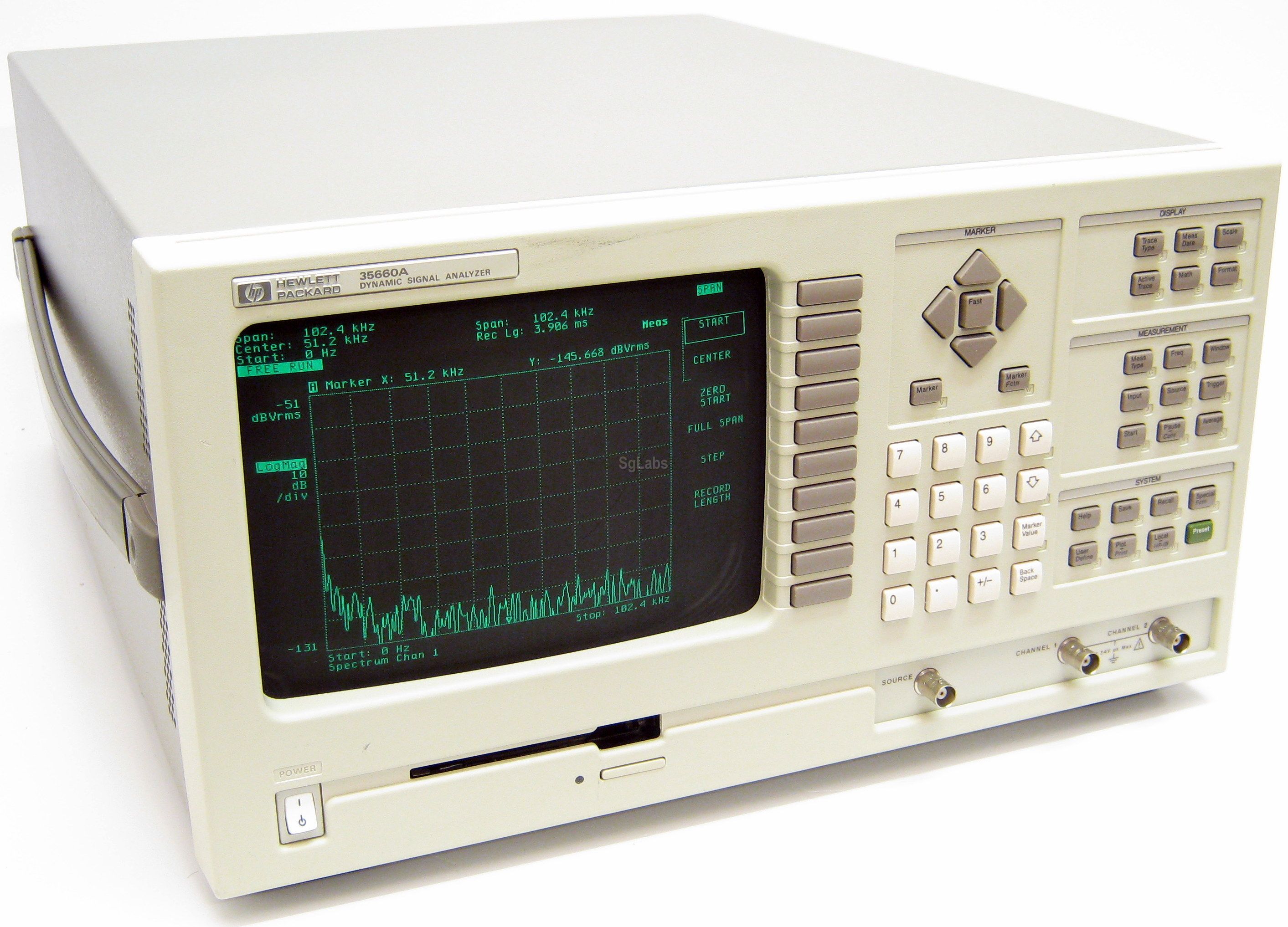

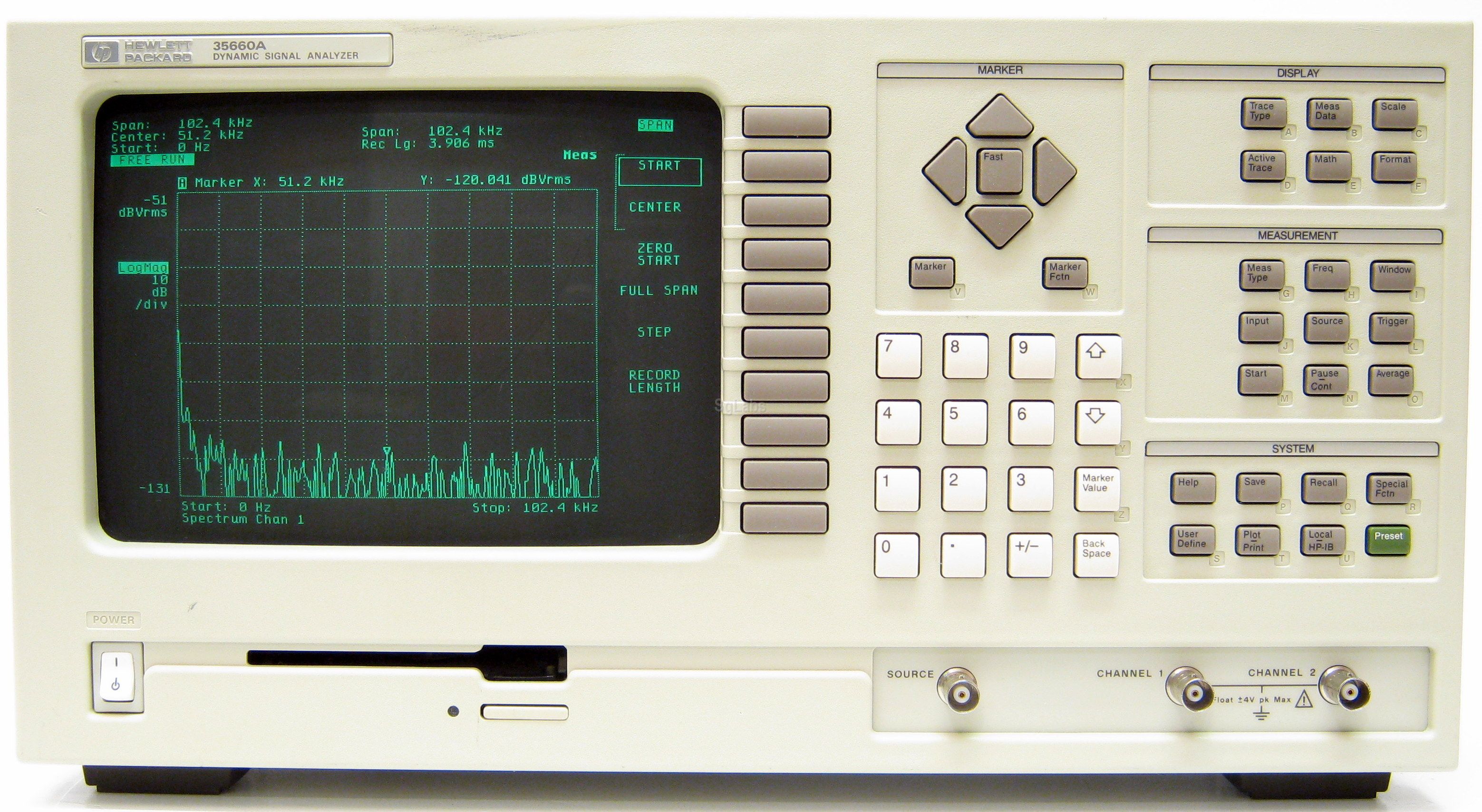

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP 35660A dynamic signal analyzer is an FFT-based instrument that provides spectrum and network measurements in electronics, mechanical test, acoustics, and other low-frequency application areas.  The analyzer also offers built-in test and automation features, traditionally available only with a computer.  These features include an internal programming language (HP Instrument BASIC), a built-in disk drive, limit testing, and data tables.  With automation built-in, the HP 35660A can save you both time and money.

The HP 35660A is typically 10 to 100 times faster than swept-spectrum analyzers for equivalent measurements, and it provides higher resolution (244 µHz throughout the 102.4 kHz frequency range).  This speed and resolution contribute to the quality of HP 35660A tests for distortion, spur level, frequency drift, intermodulation, and other signal parameters.  With two input channels and a built-ion source, the HP 35660A can quickly measure the response of a low-frequency filters and networks.

The HP 35660A is also a good choice for low-frequency transmission measurements in telecommunications and other area.  To ensure highly accurate magnitude and phase measurements, the HP 35660A offers ±0.4dB gain and ±1.0 degree input channel phase match.  For custom analysis of these measurements, the HP 35660A provides a wide range of waveform math features.

The HP 35660A is well-suited to applications that require vibration monitoring at full load.  With the built-in limit tables, users can implement vibration and health monitoring programs on engines, machine tools, and other equipment, without an external computer and without programming.  The analyzer's internal disk drive makes it easy to record, store, and recall limits for production or maintenance testing.

The HP 35660A uses forces and exponential windows to perform frequency response testing of mechanical devices and structures.  Using HP Instrument BASIC, the analyzer can simplify data collection for your modal surveys.  For complete modal analysis, you can choose from several third-party modal packages.

Another application area for the HP 35660A is acoustics and noise measurements.  This includes testing for room and device responses, noise identification and level, and underwater acoustic tests such as sono-buoy and sonar transducer testing.  Acoustic intensity measurements are available with third-party software.

Technical Details:

  • 1-channel at 102.4 kHz, 2 channels at 51.2 kHz
  • 401-line resolution
  • Built in 3.5 inch floppy disk
  • Source: Random, sine, chirp.
  • Display: CRT monochrome
  • Max. Frequency: 102 KHz
  • Min. Frequency: 244 microHz
  • Tracking generator: internal
 € 850,00
