HP Agilent Keysight, 33120A

You are here: Function Generator » Digital Arbitrary

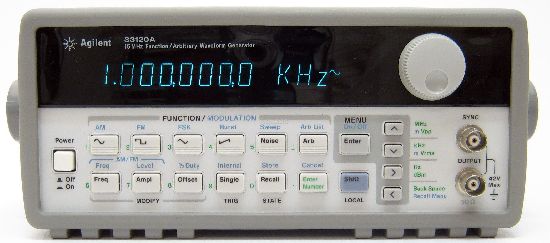

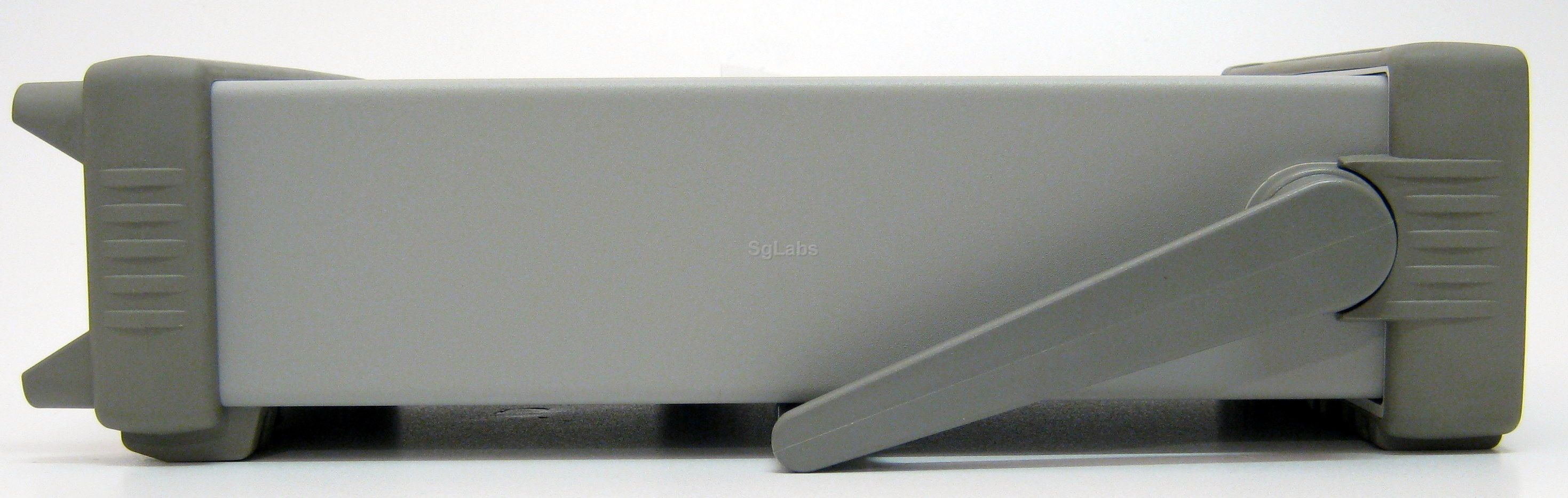

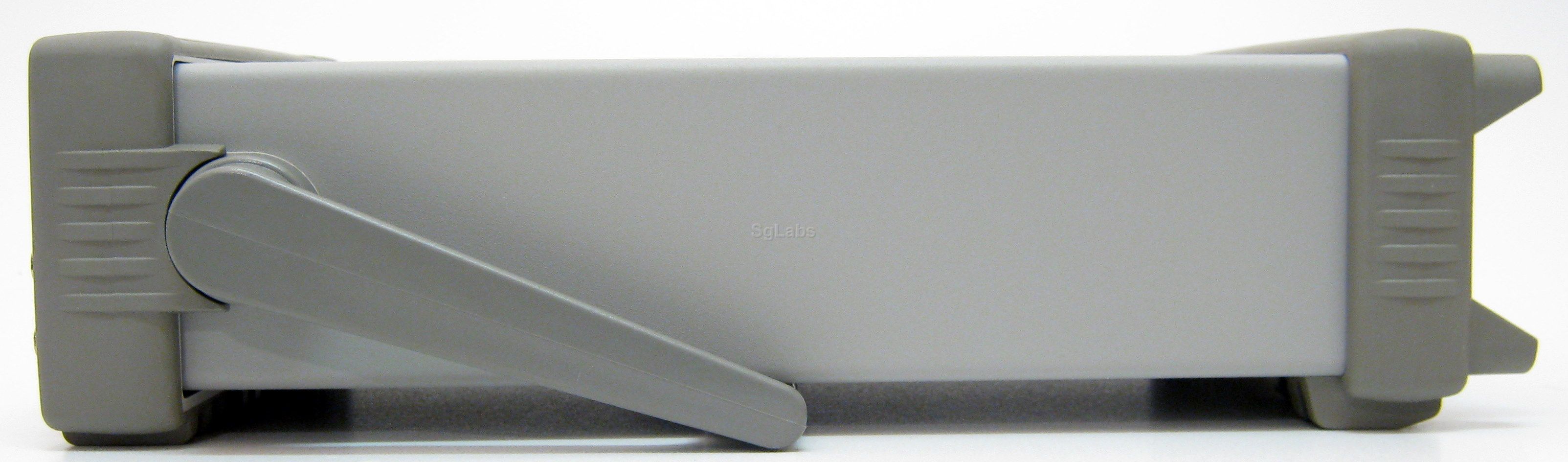

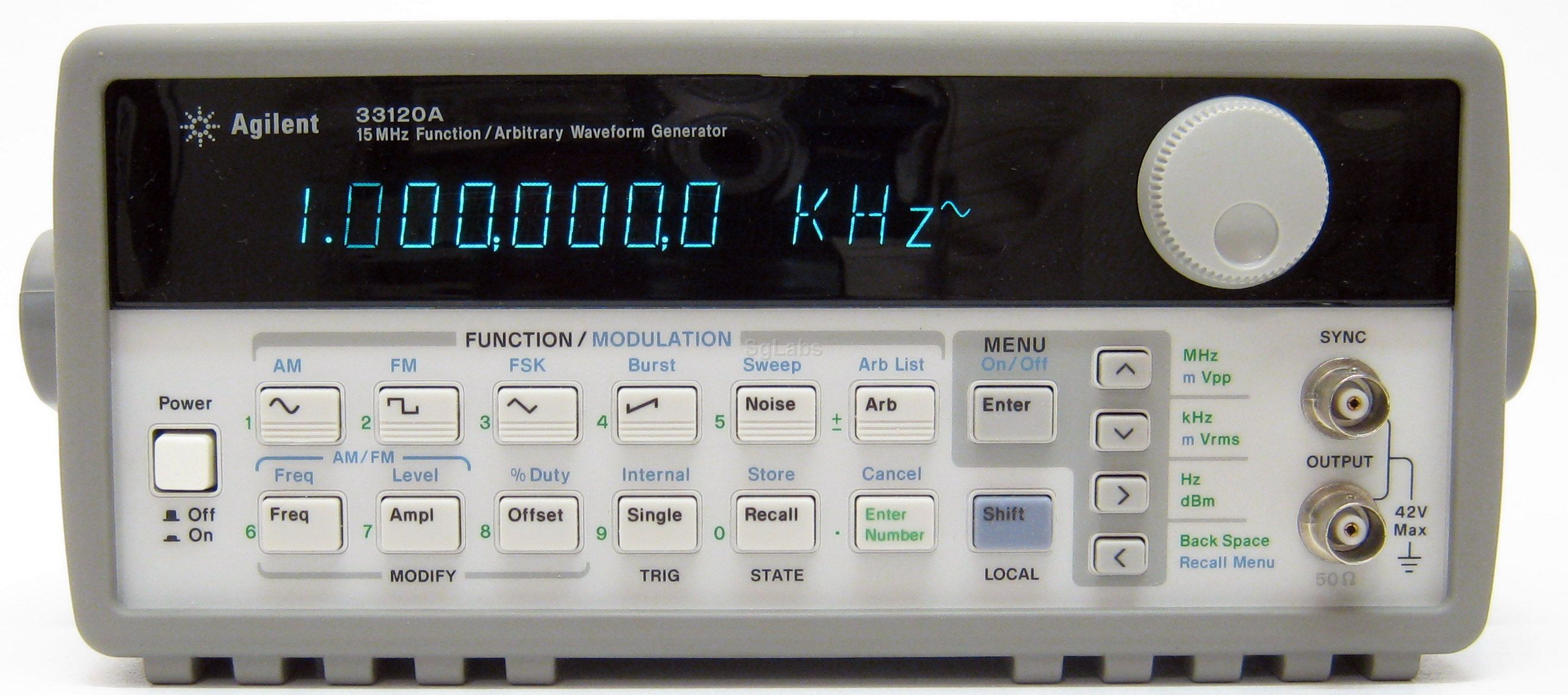

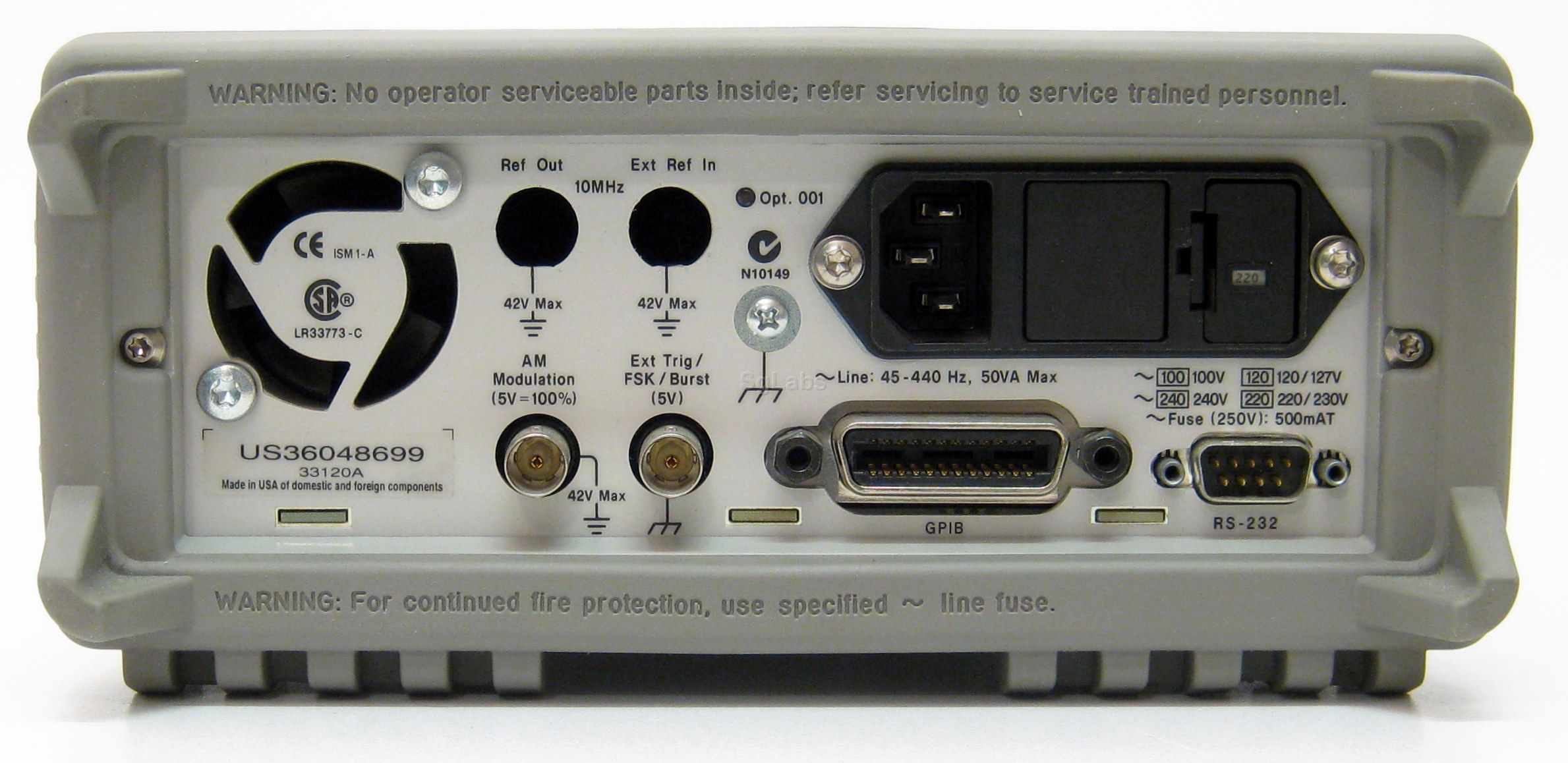

HP Agilent Keysight, 33120A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The HP 33120A Function/Arbitrary Waveform Generator uses direct digital-synthesis techniques to create a stable, accurate output signal for clean, lowdistortion sine waves. It also gives you fast rise- and fall-time square wave, and linear ramp waveforms down to 100 μHz.

  • Frequency range from 100 µHz up to 15 MHz
  • Resolution 12 bit
  • Sample 40 MSa/s
  • Interface HP-IB e RS-232
  • Waveform lenght from 8 up to 16.000 point
  • Harmonic distorsion -70 dBc (up to 20 kHz)
  • Max. Frequency: 15 MHz
  • Min. Frequency: 100 uHz
  • Max. Level: 20 Vpp
  • sweep: yes
