HP Agilent Keysight, U1732C

You are here: LCR / Impedance » Handheld

HP Agilent Keysight, U1732C

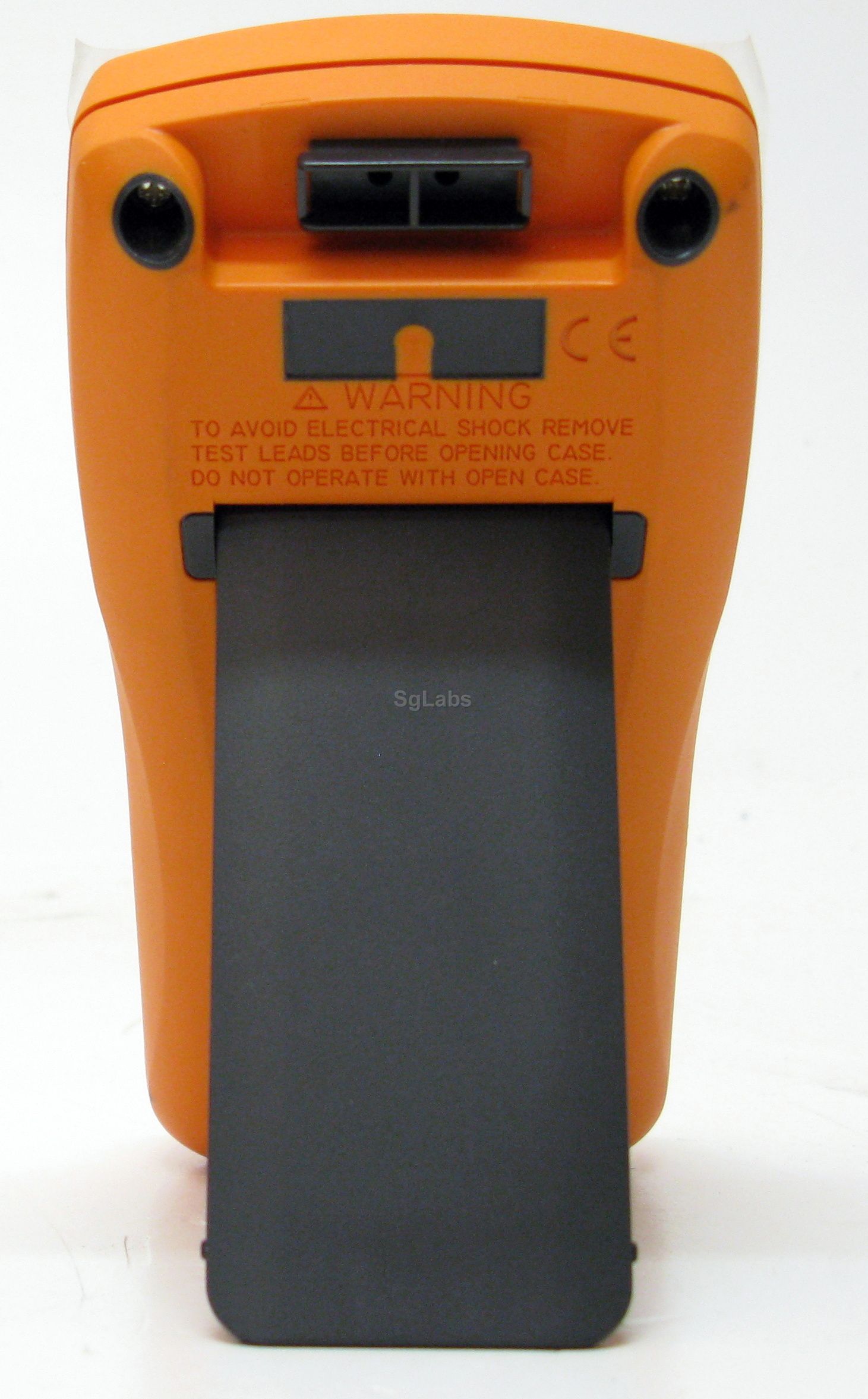

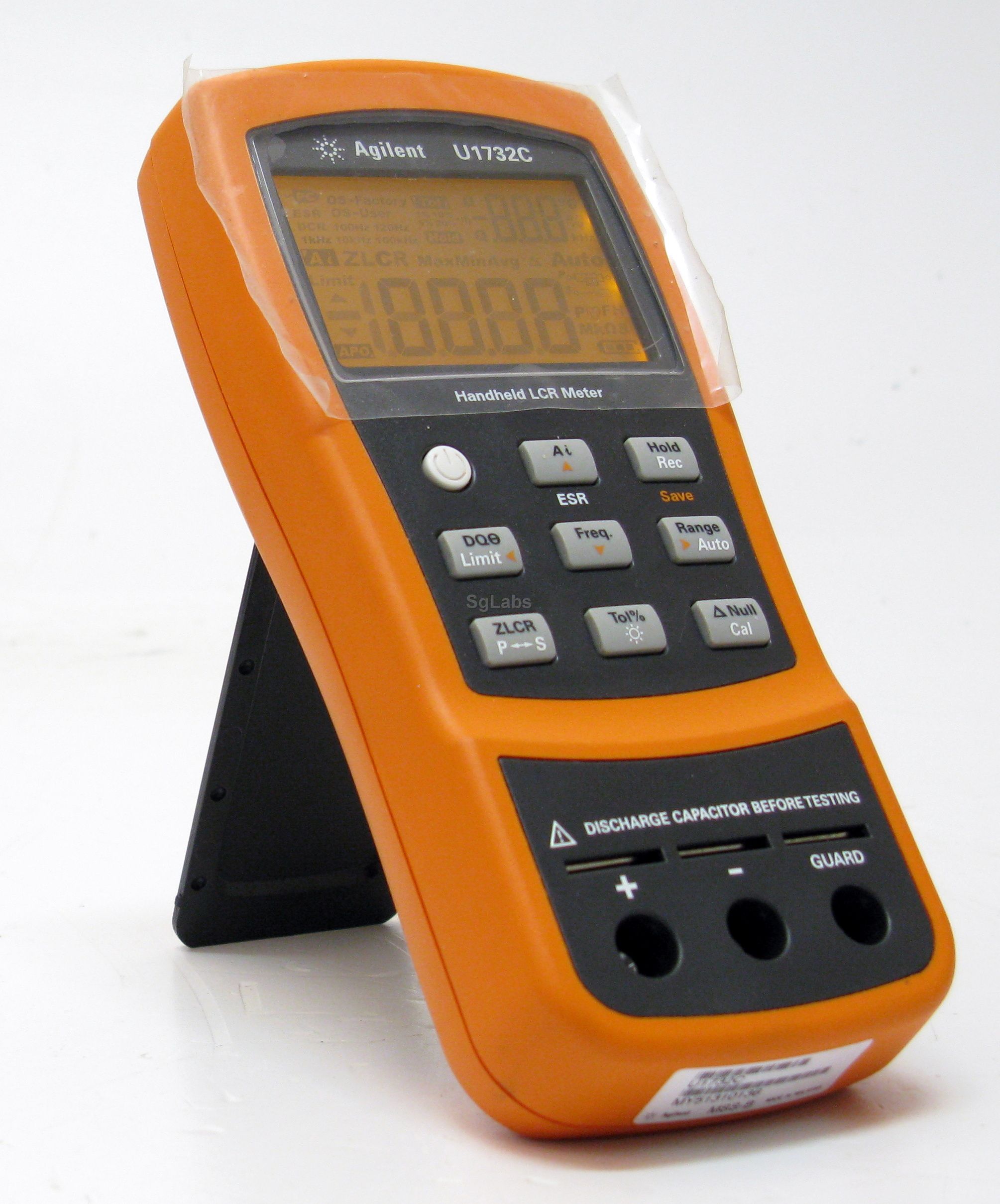

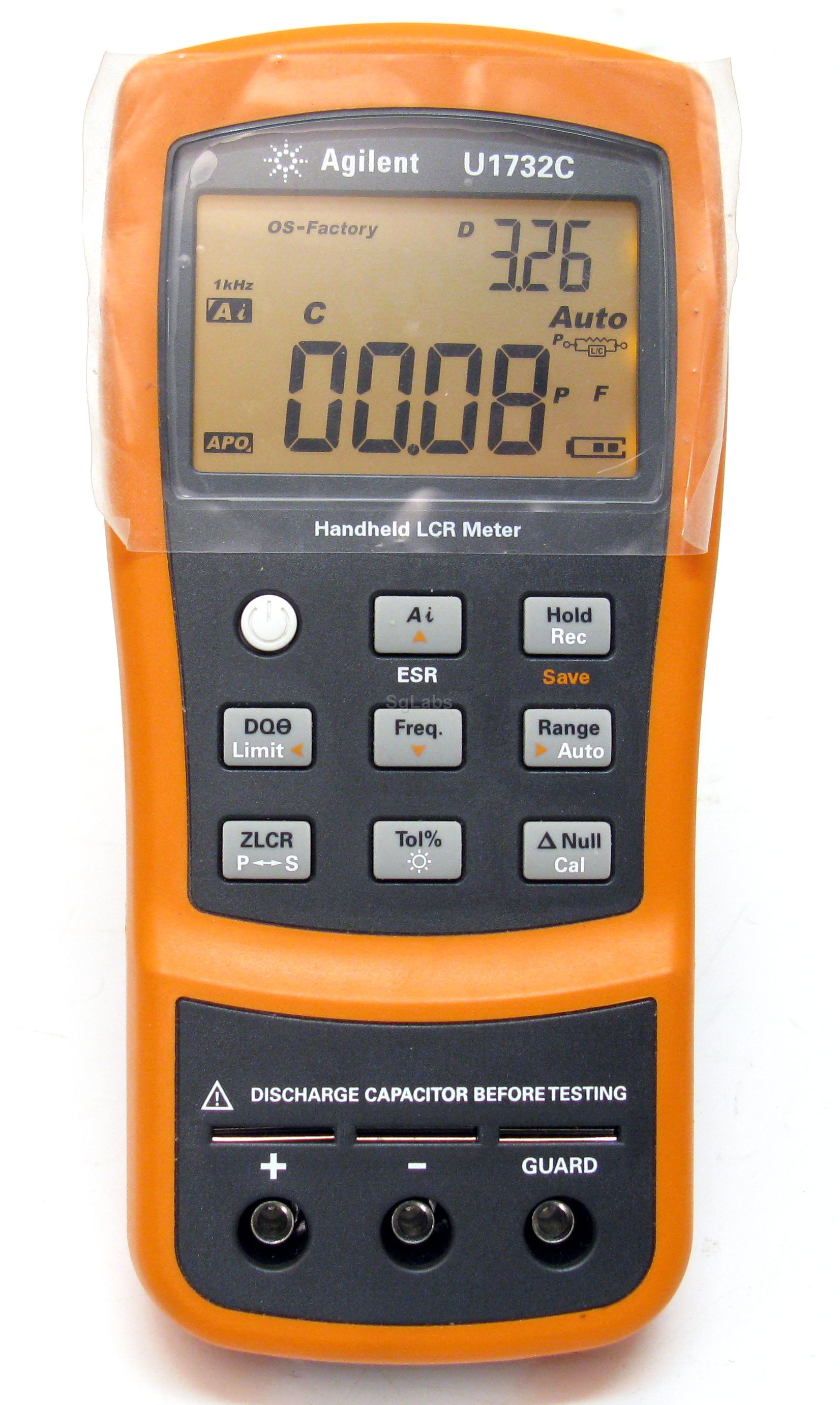

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Agilent’s U1730C Series handheld LCR meters allow you to measure at frequencies as high as 100 kHz—a capability typically found only in benchtop meters. Get measurements done faster using the one-touch automatic identification function button which displays  component type and more detailed component analysis such as Z, ESR, and DCR. Ideal for testing on the go, these LCR meters  operate on a battery that lasts up to 16 hours. With the U1730C Series that is built for your convenience, you can perform quick and basic LCR measurements at an affordable price.
Features
  • 20,000 counts resolution
  • 0.2% accuracy
  • Wide LCR ranges with 4 selectable test frequencies (100Hz, 120Hz and 1kHz and 10kHz)
  • Auto identification(Ai) which automatically determines and displays component type and measurements
  • Detailed component analysis with ESR, Z, D, Q, Ө functions
  • Battery life of 16 hours/Ac-powered
  • IR-to-USB connectivity for data logging to PC
  • Accuracy: 0.2 %
  • Frequency range: 100Hz, 120Hz, 1kHz, 10kHz
  • Resolution: 20,000 counts
