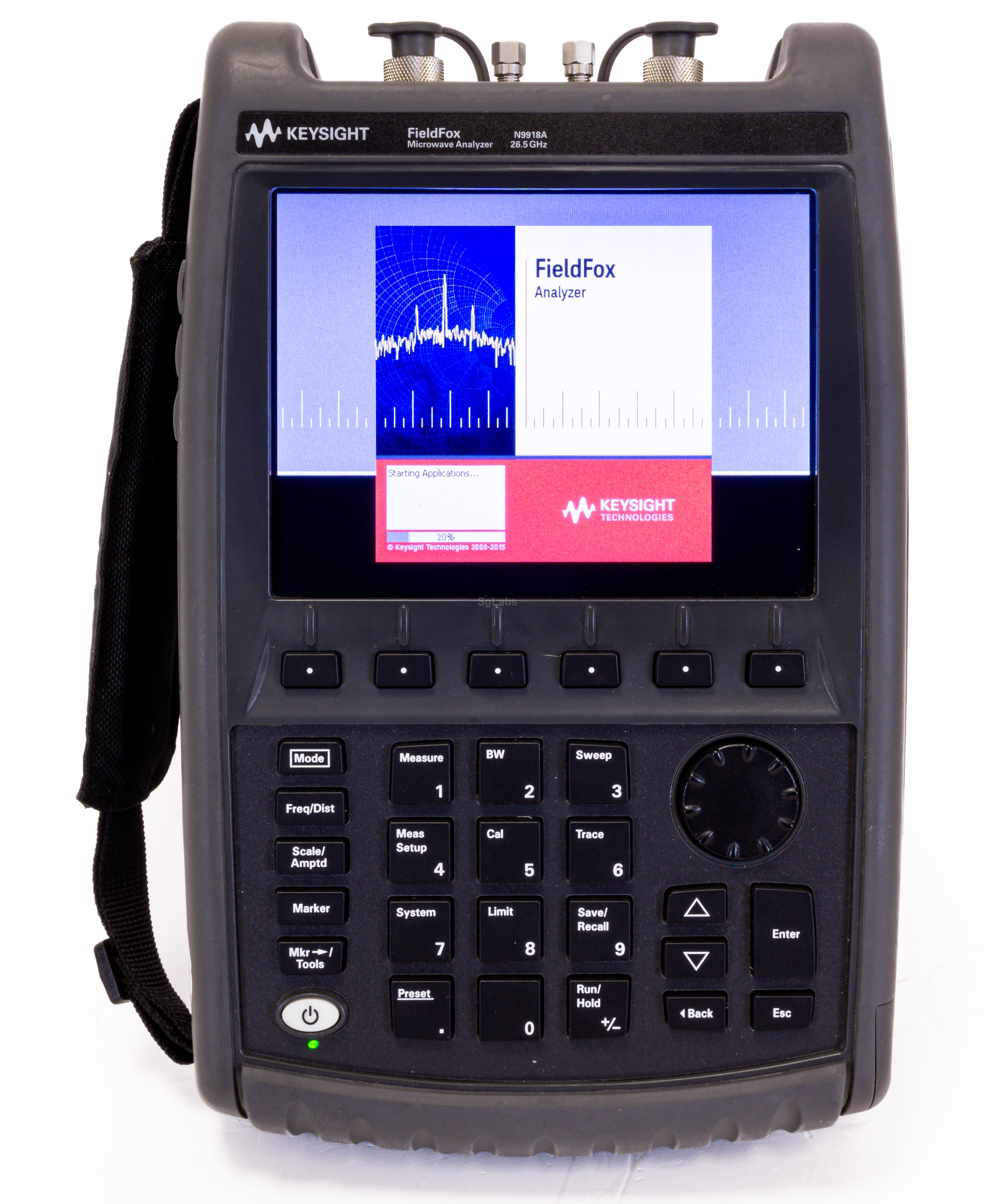

HP Agilent Keysight N9918A Fieldfox 26.5 GHz Spectrum Network Analyzer
You are here: Network Analyzer » Vector

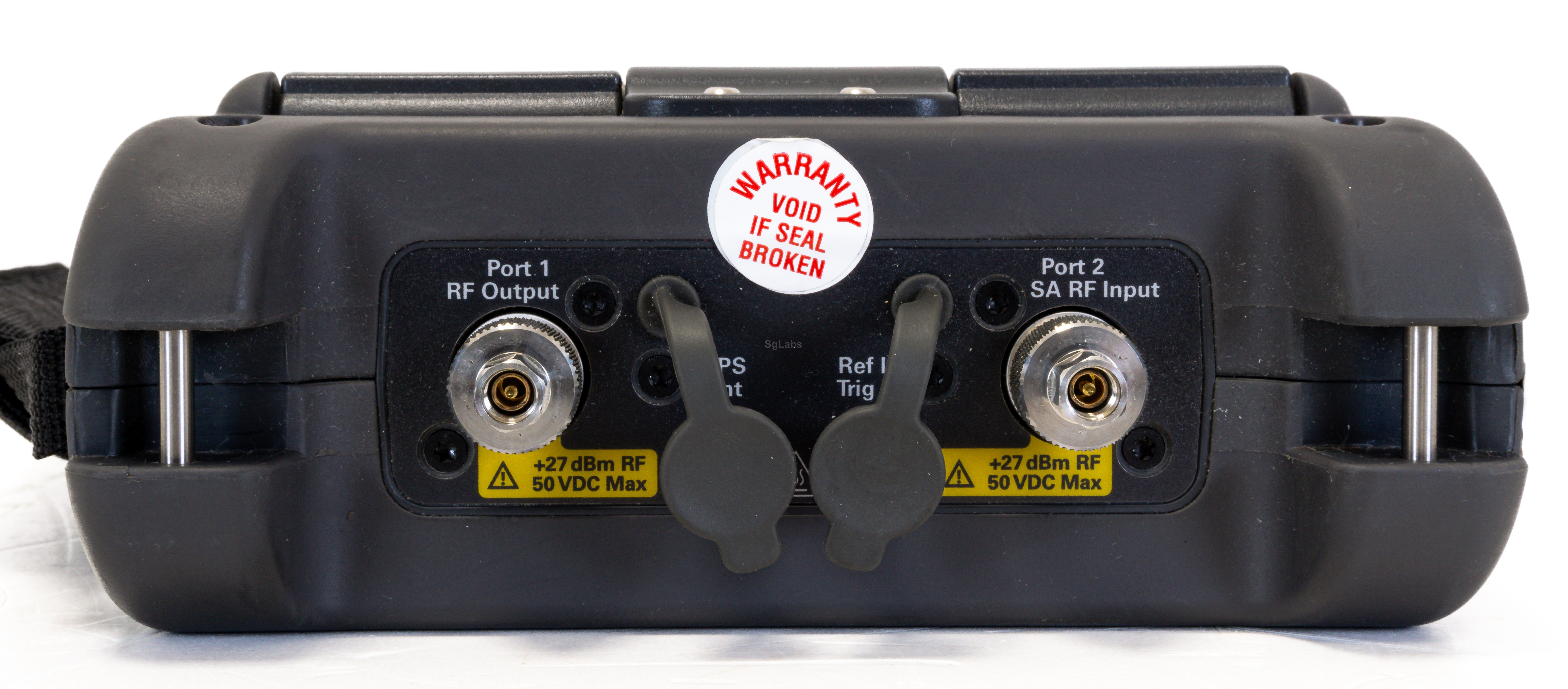

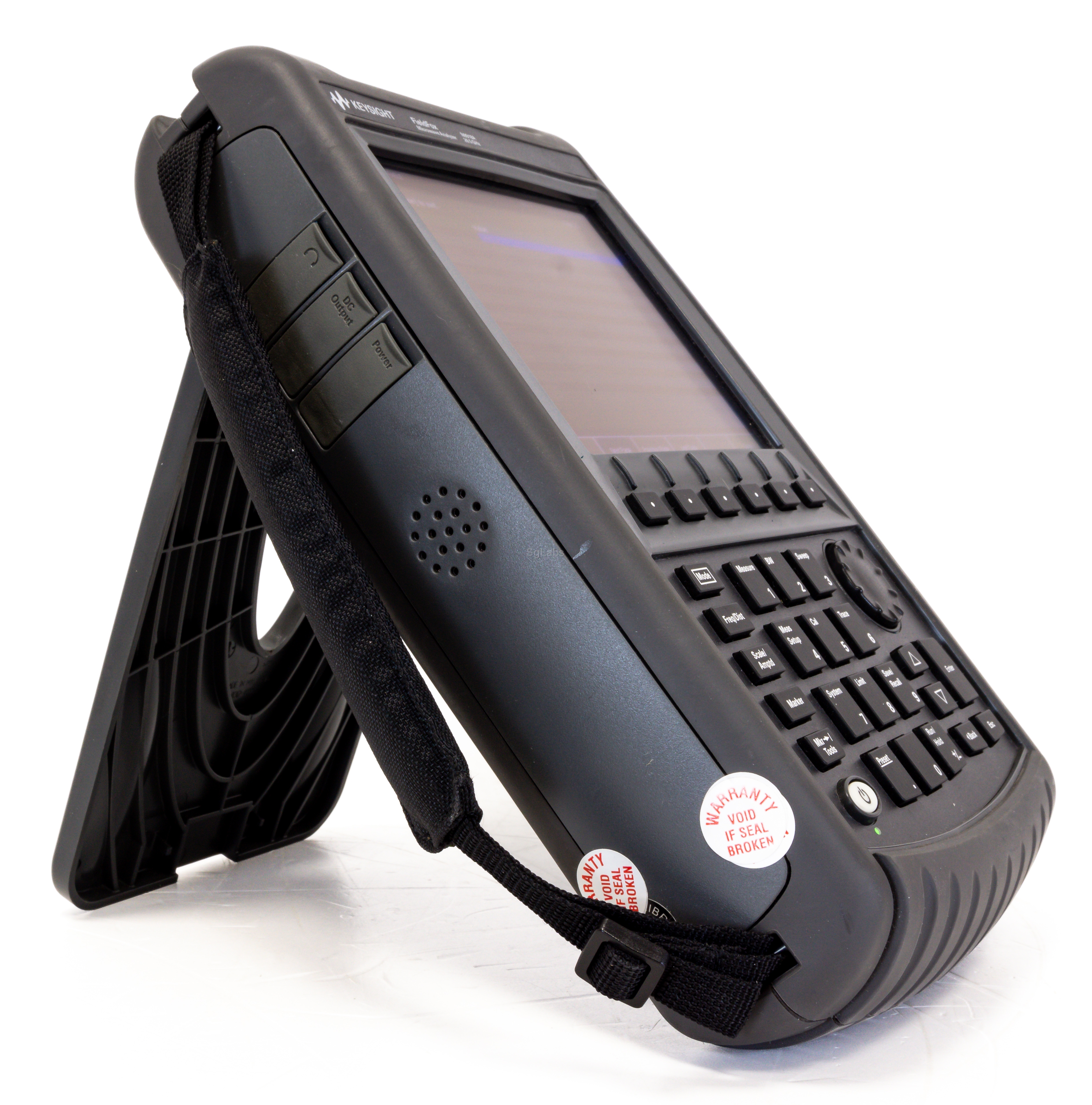

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
FieldFox Handheld RF and Microwave Analyzers
Features
Cable and Antenna Analyzer (CAT), Vector Network Analyzer (VNA)

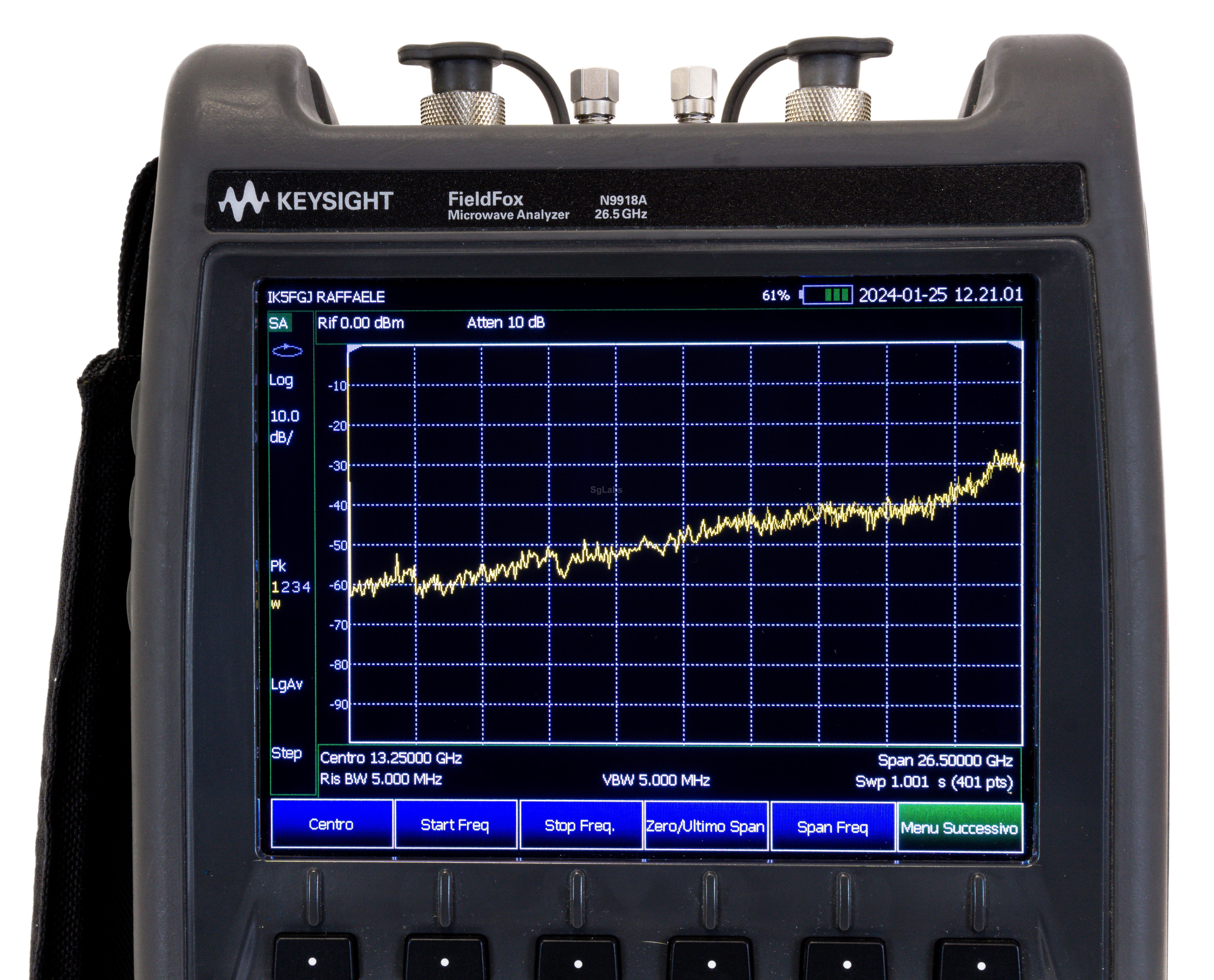

Spectrum Analyzer
- 5 kHz to 26.5 GHz
- ± 0.6 dB amplitude accuracy, full band, over full temperature range of -10 to +55°C (14 to 131°F)
- Spur-free dynamic range: ≥ 105 dB
- Full-band tracking generator
Options:
- N9918A-010 Vector network analyzer time domain
- N9918A-030 Remote control capability
- N9918A-112 QuickCal
- N9918A-208 USB power sensor measurements versus frequency
- N9918A-209 Extended range transmission analysis (ERTA)
- N9918A-210 Vector network analyzer transmission/reflection
- N9918A-211 Vector network analyzer full 2-port S-parameters
- N9918A-212 1-port mixed-mode S-parameters
- N9918A-215 TDR cable measurements
- N9918A-233 Spectrum analyzer
- N9918A-235 Pre-amplifier
- N9918A-236 Interference analyzer and spectrogram
- N9918A-238 Spectrum analyzer time gating
- N9918A-302 USB power sensor support
- N9918A-307 GPS receiver
- N9918A-308 Vector voltmeter
- N9918A-309 DC bias variable-voltage source
- N9918A-310 Built-in power meter
- N9918A-312 Channel scanner
- N9918A-330 Pulse measurements
- N9918A-350 Real-time spectrum analyzer (RTSA)
- N9918A-351 I/Q analyzer
- N9918A-355 Analog demodulation
- N9918A-356 Noise figure measurements
- N9918A-370 Over the air LTE FDD measurements
- N9918A-377 Over the air 5G TF measurements
- N9918A-358 EMF measurements
- N9918A-352 Indoor and outdoor mapping
- N9918A-371 Over the air LTE TDD measurements
- N9918A-361 EMI measurements
- N9918A-353 IQ streaming
- Connector: 3.5mm
- Display: LCD
- Max. Frequency: 26.5 GHz
- Min. Frequency: 5 kHz
- Channels: 2
- Source: Internal
- Tracking generator: Internal
- Interface: USB
