HP Agilent Keysight, E4432A

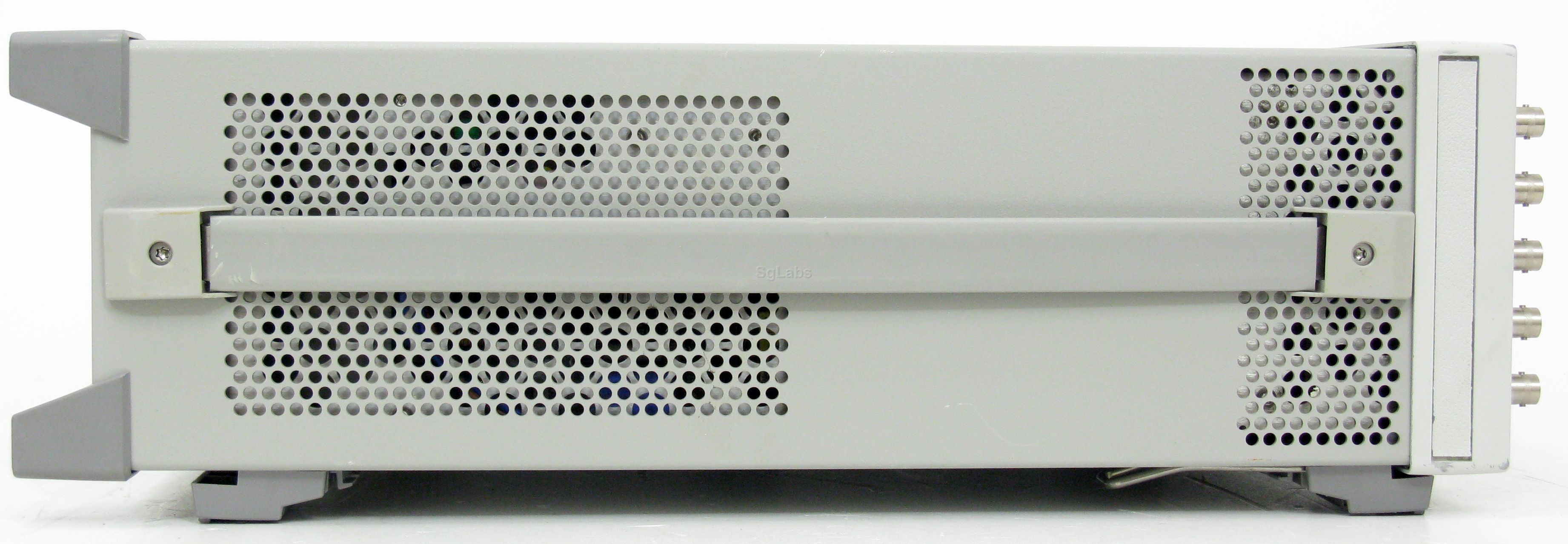

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The E4432A digital RF signal generator provides a wide range of digital modulation capabilities, in addition to a comprehensive feature set and excellent analog performance -- all at an affordable price. The first in a new generation of signal generators, it provides excellent modulation accuracy and stability, as well as unprecedented level accuracy. It is ideally suited to meet the demanding requirements of today's digital receiver test, component test and local oscillator applications. The innovative design of the E4432A provides a flexible architecture that can be tailored to meet the changing demands of evolving markets. Lower initial cost, high reliability and a two-year calibration cycle, all minimize the cost of ownership. The E4432A digital generator is designed for long-term dependability, which maximizes production throughput and uptime.
  • 250 kHz up to 3 GHz
  • Level Output up to +13dBm
  • Flexible, expandable architecture with upgrade path for options
  • Electronic attenuator, built-in function generator, superior level accuracy, and step sweep (frequency, power and list)
  • Built-in digital modulation formats for DECT, GSM, NADC, PDC, PHS, and TETRA (Option UN3/UN4)
  • External analog I and Q inputs
  • Versatile data generation with burst capabilities
  • Wideband AM and FM
  • Max frequency: 3GHz
  • Minimum Frequency: 250kHz
  • Modulation: AM-FM-Pulse-Digitali
  • Max. Output level: +13dBm
  • Min. output level: -136dBm
